Model # 30421450250 Official LXI stereo double cassette player & recorder with am/fm radio

Here are the diagrams and repair parts for Official LXI 30421450250 stereo double cassette player & recorder with am/fm radio, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

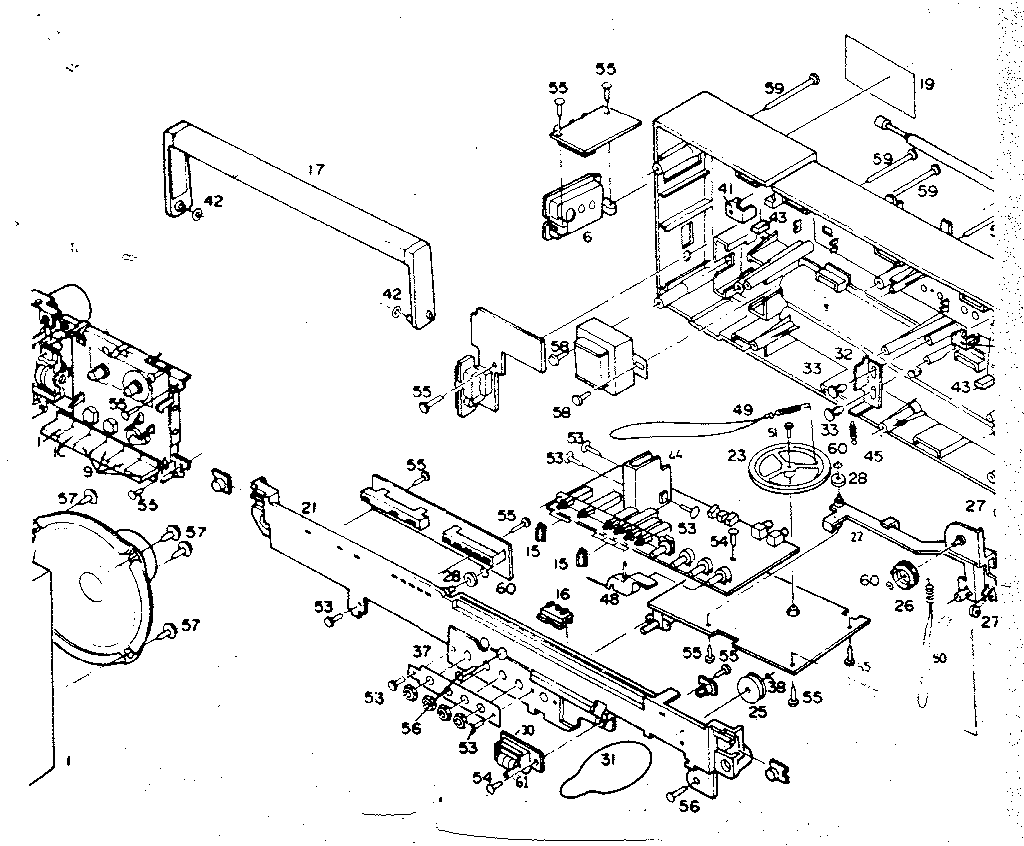

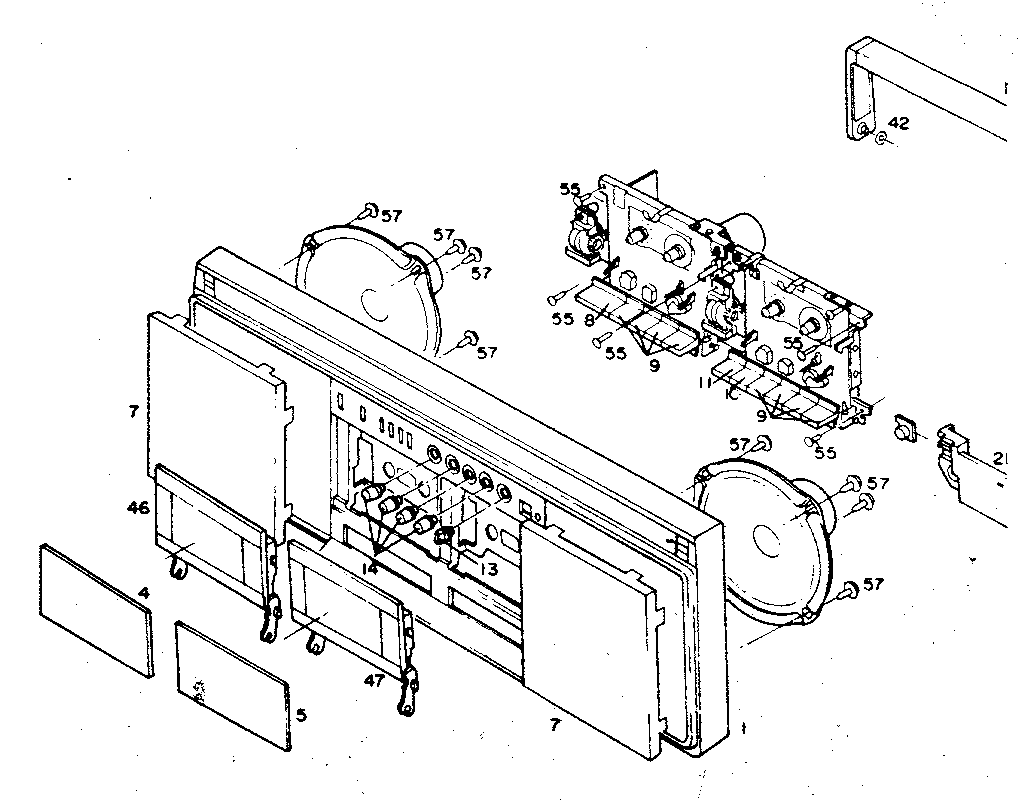

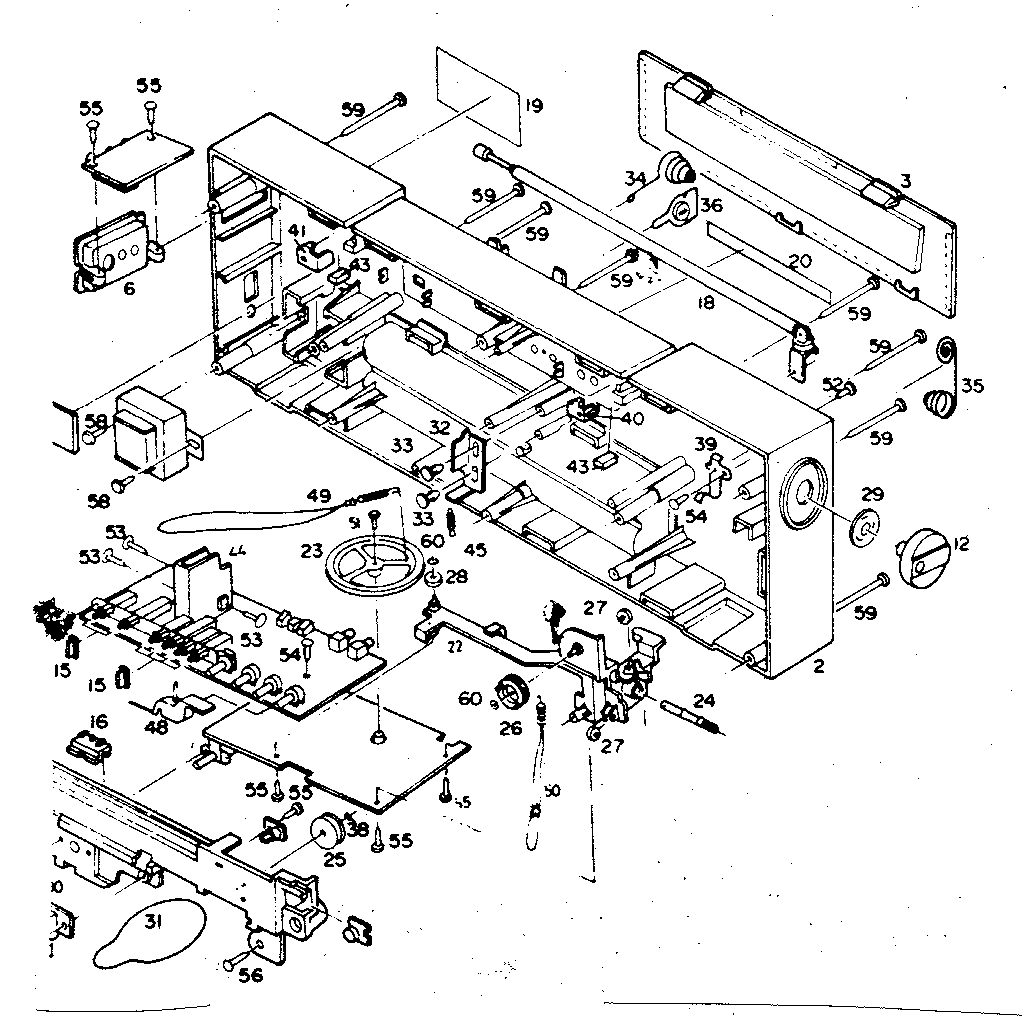

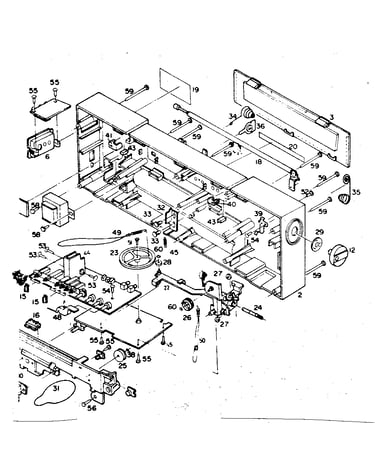

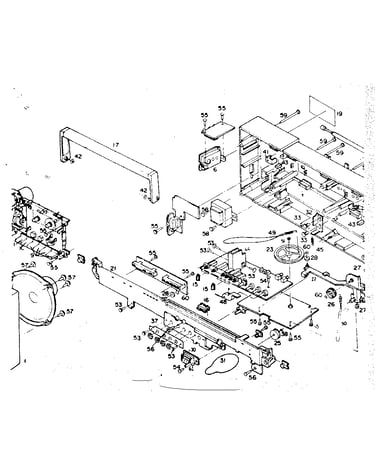

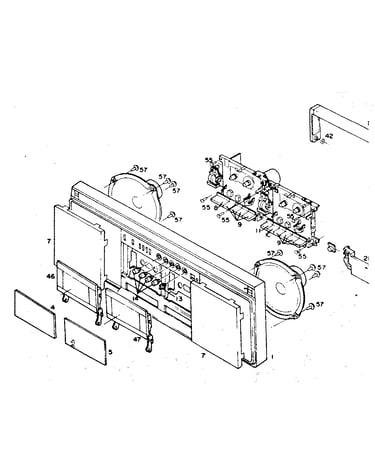

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |
Power Cord 1750596

#NI

All parts diagram

Power cord

Part #1750596

The manufacturer no longer makes this part, and there's no substitute part

Screw DPM1465

#59

All parts diagram

Screw

Part #DPM1465

The manufacturer no longer makes this part, and there's no substitute part

Shaft Tun 27W0231

#24

All parts diagram

Shaft tun

Part #27W0231

The manufacturer no longer makes this part, and there's no substitute part

Battery Terminal (b) 26B0064

#35

All parts diagram

Battery terminal (b)

Part #26B0064

The manufacturer no longer makes this part, and there's no substitute part

Handle Ass'y 21H0174A

#17

All parts diagram

Handle ass'y

Part #21H0174A

The manufacturer no longer makes this part, and there's no substitute part

Screw GLMP308

#54

All parts diagram

Screw

Part #GLMP308

The manufacturer no longer makes this part, and there's no substitute part

Dial Drum 21P0296

#23

All parts diagram

Dial drum

Part #21P0296

The manufacturer no longer makes this part, and there's no substitute part

Heat Sink 23WA290

#44

All parts diagram

Heat sink

Part #23WA290

The manufacturer no longer makes this part, and there's no substitute part

Battery Lid Ass'y 2180162A

#3

All parts diagram

Battery lid ass'y

Part #2180162A

The manufacturer no longer makes this part, and there's no substitute part

Cassette Door Ass'y 2C1743A

#47

All parts diagram

Cassette door ass'y

Part #2C1743A

The manufacturer no longer makes this part, and there's no substitute part
