Model # T9MPT125L20A1 Official ICP 90+ 2-stage & multispeed blower gas furnace

Here are the diagrams and repair parts for Official ICP T9MPT125L20A1 90+ 2-stage & multispeed blower gas furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 76 parts  |
Furnace Blower Fan Wheel (replaces 1009147) 1011420
#5

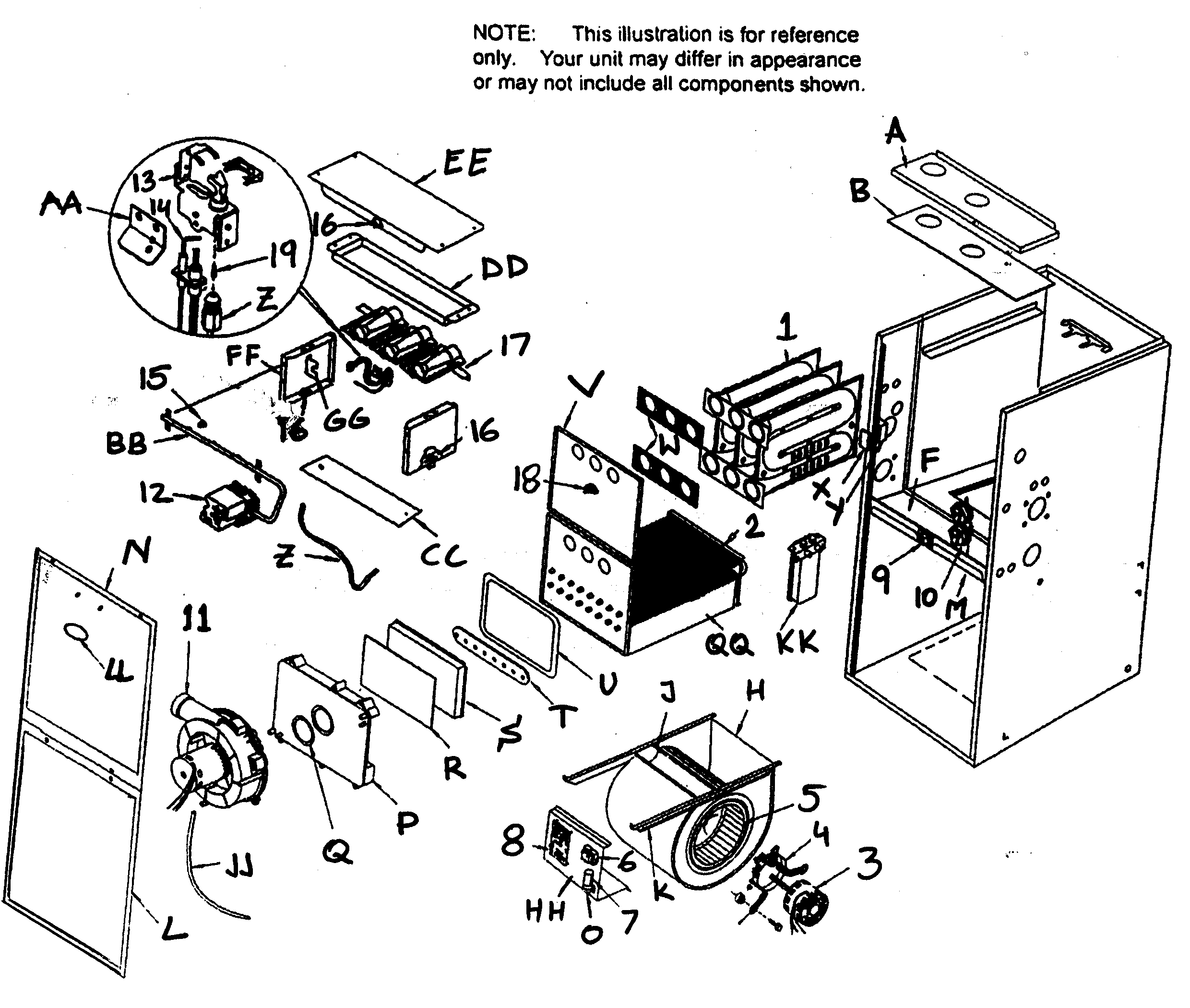

Furnace diagram

Furnace blower fan wheel (replaces 1009147)

Part #1011420

$160.43 |
7% OFF Phone Price : $172.43
In Stock
Grommet 1009535
#NI

Furnace diagram

Grommet

Part #1009535

This item is not returnable
$3.54
In Stock
Furnace Blower Fan Housing Hanger Bracket 1012328
#K

Furnace diagram

Furnace blower fan housing hanger bracket

Part #1012328

$301.63 |
$12.00 OFF Phone Price : $313.63
In Stock
Furnace Burner 1008726
#17

Furnace diagram

Furnace burner

Part #1008726

$142.32
In Stock
Sightglass 1013236
#LL

Furnace diagram

Sightglass

Part #1013236

$8.74
In Stock
Switch 1008445
#18

Furnace diagram

Switch

Part #1008445

$32.09
In Stock
Mtr Blr 1011906
#3

Furnace diagram

Mtr blr

Part #1011906

$588.00
In Stock
Gasket 1012605
#B

Furnace diagram

Gasket

Part #1012605

$46.38
In Stock
Bracket 1012532
#GG

Furnace diagram

Bracket

Part #1012532

$296.29
In Stock
Furnace Pilot Burner Bracket 1010901
#AA

Furnace diagram

Furnace pilot burner bracket

Part #1010901

$86.73
In Stock
