Ryobi
Power Sander

Model # S605 Official Ryobi sander

Here are the diagrams and repair parts for Official Ryobi S605 sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

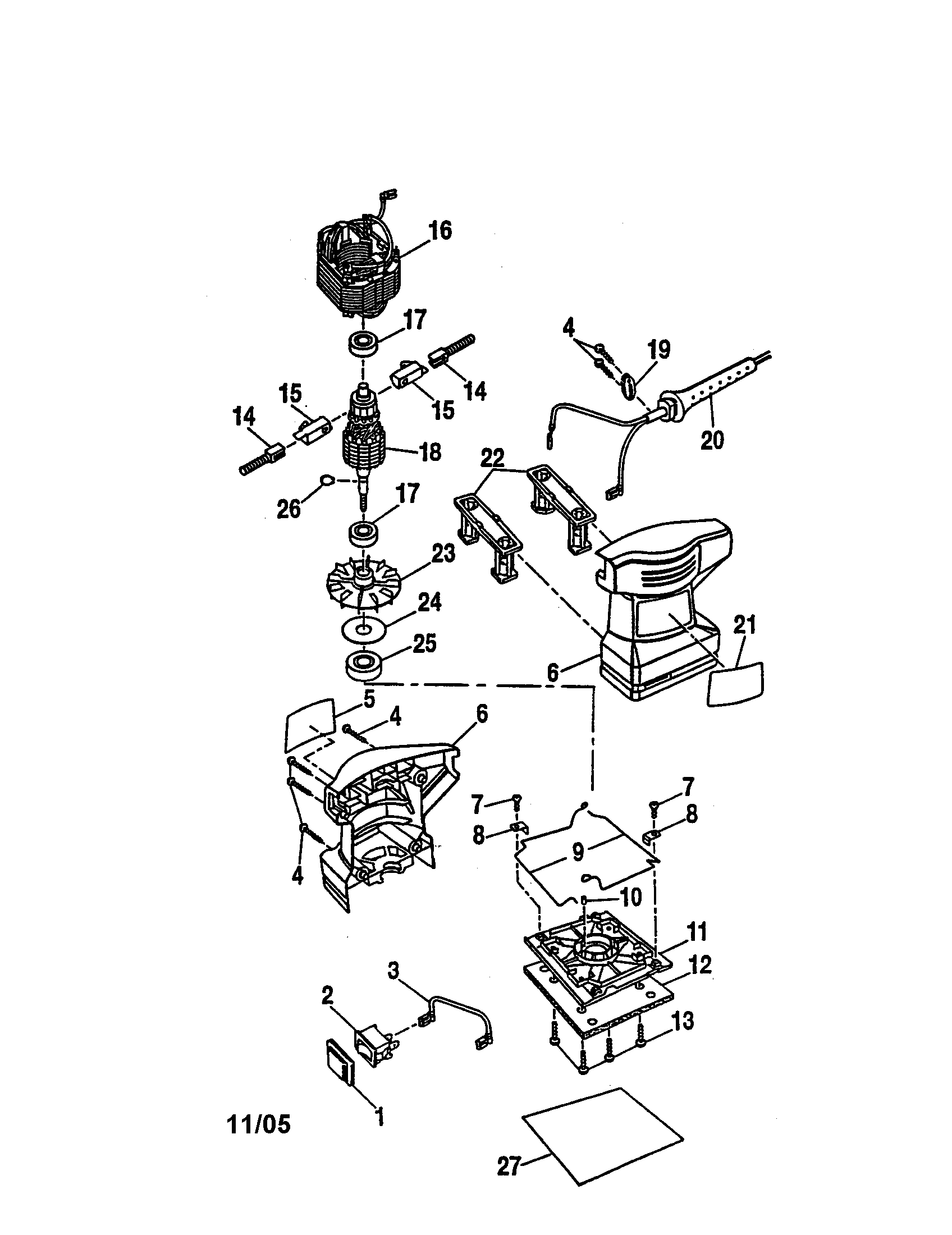

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 27 parts  |
Screw, 4-pack 999306009
#13

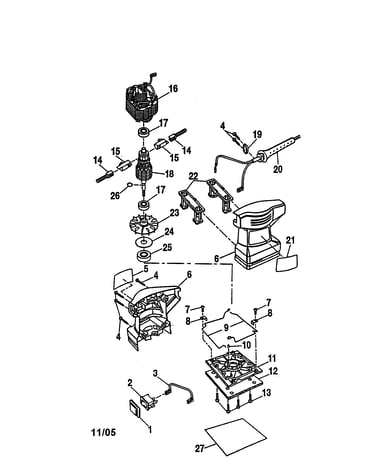

Sander diagram

Screw, 4-pack

Part #999306009

The manufacturer no longer makes this part, and there's no substitute part

Guard Assembly (see Page 6)) N/P
#27

Sander diagram

Guard assembly (see page 6))

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Armature 662638001
#18

Sander diagram

Armature

Part #662638001

The manufacturer no longer makes this part, and there's no substitute part

Flanged Washer 662314001
#24

Sander diagram

Flanged washer

Part #662314001

The manufacturer no longer makes this part, and there's no substitute part

Logo Plate 662341001
#21

Sander diagram

Logo plate

Part #662341001

The manufacturer no longer makes this part, and there's no substitute part

Cushion 6360333
#22

Sander diagram

Cushion

Part #6360333

The manufacturer no longer makes this part, and there's no substitute part

Fan With Bearing 662637001
#23

Sander diagram

Fan with bearing

Part #662637001

The manufacturer no longer makes this part, and there's no substitute part

Housing Assembly 662636001
#6

Sander diagram

Housing assembly

Part #662636001

The manufacturer no longer makes this part, and there's no substitute part

Retaining Ring 622167014
#26

Sander diagram

Retaining ring

Part #622167014

The manufacturer no longer makes this part, and there's no substitute part

Screw 968700011
#4

Sander diagram

Screw

Part #968700011

The manufacturer no longer makes this part, and there's no substitute part
