Model # 25HPA442A0030010 Official Carrier heat pump

Here are the diagrams and repair parts for Official Carrier 25HPA442A0030010 heat pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 119 parts  |
Contactor HN51KC024
#37

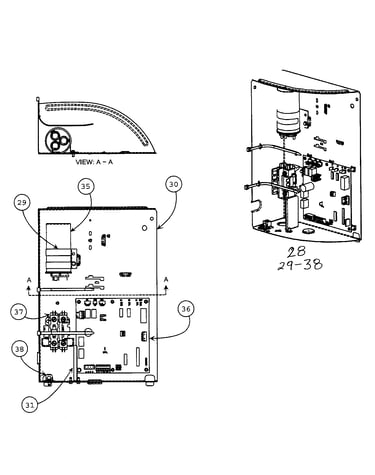

Control panel diagram

Contactor

Part #HN51KC024

Replaced by #90-244

?
Manufacturer substitution
This part replaces HN51KC024. Substitute parts can look different from the original.
BEST SELLER
$26.61 |
18% OFF Phone Price : $32.61
In Stock
Plug Assembly P298-001
#NI

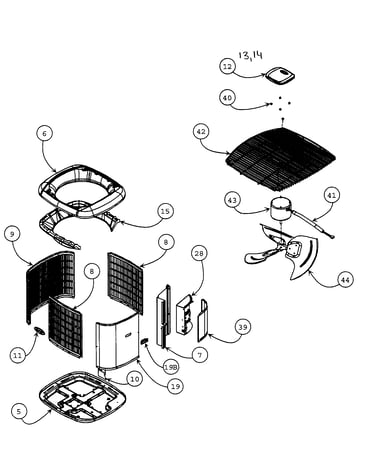

Inside view diagram

Plug assembly

Part #P298-001

$46.87
In Stock
Valve EC39DM061
#NI

Inside view diagram

Valve

Part #EC39DM061

This item is not returnable
$5.66
In Stock
Nameplate 330134-402
#11

Inside view diagram

Nameplate

Part #330134-402

$27.26
In Stock
Muffler LM10KK011
#NI

Inside view diagram

Muffler

Part #LM10KK011

$150.20
In Stock
Supprt Top 330962-401
#15

Inside view diagram

Supprt top

Part #330962-401

$79.62
In Stock
Switch HK02ZA365
#NI

Inside view diagram

Switch

Part #HK02ZA365

$412.74 |
$12.00 OFF Phone Price : $424.74
In Stock
Strap 312256-302
#NI

Inside view diagram

Strap

Part #312256-302

$148.60
In Stock
Valve-txv EA36YD131
#NI

Inside view diagram

Valve-txv

Part #EA36YD131

$325.67
In Stock
Washer Kit 324392-751
#61

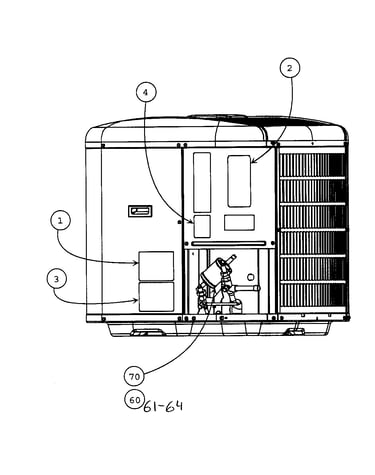

Outside view diagram

Washer kit

Part #324392-751

$31.89
In Stock
