Model # 11653513304 Official Kenmore powermate attachment

Here are the diagrams and repair parts for Official Kenmore 11653513304 powermate attachment, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |
Vacuum Foam Filter 4370713
#8

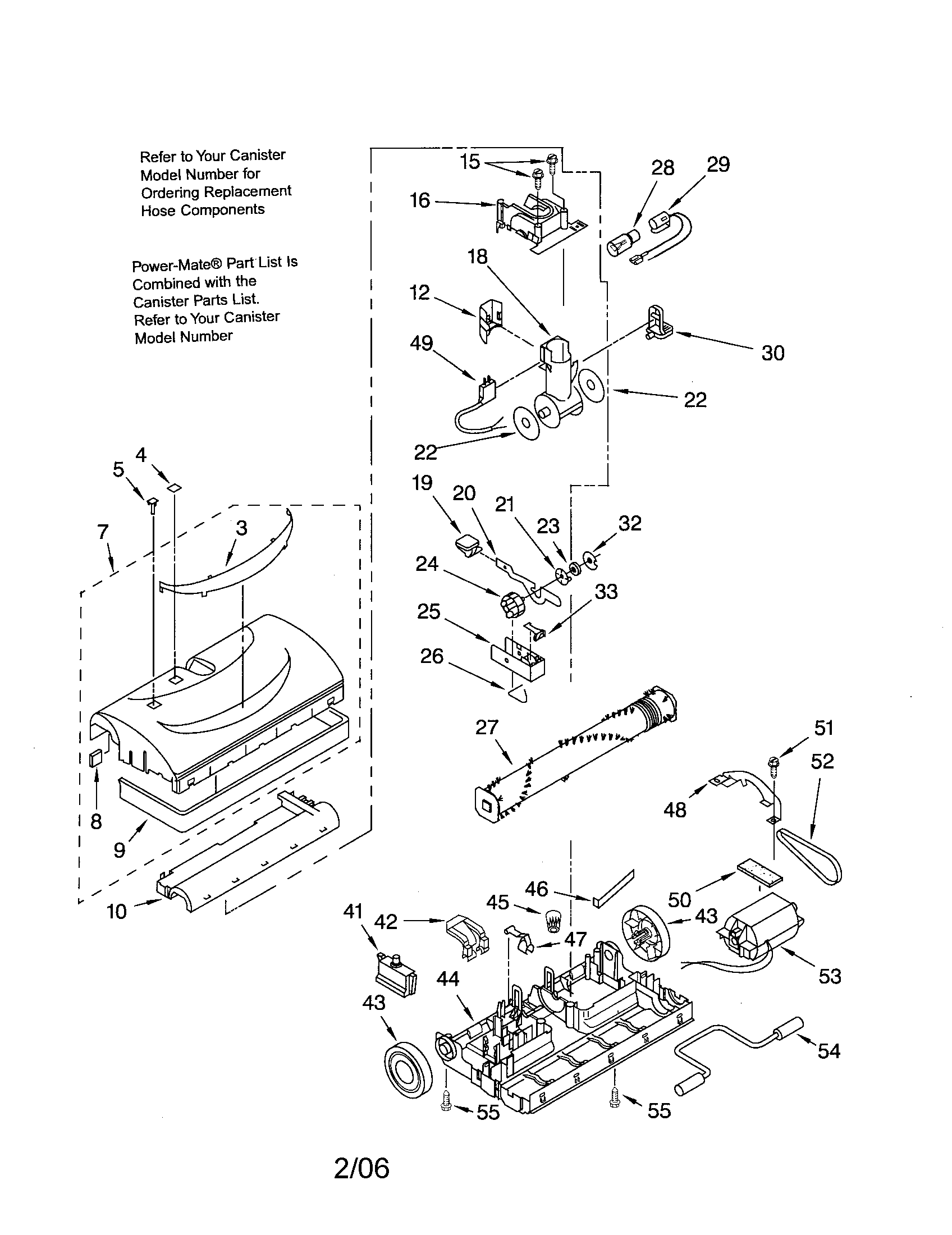

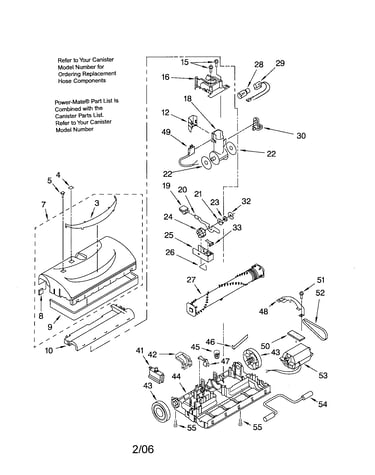

Power-mate diagram

Vacuum foam filter

Part #4370713

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Powermate Wheel 4370724
#43

Power-mate diagram

Vacuum powermate wheel

Part #4370724

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Handle Release Pedal KC47AGJ3V06
#42

Power-mate diagram

Vacuum handle release pedal

Part #KC47AGJ3V06

The manufacturer no longer makes this part, and there's no substitute part

(not Serviced, Use Old ) Screw, Motor Brush N/P
#4

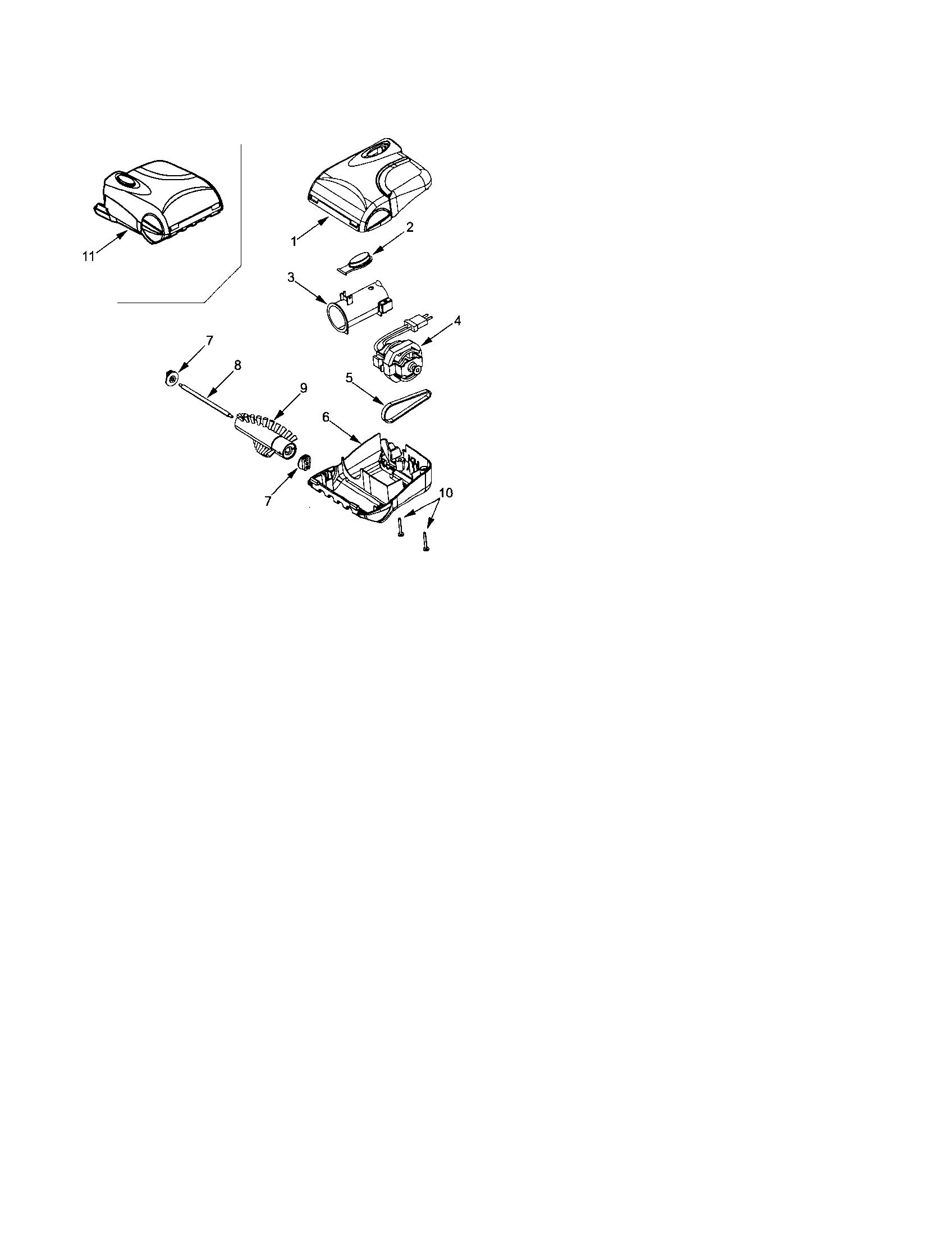

Power-mate jr. diagram

(not serviced, use old ) screw, motor brush

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Nozzle Base (gray) 8192007
#6

Power-mate jr. diagram

Nozzle base (gray)

Part #8192007

The manufacturer no longer makes this part, and there's no substitute part

Floor Nozzle Upper Unit (includes Illus. 3, 8, And 9) KC92QBAKZROQ
#7

Power-mate diagram

Floor nozzle upper unit (includes illus. 3, 8, and 9)

Part #KC92QBAKZROQ

The manufacturer no longer makes this part, and there's no substitute part

Washer 722909
#32

Power-mate diagram

Washer

Part #722909

The manufacturer no longer makes this part, and there's no substitute part

Swivel Cap 8191776
#16

Power-mate diagram

Swivel cap

Part #8191776

The manufacturer no longer makes this part, and there's no substitute part

Washer 725635
#23

Power-mate diagram

Washer

Part #725635

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Power Head Power Cord 8175251
#49

Power-mate diagram

Vacuum power head power cord

Part #8175251

The manufacturer no longer makes this part, and there's no substitute part
