Kenmore
Electric Water Heater

Model # 153310111 Official Kenmore electric tabletop water heater

Here are the diagrams and repair parts for Official Kenmore 153310111 electric tabletop water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 23 parts  |
Thermostat 9000054
#14

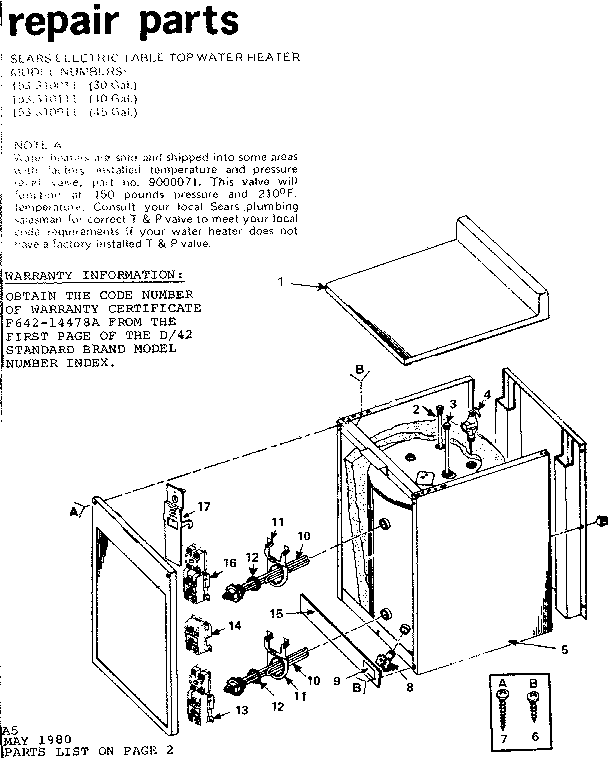

Replacement parts diagram

Thermostat

Part #9000054

Replaced by #9000507015

?
Manufacturer substitution
This part replaces 9000054. Substitute parts can look different from the original.
BEST SELLER
$32.20 |
16% OFF Phone Price : $38.20
In Stock
Water Heater Heating Element Gasket 9000308
#12

Replacement parts diagram

Water heater heating element gasket

Part #9000308

Replaced by #9000308005

?
Manufacturer substitution
This part replaces 9000308. Substitute parts can look different from the original.
$30.62 |
16% OFF Phone Price : $36.62
In Stock
Toe Panel 9000339
#15B

Replacement parts diagram

Toe panel

Part #9000339

$9.99
In Stock
Toe Panel 9000338
#15A

Replacement parts diagram

Toe panel

Part #9000338

$15.49
In Stock
Dip Tube 0260119
#3

Replacement parts diagram

Dip tube

Part #0260119

Replaced by #100108611

?
Manufacturer substitution
This part replaces 0260119. Substitute parts can look different from the original.
$24.29
In Stock
Water Heater Drain Valve 9000254
#8

Replacement parts diagram

Water heater drain valve

Part #9000254

Replaced by #100108361

?
Manufacturer substitution
This part replaces 9000254. Substitute parts can look different from the original.
$17.14
In Stock
Element 3800 9000260
#10

Replacement parts diagram

Element 3800

Part #9000260

Replaced by #100108327

?
Manufacturer substitution
This part replaces 9000260. Substitute parts can look different from the original.
$60.00
In Stock
Cooktop Main Top 9000336
#1B

Replacement parts diagram

Cooktop main top

Part #9000336

Replaced by #100066374

?
Manufacturer substitution
This part replaces 9000336. Substitute parts can look different from the original.
$190.91
In Stock
Thermostat 9000269
#16

Replacement parts diagram

Thermostat

Part #9000269

Replaced by #9001954015

?
Manufacturer substitution
This part replaces 9000269. Substitute parts can look different from the original.
$28.09 |
18% OFF Phone Price : $34.09
In Stock
Water Heater Thermostat Bracket (replaces 0110238, 0110238-01, 0110322, 9000309015) 9000309
#11

Replacement parts diagram

Water heater thermostat bracket (replaces 0110238, 0110238-01, 0110322, 9000309015)

Part #9000309

Replaced by #100108380

?
Manufacturer substitution
This part replaces 9000309. Substitute parts can look different from the original.
$27.78
In Stock
