Model # 536772300 Official Craftsman edger

Here are the diagrams and repair parts for Official Craftsman 536772300 edger, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

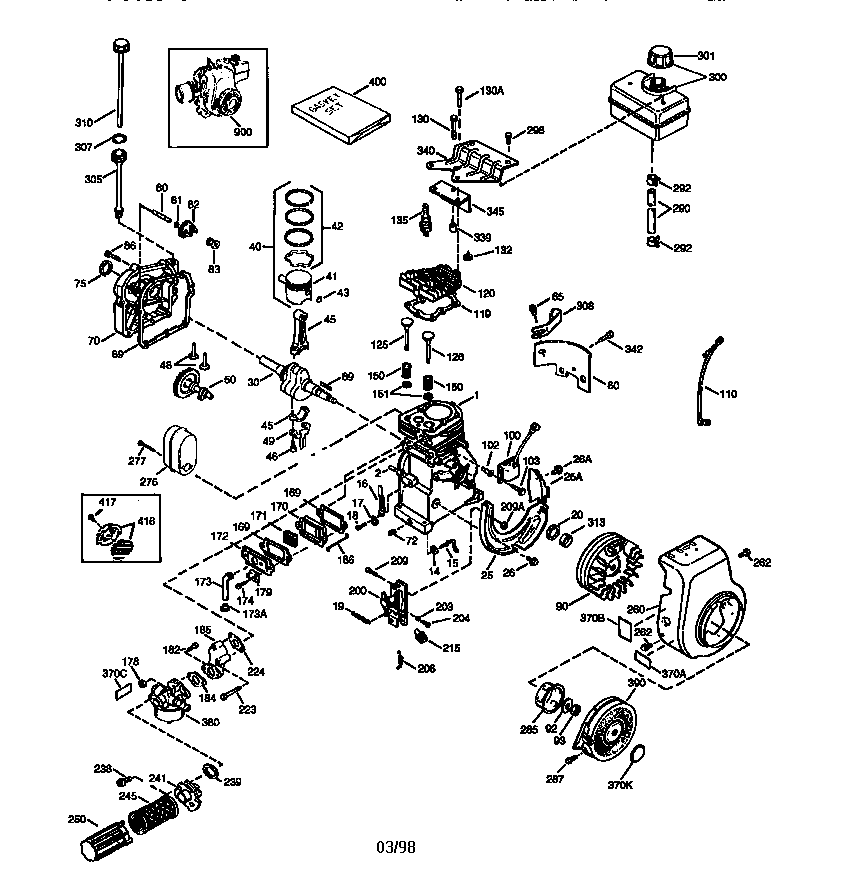

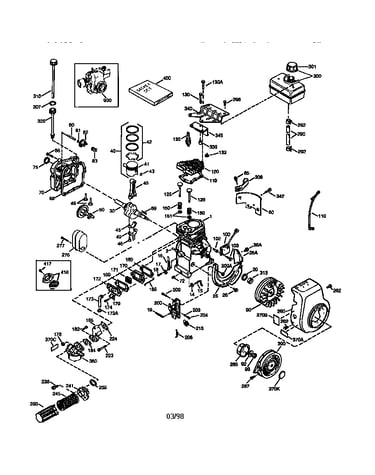

  View engine

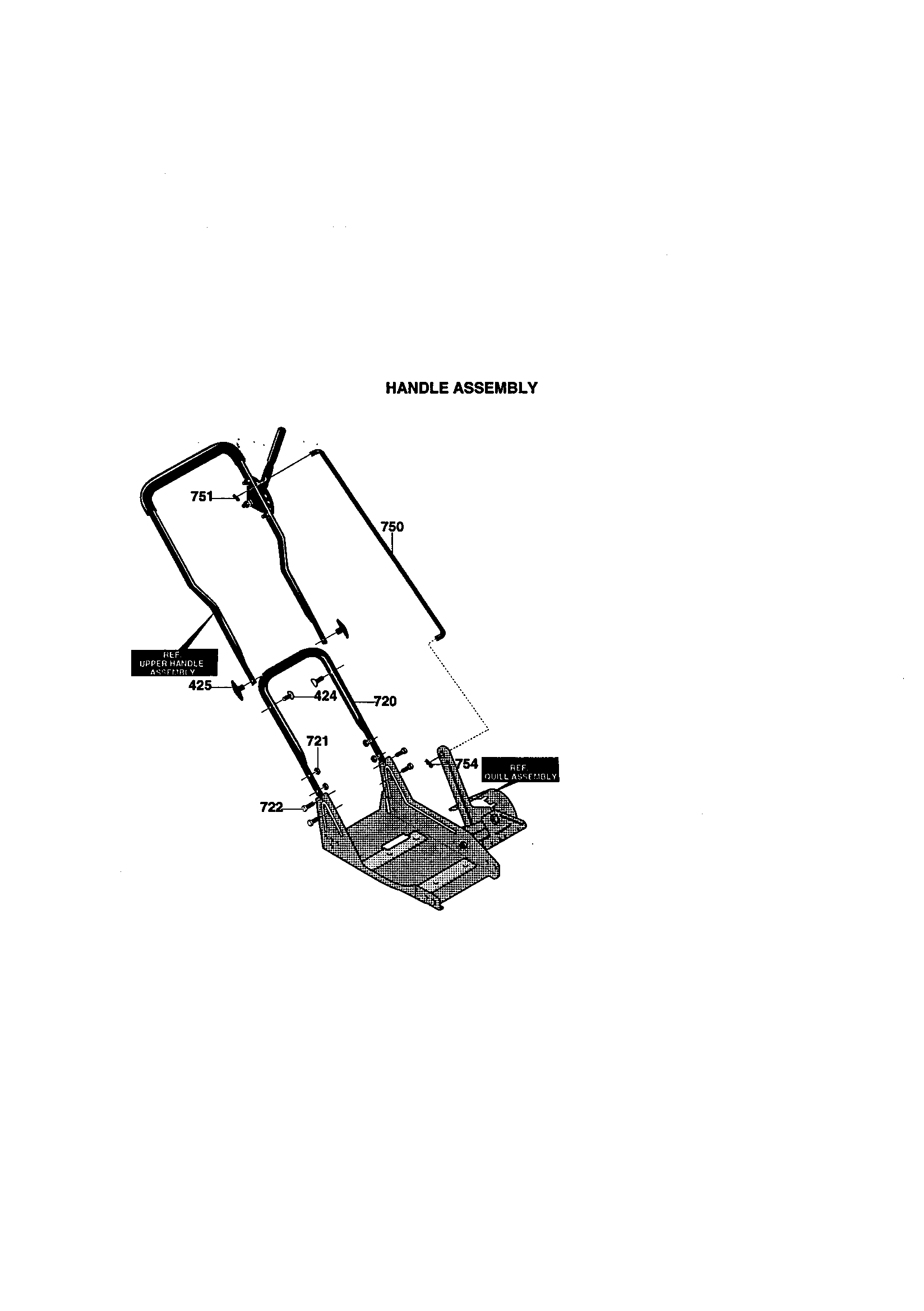

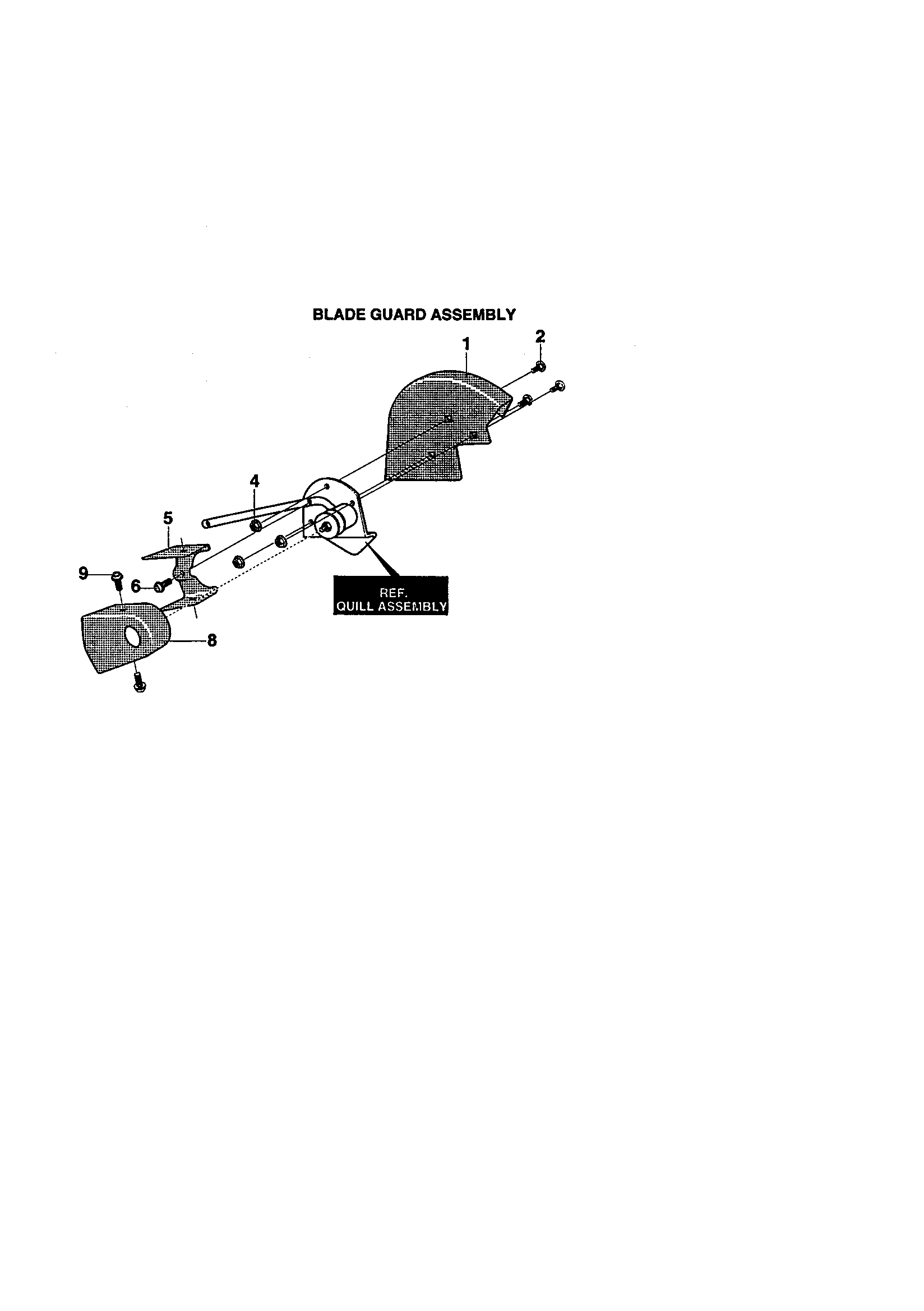

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 243 parts  |
Knob Kit 13527
#184

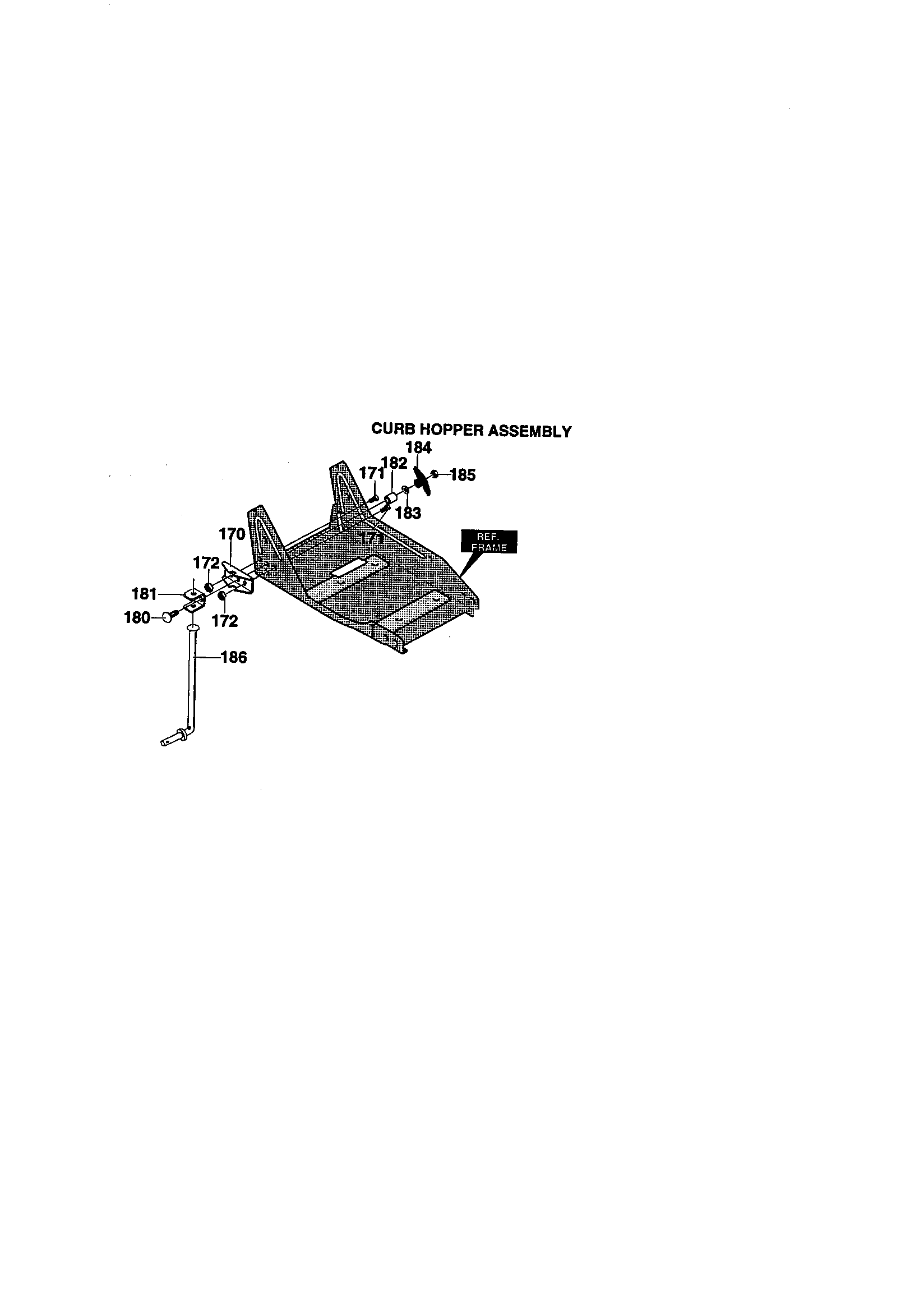

Curb hopper assembly diagram

Knob kit

Part #13527

Replaced by #1501260MA

?
Manufacturer substitution
This part replaces 13527. Substitute parts can look different from the original.
BEST SELLER
$10.93 |
15% OFF Phone Price : $12.93
In Stock
Spacer 51887
#113

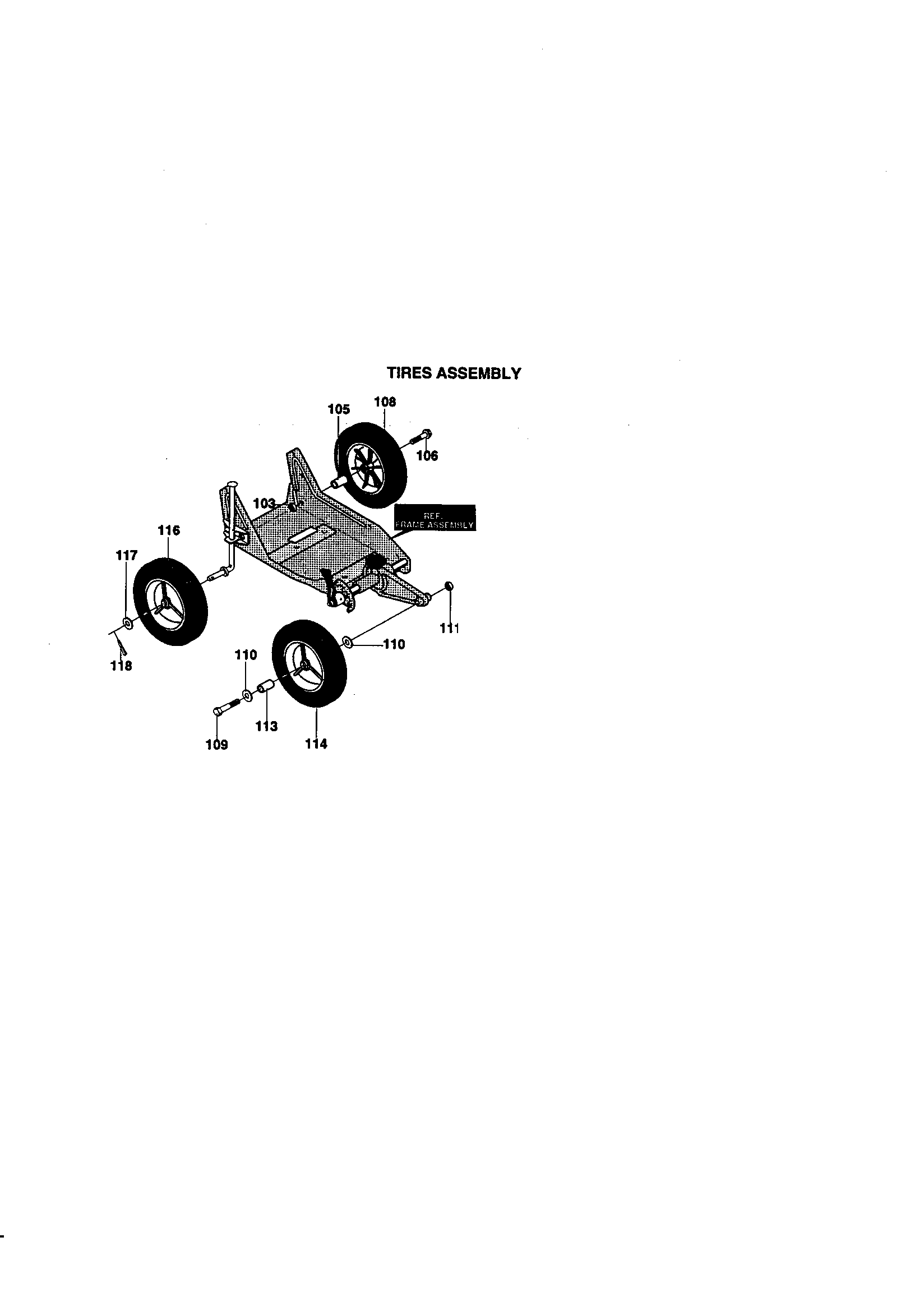

Tires assembly diagram

Spacer

Part #51887

Replaced by #51887MA

?
Manufacturer substitution
This part replaces 51887. Substitute parts can look different from the original.
This item is not returnable
$6.91
In Stock
Lock Nut 1498
Lock nut

Part #1498

The manufacturer no longer makes this part, and there's no substitute part

Spacer 331421
#154

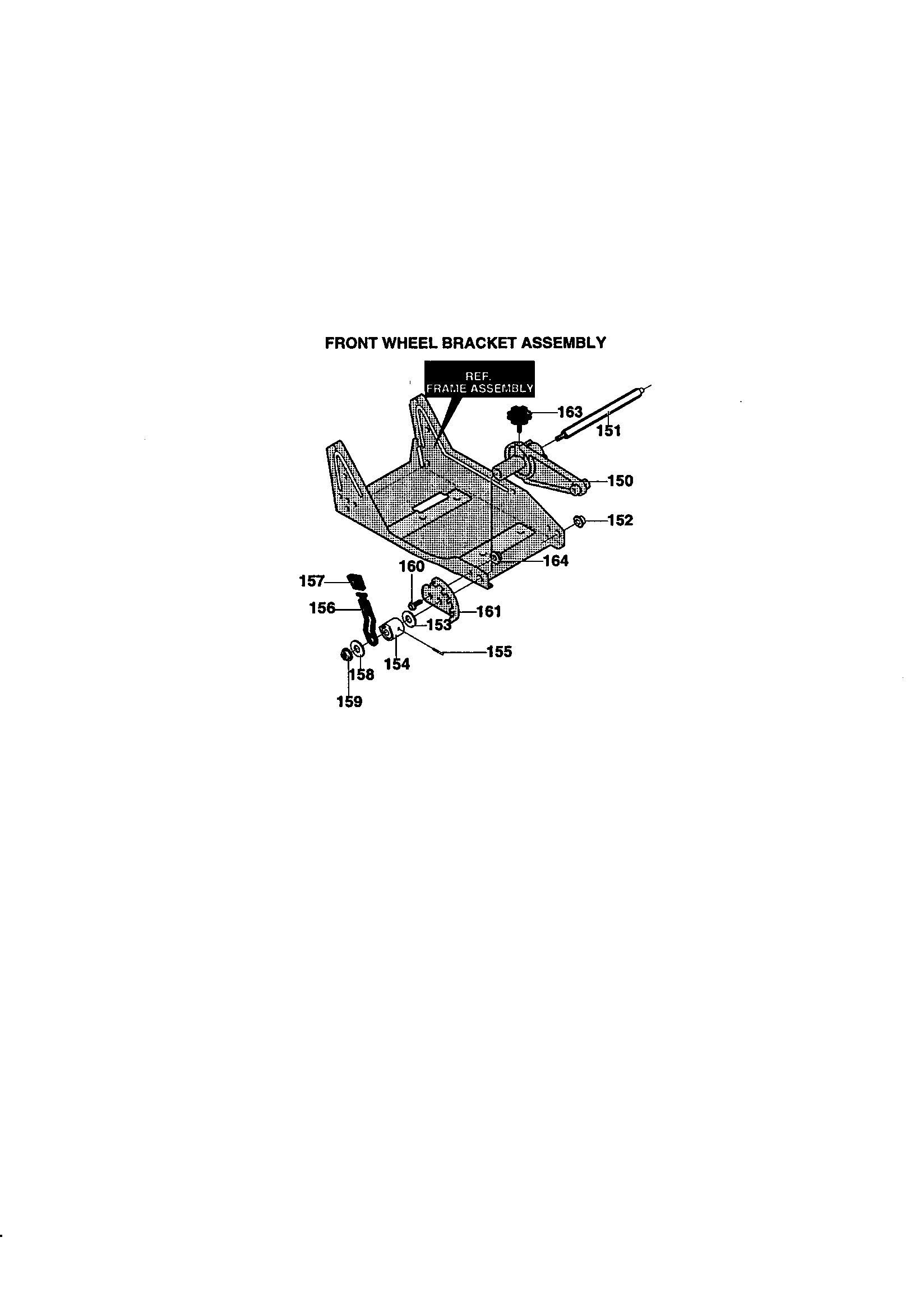

Front wheel bracket assembly diagram

Spacer

Part #331421

Replaced by #331421MA

?
Manufacturer substitution
This part replaces 331421. Substitute parts can look different from the original.
$42.53
In Stock
Nut 1499
#745

Upper handle assembly diagram

Nut

Part #1499

Replaced by #703333

?
Manufacturer substitution
This part replaces 1499. Substitute parts can look different from the original.
This item is not returnable
$8.09 |
11% OFF Phone Price : $9.09
In Stock
Spacer 45222
#182

Curb hopper assembly diagram

Spacer

Part #45222

Replaced by #45222MA

?
Manufacturer substitution
This part replaces 45222. Substitute parts can look different from the original.
This item is not returnable
$7.71
In Stock
Screw 181624
#41

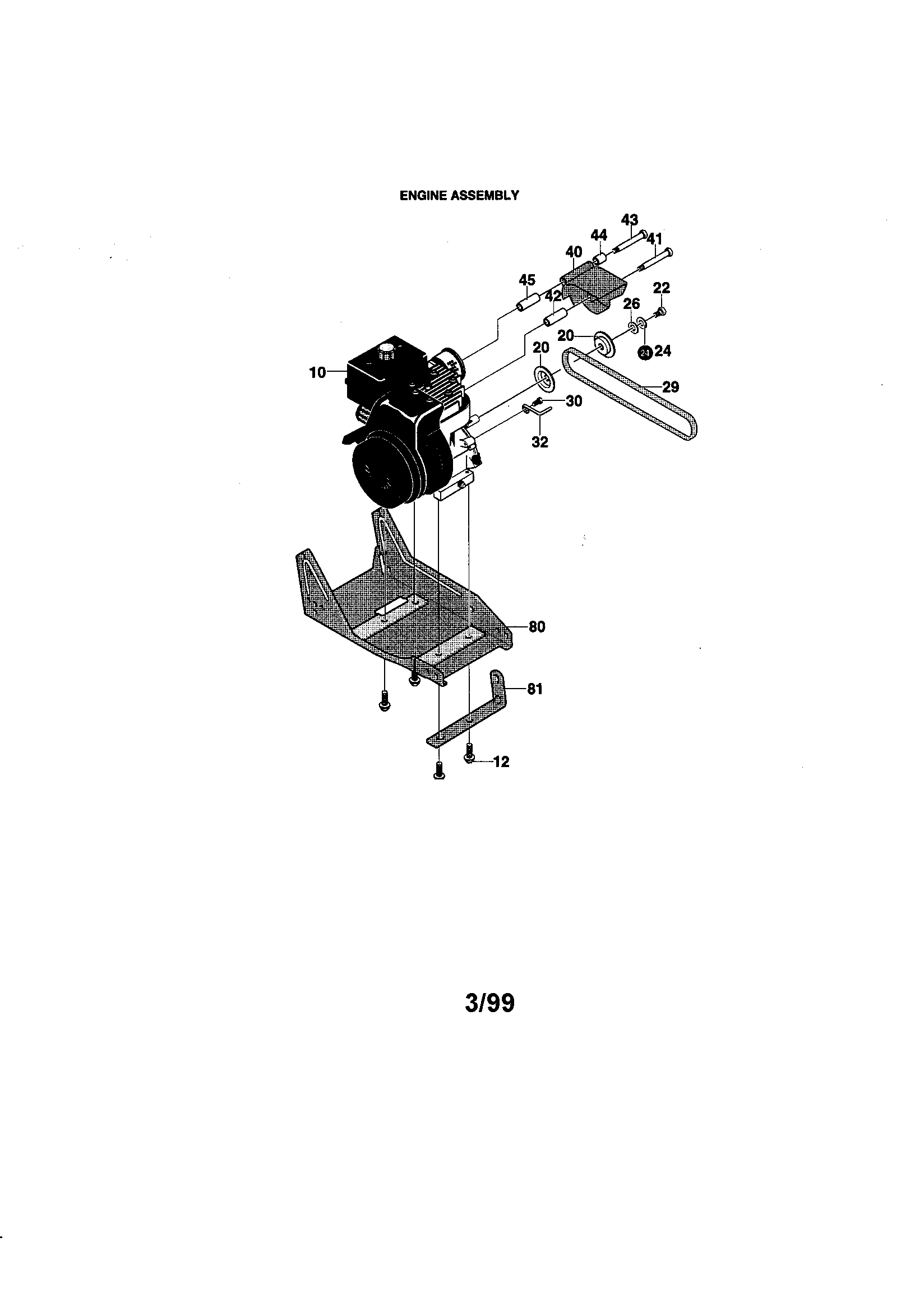

Engine assembly diagram

Screw

Part #181624

Replaced by #181624MA

?
Manufacturer substitution
This part replaces 181624. Substitute parts can look different from the original.
$7.60
In Stock
Edger Index Lever Torsion Spring 308155
#323

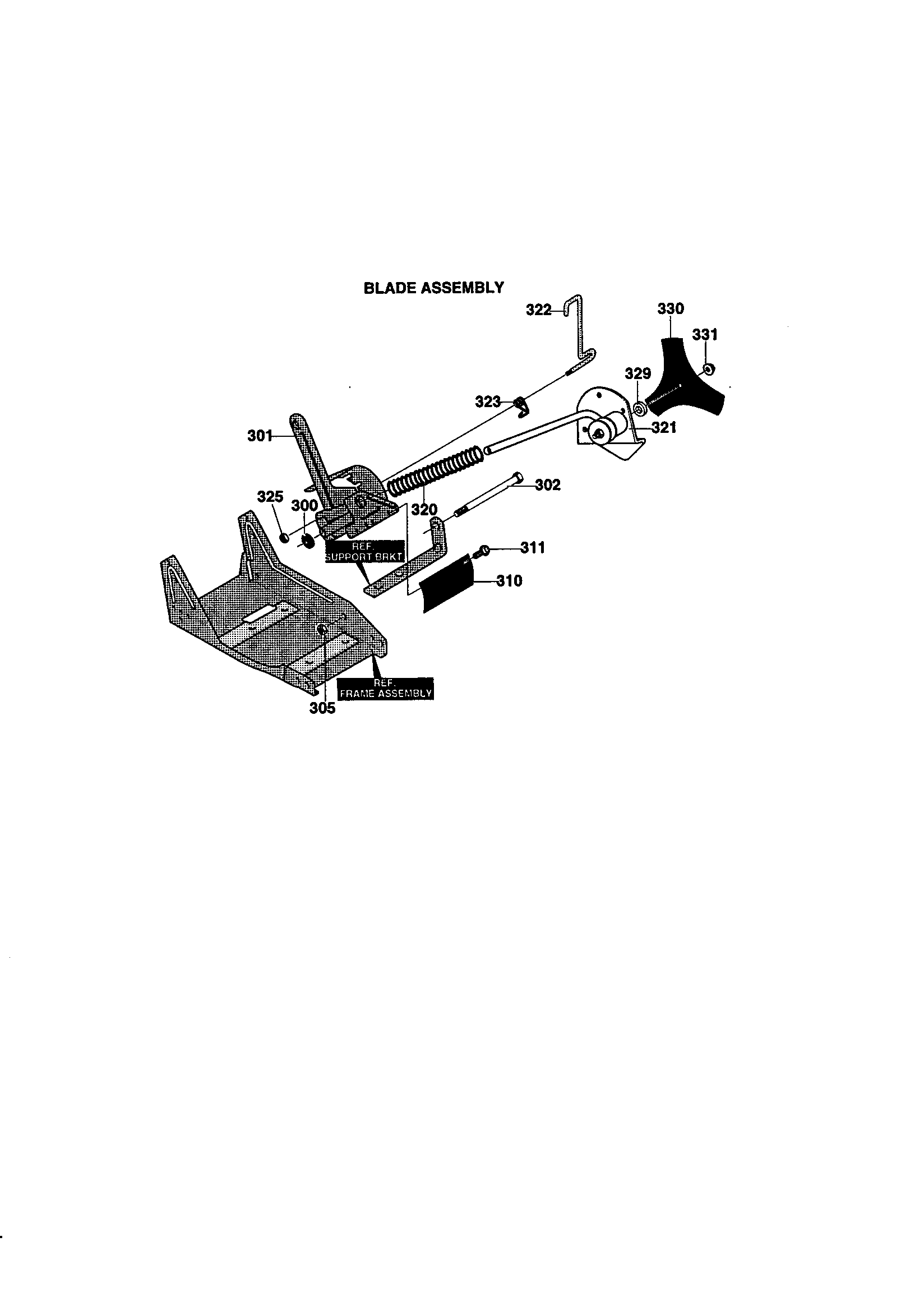

Blade assembly diagram

Edger index lever torsion spring

Part #308155

Replaced by #308155MA

?
Manufacturer substitution
This part replaces 308155. Substitute parts can look different from the original.
This item is not returnable
$14.06
In Stock
Mount Rod 740132
#151

Front wheel bracket assembly diagram

Mount rod

Part #740132

Replaced by #740132MA

?
Manufacturer substitution
This part replaces 740132. Substitute parts can look different from the original.
$69.79 |
8% OFF Phone Price : $75.79
In Stock
Bolt 310716
#106

Tires assembly diagram

Bolt

Part #310716

Replaced by #310716MA

?
Manufacturer substitution
This part replaces 310716. Substitute parts can look different from the original.
$8.69 |
10% OFF Phone Price : $9.69
In Stock
