Model # U5163900 Official Hoover vacuum

Here are the diagrams and repair parts for Official Hoover U5163900 vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 68 parts  |

Fr Housing 37254221
#27B

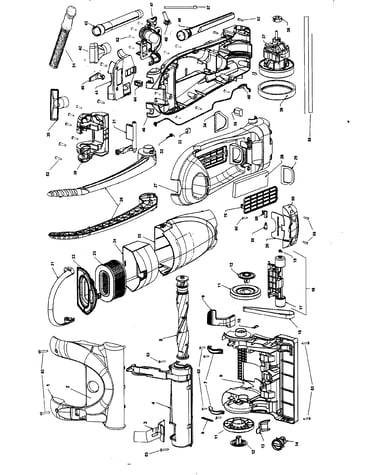

Vacuum diagram

Fr housing

Part #37254221

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 21447242
#52

Vacuum diagram

Vacuum screw

Part #21447242

The manufacturer no longer makes this part, and there's no substitute part

Lens 39383118
#50

Vacuum diagram

Lens

Part #39383118

The manufacturer no longer makes this part, and there's no substitute part

Regina Vacuum Screw 21447072
#53

Vacuum diagram

Regina vacuum screw

Part #21447072

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar 48414127
#5

Vacuum diagram

Vacuum beater bar

Part #48414127

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Filter 40130050
#23

Vacuum diagram

Vacuum filter

Part #40130050

The manufacturer no longer makes this part, and there's no substitute part

Inlet Seal 38785019
#29

Vacuum diagram

Inlet seal

Part #38785019

The manufacturer no longer makes this part, and there's no substitute part

Nameplate 51351010
#2

Vacuum diagram

Nameplate

Part #51351010

The manufacturer no longer makes this part, and there's no substitute part

Retainer Cover 37258161
#30

Vacuum diagram

Retainer cover

Part #37258161

The manufacturer no longer makes this part, and there's no substitute part

Spring 38355016
#32

Vacuum diagram

Spring

Part #38355016

The manufacturer no longer makes this part, and there's no substitute part
