Model # AMC5143AAS06 Official Amana 1.4 cubic foot countertop microwave

Here are the diagrams and repair parts for Official Amana AMC5143AAS06 1.4 cubic foot countertop microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

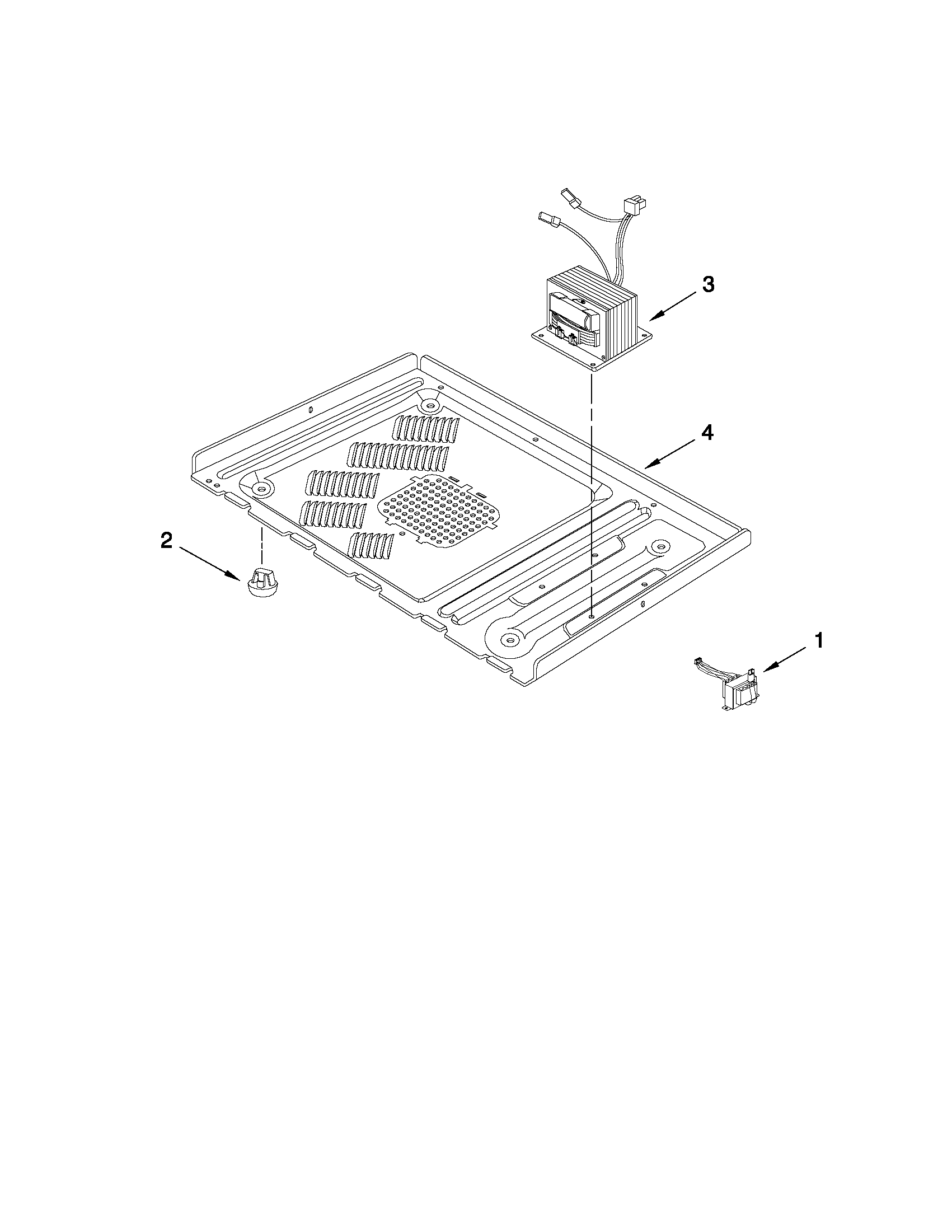

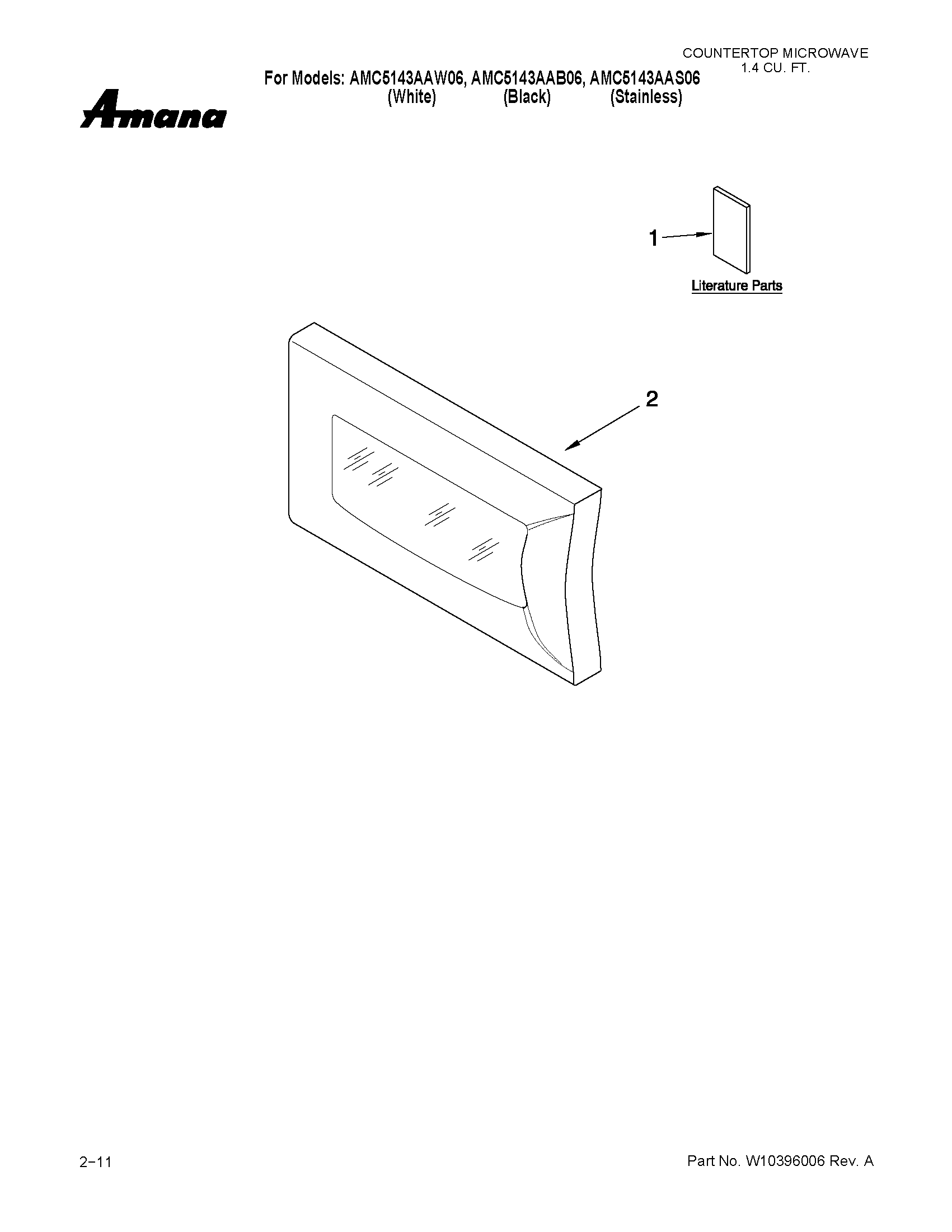

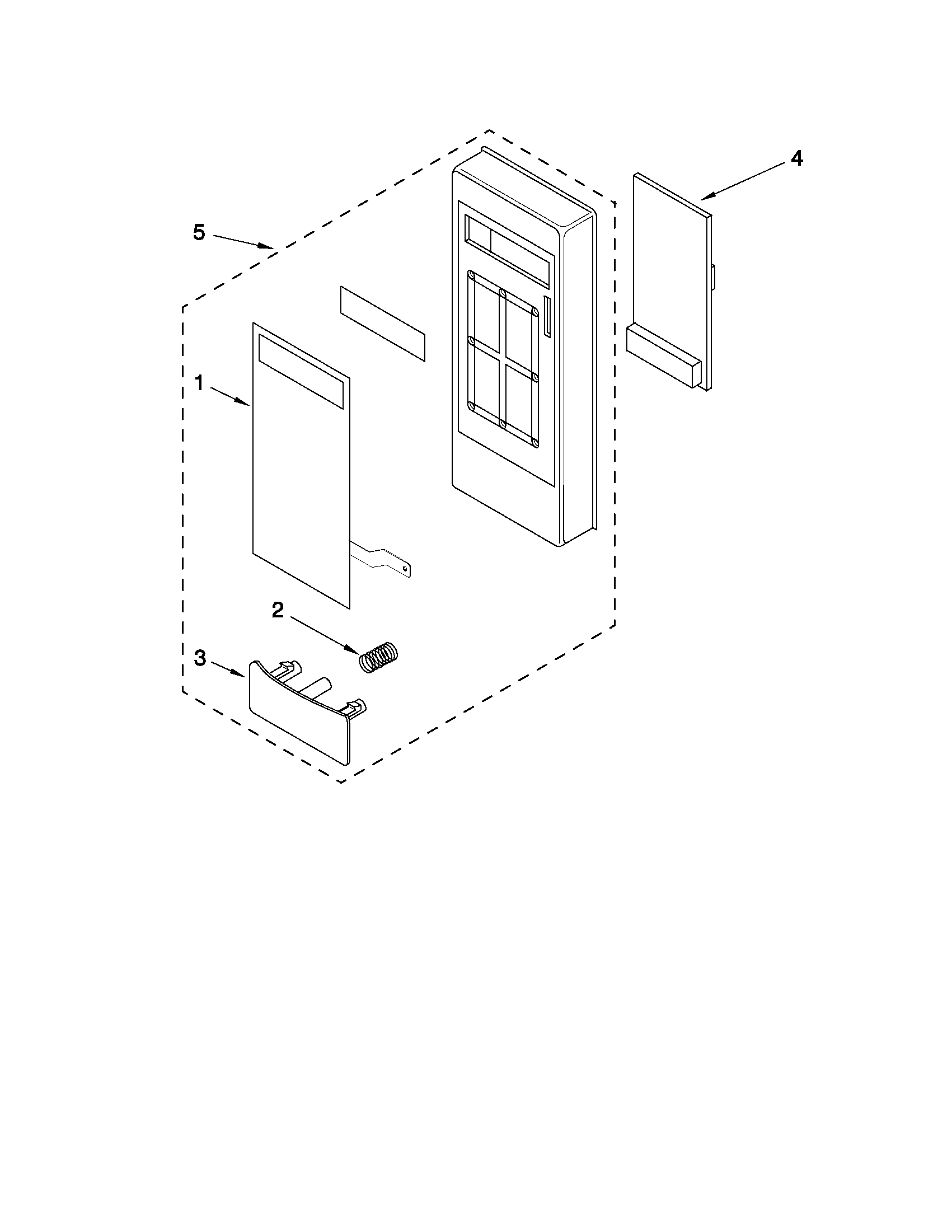

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 50 parts  |
Switch 3405-001042
#6

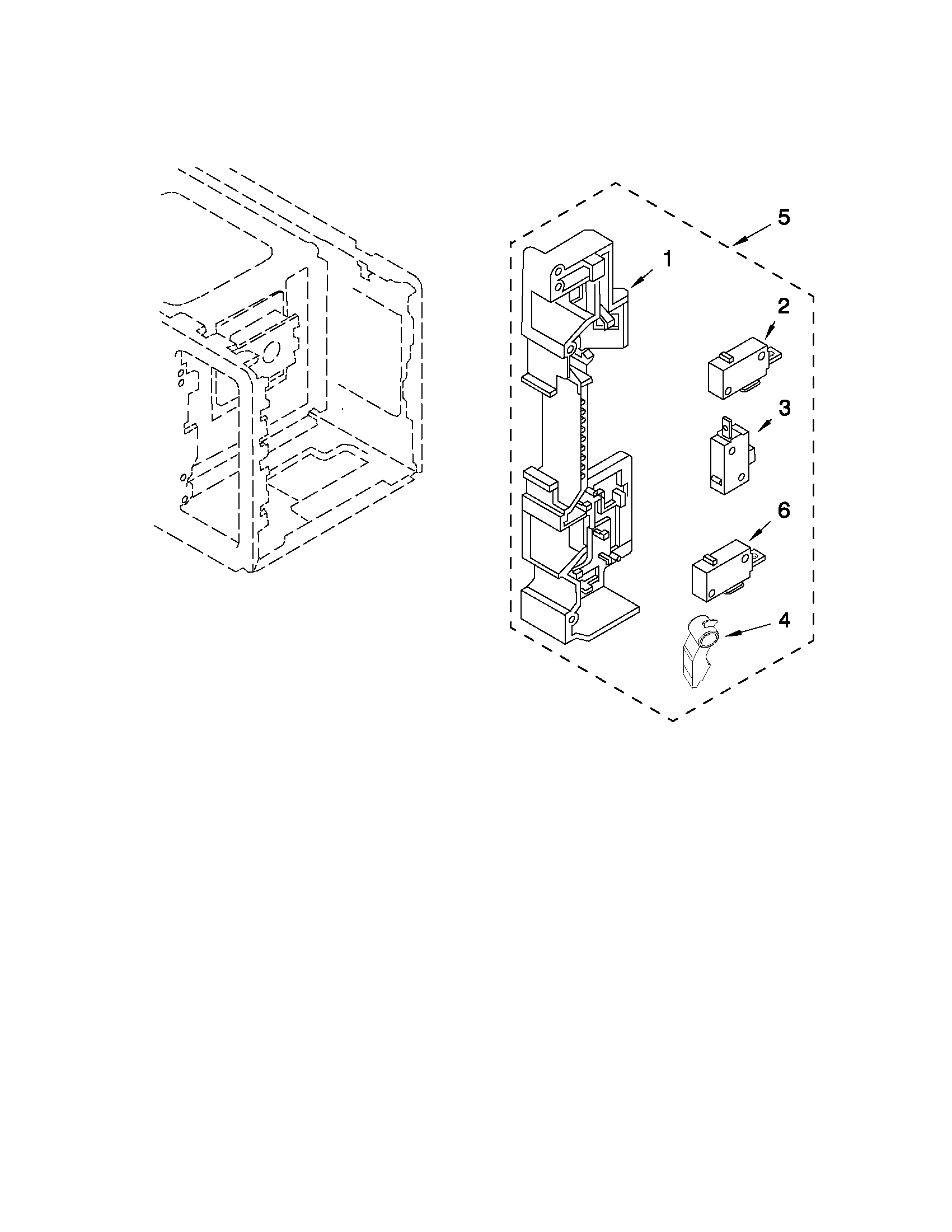

Microwave latch board parts diagram

Switch

Part #3405-001042

Replaced by #3405-001034

?
Manufacturer substitution
This part replaces 3405-001042. Substitute parts can look different from the original.
BEST SELLER
$18.27 |
10% OFF Phone Price : $20.27
Back Order
Gas Sensor DE32-60013A
#5

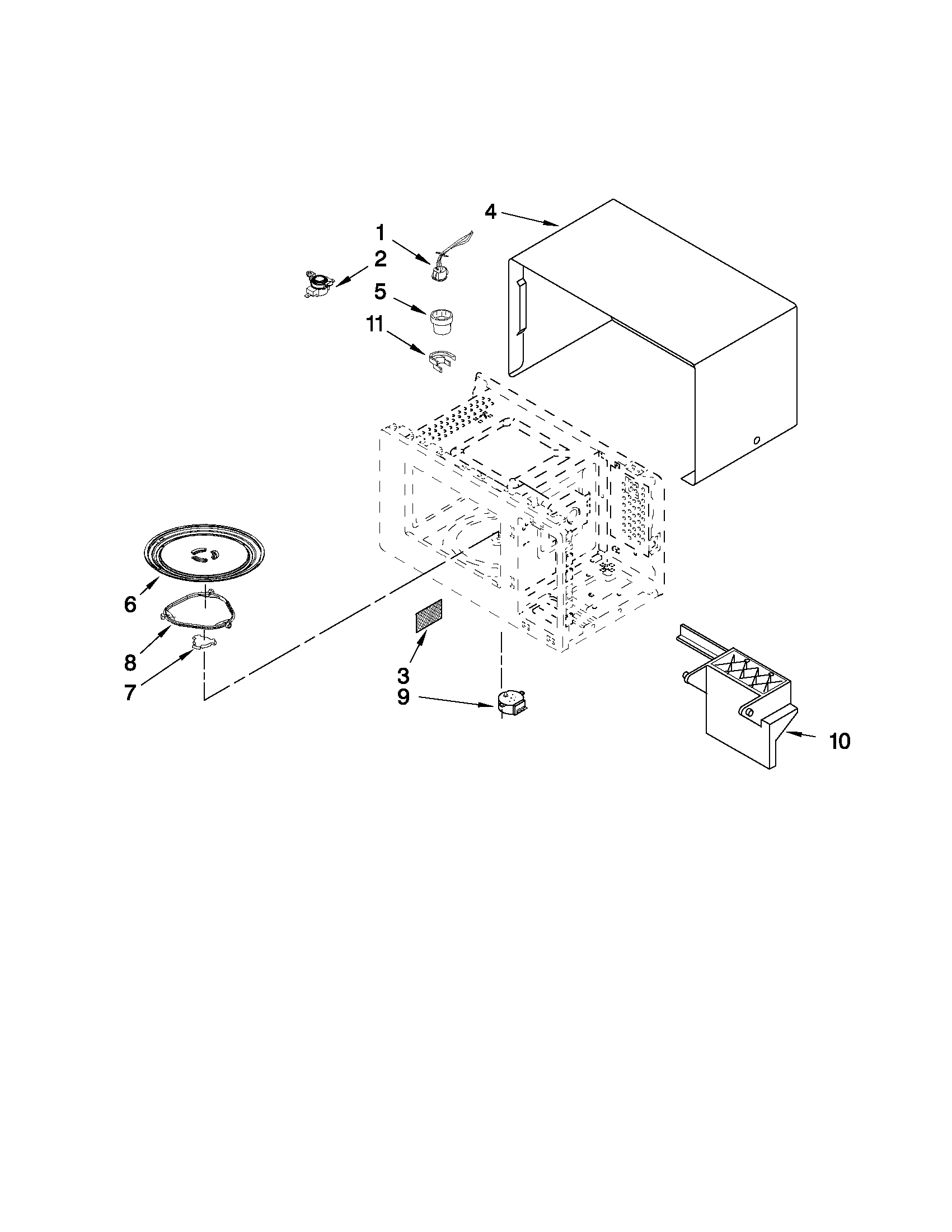

Microwave oven cavity parts diagram

Gas sensor

Part #DE32-60013A

Replaced by #DE32-60011A

?
Manufacturer substitution
This part replaces DE32-60013A. Substitute parts can look different from the original.
BEST SELLER
$69.73 |
8% OFF Phone Price : $75.73
In Stock
Switch 3405-001033
#3

Microwave latch board parts diagram

Switch

Part #3405-001033

Replaced by #DE34-20019A

?
Manufacturer substitution
This part replaces 3405-001033. Substitute parts can look different from the original.
This item is not returnable
$15.06 |
12% OFF Phone Price : $17.06
In Stock
Lever DE66-00088A
#4A

Microwave latch board parts diagram

Lever

Part #DE66-00088A

$16.94
In Stock
Microwave Light Bulb 4713-001102
#10

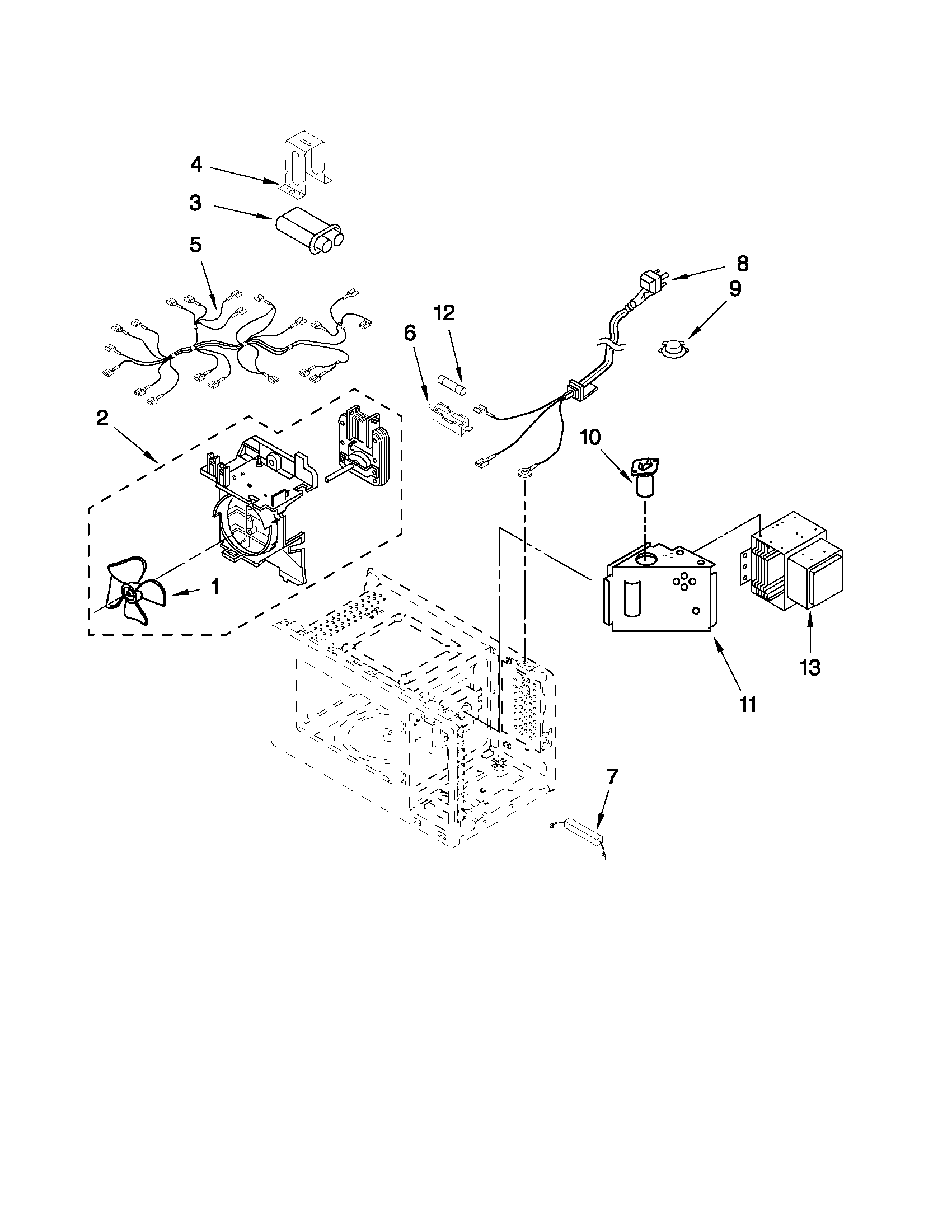

Microwave interior parts diagram

Microwave light bulb

Part #4713-001102

This item is not returnable
$16.93 |
11% OFF Phone Price : $18.93
In Stock
Microwave Door Interlock Switch, Upper 3405-001055
#2

Microwave latch board parts diagram

Microwave door interlock switch, upper

Part #3405-001055

$11.29 |
15% OFF Phone Price : $13.29
In Stock
Microwave Fuse 3601-001198
#12

Microwave interior parts diagram

Microwave fuse

Part #3601-001198

Replaced by #WPM0805101

?
Manufacturer substitution
This part replaces 3601-001198. Substitute parts can look different from the original.
$6.68 |
13% OFF Phone Price : $7.68
In Stock
Roller DE92-90189V
#8

Microwave oven cavity parts diagram

Roller

Part #DE92-90189V

Replaced by #DE92-90189S

?
Manufacturer substitution
This part replaces DE92-90189V. Substitute parts can look different from the original.
$33.07 |
15% OFF Phone Price : $39.07
In Stock
Diode DE91-70063A
#7

Microwave interior parts diagram

Diode

Part #DE91-70063A

Replaced by #DE91-70063D

?
Manufacturer substitution
This part replaces DE91-70063A. Substitute parts can look different from the original.
$17.40 |
10% OFF Phone Price : $19.40
In Stock
Holder Sensor DE61-90111A
#11

Microwave oven cavity parts diagram

Holder sensor

Part #DE61-90111A

Replaced by #DE61-90111A

?
Manufacturer substitution
This part replaces DE61-90111A. Substitute parts can look different from the original.
This item is not returnable
$4.52
In Stock
