Sony
Digital Camcorder

Model # HDR-CX130/B Official Sony camcorder

Here are the diagrams and repair parts for Official Sony HDR-CX130-B camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

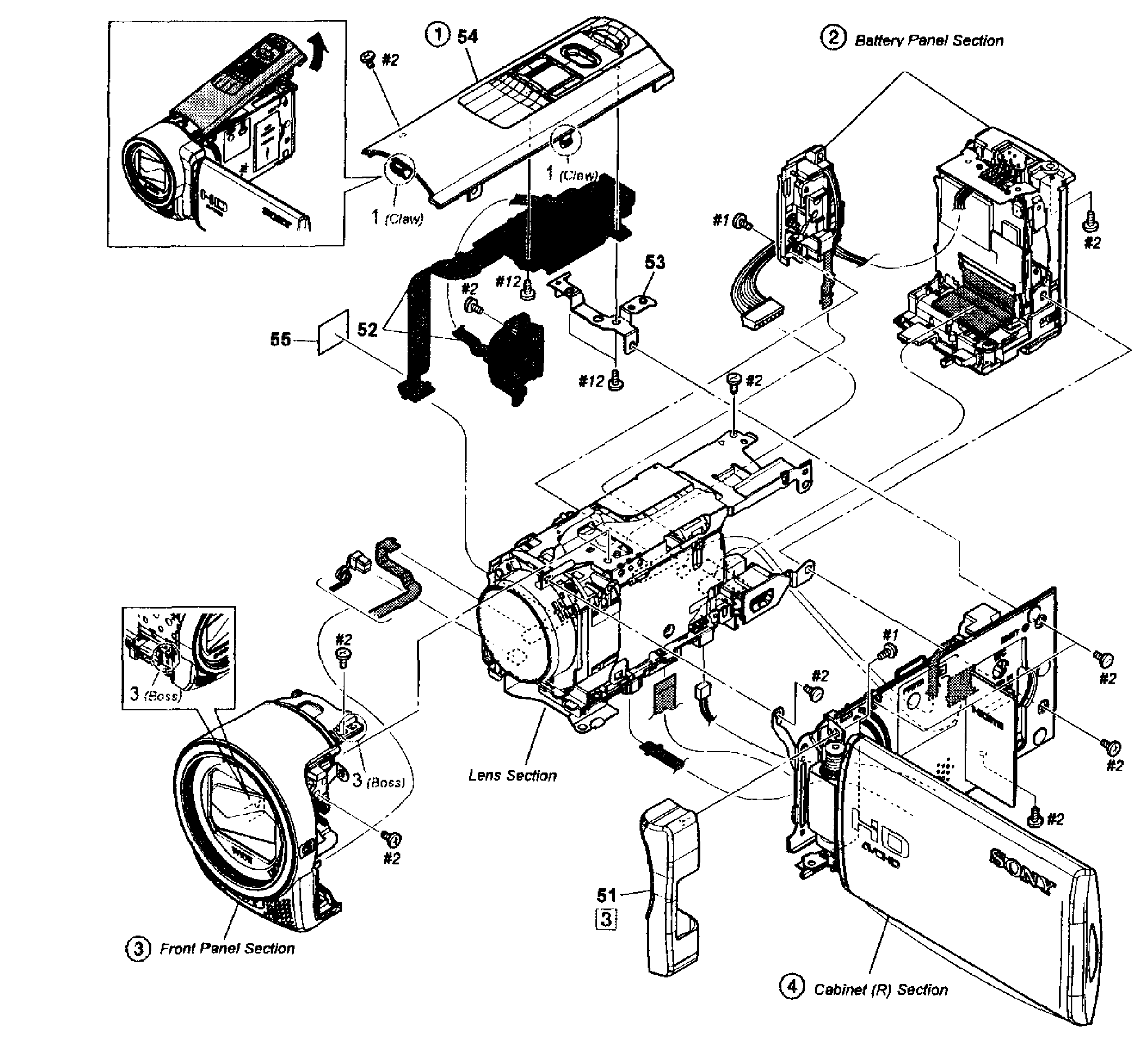

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 81 parts  |
Lid 426560701
#170

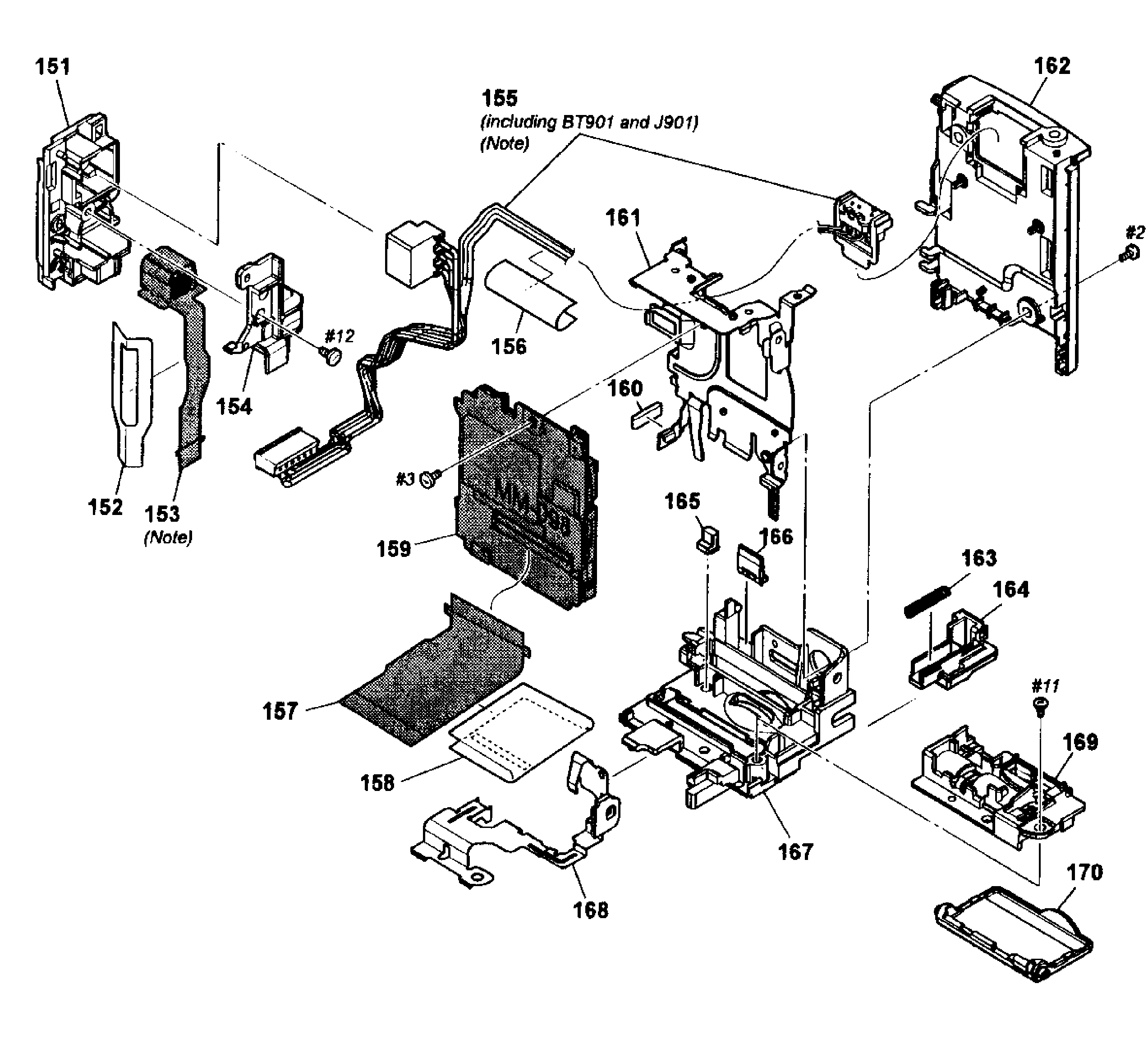

Battery panel diagram

Lid

Part #426560701

The manufacturer no longer makes this part, and there's no substitute part

Cabinet Front 426988201
#268

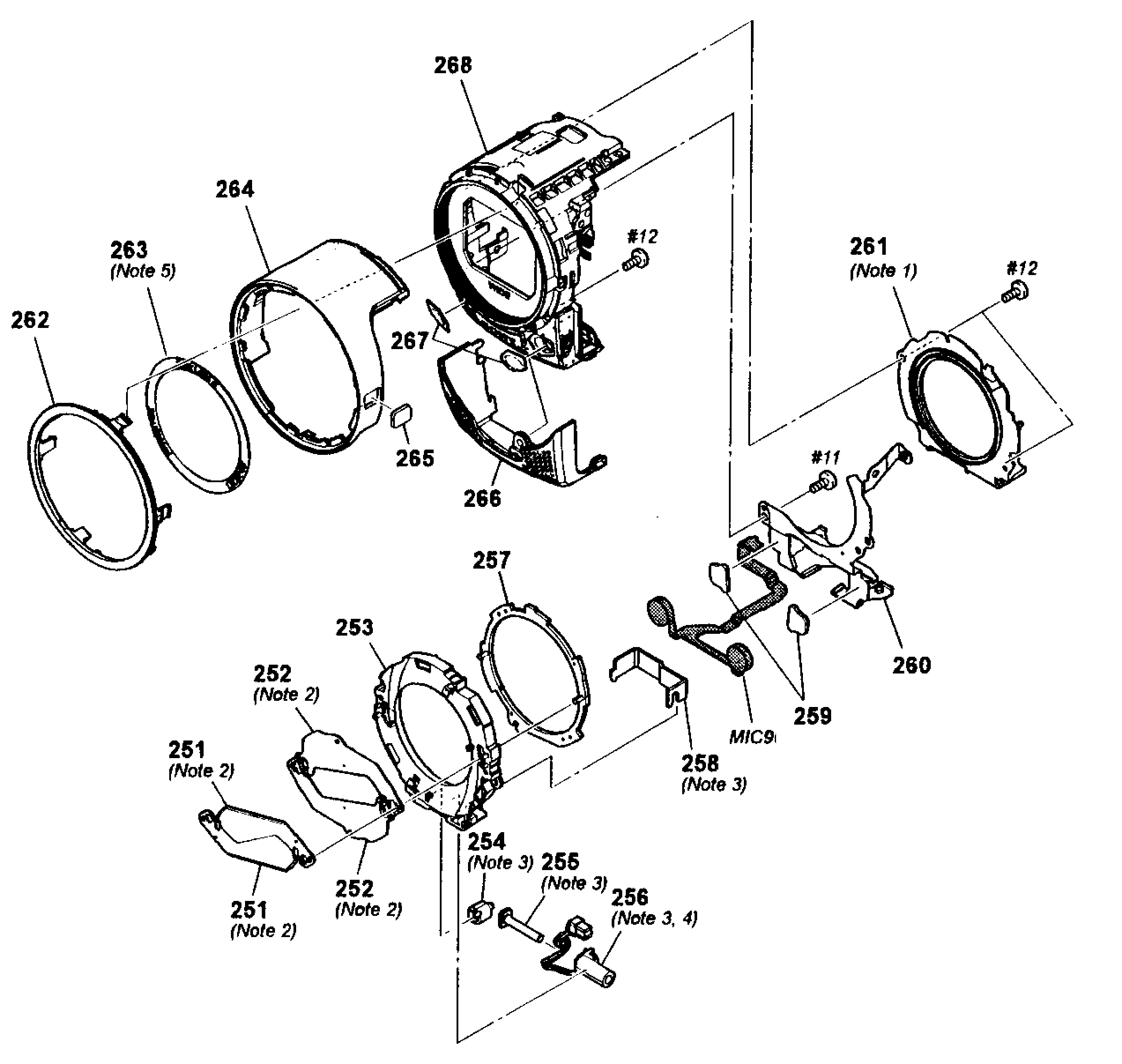

Front assy diagram

Cabinet front

Part #426988201

The manufacturer no longer makes this part, and there's no substitute part

Belt 426554901
#5

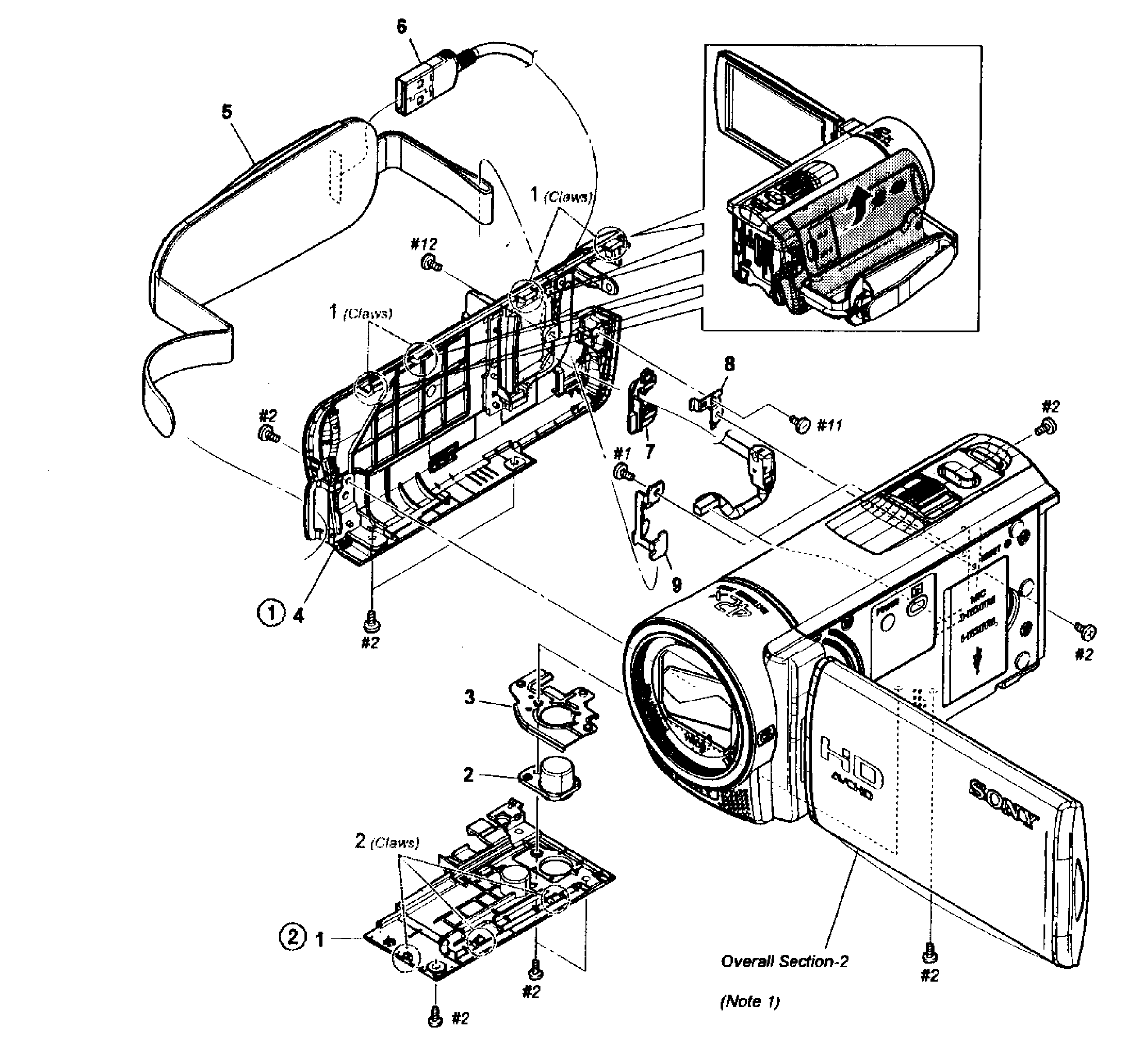

Left assy diagram

Belt

Part #426554901

The manufacturer no longer makes this part, and there's no substitute part

Pcb Fp1313 188273611
#157

Battery panel diagram

Pcb fp1313

Part #188273611

The manufacturer no longer makes this part, and there's no substitute part

Gasket 426554701
#160

Battery panel diagram

Gasket

Part #426554701

The manufacturer no longer makes this part, and there's no substitute part

Cushion 426434001
#259

Front assy diagram

Cushion

Part #426434001

The manufacturer no longer makes this part, and there's no substitute part

Plate 426561101
#168

Battery panel diagram

Plate

Part #426561101

The manufacturer no longer makes this part, and there's no substitute part

Cushion 426559801
#205

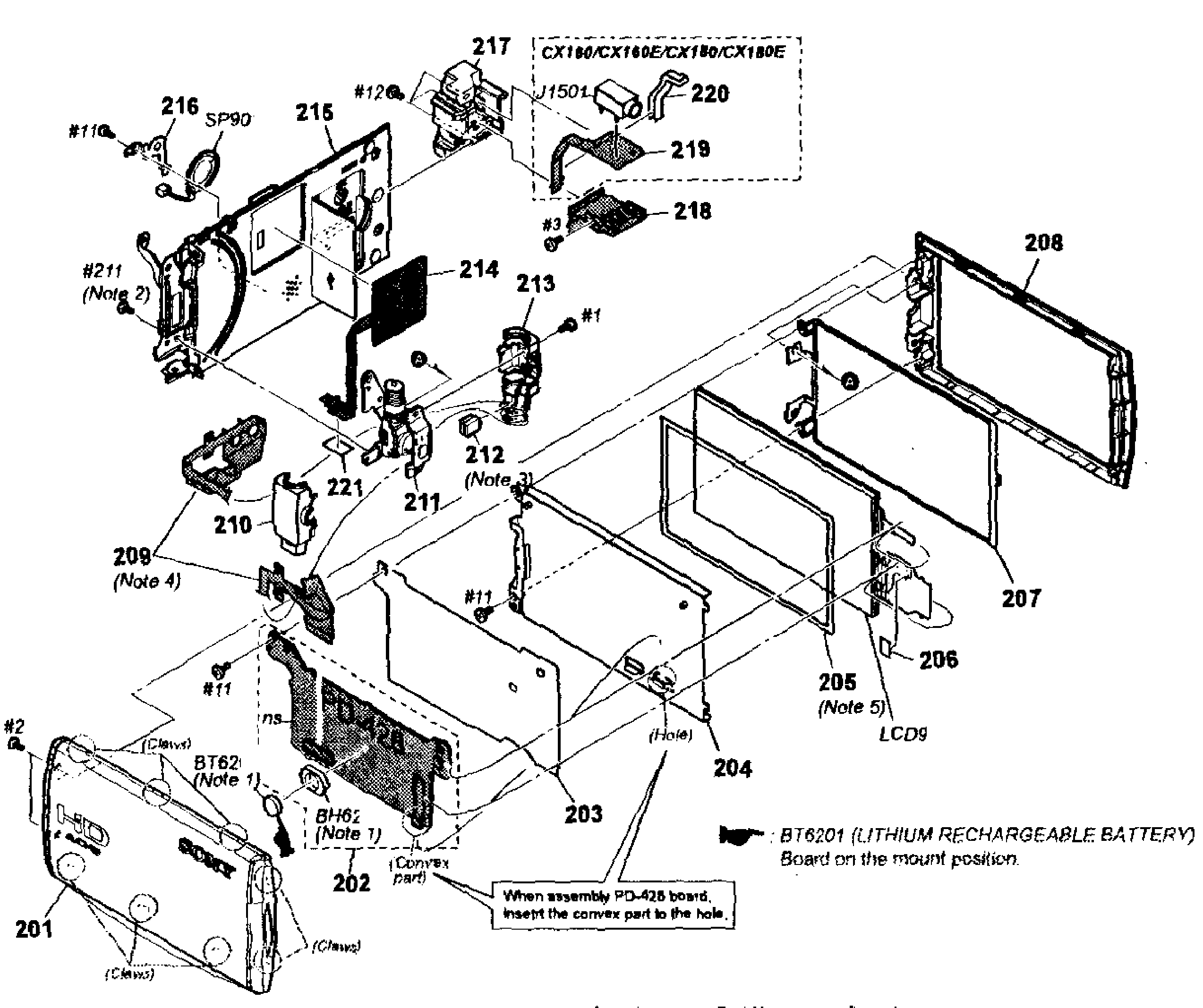

Right assy diagram

Cushion

Part #426559801

The manufacturer no longer makes this part, and there's no substitute part

Claw 426560901
#166

Battery panel diagram

Claw

Part #426560901

The manufacturer no longer makes this part, and there's no substitute part

Pcb Fp1314 188273711
#109

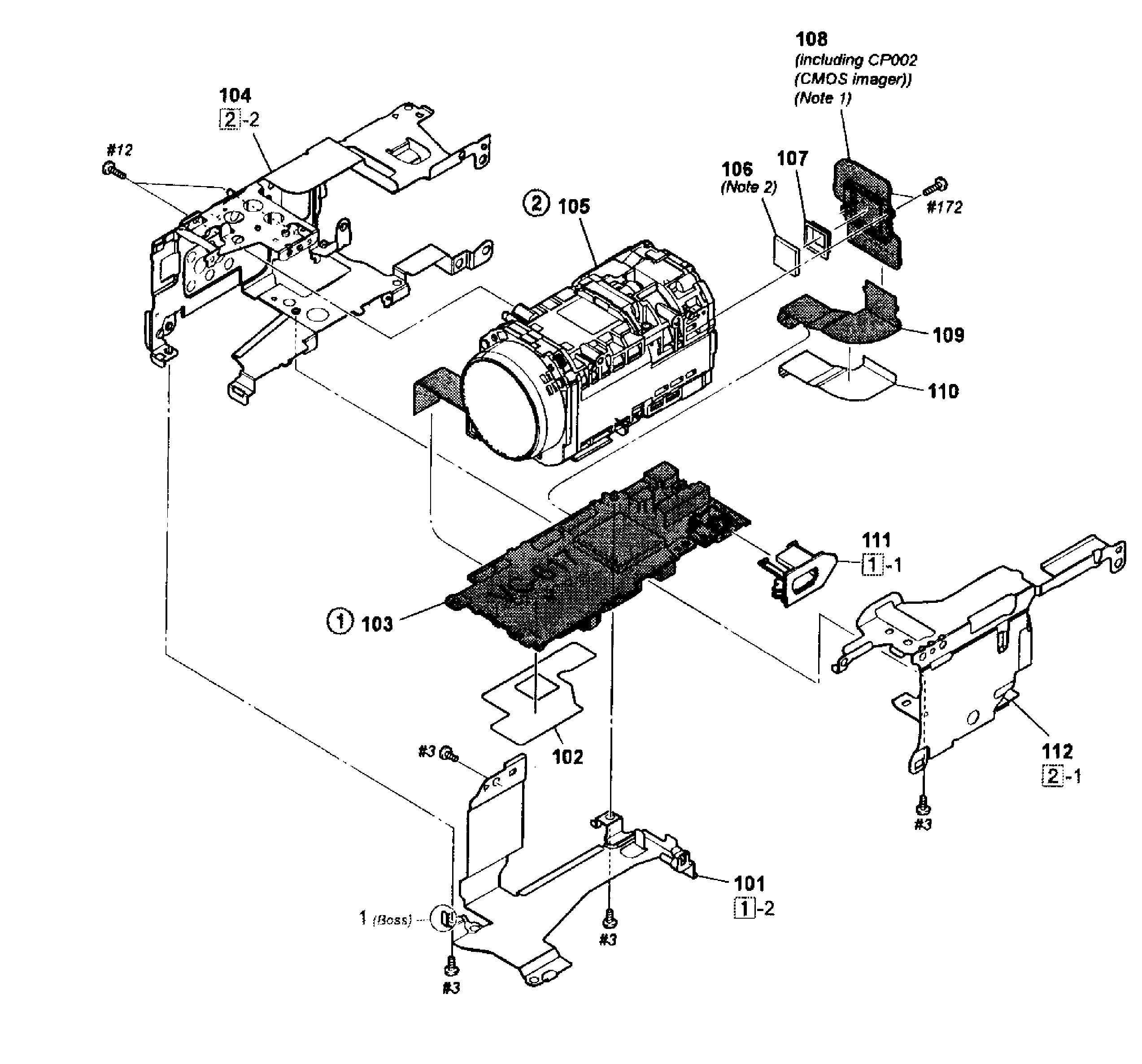

Lens assy diagram

Pcb fp1314

Part #188273711

The manufacturer no longer makes this part, and there's no substitute part
