Briggs & Stratton
Lawn & Garden Engine

Model # 11200 TO 112299 (0016 - 0016) Official Briggs & Stratton gas engine

Here are the diagrams and repair parts for Official Briggs & Stratton 11200-TO-112299-0016-0016 gas engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

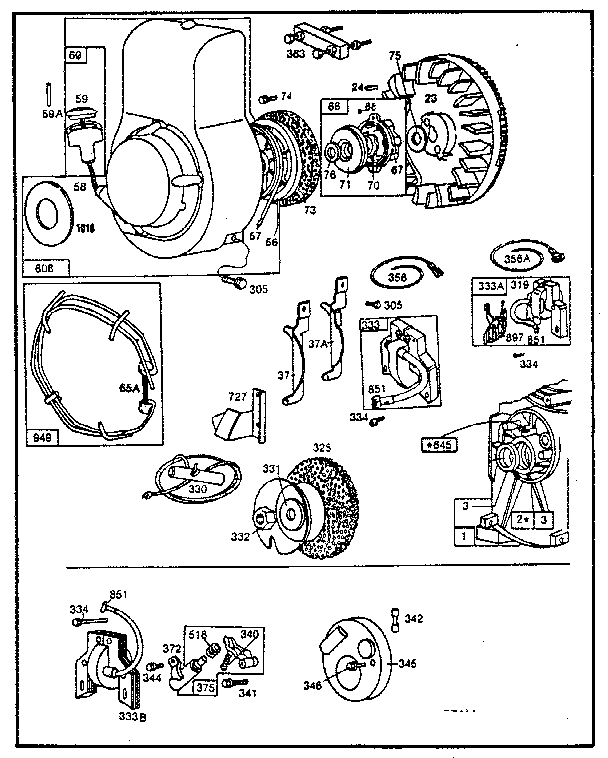

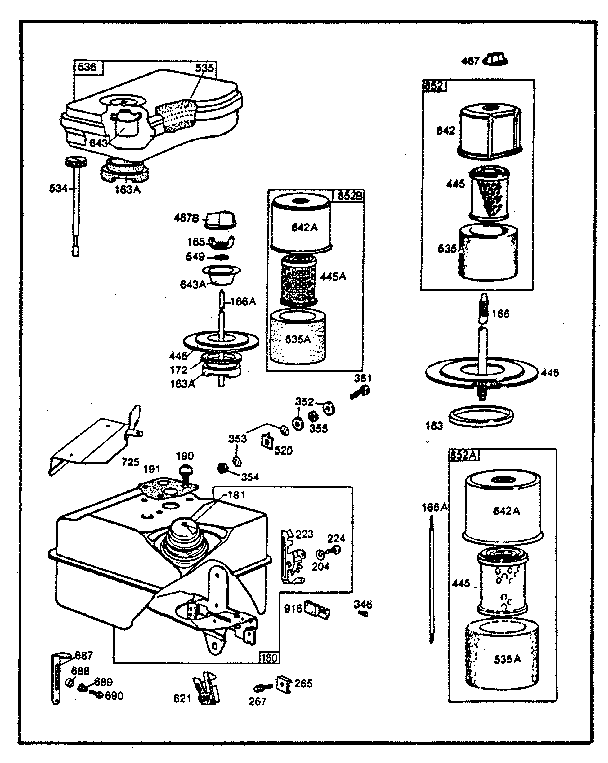

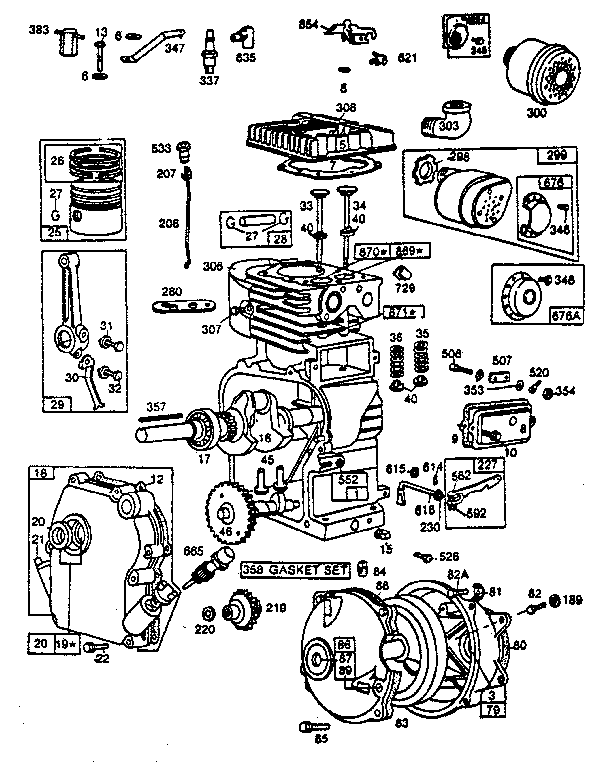

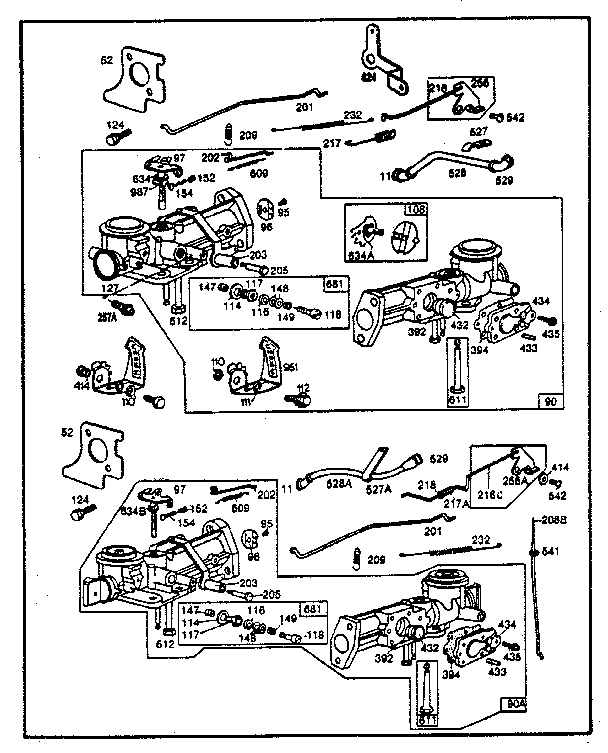

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 216 parts  |
Spark Plug 298809

#337

All parts diagram

Spark plug

Part #298809

Replaced by #796112S

?
Manufacturer substitution
This part replaces 298809. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.24 |
16% OFF Phone Price : $6.24
In Stock
Oil Filter Plug 66768

#21

All parts diagram

Oil filter plug

Part #66768

Replaced by #281658S

?
Manufacturer substitution
This part replaces 66768. Substitute parts can look different from the original.
This item is not returnable
$5.79 |
15% OFF Phone Price : $6.79
In Stock
Screw 93381
Screw

Part #93381

Replaced by #691061

?
Manufacturer substitution
This part replaces 93381. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Lawn & Garden Equipment Engine Carburetor Diaphragm 270026

#394

All parts diagram

Lawn & garden equipment engine carburetor diaphragm

Part #270026

This item is not returnable
$5.66 |
15% OFF Phone Price : $6.66
In Stock
Magneto Arm 298502

#333B

All parts diagram

Magneto arm

Part #298502

Replaced by #591420

?
Manufacturer substitution
This part replaces 298502. Substitute parts can look different from the original.
$67.99 |
8% OFF Phone Price : $73.99
In Stock
Armature 395488

#319

All parts diagram

Armature

Part #395488

Replaced by #591420

?
Manufacturer substitution
This part replaces 395488. Substitute parts can look different from the original.
$67.99 |
8% OFF Phone Price : $73.99
In Stock
Armature 395489

#333A

All parts diagram

Armature

Part #395489

Replaced by #591420

?
Manufacturer substitution
This part replaces 395489. Substitute parts can look different from the original.
$67.99 |
8% OFF Phone Price : $73.99
In Stock
Armature 397316

#333

All parts diagram

Armature

Part #397316

Replaced by #591420

?
Manufacturer substitution
This part replaces 397316. Substitute parts can look different from the original.
$67.99 |
8% OFF Phone Price : $73.99
In Stock
Muffler 394569

#300

All parts diagram

Muffler

Part #394569

Replaced by #394569S

?
Manufacturer substitution
This part replaces 394569. Substitute parts can look different from the original.
This item is not returnable
$17.11 |
10% OFF Phone Price : $19.11
In Stock
Screw 93705

#346

All parts diagram

Screw

Part #93705

Replaced by #690661

?
Manufacturer substitution
This part replaces 93705. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
