Model # 917253390 Official Craftsman lawn tractor shredder

Here are the diagrams and repair parts for Official Craftsman 917253390 lawn tractor shredder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 123 parts  |
Hitch Pin, 2-pack 4939M
#23

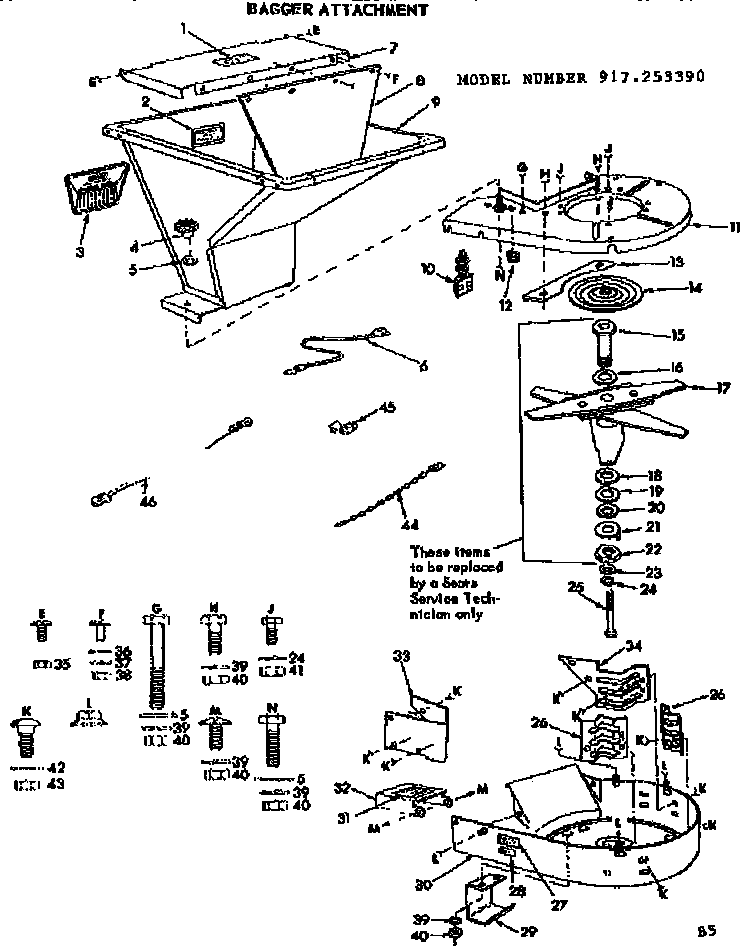

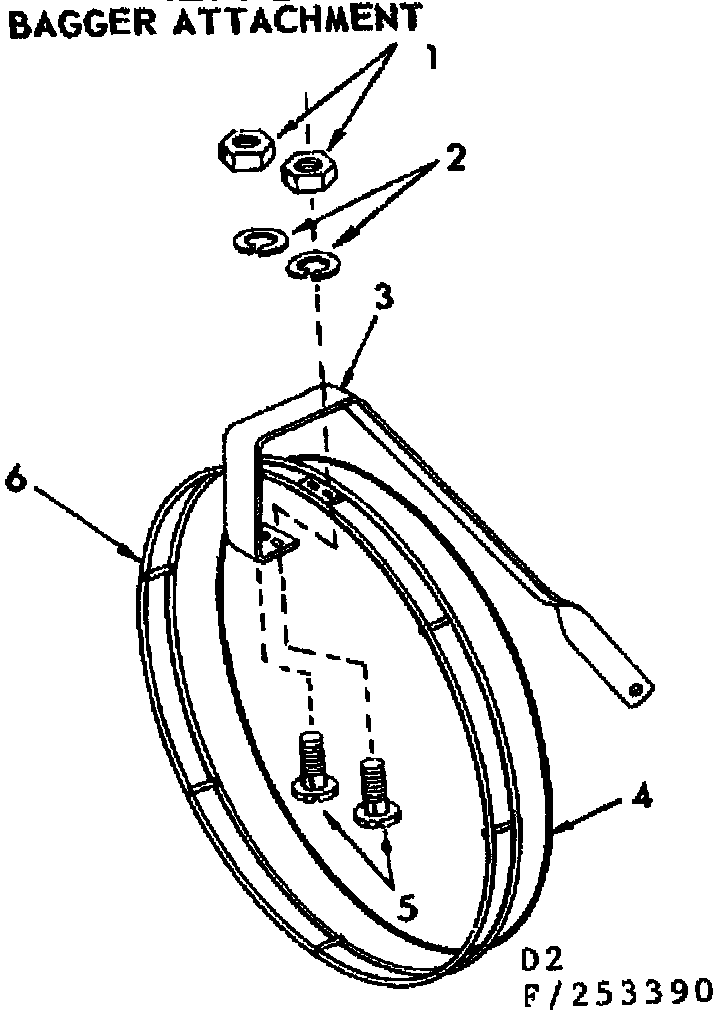

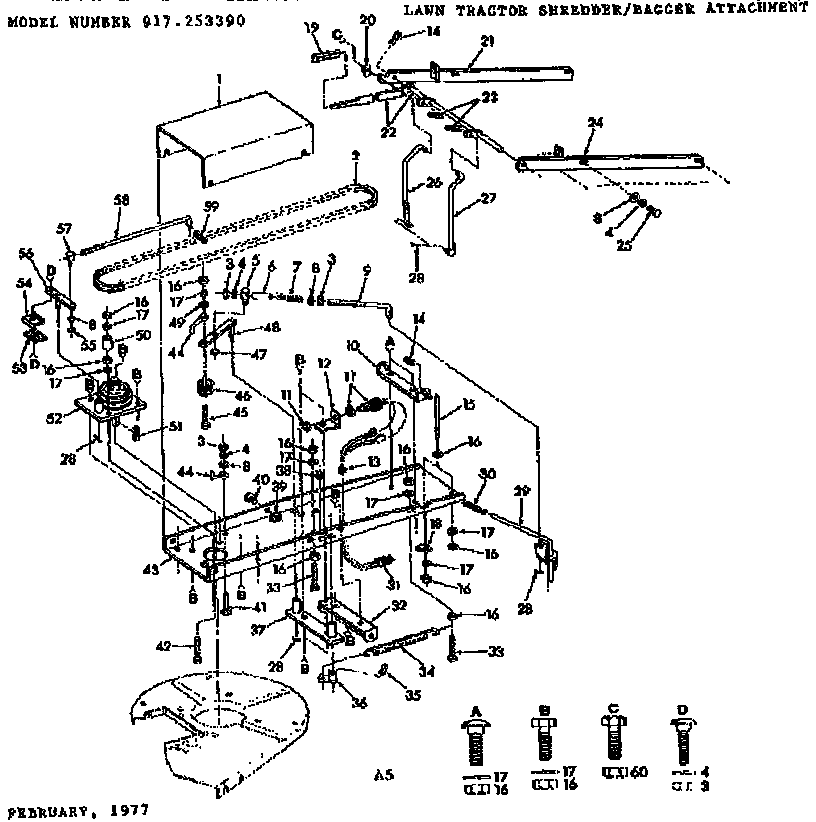

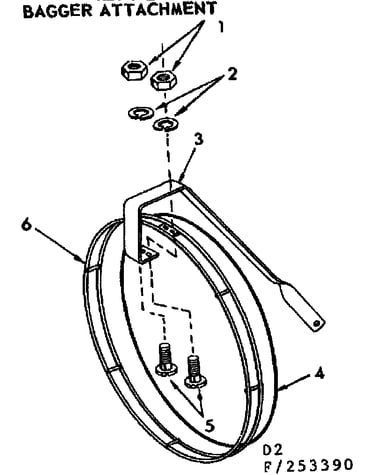

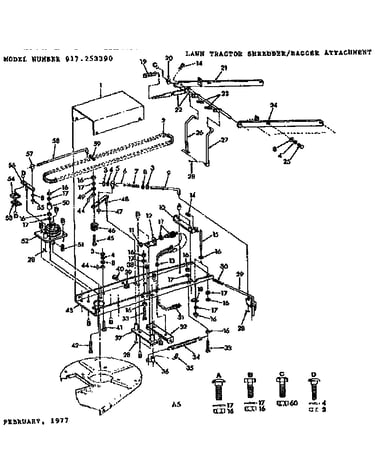

Bagger attachment diagram

Hitch pin, 2-pack

Part #4939M

Replaced by #596919601

?
Manufacturer substitution
This part replaces 4939M. Substitute parts can look different from the original.
This item is not returnable
$3.98 |
20% OFF Phone Price : $4.98
In Stock
Bolt 3288P
#42

Bagger attachment diagram

Bolt

Part #3288P

Replaced by #874930632

?
Manufacturer substitution
This part replaces 3288P. Substitute parts can look different from the original.
$10.26
In Stock
Hex Fin Bolt 3159P
#41

Bagger attachment diagram

Hex fin bolt

Part #3159P

Replaced by #596322201

?
Manufacturer substitution
This part replaces 3159P. Substitute parts can look different from the original.
This item is not returnable
$5.11
In Stock
Bolt 3252P
Bolt

Part #3252P

Replaced by #874930624

?
Manufacturer substitution
This part replaces 3252P. Substitute parts can look different from the original.
$11.97
In Stock
Tiller Handle Grip 8206H
#19

Bagger attachment diagram

Tiller handle grip

Part #8206H

Replaced by #532008206

?
Manufacturer substitution
This part replaces 8206H. Substitute parts can look different from the original.
$17.11
In Stock
Guide 5475R
#1

Bagger attachment diagram

Guide

Part #5475R

The manufacturer no longer makes this part, and there's no substitute part

Bolt 3263P
#25

Bagger attachment diagram

Bolt

Part #3263P

The manufacturer no longer makes this part, and there's no substitute part

Lock Screw 4291R
#40

Bagger attachment diagram

Lock screw

Part #4291R

The manufacturer no longer makes this part, and there's no substitute part

Woodruff Key 8330H
#10

Bagger attachment/mandrel assembly diagram

Woodruff key

Part #8330H

The manufacturer no longer makes this part, and there's no substitute part

Washer 2942R
#19

Bagger attachment diagram

Washer

Part #2942R

The manufacturer no longer makes this part, and there's no substitute part
