Model # 70/50.12 Official Amana commercial microwave

Here are the diagrams and repair parts for Official Amana 70-5012 commercial microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 172 parts  |
Bulb (pl1) M9D10
#27

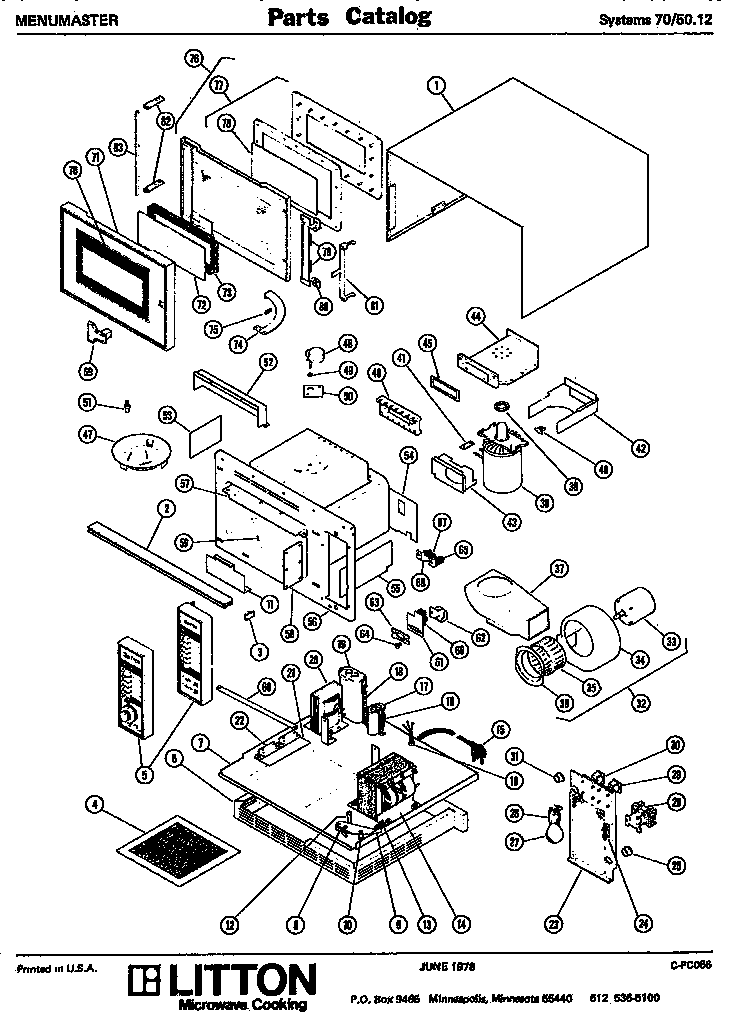

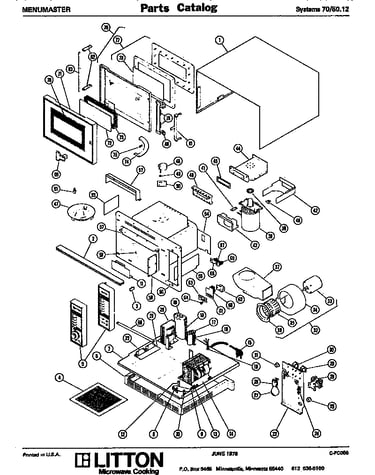

Replacement parts diagram

Bulb (pl1)

Part #M9D10

The manufacturer no longer makes this part, and there's no substitute part

Seal Strap, Rail (2 Ft. Per Pkg.) M1D740
#6C

Replacement parts diagram

Seal strap, rail (2 ft. per pkg.)

Part #M1D740

The manufacturer no longer makes this part, and there's no substitute part

Screw - Resistor Mtg M1D50
#12C

Replacement parts diagram

Screw - resistor mtg

Part #M1D50

The manufacturer no longer makes this part, and there's no substitute part

Nut Adjustment Screw, Mtg. M1D414
Nut adjustment screw, mtg.

Part #M1D414

The manufacturer no longer makes this part, and there's no substitute part

Air Filter M48D1
#4

Replacement parts diagram

Air filter

Part #M48D1

The manufacturer no longer makes this part, and there's no substitute part

Fiber Washer M1D51
#12B

Replacement parts diagram

Fiber washer

Part #M1D51

The manufacturer no longer makes this part, and there's no substitute part

H.v. Land Wire (3 Ft. Per Pkg.) M5D222

#NI

All parts diagram

H.v. land wire (3 ft. per pkg.)

Part #M5D222

The manufacturer no longer makes this part, and there's no substitute part

Air Duct, Front (change From Previous Parts Catalog C-pc064) M65D17
#44A

Replacement parts diagram

Air duct, front (change from previous parts catalog c-pc064)

Part #M65D17

The manufacturer no longer makes this part, and there's no substitute part

Alum. Spacer M2D156
#50

Replacement parts diagram

Alum. spacer

Part #M2D156

The manufacturer no longer makes this part, and there's no substitute part

Cavity Support Bracket M7D112
#7B

Replacement parts diagram

Cavity support bracket

Part #M7D112

The manufacturer no longer makes this part, and there's no substitute part
