Model # CAC436GKA1 Official ICP condensing unit

Here are the diagrams and repair parts for Official ICP CAC436GKA1 condensing unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 23 parts  |
Board 1086071
#25

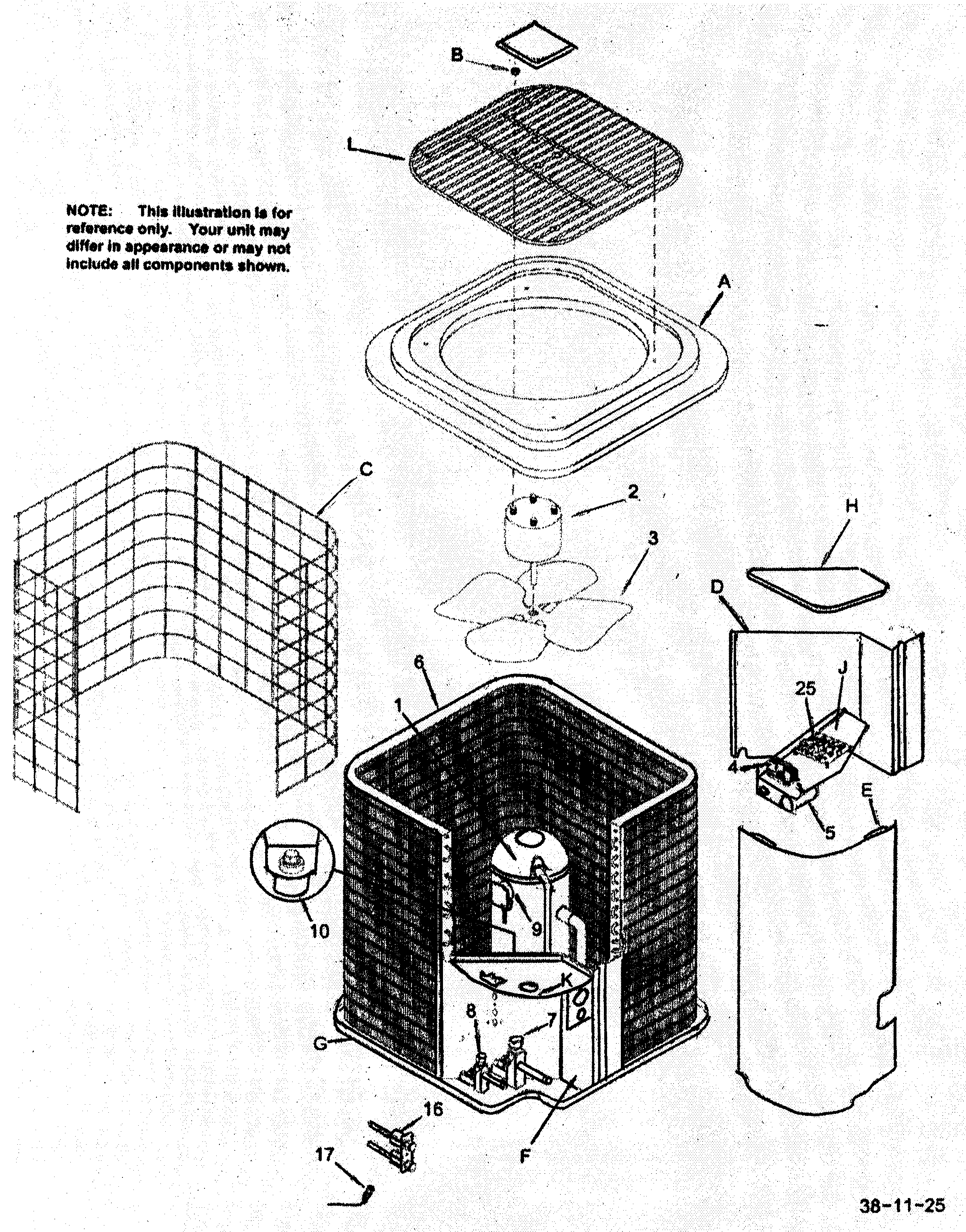

Condensing unit diagram

Board

Part #1086071

Replaced by #1088977

?
Manufacturer substitution
This part replaces 1086071. Substitute parts can look different from the original.
$85.61 |
7% OFF Phone Price : $91.61
In Stock
Grille 1086062
#L

Condensing unit diagram

Grille

Part #1086062

$739.83
In Stock
Press Switch 1087039
#17

Condensing unit diagram

Press switch

Part #1087039

$26.91
In Stock
Valve 1085989
#8

Condensing unit diagram

Valve

Part #1085989

$73.29
In Stock
Central Air Conditioner Refrigerant Suction Line Service Valve 1085991
#7

Condensing unit diagram

Central air conditioner refrigerant suction line service valve

Part #1085991

$107.04
In Stock
Fan 1086520
#3

Condensing unit diagram

Fan

Part #1086520

$84.66 |
7% OFF Phone Price : $90.66
In Stock
Contactor 1050699
#4

Condensing unit diagram

Contactor

Part #1050699

Replaced by #94-388

?
Manufacturer substitution
This part replaces 1050699. Substitute parts can look different from the original.
$33.20 |
15% OFF Phone Price : $39.20
In Stock
Plug Wire 1081940
#9

Condensing unit diagram

Plug wire

Part #1081940

Replaced by #1083654

?
Manufacturer substitution
This part replaces 1081940. Substitute parts can look different from the original.
$54.17 |
10% OFF Phone Price : $60.17
In Stock
Bottom Control Box 1087470
#K

Condensing unit diagram

Bottom control box

Part #1087470

The manufacturer no longer makes this part, and there's no substitute part

Panel Crnr 1087535
#F

Condensing unit diagram

Panel crnr

Part #1087535

The manufacturer no longer makes this part, and there's no substitute part
