Model # 25794283700 Official LXI phonograph

Here are the diagrams and repair parts for Official LXI 25794283700 phonograph, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

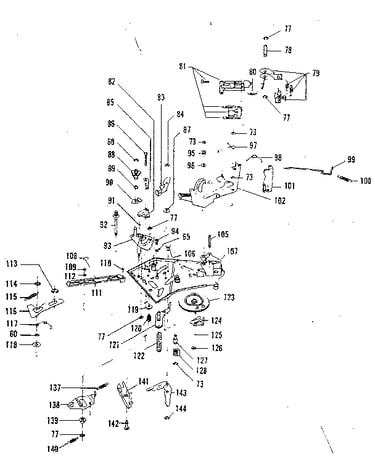

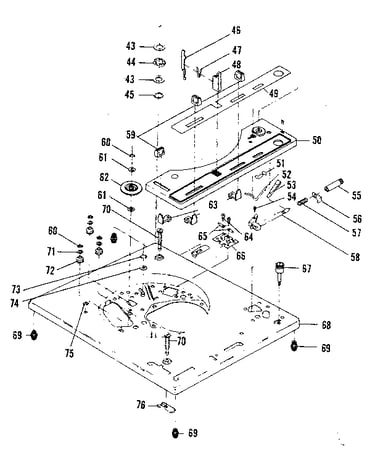

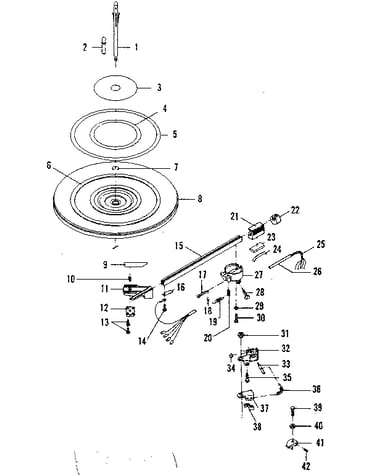

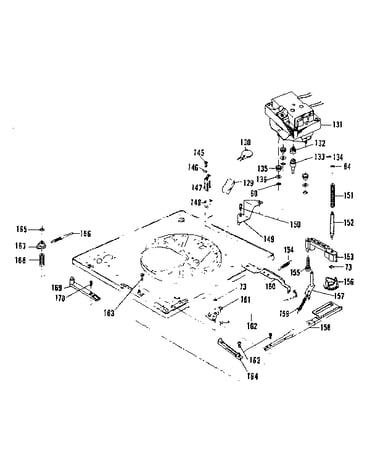

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 169 parts  |
Jockey Pulley Spring A105824

#159

All parts diagram

Jockey pulley spring

Part #A105824

The manufacturer no longer makes this part, and there's no substitute part

T.t. Trim A112822

#5

All parts diagram

T.t. trim

Part #A112822

The manufacturer no longer makes this part, and there's no substitute part

P.u. Rest A108638

#48

All parts diagram

P.u. rest

Part #A108638

The manufacturer no longer makes this part, and there's no substitute part

Spring Anchor B111797

#167

All parts diagram

Spring anchor

Part #B111797

The manufacturer no longer makes this part, and there's no substitute part

P.u. Adjuster A106654

#37

All parts diagram

P.u. adjuster

Part #A106654

The manufacturer no longer makes this part, and there's no substitute part

50 Cps Pulley B110487

#133

All parts diagram

50 cps pulley

Part #B110487

The manufacturer no longer makes this part, and there's no substitute part

Reject Link A106134

#122

All parts diagram

Reject link

Part #A106134

The manufacturer no longer makes this part, and there's no substitute part

Spring Support A107004

#90

All parts diagram

Spring support

Part #A107004

The manufacturer no longer makes this part, and there's no substitute part

Speed Change Slide Assembly B108113

#158

All parts diagram

Speed change slide assembly

Part #B108113

The manufacturer no longer makes this part, and there's no substitute part

Screw 8x1/2 Hi-lo Rec. Pan Hd. A110609

#94

All parts diagram

Screw 8x1/2 hi-lo rec. pan hd.

Part #A110609

The manufacturer no longer makes this part, and there's no substitute part
