Model # 154621 Official Char-Broil outdoor grill

Here are the diagrams and repair parts for Official Char-Broil 154621 outdoor grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 64 parts  |
Wheel 4156956
#8

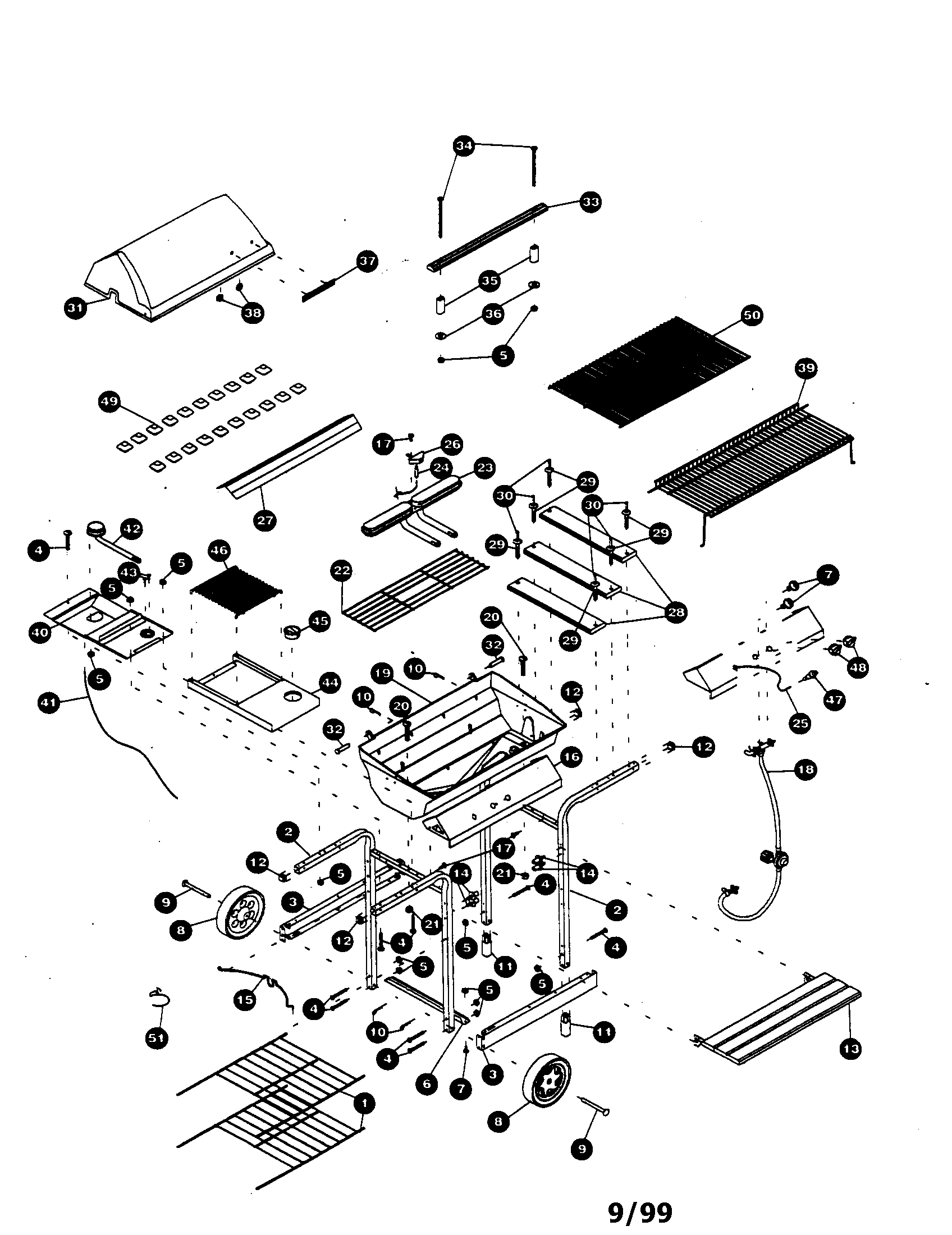

Grill 415154621 diagram

Wheel

Part #4156956

Replaced by #G206-0025-W1

?
Manufacturer substitution
This part replaces 4156956. Substitute parts can look different from the original.
$6.69 |
13% OFF Phone Price : $7.69
In Stock
Wire 4153720
#25

Grill 415154621 diagram

Wire

Part #4153720

Replaced by #4153196

?
Manufacturer substitution
This part replaces 4153720. Substitute parts can look different from the original.
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Ken-ran Gas Grill Lid Hinge Pin 4156513
#32

Grill 415154621 diagram

Ken-ran gas grill lid hinge pin

Part #4156513

This item is not returnable
$2.16
In Stock
Ken-ran Gas Grill Axle Bolt 4080155
#9

Grill 415154621 diagram

Ken-ran gas grill axle bolt

Part #4080155

This item is not returnable
$2.16
In Stock
Ken-ran Gas Grill Screw 4080307
#34

Grill 415154621 diagram

Ken-ran gas grill screw

Part #4080307

This item is not returnable
$2.16
In Stock
Thermos Gas Grill Flame Tamer, 23-1/2 X 2-9/16 4156417
#27

Grill 415154621 diagram

Thermos gas grill flame tamer, 23-1/2 x 2-9/16

Part #4156417

$21.62 |
22% OFF Phone Price : $27.62
In Stock
Grease Clip 4156894
#51

Grill 415154621 diagram

Grease clip

Part #4156894

Replaced by #80011874

?
Manufacturer substitution
This part replaces 4156894. Substitute parts can look different from the original.
This item is not returnable
$8.54
In Stock
Handle Spacer 4069908
#35

Grill 415154621 diagram

Handle spacer

Part #4069908

Replaced by #4253274

?
Manufacturer substitution
This part replaces 4069908. Substitute parts can look different from the original.
This item is not returnable
$3.99
In Stock
Burner 4068286
#42

Grill 415154621 diagram

Burner

Part #4068286

The manufacturer no longer makes this part, and there's no substitute part

Grill 4591715

#NI

All parts diagram

Grill

Part #4591715

The manufacturer no longer makes this part, and there's no substitute part
