Model # FAH12EP2T1 Official Frigidaire air conditioner

Here are the diagrams and repair parts for Official Frigidaire FAH12EP2T1 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

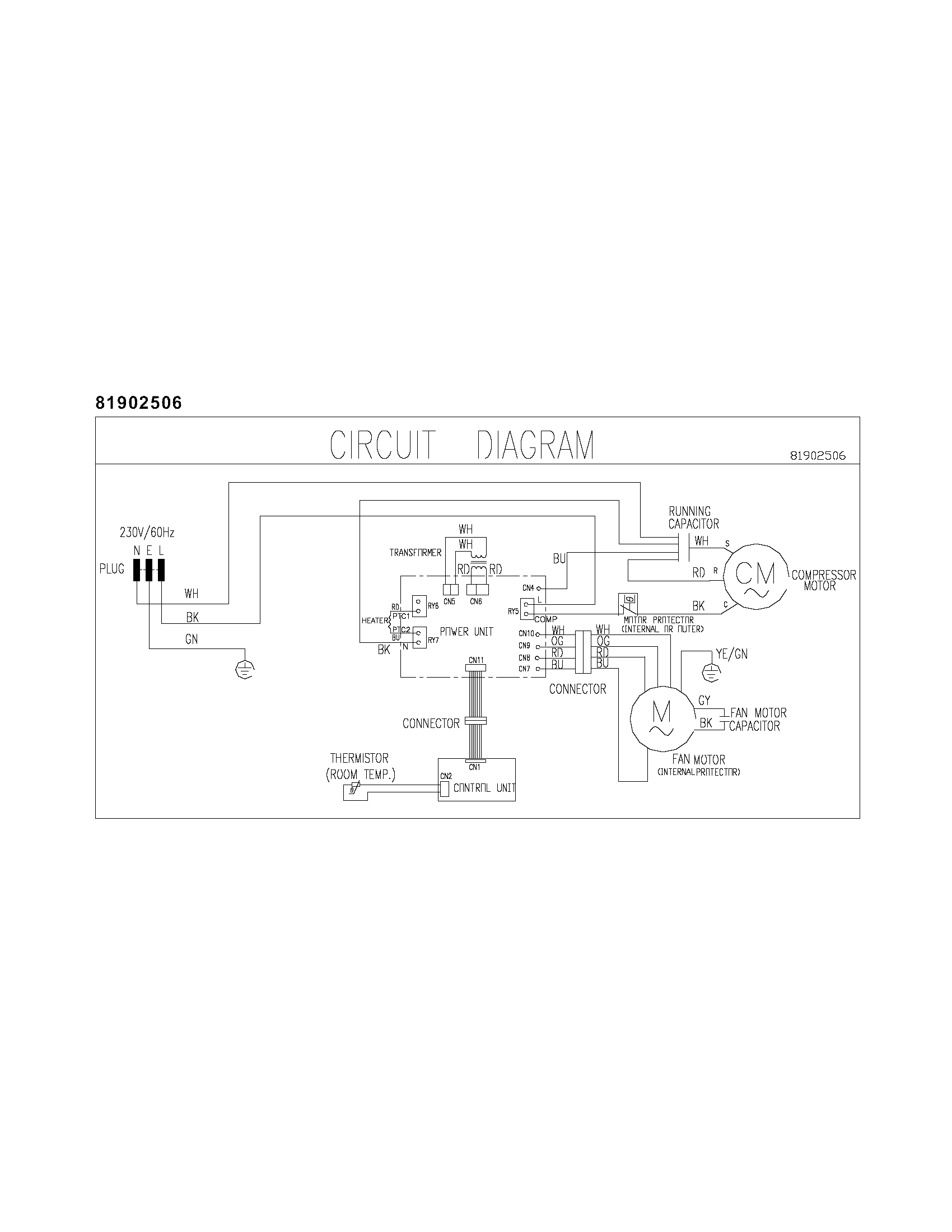

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 51 parts  |
Capacitor 5304448073
#29

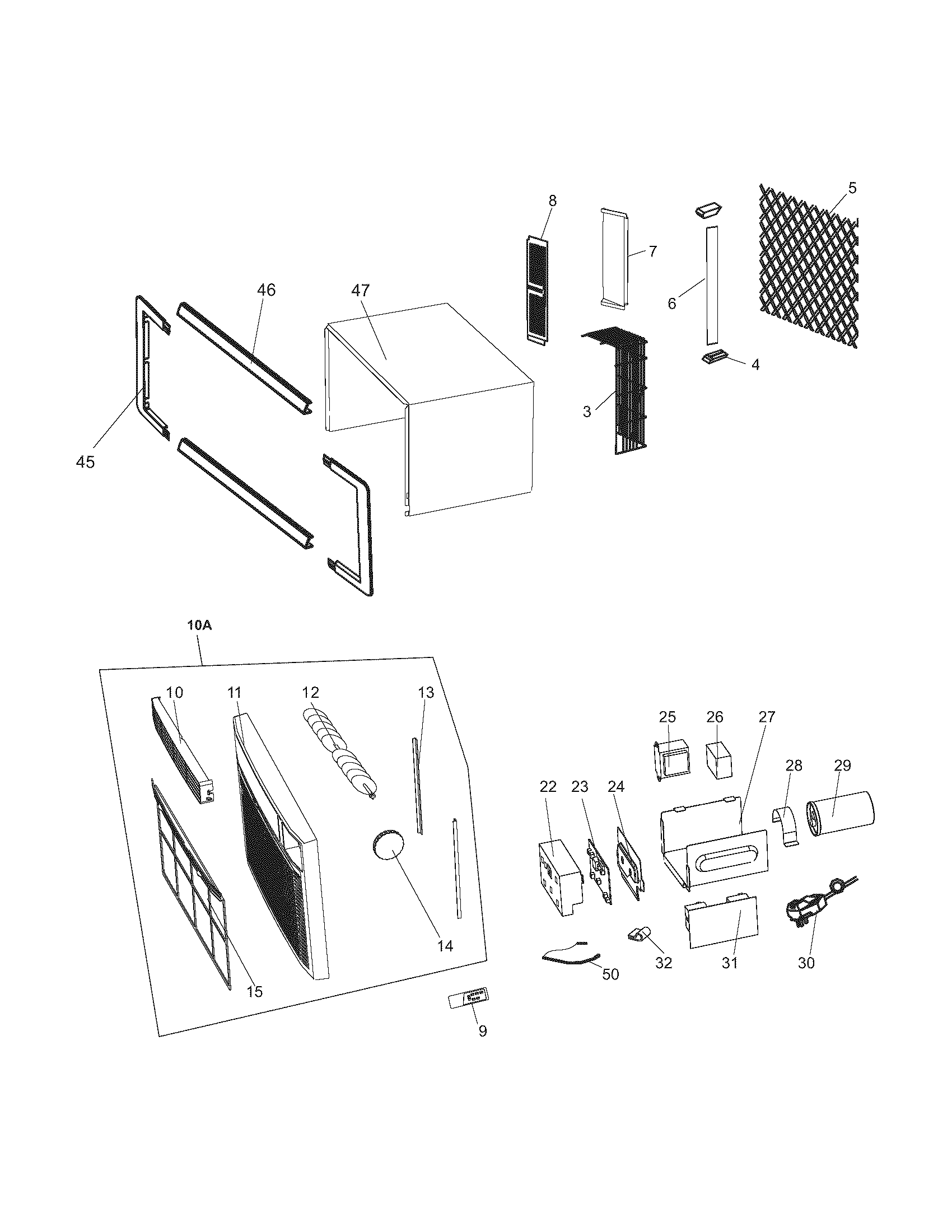

Cabinet/front/controls diagram

Capacitor

Part #5304448073

$42.99
In Stock
Capacitor 5304448072
#26

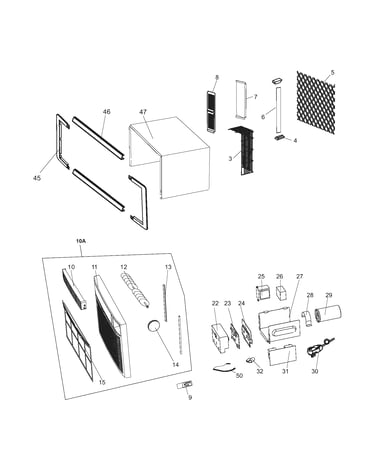

Cabinet/front/controls diagram

Capacitor

Part #5304448072

$10.50
In Stock
Compressor 5304448071
#21

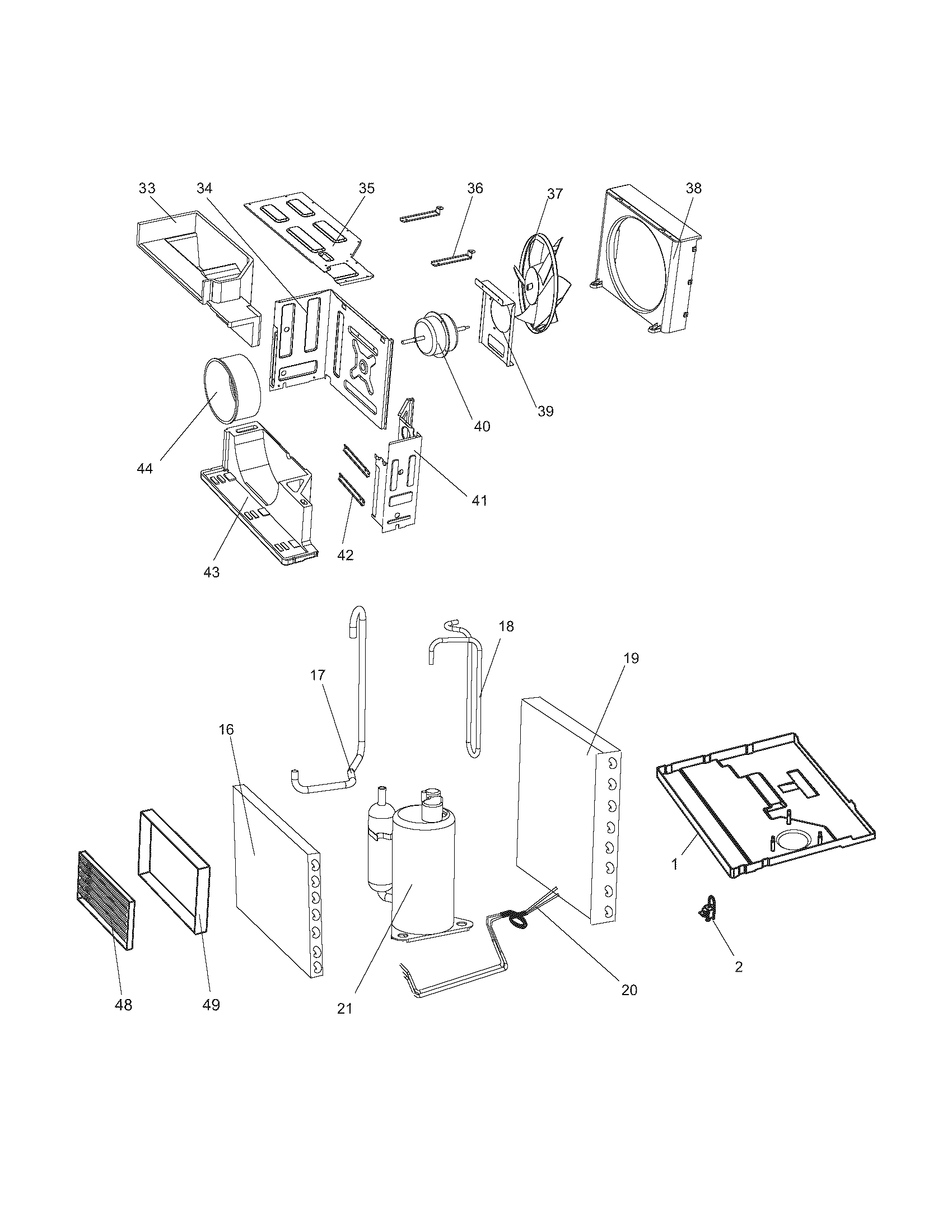

Cooling & air flow systems diagram

Compressor

Part #5304448071

The manufacturer no longer makes this part, and there's no substitute part

Condenser 5304448003
#19

Cooling & air flow systems diagram

Condenser

Part #5304448003

The manufacturer no longer makes this part, and there's no substitute part

Scroll 5304448059
#33

Cooling & air flow systems diagram

Scroll

Part #5304448059

The manufacturer no longer makes this part, and there's no substitute part

Evaporator 5304448061
#16

Cooling & air flow systems diagram

Evaporator

Part #5304448061

The manufacturer no longer makes this part, and there's no substitute part

Panel 5304447995
#11

Cabinet/front/controls diagram

Panel

Part #5304447995

The manufacturer no longer makes this part, and there's no substitute part

Air Conditioner Blower Wheel 5304448047
#44

Cooling & air flow systems diagram

Air conditioner blower wheel

Part #5304448047

The manufacturer no longer makes this part, and there's no substitute part

Discharge Tube 5304448065
#18

Cooling & air flow systems diagram

Discharge tube

Part #5304448065

The manufacturer no longer makes this part, and there's no substitute part

Suction Tube 5304448063
#17

Cooling & air flow systems diagram

Suction tube

Part #5304448063

The manufacturer no longer makes this part, and there's no substitute part
