Model # GH2000 TYPE 1 Official Black & Decker trimmer

Here are the diagrams and repair parts for Official Black & Decker GH2000-TYPE-1 trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 33 parts  |
Black & Decker Ball Bearing 574853-15
#45

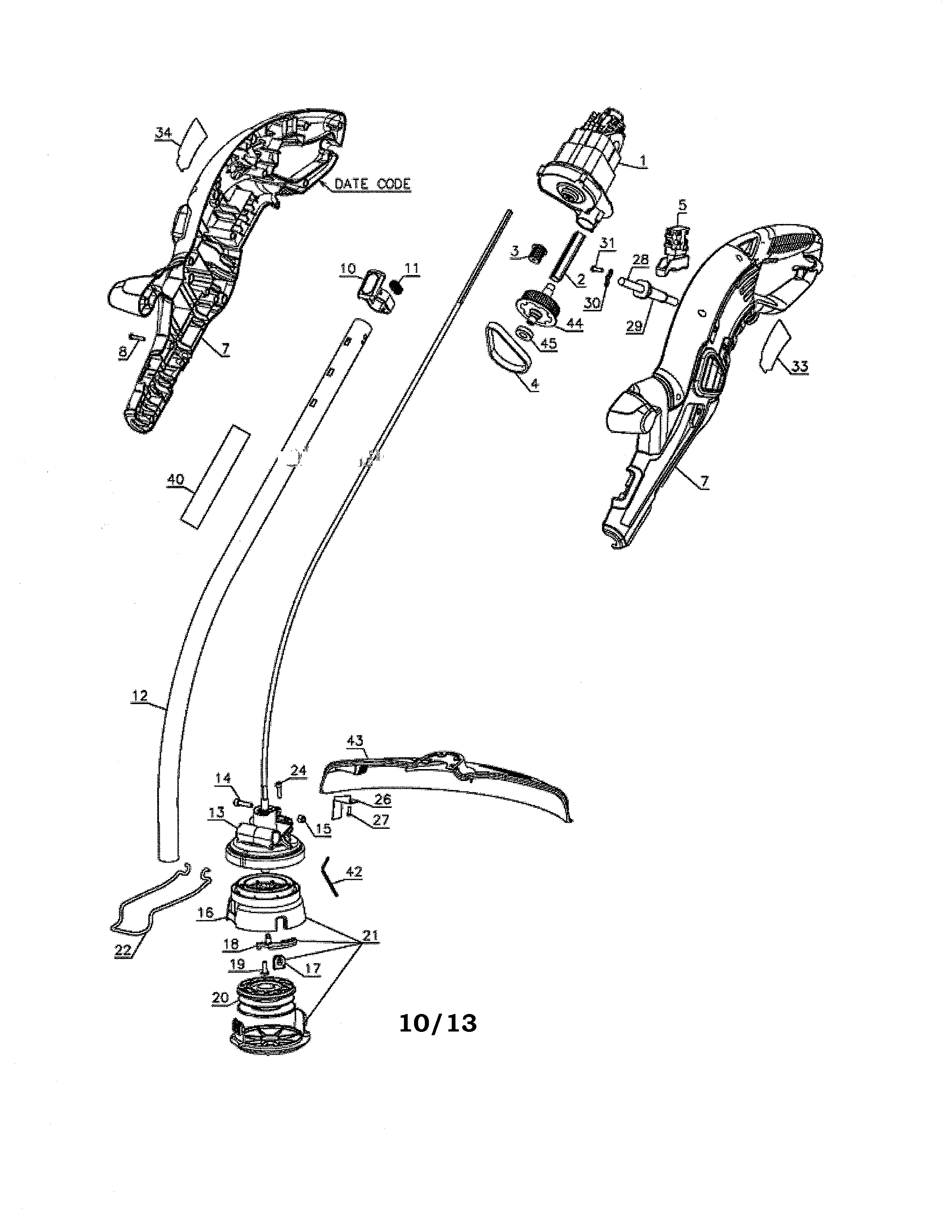

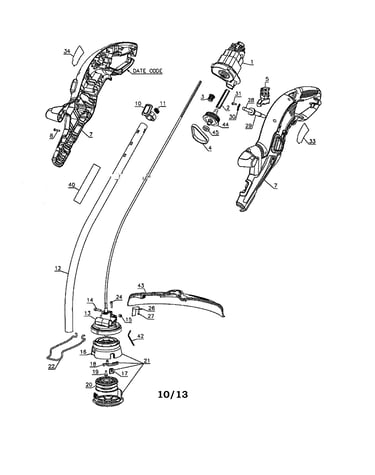

Trimmer diagram

Black & decker ball bearing

Part #574853-15

The manufacturer no longer makes this part, and there's no substitute part

Cord Protector 770235
#29

Trimmer diagram

Cord protector

Part #770235

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Motor Assembly 90546239
#1

Trimmer diagram

Black & decker motor assembly

Part #90546239

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Warning Label 90555828
#40

Trimmer diagram

Black & decker warning label

Part #90555828

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Spool Housing 90529876
#16

Trimmer diagram

Black & decker spool housing

Part #90529876

The manufacturer no longer makes this part, and there's no substitute part

Lawn & Garden Equipment Bolt 371954-01
#19

Trimmer diagram

Lawn & garden equipment bolt

Part #371954-01

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Eyelet (2) 495585-00
#17

Trimmer diagram

Black & decker eyelet (2)

Part #495585-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Tube Assembly 478527-01
#12

Trimmer diagram

Black & decker tube assembly

Part #478527-01

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Switch 90553261
#5

Trimmer diagram

Black & decker switch

Part #90553261

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 477344-00
#15

Trimmer diagram

Lock nut

Part #477344-00

The manufacturer no longer makes this part, and there's no substitute part
