Model # 56424140050 Official LXI radio

Here are the diagrams and repair parts for Official LXI 56424140050 radio, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 38 parts  |
Cushion 141-2-447T-46200
Cushion

Part #141-2-447T-46200

The manufacturer no longer makes this part, and there's no substitute part

Screw BJNBSXX2X8XC1
#22

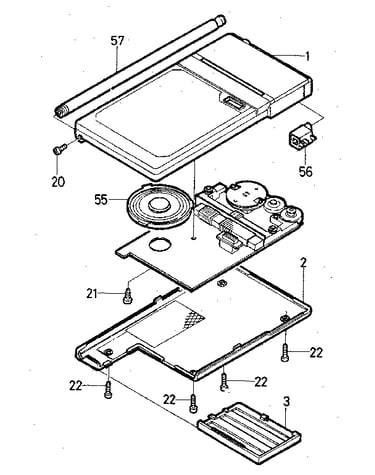

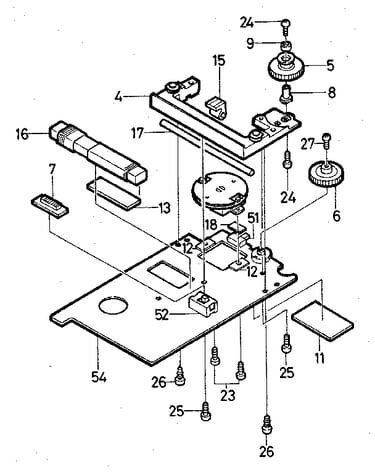

Chassis diagram

Screw

Part #BJNBSXX2X8XC1

The manufacturer no longer makes this part, and there's no substitute part

Core 123-2-471R-10400

#NI

All parts diagram

Core

Part #123-2-471R-10400

The manufacturer no longer makes this part, and there's no substitute part

Sheet 141-2-246T-66500
Sheet

Part #141-2-246T-66500

The manufacturer no longer makes this part, and there's no substitute part

Screw, Telescopic Antenna Mtg. BJNBS-XX2X4XC1
Screw, telescopic antenna mtg.

Part #BJNBS-XX2X4XC1

The manufacturer no longer makes this part, and there's no substitute part

Case 141-2-181T-10803

#NI

All parts diagram

Case

Part #141-2-181T-10803

The manufacturer no longer makes this part, and there's no substitute part

(a-32) Lug, Motor (a31) Mtg. (not A Service Part) N/P
(a-32) lug, motor (a31) mtg. (not a service part)

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Battery Lid 141-2-128T-14250
Battery lid

Part #141-2-128T-14250

The manufacturer no longer makes this part, and there's no substitute part

Rope Guide 141-2-352T-39200
Rope guide

Part #141-2-352T-39200

The manufacturer no longer makes this part, and there's no substitute part

Slide Knob 141-2-164T-24900
Slide knob

Part #141-2-164T-24900

The manufacturer no longer makes this part, and there's no substitute part
