Samsung
Room Air Conditioner

Model # AW0601B Official Samsung air conditioner

Here are the diagrams and repair parts for Official Samsung AW0601B air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |
Flange Nut DB60-30020A
#18

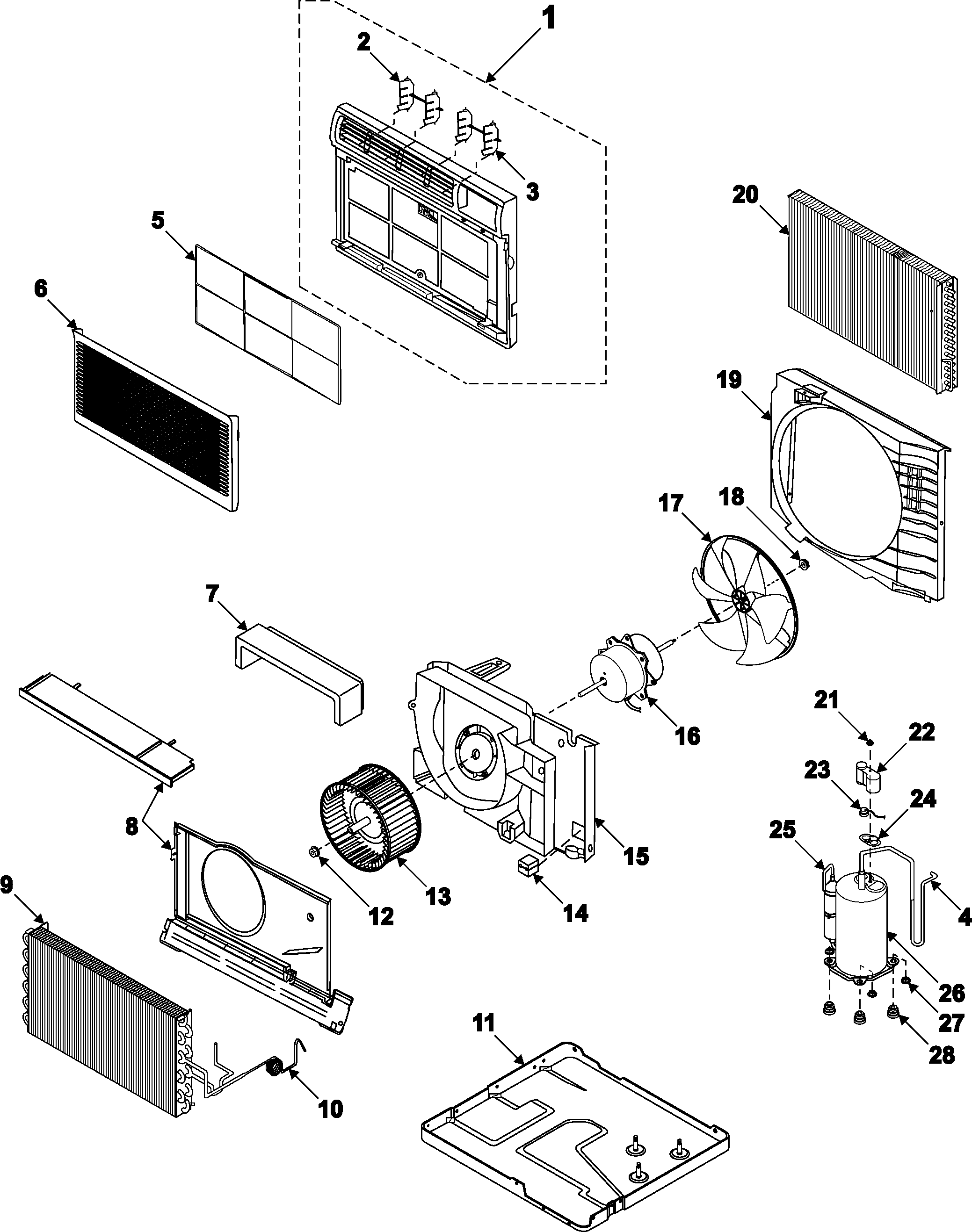

Chassis assembly diagram

Flange nut

Part #DB60-30020A

This item is not returnable
$2.59
In Stock
Discharge Tube DB62-01349B
#4

Chassis assembly diagram

Discharge tube

Part #DB62-01349B

The manufacturer no longer makes this part, and there's no substitute part

Fan Motor DB31-00035K
#16

Chassis assembly diagram

Fan motor

Part #DB31-00035K

The manufacturer no longer makes this part, and there's no substitute part

Control Panel DB64-00571A
#6

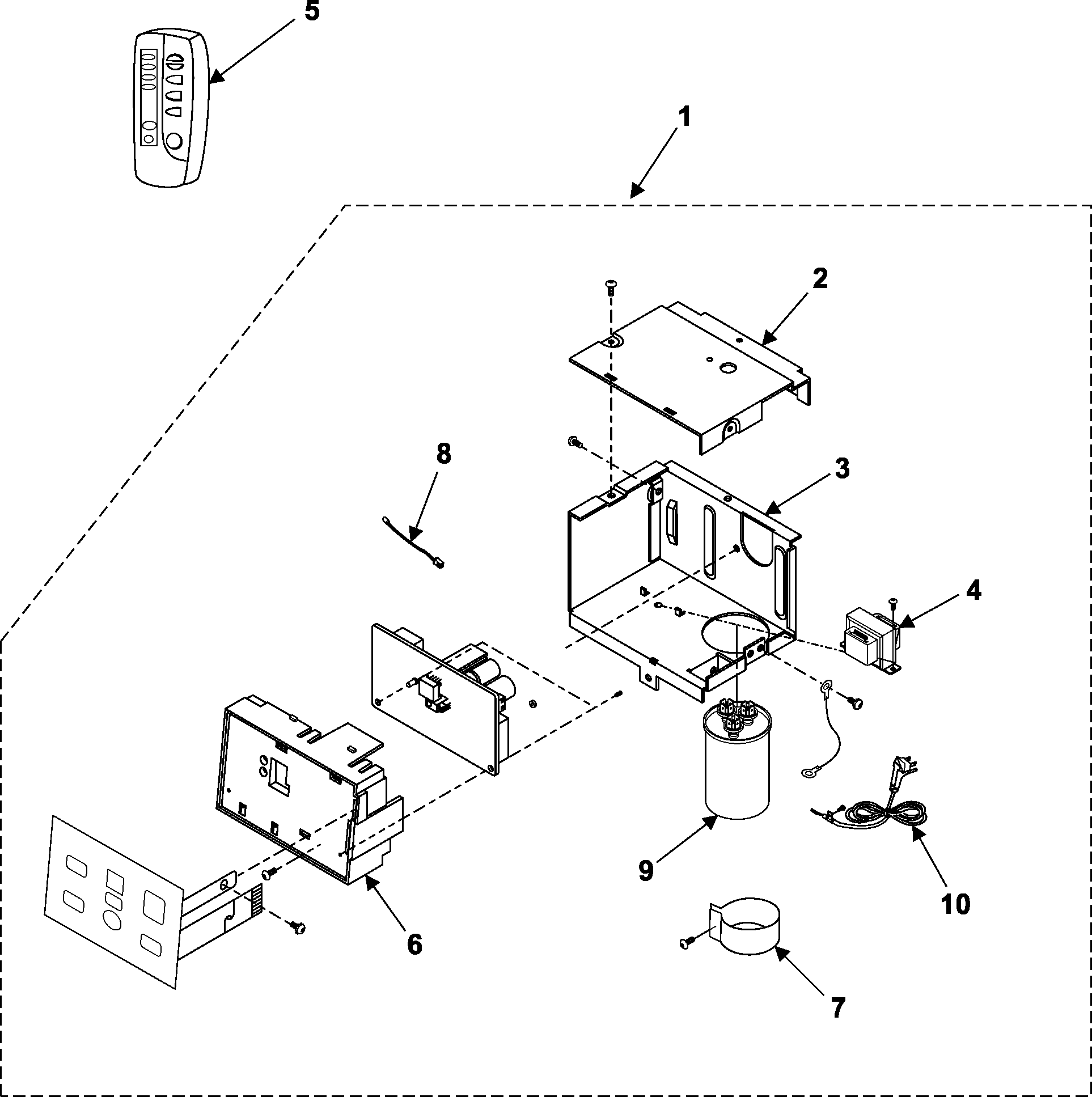

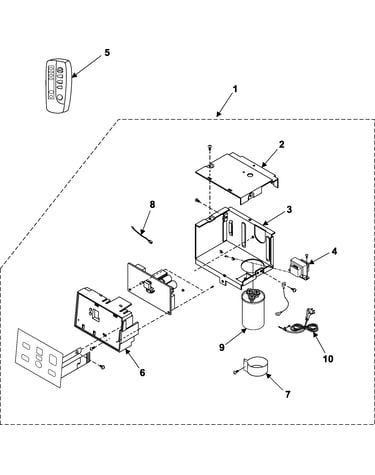

Control assembly diagram

Control panel

Part #DB64-00571A

The manufacturer no longer makes this part, and there's no substitute part

Plate Part DB70-00219A
#15

Chassis assembly diagram

Plate part

Part #DB70-00219A

The manufacturer no longer makes this part, and there's no substitute part

Capillary Tube DB62-01350A
#10

Chassis assembly diagram

Capillary tube

Part #DB62-01350A

The manufacturer no longer makes this part, and there's no substitute part

Case Control DB61-00933A
#2

Control assembly diagram

Case control

Part #DB61-00933A

The manufacturer no longer makes this part, and there's no substitute part

Screw Assembly DB97-90014K
#5

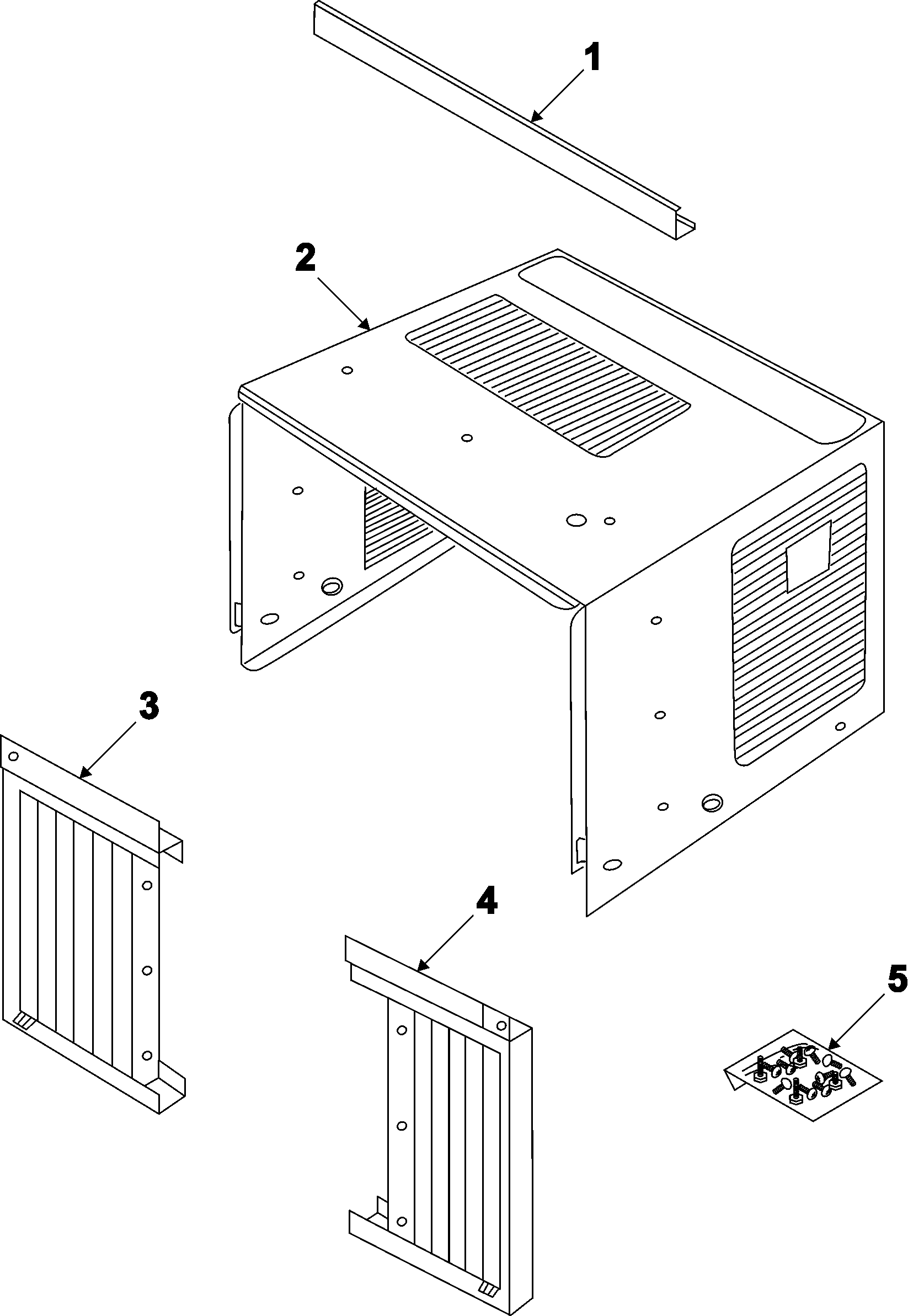

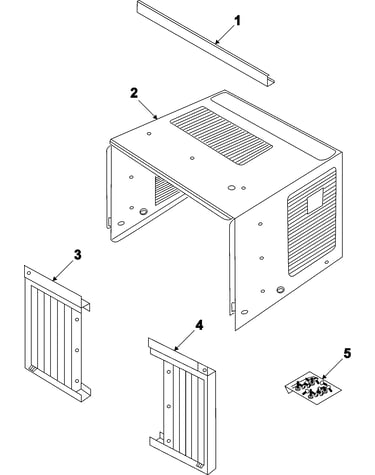

Outer case assembly diagram

Screw assembly

Part #DB97-90014K

The manufacturer no longer makes this part, and there's no substitute part

Room Air Conditioner Window Filler Panel, Left DB92-00336A
#3

Outer case assembly diagram

Room air conditioner window filler panel, left

Part #DB92-00336A

The manufacturer no longer makes this part, and there's no substitute part

Nut Washer DB60-30028A
#27

Chassis assembly diagram

Nut washer

Part #DB60-30028A

The manufacturer no longer makes this part, and there's no substitute part
