Model # JBP30BB1CT Official GE electric range

Here are the diagrams and repair parts for Official GE JBP30BB1CT electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

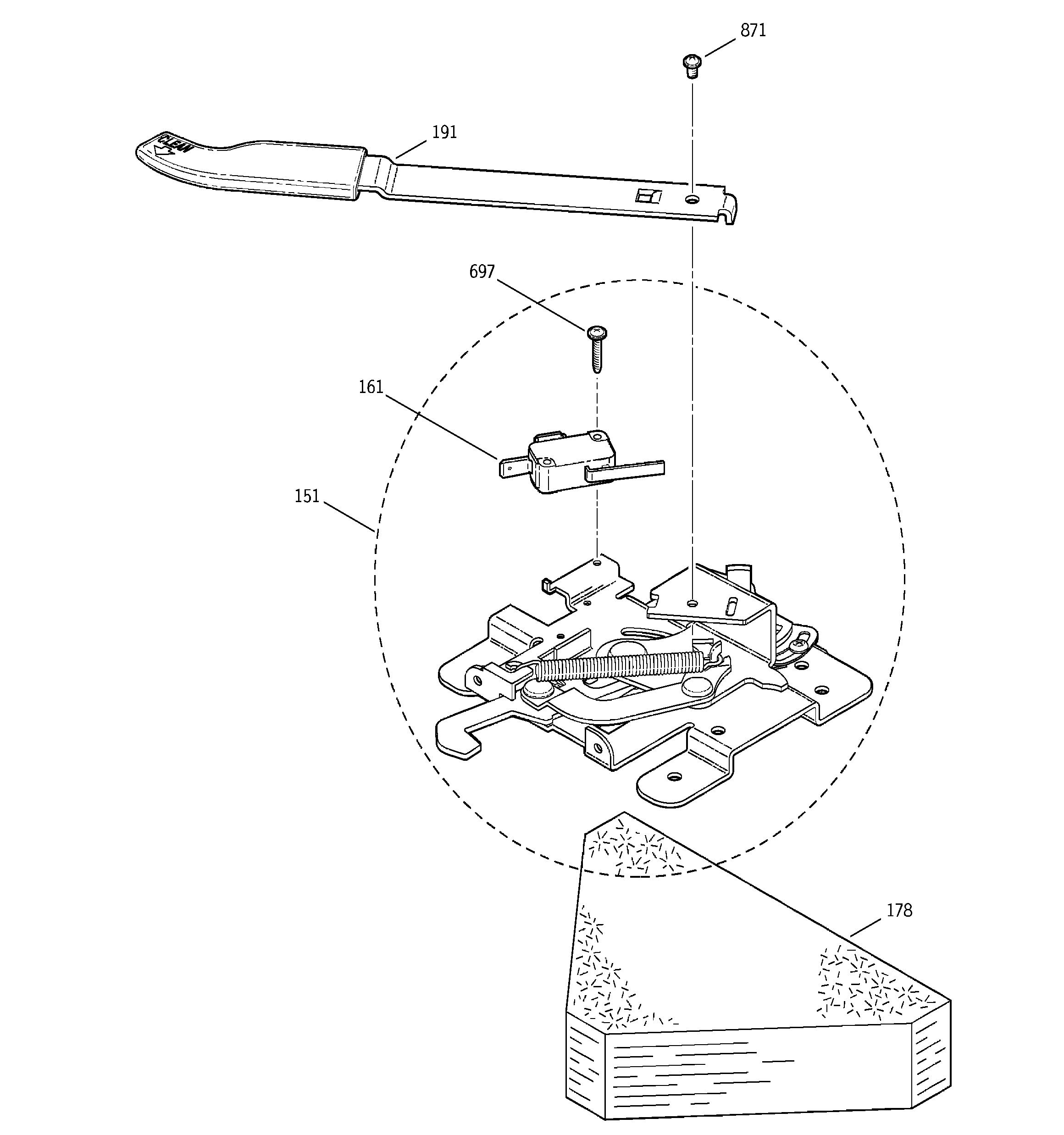

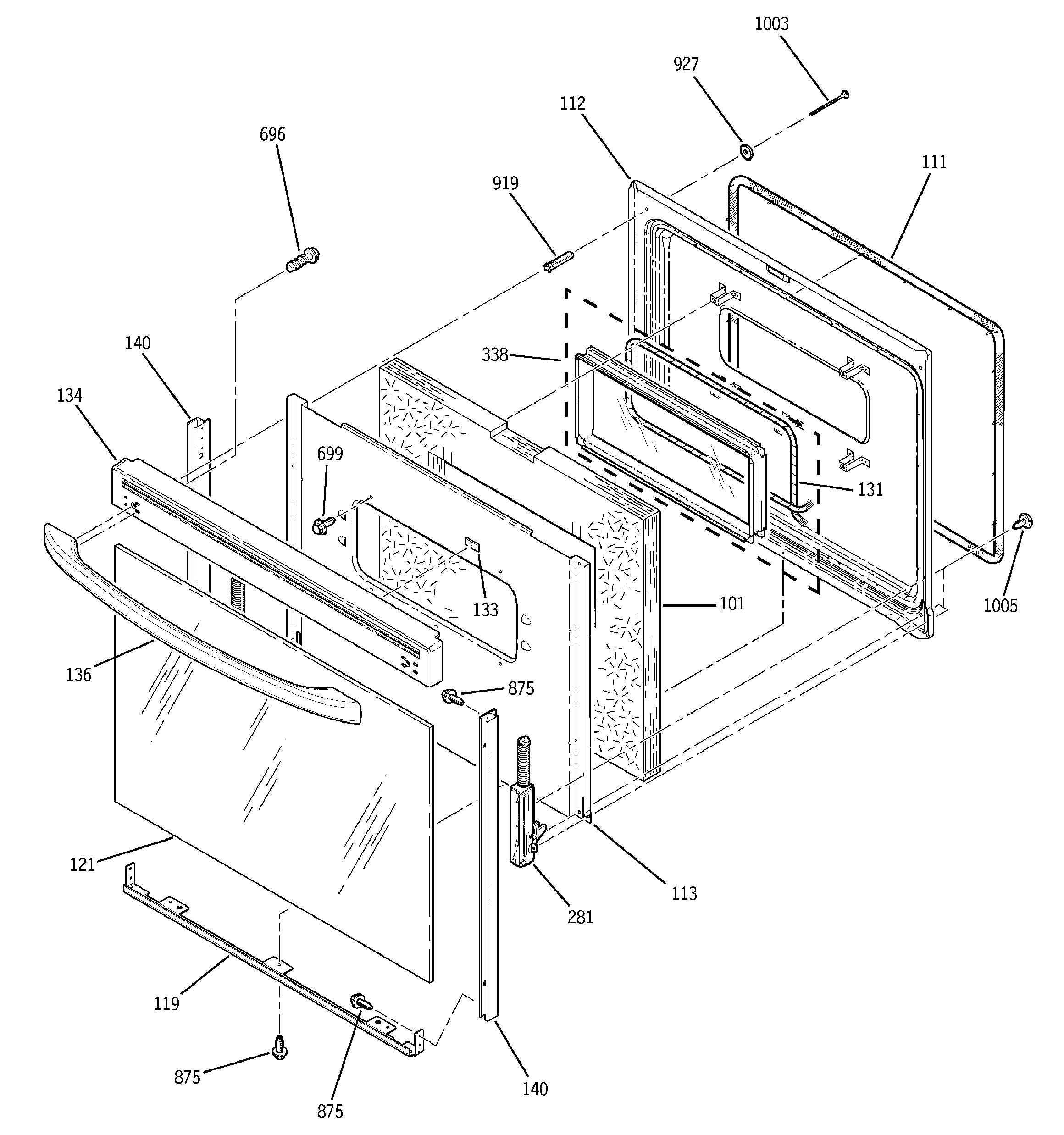

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 130 parts  |
Range Oven Light Bulb WX12X1510
#257

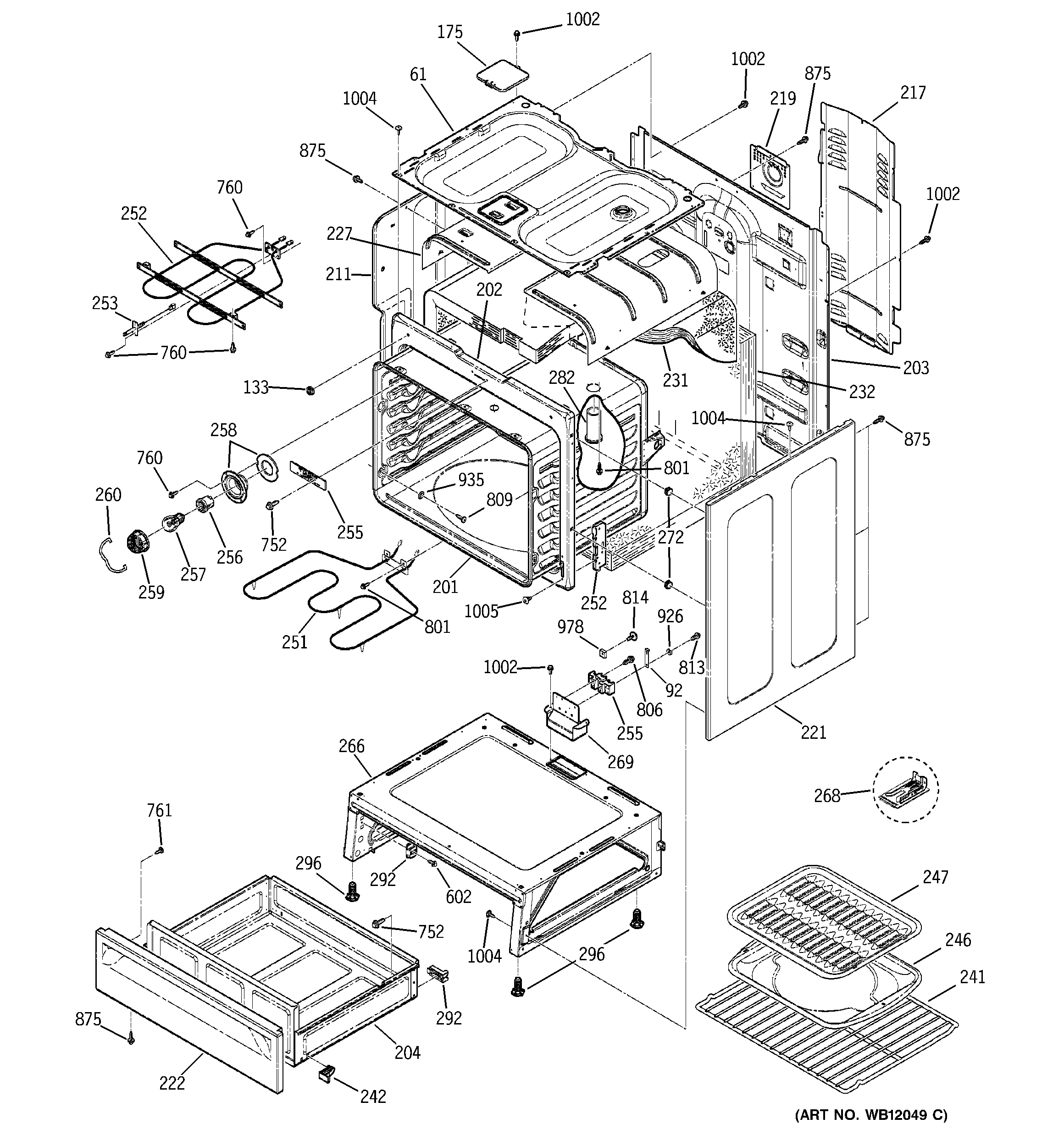

Body parts diagram

Range oven light bulb

Part #WX12X1510

Replaced by #40A15

?
Manufacturer substitution
This part replaces WX12X1510. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Range Surface Element Control Switch, 2,600-watt WB24T10025
#19

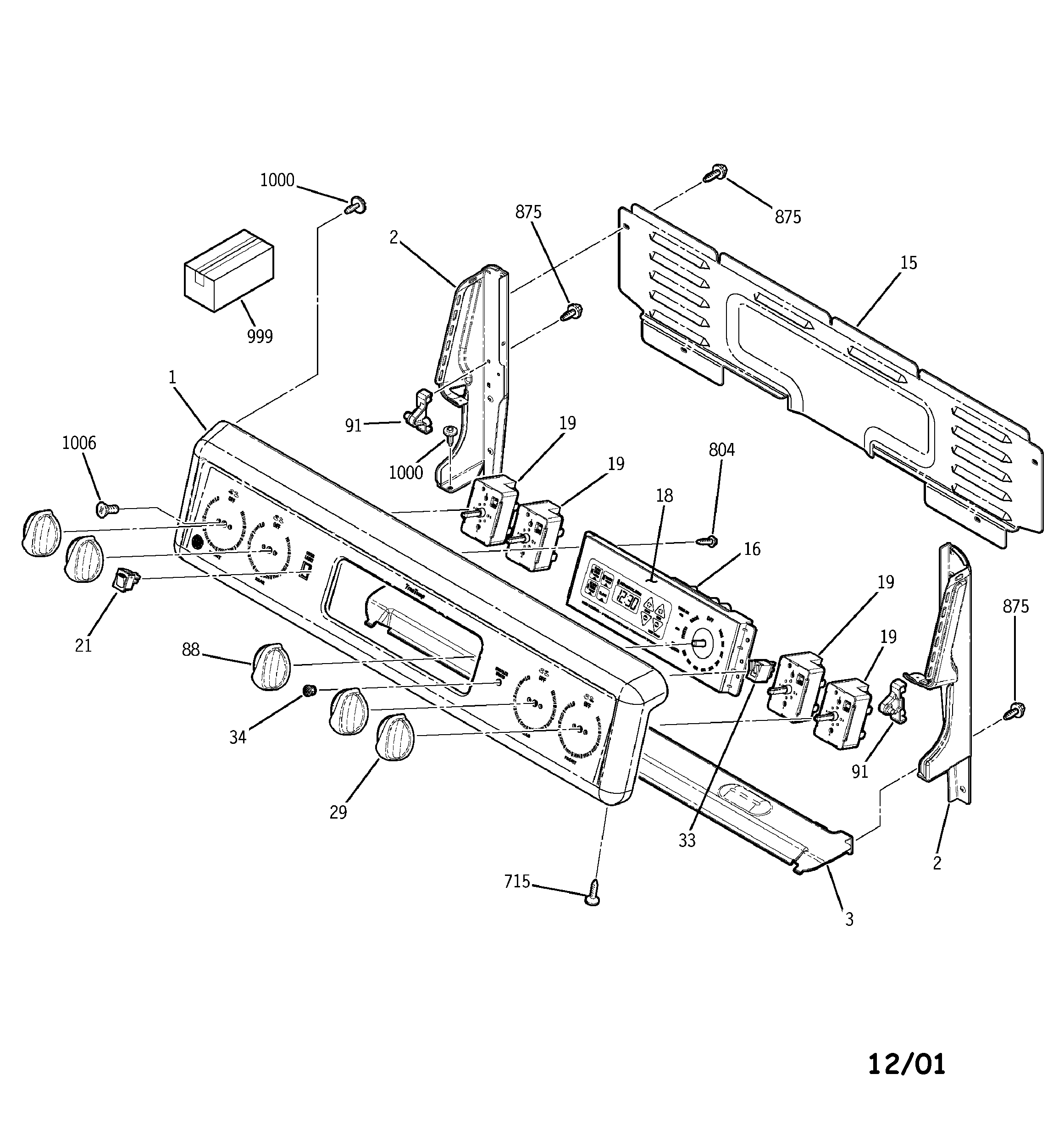

Control panel diagram

Range surface element control switch, 2,600-watt

Part #WB24T10025

BEST SELLER
$36.13 |
14% OFF Phone Price : $42.13
In Stock
Wall Oven Temperature Sensor WB21T10007
#253

Body parts diagram

Wall oven temperature sensor

Part #WB21T10007

Replaced by #WB21X22134

?
Manufacturer substitution
This part replaces WB21T10007. Substitute parts can look different from the original.
BEST SELLER
$24.05 |
20% OFF Phone Price : $30.05
In Stock
Range Surface Element Control Switch, 1,500-watt WB24T10029
#19

Control panel diagram

Range surface element control switch, 1,500-watt

Part #WB24T10029

BEST SELLER
$45.94 |
12% OFF Phone Price : $51.94
In Stock
Range Broil Element (replaces Wb44t10034) WB44T10009
#252

Body parts diagram

Range broil element (replaces wb44t10034)

Part #WB44T10009

BEST SELLER
$73.37 |
8% OFF Phone Price : $79.37
In Stock
Range Drip Pan (replaces Wb32t10002) WB31T10014
#59

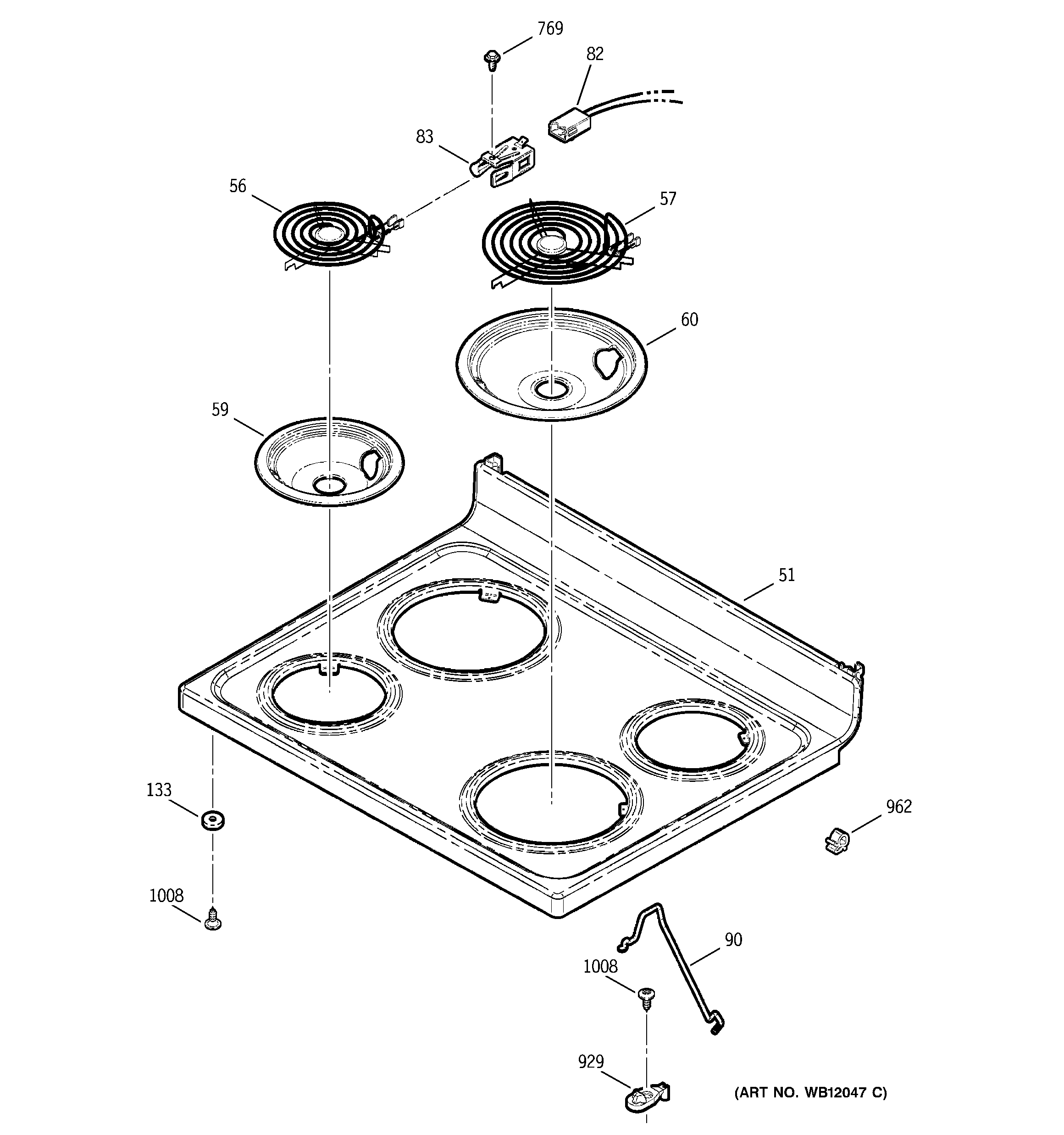

Cooktop diagram

Range drip pan (replaces wb32t10002)

Part #WB31T10014

$9.39 |
10% OFF Phone Price : $10.39
In Stock
Range Drip Pan (replaces Wb32t10003) WB31T10015
#60

Cooktop diagram

Range drip pan (replaces wb32t10003)

Part #WB31T10015

$18.85 |
10% OFF Phone Price : $20.85
In Stock
Range Light Socket WB08T10004
#256

Body parts diagram

Range light socket

Part #WB08T10004

Replaced by #WB08T10026

?
Manufacturer substitution
This part replaces WB08T10004. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Clip Receptacle WB02X8228
#83

Cooktop diagram

Clip receptacle

Part #WB02X8228

Replaced by #WB2X8228

?
Manufacturer substitution
This part replaces WB02X8228. Substitute parts can look different from the original.
This item is not returnable
$30.23 |
17% OFF Phone Price : $36.23
In Stock
Wall Oven Light Lens WB36X0389
#259

Body parts diagram

Wall oven light lens

Part #WB36X0389

Replaced by #WB36X192

?
Manufacturer substitution
This part replaces WB36X0389. Substitute parts can look different from the original.
This item is not returnable
$9.54 |
9% OFF Phone Price : $10.54
In Stock
