GE
Gas Range

Model # JGBP61WEW1WW Official GE gas range

Here are the diagrams and repair parts for Official GE JGBP61WEW1WW gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 192 parts  |
40a15bulb STD372401
#257A

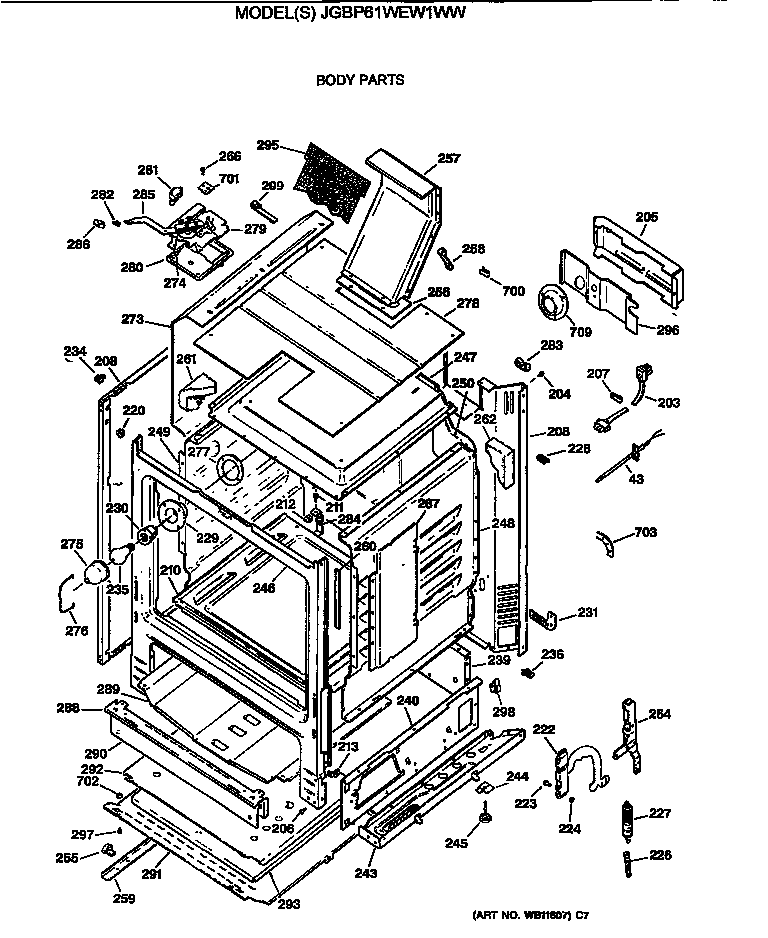

Body parts diagram

40a15bulb

Part #STD372401

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372401. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Range Surface Burner Igniter (replaces Wb13k0018) WB13K18
#154

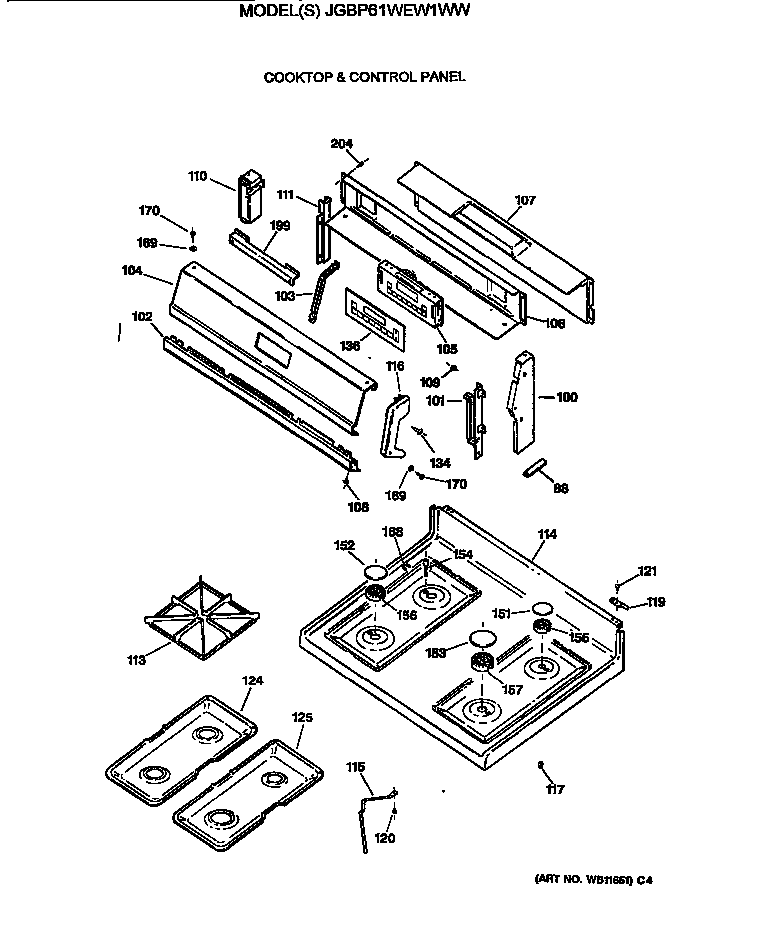

Cooktop & control panel diagram

Range surface burner igniter (replaces wb13k0018)

Part #WB13K18

$31.68 |
16% OFF Phone Price : $37.68
In Stock
Range Oven Door Inner Glass (replaces Wb56k0020, Wb56k13) WB56K20
#338

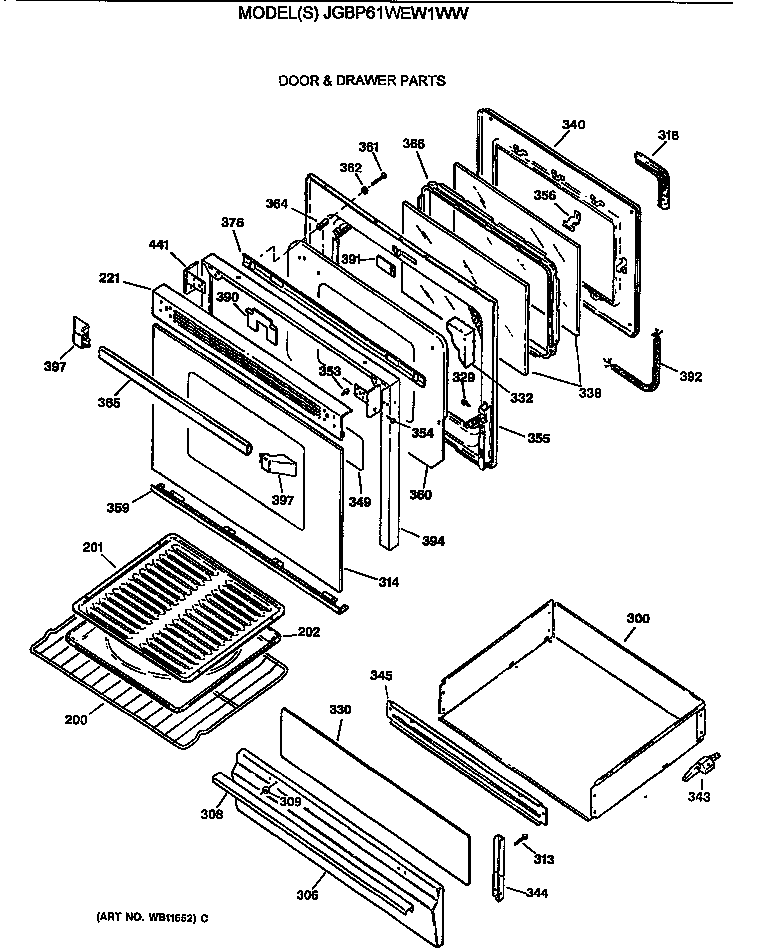

Door & drawer parts diagram

Range oven door inner glass (replaces wb56k0020, wb56k13)

Part #WB56K20

$230.28 |
5% OFF Phone Price : $242.28
In Stock
Range Drawer Glide WB2K68
#343

Door & drawer parts diagram

Range drawer glide

Part #WB2K68

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Oven Door Handle End Cap, Right WB7X7189
#397B

Door & drawer parts diagram

Range oven door handle end cap, right

Part #WB7X7189

This item is not returnable
$14.20 |
12% OFF Phone Price : $16.20
In Stock
Range Oven Gas Valve (replaces Wb19k0014, Wb19k9) WB19K14
#214

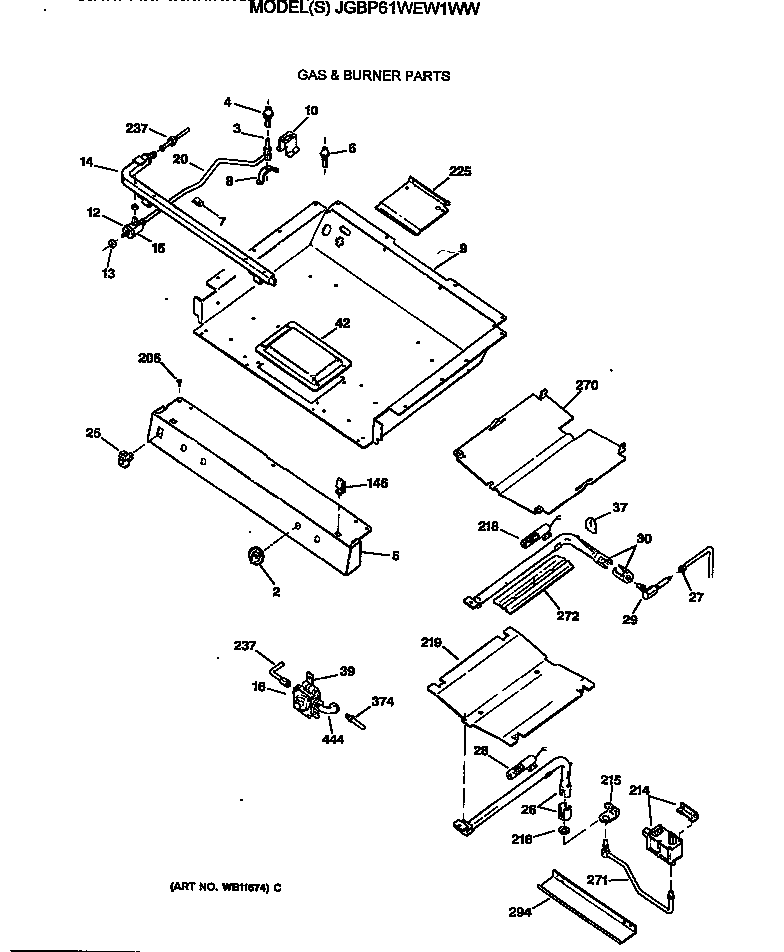

Gas & burner parts diagram

Range oven gas valve (replaces wb19k0014, wb19k9)

Part #WB19K14

$270.87 |
$12.00 OFF Phone Price : $282.87
In Stock
Range Screw WB1K42
Range screw

Part #WB1K42

Replaced by #WB1K5062

?
Manufacturer substitution
This part replaces WB1K42. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Screw (replaces Wb01k10018, Wb01x5364) WB1X5364
#108

Cooktop & control panel diagram

Range screw (replaces wb01k10018, wb01x5364)

Part #WB1X5364

$7.90 |
11% OFF Phone Price : $8.90
In Stock
Range Oven Burner Safety Valve Bracket WB2K65
#215

Gas & burner parts diagram

Range oven burner safety valve bracket

Part #WB2K65

$6.51 |
13% OFF Phone Price : $7.51
In Stock
Range Oven Door Hinge Screw WB1K53
#254A

Body parts diagram

Range oven door hinge screw

Part #WB1K53

$7.69 |
12% OFF Phone Price : $8.69
In Stock
