Model # 58DLA07010012 Official Carrier furnace

Here are the diagrams and repair parts for Official Carrier 58DLA07010012 furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 147 parts  |
Capactr Run P291-0753

#57

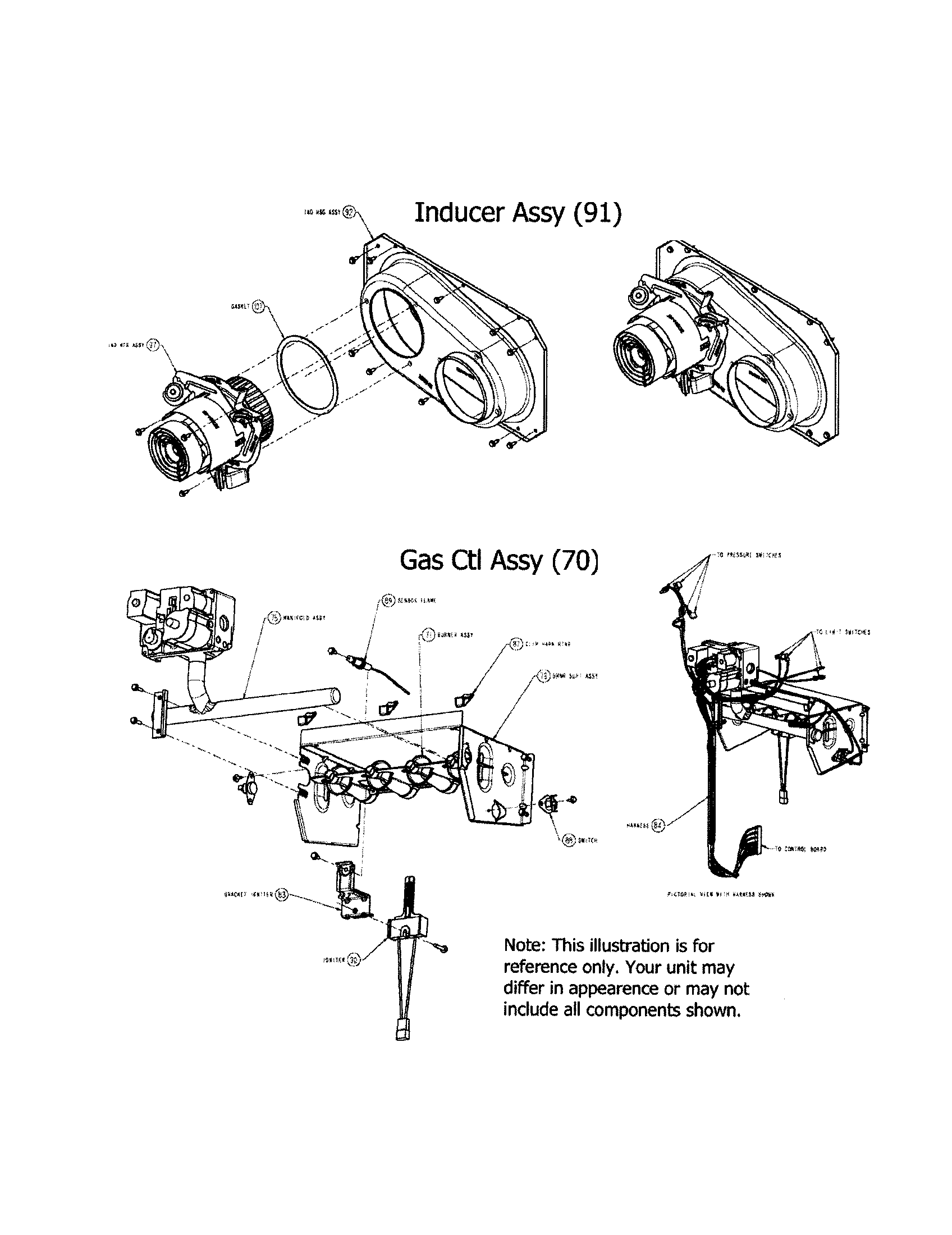

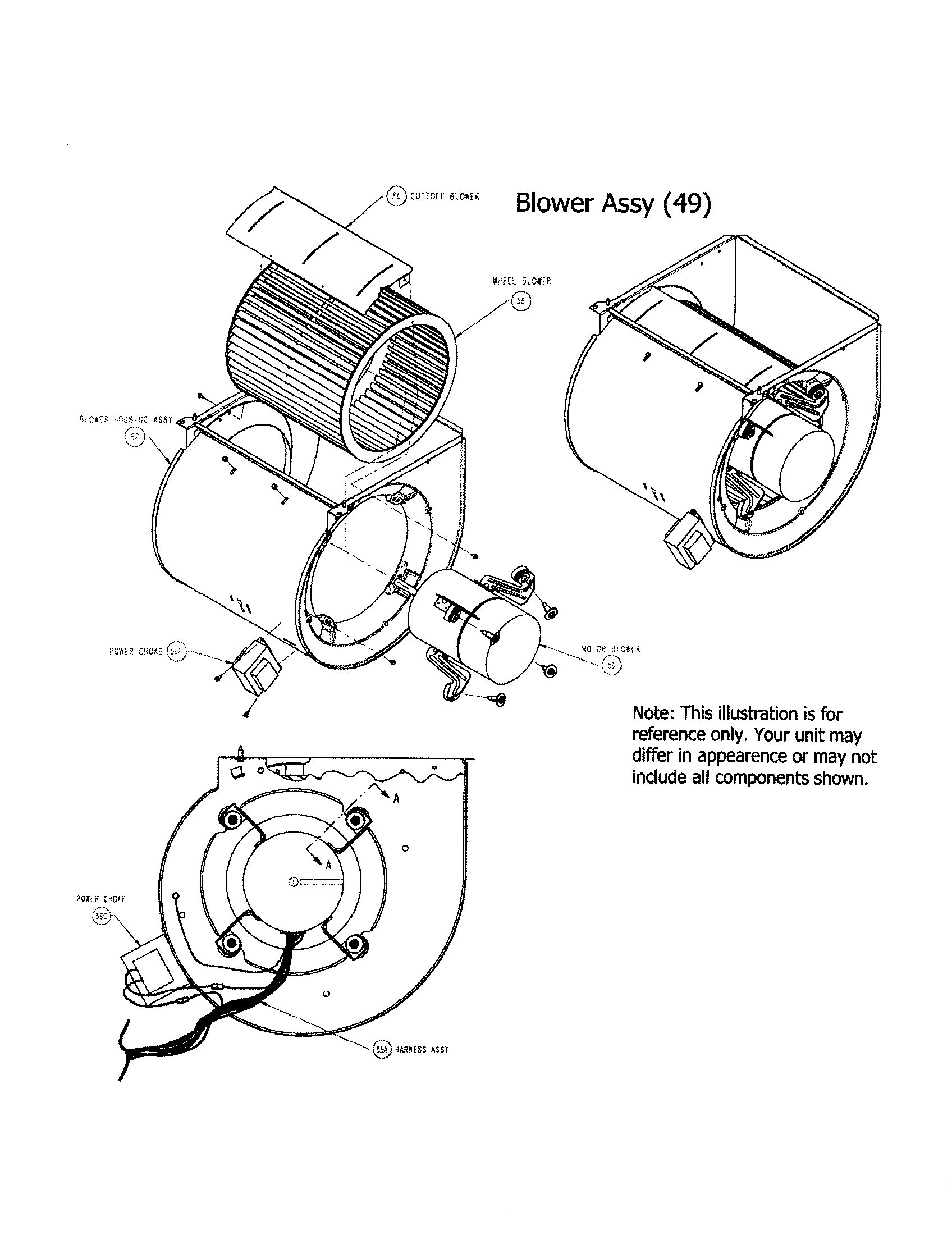

All parts diagram

Capactr run

Part #P291-0753

Replaced by #12907

?
Manufacturer substitution
This part replaces P291-0753. Substitute parts can look different from the original.
This item is not returnable
$4.87 |
17% OFF Phone Price : $5.87
In Stock
Furnace Heat Exchanger 326600-751

#60

All parts diagram

Furnace heat exchanger

Part #326600-751

$139.71 |
8% OFF Phone Price : $151.71
In Stock
Furnace Burner Flame Sensor LH680-014

#89

All parts diagram

Furnace burner flame sensor

Part #LH680-014

$51.20
In Stock
Furnace Temperature Limit Switch HH18HA499

#69

All parts diagram

Furnace temperature limit switch

Part #HH18HA499

$15.90 |
11% OFF Phone Price : $17.90
In Stock
Furnace Screw Grommet AS88PD005

#23B

All parts diagram

Furnace screw grommet

Part #AS88PD005

This item is not returnable
$8.23
In Stock
Icp Furnace Electronic Control Board HK42FZ014

#46

All parts diagram

Icp furnace electronic control board

Part #HK42FZ014

$645.30
In Stock
Furnace Temperature Limit Switch HH18HA493

#32

All parts diagram

Furnace temperature limit switch

Part #HH18HA493

This item is not returnable
$18.83
In Stock
Payne Support 326633-401

#100

All parts diagram

Payne support

Part #326633-401

$26.27
In Stock
Screw 325889-401

#208

All parts diagram

Screw

Part #325889-401

This item is not returnable
$4.11
In Stock
Door Assembly 326723-751

#21

All parts diagram

Door assembly

Part #326723-751

$348.71
In Stock
