Kenmore
Upright Vacuum

Model # 11638820 Official Kenmore vacuum cleaner

Here are the diagrams and repair parts for Official Kenmore 11638820 vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 80 parts  |
Cover 726345
#11

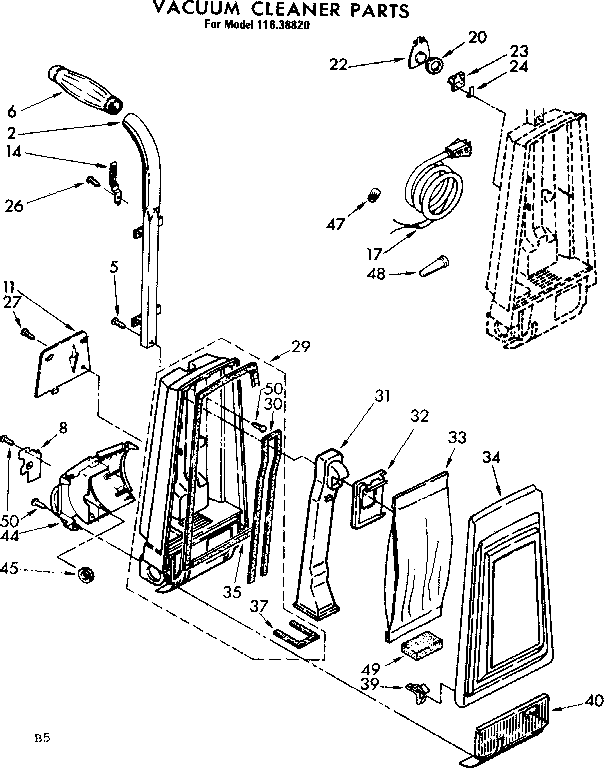

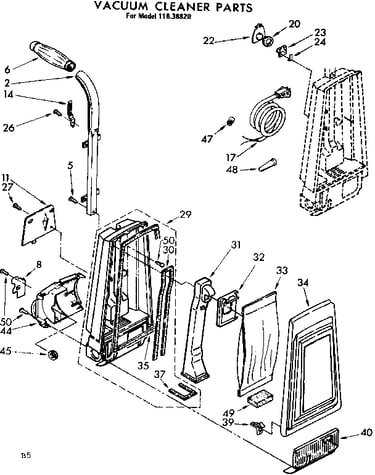

Handle and bag housing diagram

Cover

Part #726345

The manufacturer no longer makes this part, and there's no substitute part

Fan 569509
#19

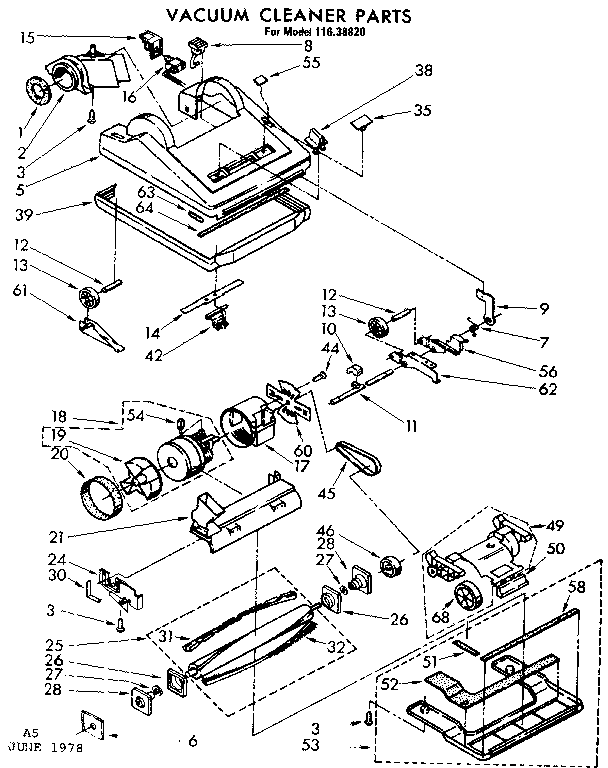

Nozzle and motor assembly diagram

Fan

Part #569509

The manufacturer no longer makes this part, and there's no substitute part

Wheel 724449
#13

Nozzle and motor assembly diagram

Wheel

Part #724449

The manufacturer no longer makes this part, and there's no substitute part

Gasket 725517
#20

Nozzle and motor assembly diagram

Gasket

Part #725517

The manufacturer no longer makes this part, and there's no substitute part

Cover 726330
#34

Handle and bag housing diagram

Cover

Part #726330

The manufacturer no longer makes this part, and there's no substitute part

Gasket 724859
#58

Nozzle and motor assembly diagram

Gasket

Part #724859

The manufacturer no longer makes this part, and there's no substitute part

Relief 725041
#48

Handle and bag housing diagram

Relief

Part #725041

The manufacturer no longer makes this part, and there's no substitute part

Screw 681436
#44

Nozzle and motor assembly diagram

Screw

Part #681436

The manufacturer no longer makes this part, and there's no substitute part

Gasket 724613
#52

Nozzle and motor assembly diagram

Gasket

Part #724613

The manufacturer no longer makes this part, and there's no substitute part

Axle 722007
#12

Nozzle and motor assembly diagram

Axle

Part #722007

The manufacturer no longer makes this part, and there's no substitute part
