Hoover
Upright Vacuum

Model # U5393-900 Official Hoover upright vacuum

Here are the diagrams and repair parts for Official Hoover U5393-900 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 148 parts  |

Dust Bag Door Housing 37254244
#45E

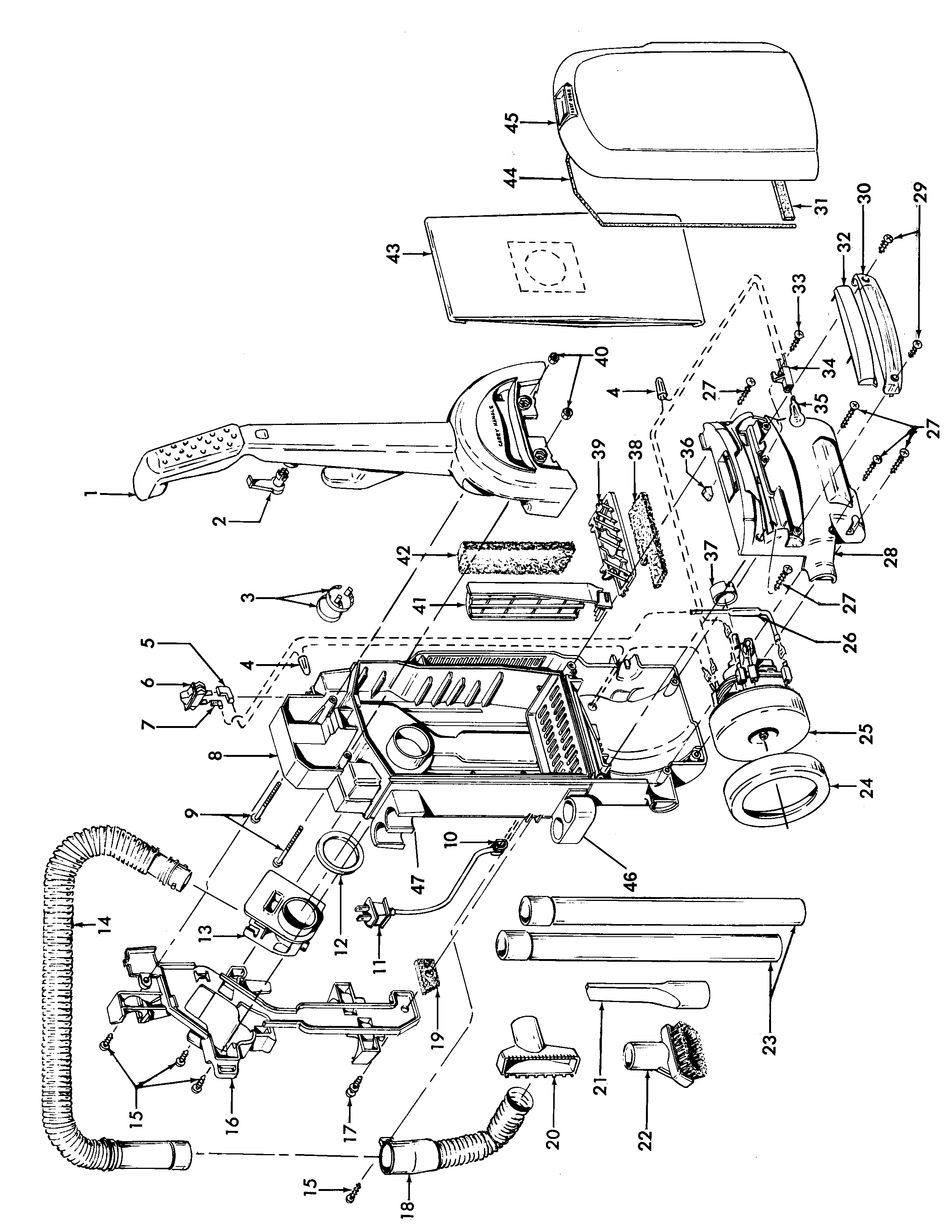

Motor, cleaningtools, handle, outerbag diagram

Dust bag door housing

Part #37254244

The manufacturer no longer makes this part, and there's no substitute part

Drive Bag Housing 37254257
#27A

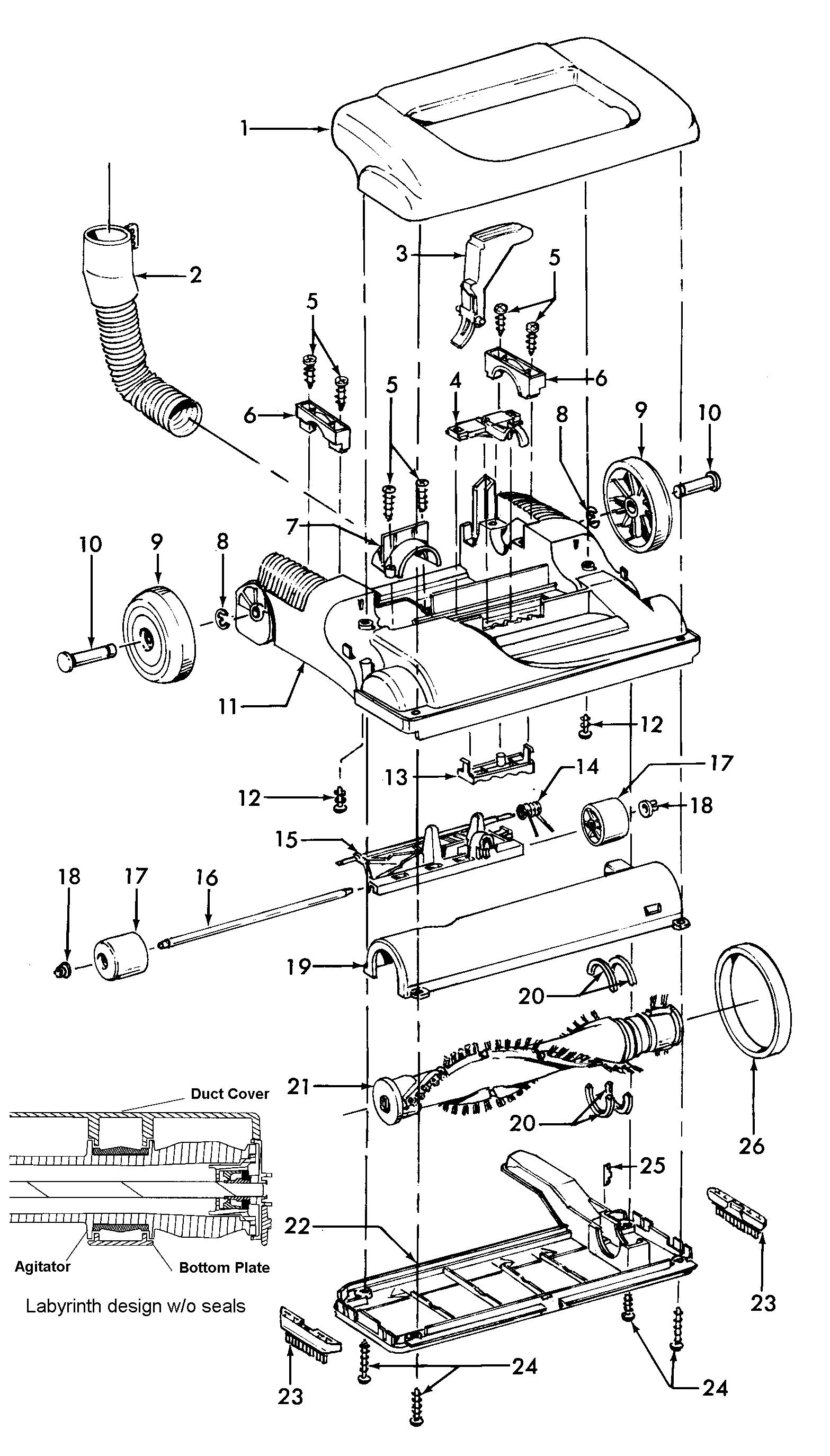

Agitator, mainbody, hood diagram

Drive bag housing

Part #37254257

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Front Roller Torsion Spring 38355010
#14

Agitator, mainbody, hood diagram

Vacuum front roller torsion spring

Part #38355010

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Power Cord 46383334
#11

Motor, cleaningtools, handle, outerbag diagram

Vacuum power cord

Part #46383334

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar Belt 38528033
#26

Agitator, mainbody, hood diagram

Vacuum beater bar belt

Part #38528033

The manufacturer no longer makes this part, and there's no substitute part

Regina Carpet Cleaner Screw 23149002
#17

Motor, cleaningtools, handle, outerbag diagram

Regina carpet cleaner screw

Part #23149002

The manufacturer no longer makes this part, and there's no substitute part

Hood 37253289
#1I

Agitator, mainbody, hood diagram

Hood

Part #37253289

The manufacturer no longer makes this part, and there's no substitute part

Hood 37253364
#1

Agitator, mainbody, hood diagram

Hood

Part #37253364

The manufacturer no longer makes this part, and there's no substitute part

Cover 37253429
#1f

Agitator, mainbody, hood diagram

Cover

Part #37253429

The manufacturer no longer makes this part, and there's no substitute part

Gasket 34123050
#31

Motor, cleaningtools, handle, outerbag diagram

Gasket

Part #34123050

The manufacturer no longer makes this part, and there's no substitute part
