Model # 8676658 Official Kenmore gas-fired sectional furnace

Here are the diagrams and repair parts for Official Kenmore 8676658 gas-fired sectional furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

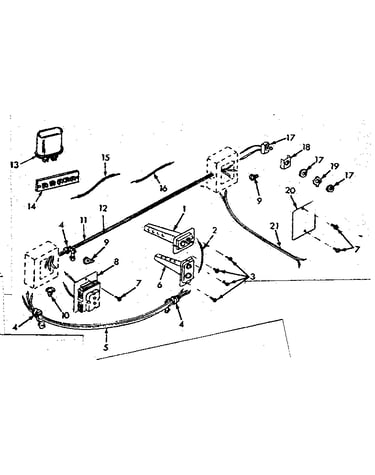

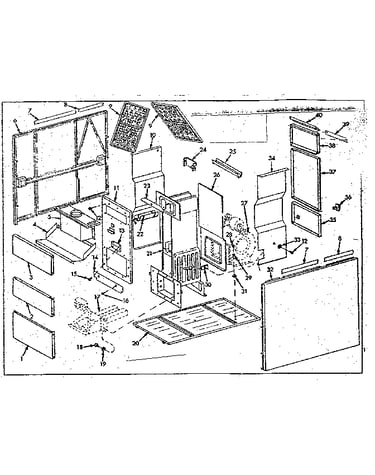

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 224 parts  |
Gas Valve 73519
#4C

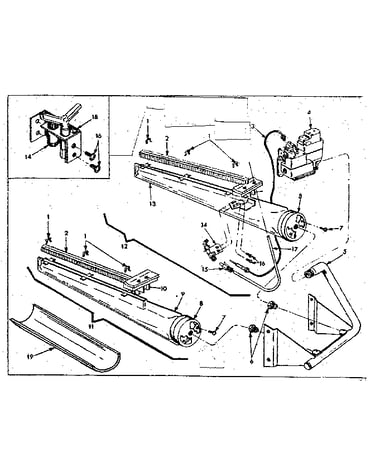

Burner & manifold diagram

Gas valve

Part #73519

Replaced by #36C03-333

?
Manufacturer substitution
This part replaces 73519. Substitute parts can look different from the original.
$277.97 |
$12.00 OFF Phone Price : $289.97
In Stock
Blower Wheel 72411
#12B

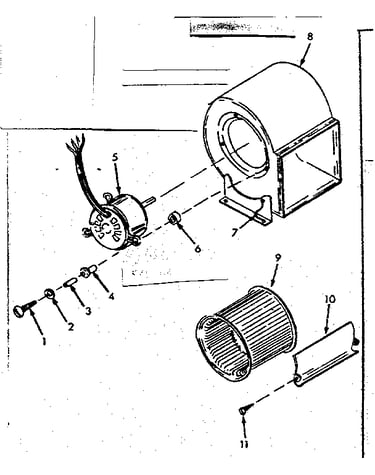

H-q blower assembly diagram

Blower wheel

Part #72411

Replaced by #601210

?
Manufacturer substitution
This part replaces 72411. Substitute parts can look different from the original.
$194.16
In Stock
Blower Wheel 72400
#9B

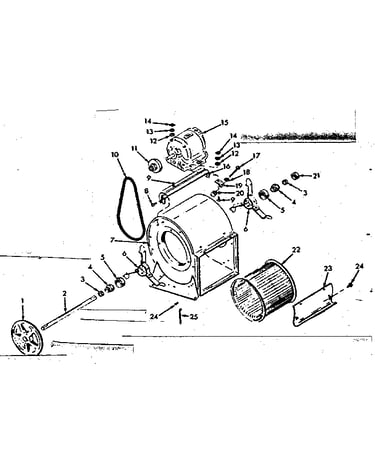

H-q blower assembly diagram

Blower wheel

Part #72400

Replaced by #601210

?
Manufacturer substitution
This part replaces 72400. Substitute parts can look different from the original.
$194.16
In Stock
Fan Wheel 72978
#9A

H-q blower assembly diagram

Fan wheel

Part #72978

Replaced by #600587

?
Manufacturer substitution
This part replaces 72978. Substitute parts can look different from the original.
$130.20 |
8% OFF Phone Price : $142.20
In Stock
Orifice 46632
Orifice

Part #46632

The manufacturer no longer makes this part, and there's no substitute part

Tubing Pilot 69455
#17

Burner & manifold diagram

Tubing pilot

Part #69455

Replaced by #100108370

?
Manufacturer substitution
This part replaces 69455. Substitute parts can look different from the original.
$36.67
In Stock
Thermocouple 75948
Thermocouple

Part #75948

The manufacturer no longer makes this part, and there's no substitute part

Air Filter 64488
Air filter

Part #64488

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 9158

#NI

All parts diagram

Thermostat

Part #9158

The manufacturer no longer makes this part, and there's no substitute part

Blower Motor 74068
Blower motor

Part #74068

The manufacturer no longer makes this part, and there's no substitute part
