Model # E2FB090A46 Official York central air conditioner

Here are the diagrams and repair parts for Official York E2FB090A46 central air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 58 parts  |
Sensor 031-01231-700
#18

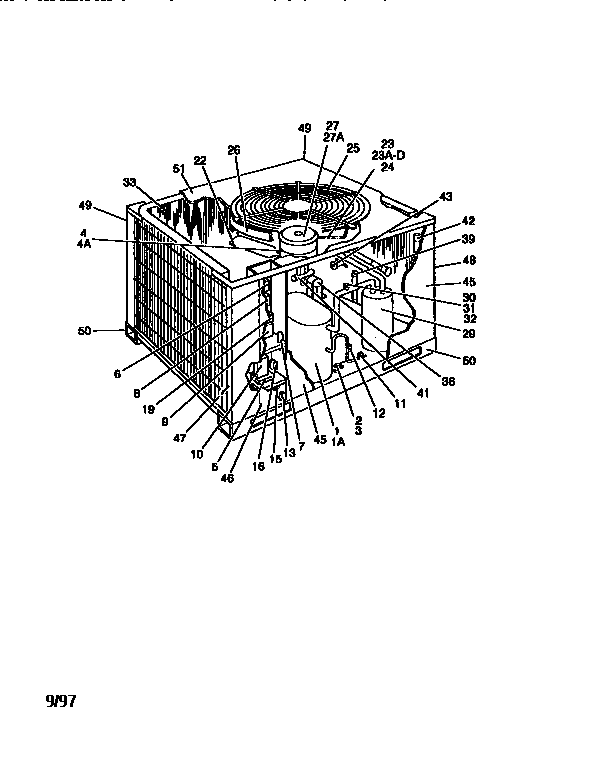

Condensing unit diagram

Sensor

Part #031-01231-700

The manufacturer no longer makes this part, and there's no substitute part

Grommet Pvc Red (1/2 Id. Use In 1-1/4 Hole) 028-04805-000
#53

Condensing unit diagram

Grommet pvc red (1/2 id. use in 1-1/4 hole)

Part #028-04805-000

The manufacturer no longer makes this part, and there's no substitute part

Contactor (2 Req'd) 024-18056-702
#8

Condensing unit diagram

Contactor (2 req'd)

Part #024-18056-702

The manufacturer no longer makes this part, and there's no substitute part

Top Panel 073-07505-000
#51

Condensing unit diagram

Top panel

Part #073-07505-000

The manufacturer no longer makes this part, and there's no substitute part

Orifice, Fan (24" Plastic) (2-req'd) 032-00003-000
#26

Condensing unit diagram

Orifice, fan (24" plastic) (2-req'd)

Part #032-00003-000

The manufacturer no longer makes this part, and there's no substitute part

Panel, Top (w/formed Orifice) (style B) 073-19374-000
#51A

Condensing unit diagram

Panel, top (w/formed orifice) (style b)

Part #073-19374-000

The manufacturer no longer makes this part, and there's no substitute part

Bracket, Motor Support 026-32569-000
#23

Condensing unit diagram

Bracket, motor support

Part #026-32569-000

The manufacturer no longer makes this part, and there's no substitute part

Defrost Control 031-01098-701
#10

Condensing unit diagram

Defrost control

Part #031-01098-701

The manufacturer no longer makes this part, and there's no substitute part

Post, Corner (rear) (2-req'd) 073-18657-000
#49

Condensing unit diagram

Post, corner (rear) (2-req'd)

Part #073-18657-000

The manufacturer no longer makes this part, and there's no substitute part

Screw, 5/16 Hex Wash. Hd. W/sleeve 021-16047-000
#3

Condensing unit diagram

Screw, 5/16 hex wash. hd. w/sleeve

Part #021-16047-000

The manufacturer no longer makes this part, and there's no substitute part
