DeWalt
Drill/Driver

Model # DCD980L2 TYPE1 Official DeWalt drill/driver

Here are the diagrams and repair parts for Official DeWalt DCD980L2-TYPE1 drill/driver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 38 parts  |
Kitbox N082200
#861

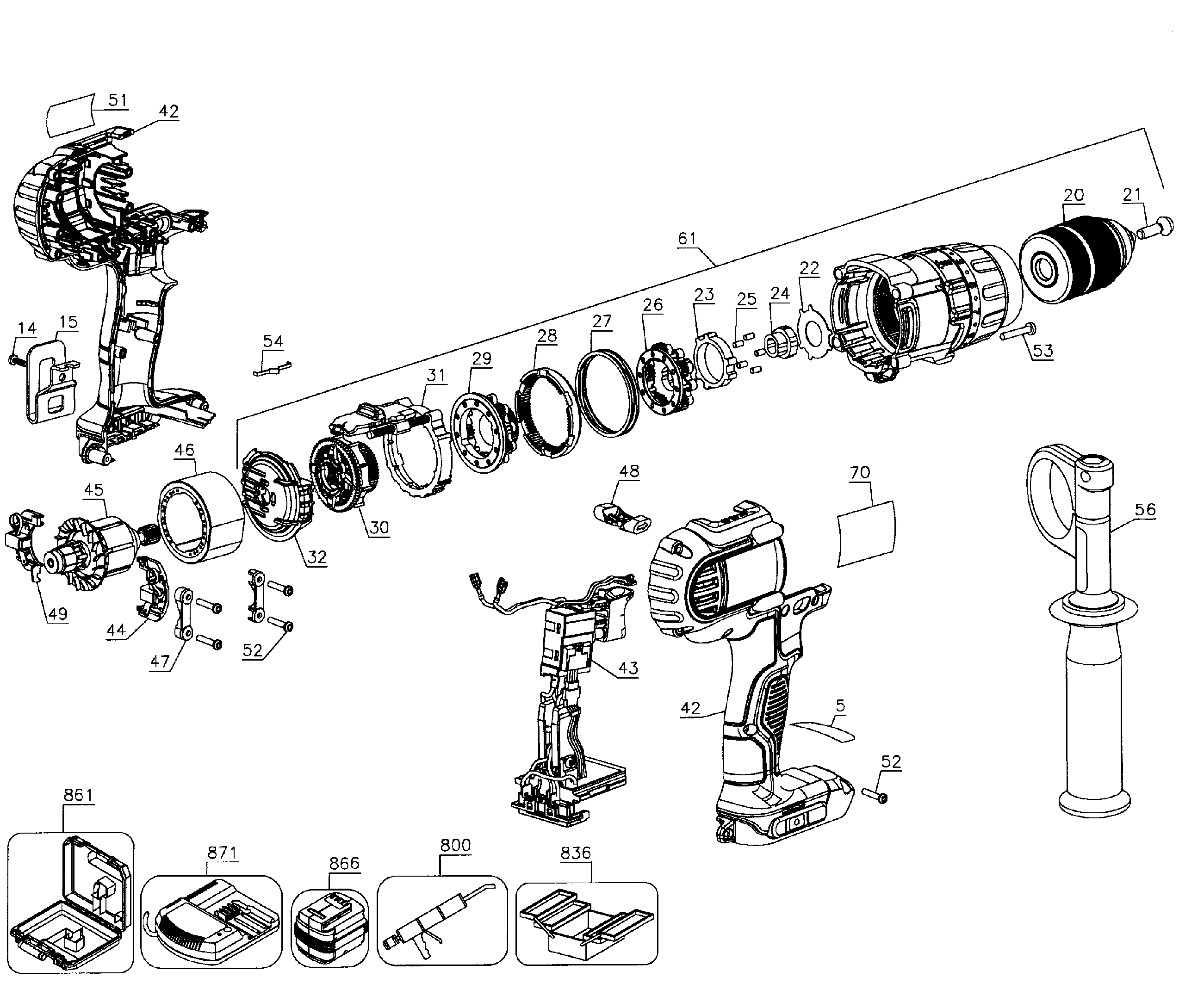

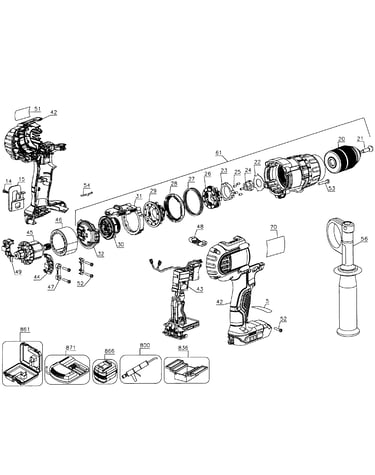

Drill driver diagram

Kitbox

Part #N082200

The manufacturer no longer makes this part, and there's no substitute part

Screw 330019-52
#53

Drill driver diagram

Screw

Part #330019-52

The manufacturer no longer makes this part, and there's no substitute part

Chuck Keyl 586200-10
#20

Drill driver diagram

Chuck keyl

Part #586200-10

The manufacturer no longer makes this part, and there's no substitute part

Lock Ring 650470-00
#23

Drill driver diagram

Lock ring

Part #650470-00

The manufacturer no longer makes this part, and there's no substitute part

Label,iden N091729
#51

Drill driver diagram

Label,iden

Part #N091729

The manufacturer no longer makes this part, and there's no substitute part

Pin 654110-00
#25

Drill driver diagram

Pin

Part #654110-00

The manufacturer no longer makes this part, and there's no substitute part

Hldng Fixt 233947-00
#836B

Drill driver diagram

Hldng fixt

Part #233947-00

The manufacturer no longer makes this part, and there's no substitute part

Warning Label N078823
#5

Drill driver diagram

Warning label

Part #N078823

The manufacturer no longer makes this part, and there's no substitute part

Detent Spring N014681
#54

Drill driver diagram

Detent spring

Part #N014681

The manufacturer no longer makes this part, and there's no substitute part

Drill Screw 605256-01
#21

Drill driver diagram

Drill screw

Part #605256-01

The manufacturer no longer makes this part, and there's no substitute part
