Model # E470LP-2010 Official Weber gas grill

Here are the diagrams and repair parts for Official Weber E470LP-2010 gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 86 parts  |
Gas Grill Main Burner 70306
#12

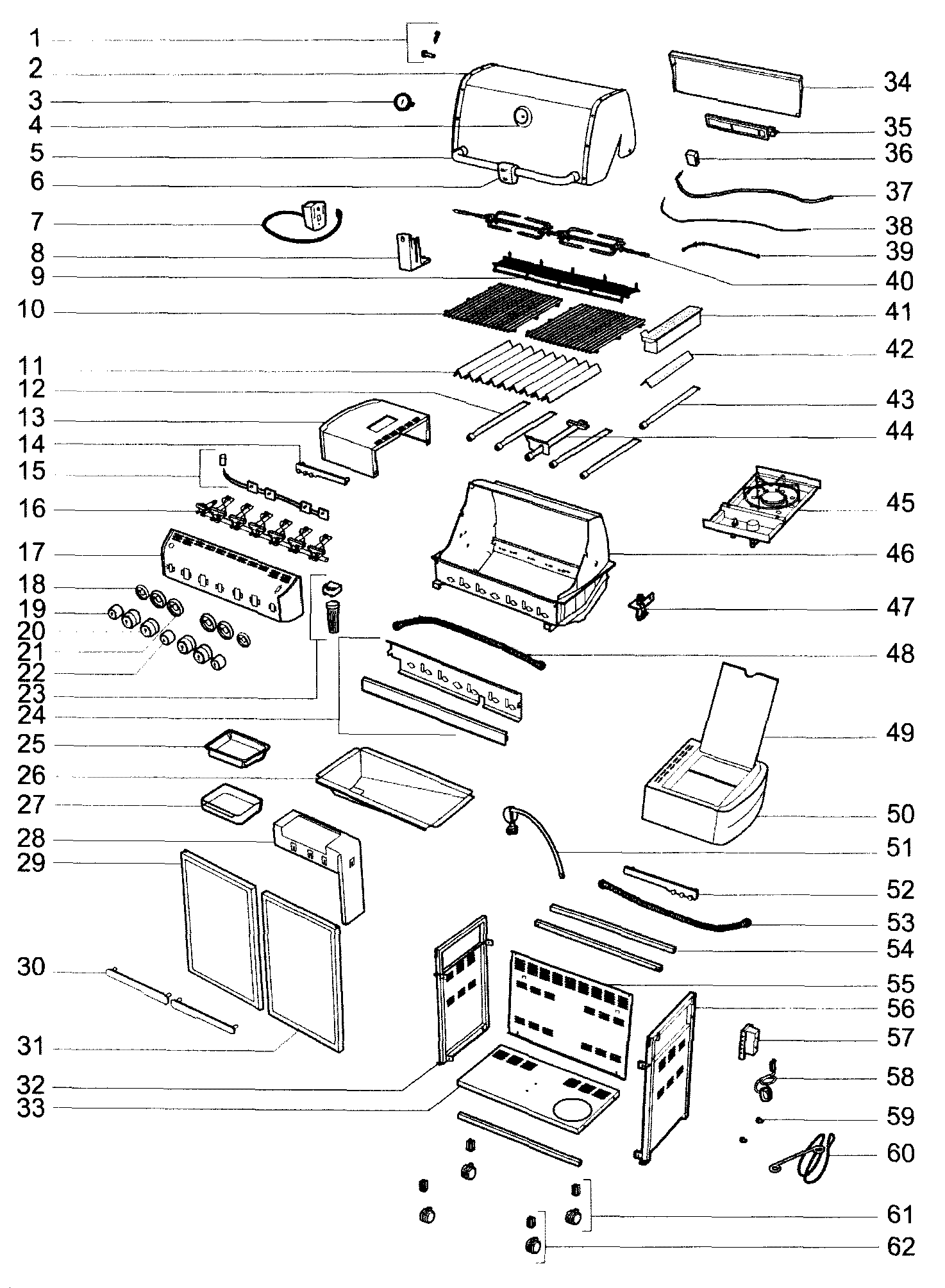

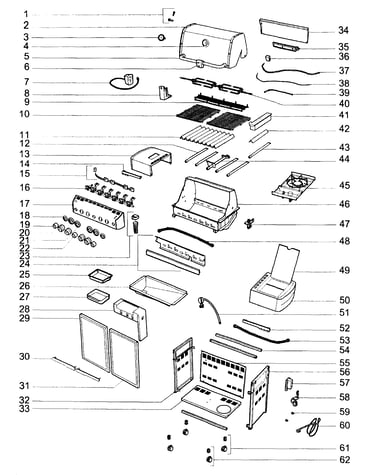

Grill parts diagram

Gas grill main burner

Part #70306

The manufacturer no longer makes this part, and there's no substitute part

Hardware 88063
#28A

Grill parts diagram

Hardware

Part #88063

The manufacturer no longer makes this part, and there's no substitute part

Bracket Assembly 70197
#8

Grill parts diagram

Bracket assembly

Part #70197

The manufacturer no longer makes this part, and there's no substitute part

Hardware 88208
Hardware

Part #88208

The manufacturer no longer makes this part, and there's no substitute part

Lp Manifold 70890
#16

Grill parts diagram

Lp manifold

Part #70890

The manufacturer no longer makes this part, and there's no substitute part

Heat Shield 70873
#24

Grill parts diagram

Heat shield

Part #70873

The manufacturer no longer makes this part, and there's no substitute part

Hardware W/forks 84116
#40A

Grill parts diagram

Hardware w/forks

Part #84116

The manufacturer no longer makes this part, and there's no substitute part

Glide Button 88065
#59

Grill parts diagram

Glide button

Part #88065

The manufacturer no longer makes this part, and there's no substitute part

Door Hinge 70332
Door hinge

Part #70332

The manufacturer no longer makes this part, and there's no substitute part

Battery Cover 70879
#23

Grill parts diagram

Battery cover

Part #70879

The manufacturer no longer makes this part, and there's no substitute part

Symptoms for gas grills

Choose a symptom to see related gas grill repairs.

View all

Why don't the burners on my gas grill get gas?

Main causes: empty fuel tank, tripped flow-limiting device on the pressure regulator, faulty manifold valves, burner tub…

Read more

Why won't some burners light on my gas grill?

Main causes: clogged burner tubes, cracked insulators on igniter electrodes, wiring failures, bad ignition module, manif…

Read more

Why is my gas grill not hot enough?

Main causes: nearly empty fuel tank, faulty pressure regulator, burner tube clogs, bad burner tube alignment to gas valv…

Read more

What should I do about grease flare-ups in my gas grill?

Main causes: damaged or dirty flame tamers, corroded firebox, accumulated grease and debris in the grease pan…

Read more

Do I have to replace a broken wheel on a gas grill?

Main cause: worn wheel…

Read more
