Kenmore
Room Air Conditioner

Model # 25379087990 Official Kenmore air conditioner

Here are the diagrams and repair parts for Official Kenmore 25379087990 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

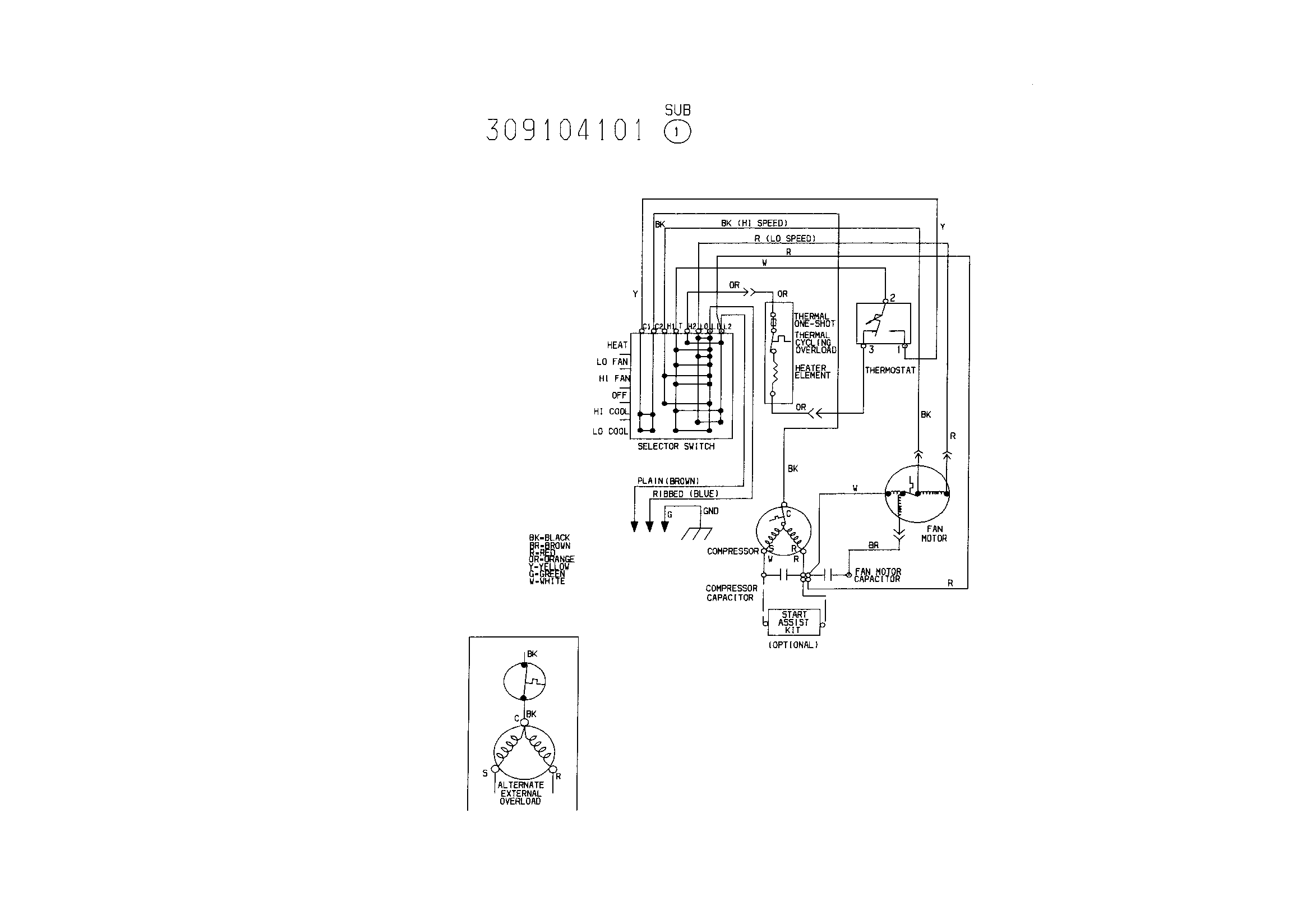

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 71 parts  |
Screw 3202975
#2

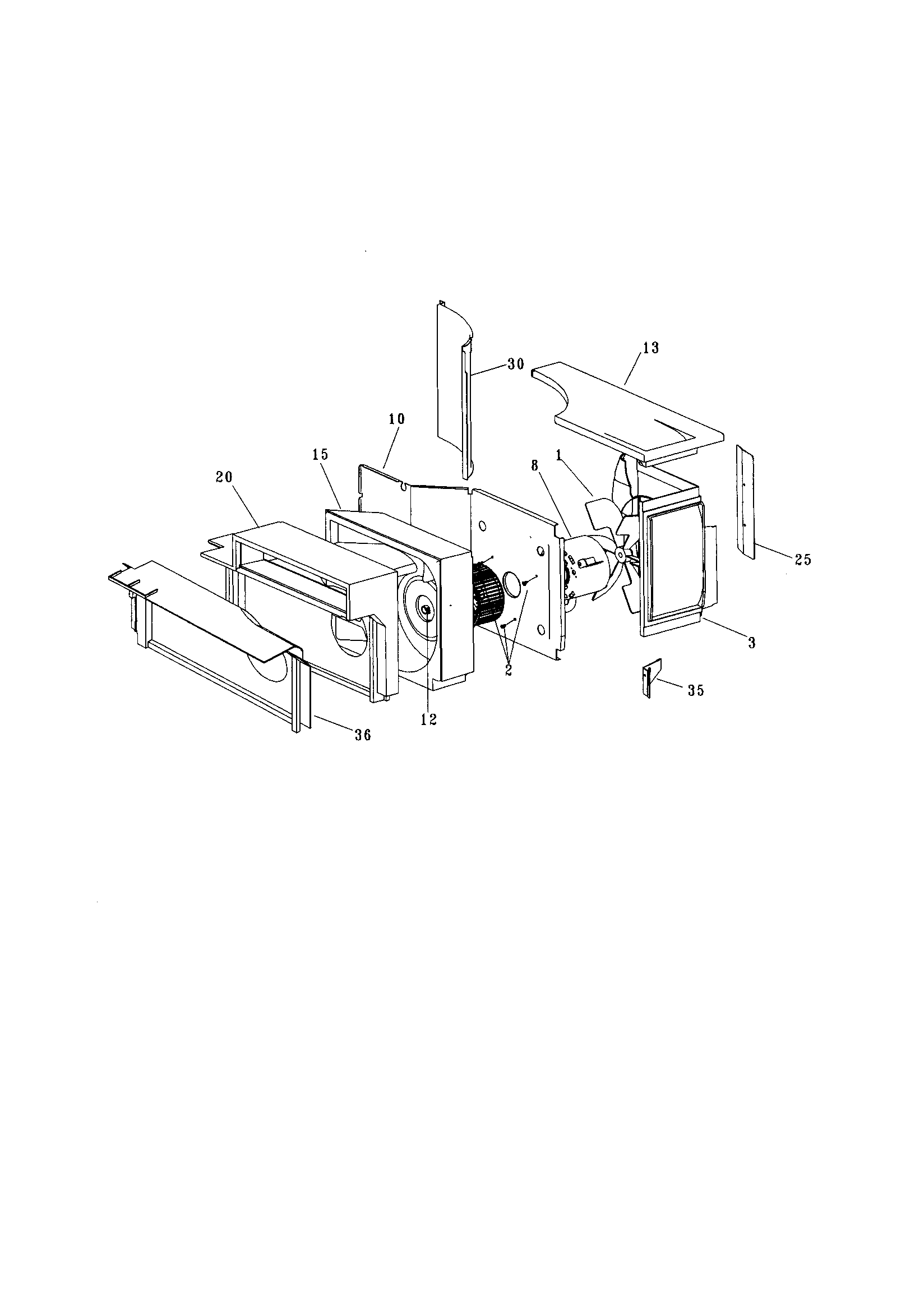

Air handling diagram

Screw

Part #3202975

Replaced by #5304410881

?
Manufacturer substitution
This part replaces 3202975. Substitute parts can look different from the original.
This item is not returnable
$4.77
In Stock
Kit-groundin 5304409303
#3

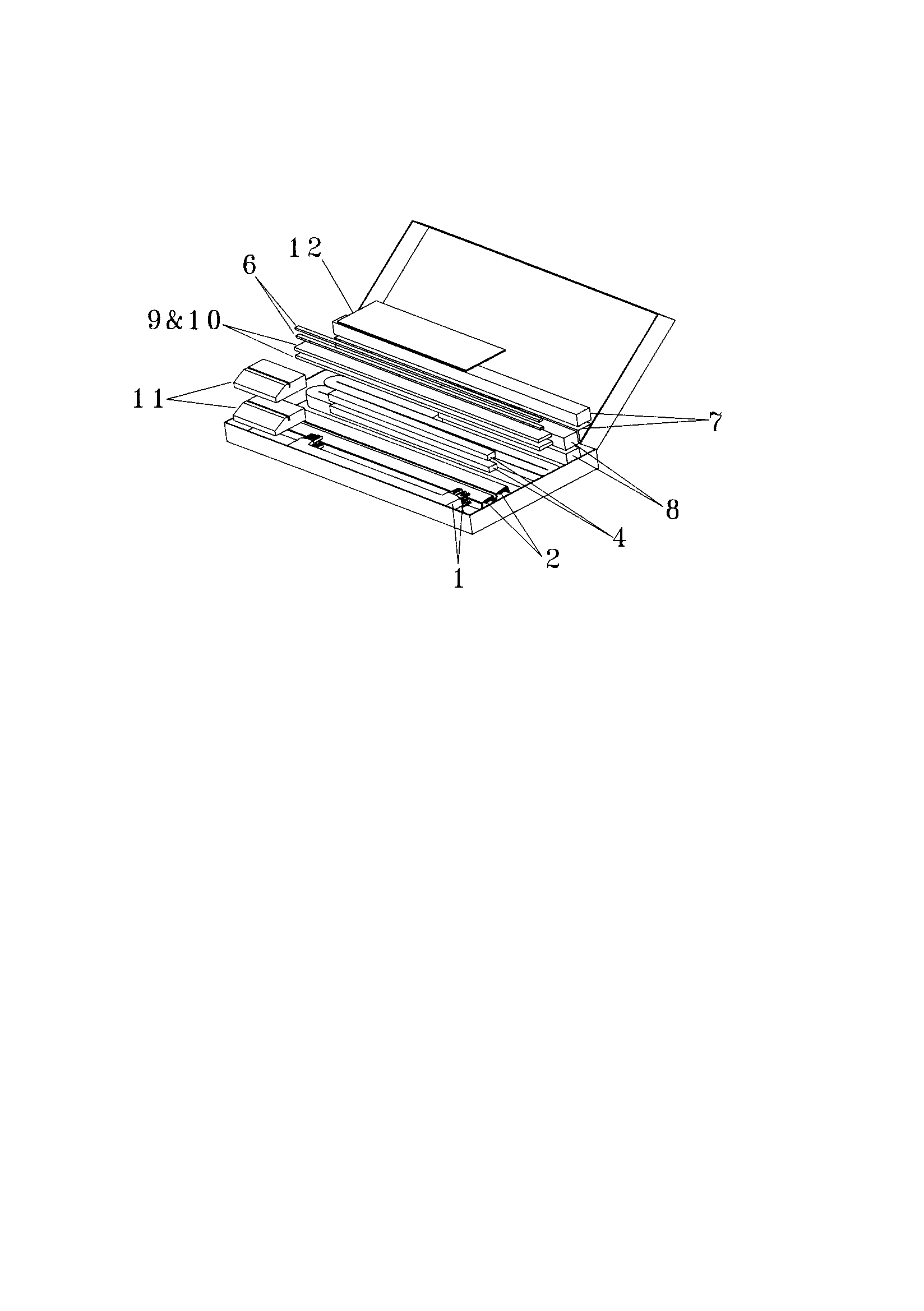

Window mounting diagram

Kit-groundin

Part #5304409303

The manufacturer no longer makes this part, and there's no substitute part

#base/stud A 309632002
#14

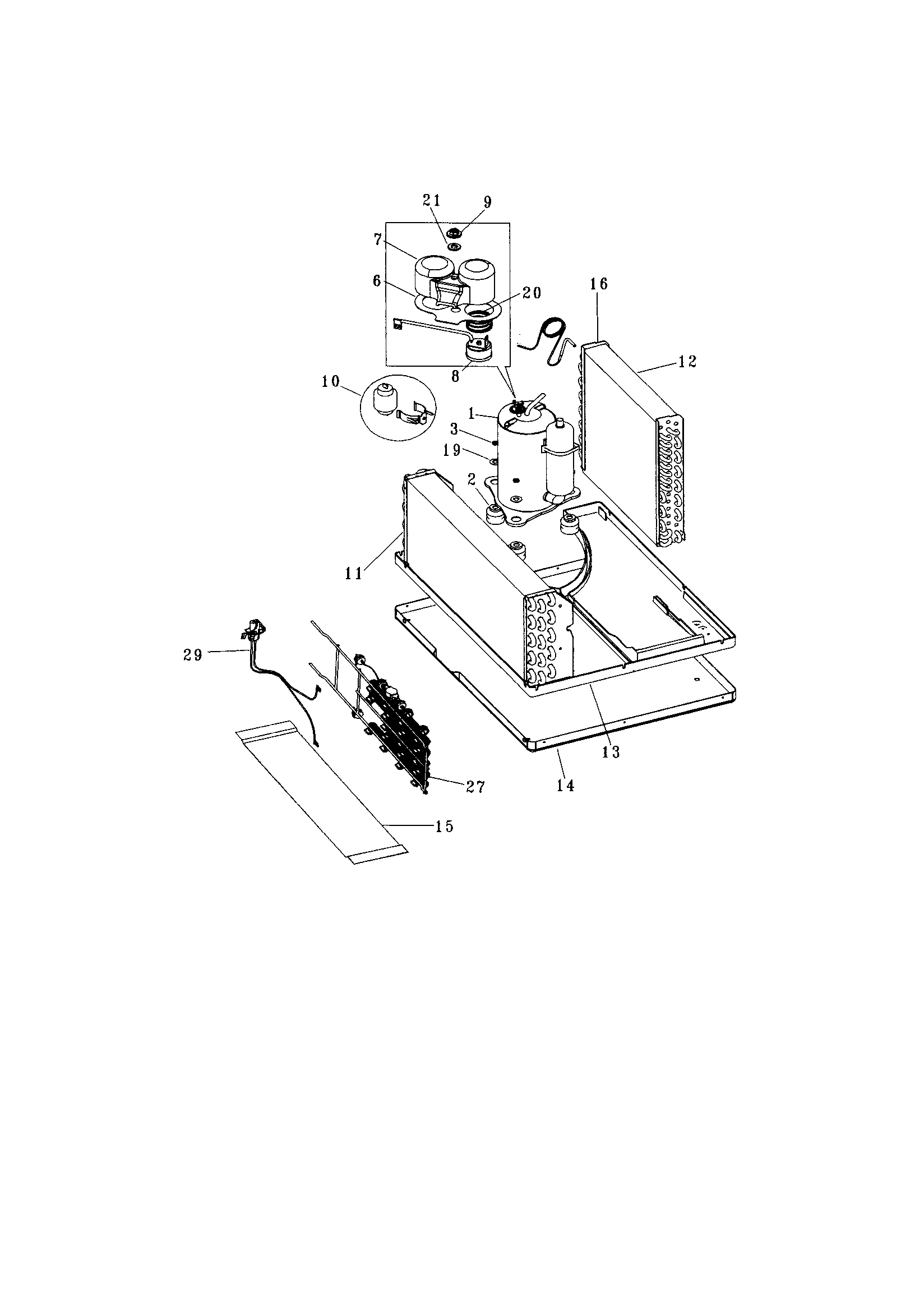

Compressor diagram

#base/stud a

Part #309632002

The manufacturer no longer makes this part, and there's no substitute part

Air Baffle 309335201
#25

Air handling diagram

Air baffle

Part #309335201

The manufacturer no longer makes this part, and there's no substitute part

Control Box 309628502
#7

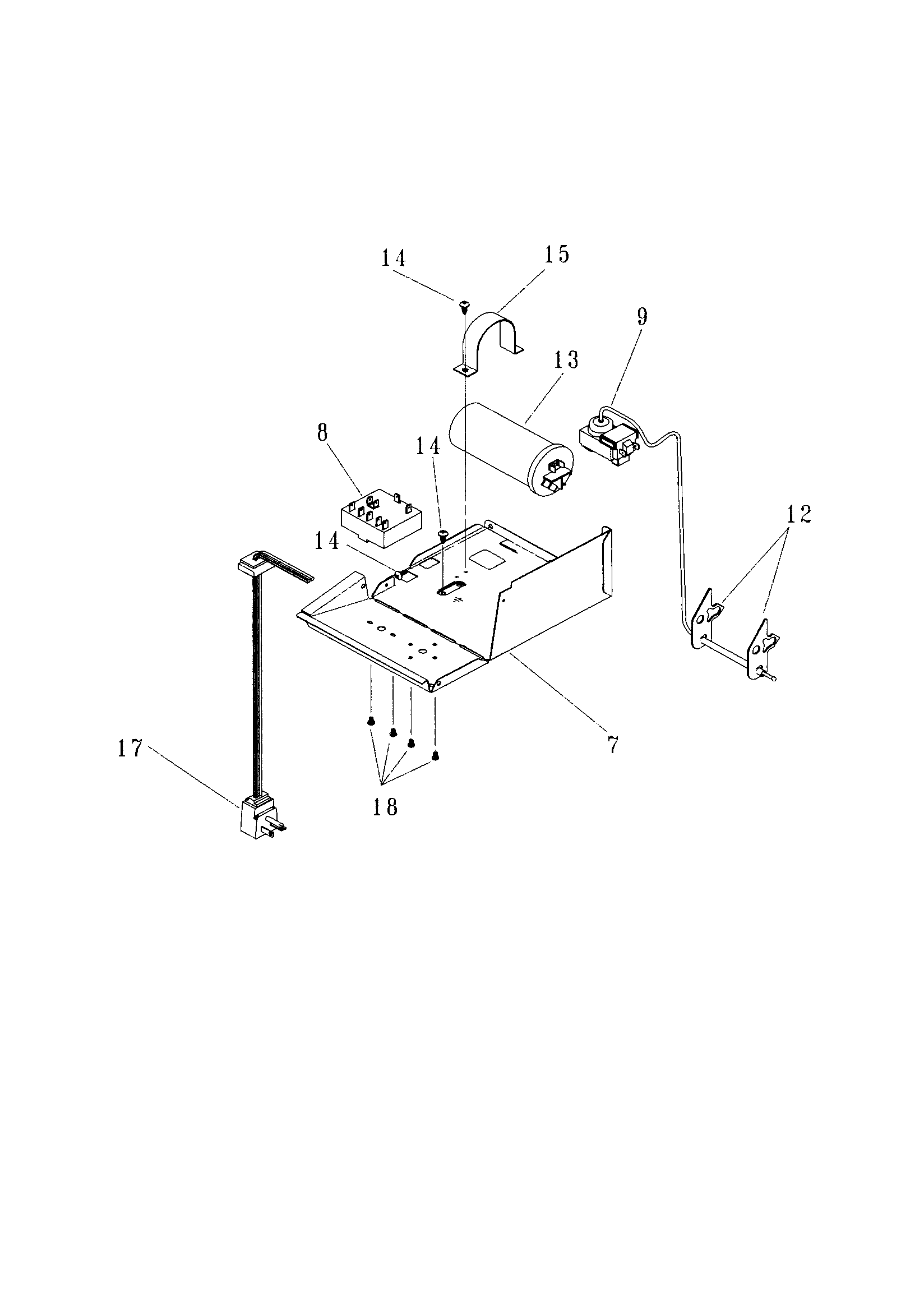

Control diagram

Control box

Part #309628502

The manufacturer no longer makes this part, and there's no substitute part

Valve 3017804
#30

Compressor diagram

Valve

Part #3017804

The manufacturer no longer makes this part, and there's no substitute part

Grille 309629404
#17

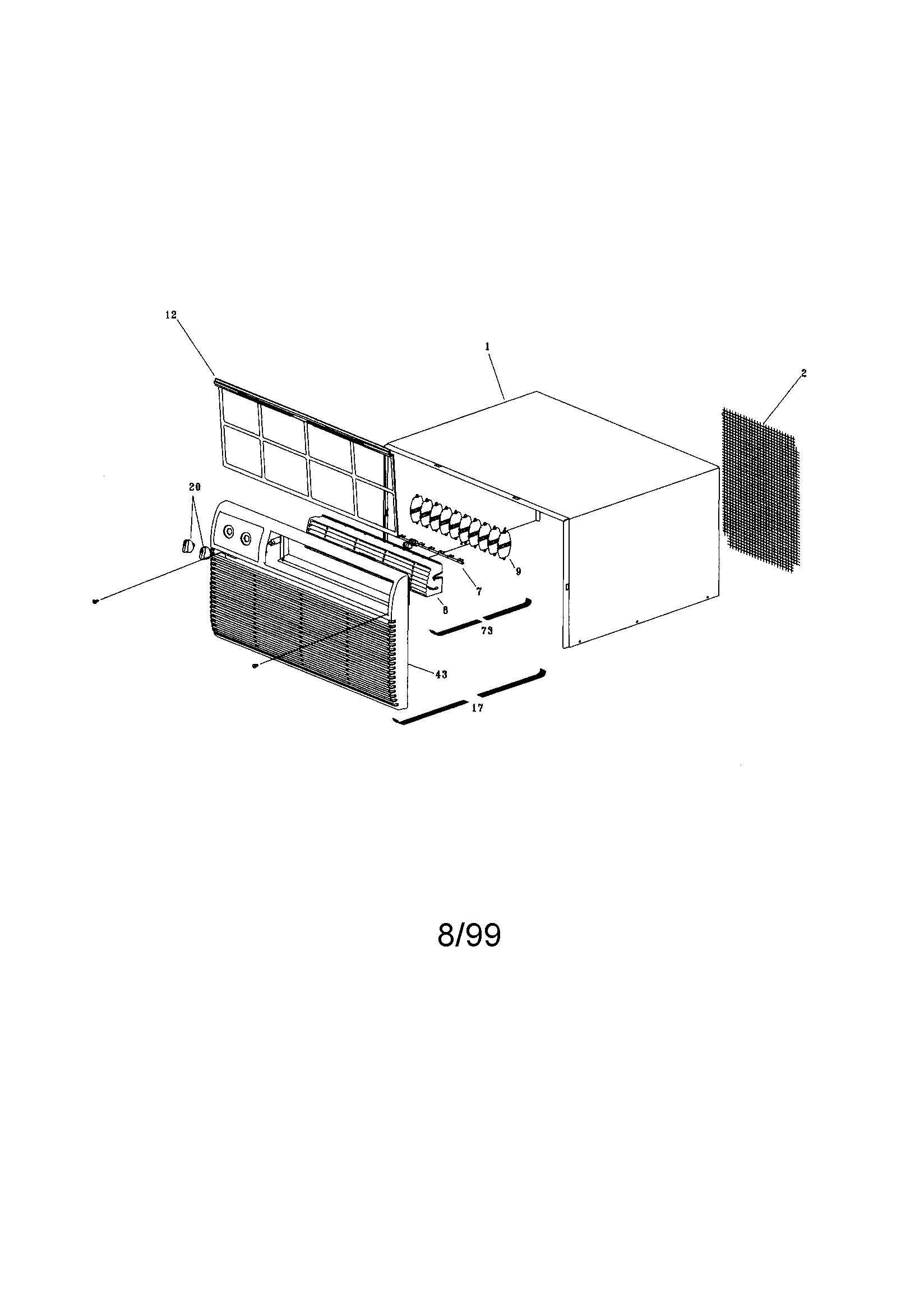

Cabinet front and wrapper diagram

Grille

Part #309629404

The manufacturer no longer makes this part, and there's no substitute part

Wrapper Seal 5303301038
#5

Window mounting diagram

Wrapper seal

Part #5303301038

The manufacturer no longer makes this part, and there's no substitute part

Condenser 309632503
#12

Compressor diagram

Condenser

Part #309632503

The manufacturer no longer makes this part, and there's no substitute part

Cover 3002034
#7

Compressor diagram

Cover

Part #3002034

The manufacturer no longer makes this part, and there's no substitute part
