Model # WL820920 Official Weslo aerobic force training system

Here are the diagrams and repair parts for Official Weslo WL820920 aerobic force training system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 104 parts  |

Exercise Equipment Foam Pad 103805
#48

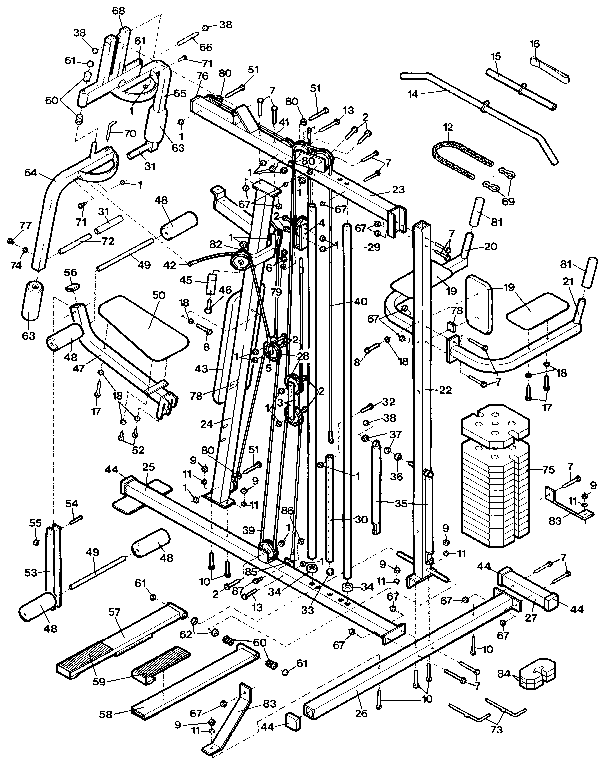

Unit parts diagram

Exercise equipment foam pad

Part #103805

Replaced by #208378

?
Manufacturer substitution
This part replaces 103805. Substitute parts can look different from the original.
This item is not returnable
$5.39
16% OFF Phone Price : $6.39
In Stock
Nordictrack Exercise Equipment Snap Hook 103087
#69

Unit parts diagram

Nordictrack exercise equipment snap hook

Part #103087

This item is not returnable
$4.19
19% OFF Phone Price : $5.19
In Stock
Black & Decker Exercise Equipment Lubricating Grease 104838

#NI

All parts diagram

Black & decker exercise equipment lubricating grease

Part #104838

This item is not returnable
$3.89
20% OFF Phone Price : $4.89
In Stock
Base End Cap 103833
#56

Unit parts diagram

Base end cap

Part #103833

This item is not returnable
In Stock
Image Exercise Equipment Star Washer 014088
#74

Unit parts diagram

Image exercise equipment star washer

Part #014088

This item is not returnable
In Stock
Screw,tekphp 107428
#77

Unit parts diagram

Screw,tekphp

Part #107428

This item is not returnable
In Stock
Lifestyler Screw,hhcs,z 110941
#51

Unit parts diagram

Lifestyler screw,hhcs,z

Part #110941

This item is not returnable
In Stock
Nordictrack Screw,hhcs,z 013050
#13

Unit parts diagram

Nordictrack screw,hhcs,z

Part #013050

This item is not returnable
In Stock
Exercise Equipment Flat Washer 014041
#79

Unit parts diagram

Exercise equipment flat washer

Part #014041

This item is not returnable
In Stock
Healthrider Exercise Equipment Lock Washer 014038
#11

Unit parts diagram

Healthrider exercise equipment lock washer

Part #014038

This item is not returnable
In Stock
