Coleman
Gas Grill

Model # LT20510E Official Coleman gas grill

Here are the diagrams and repair parts for Official Coleman LT20510E gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

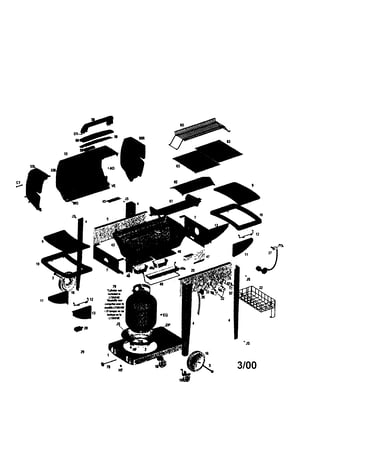

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 47 parts  |
Module 36200146
#28

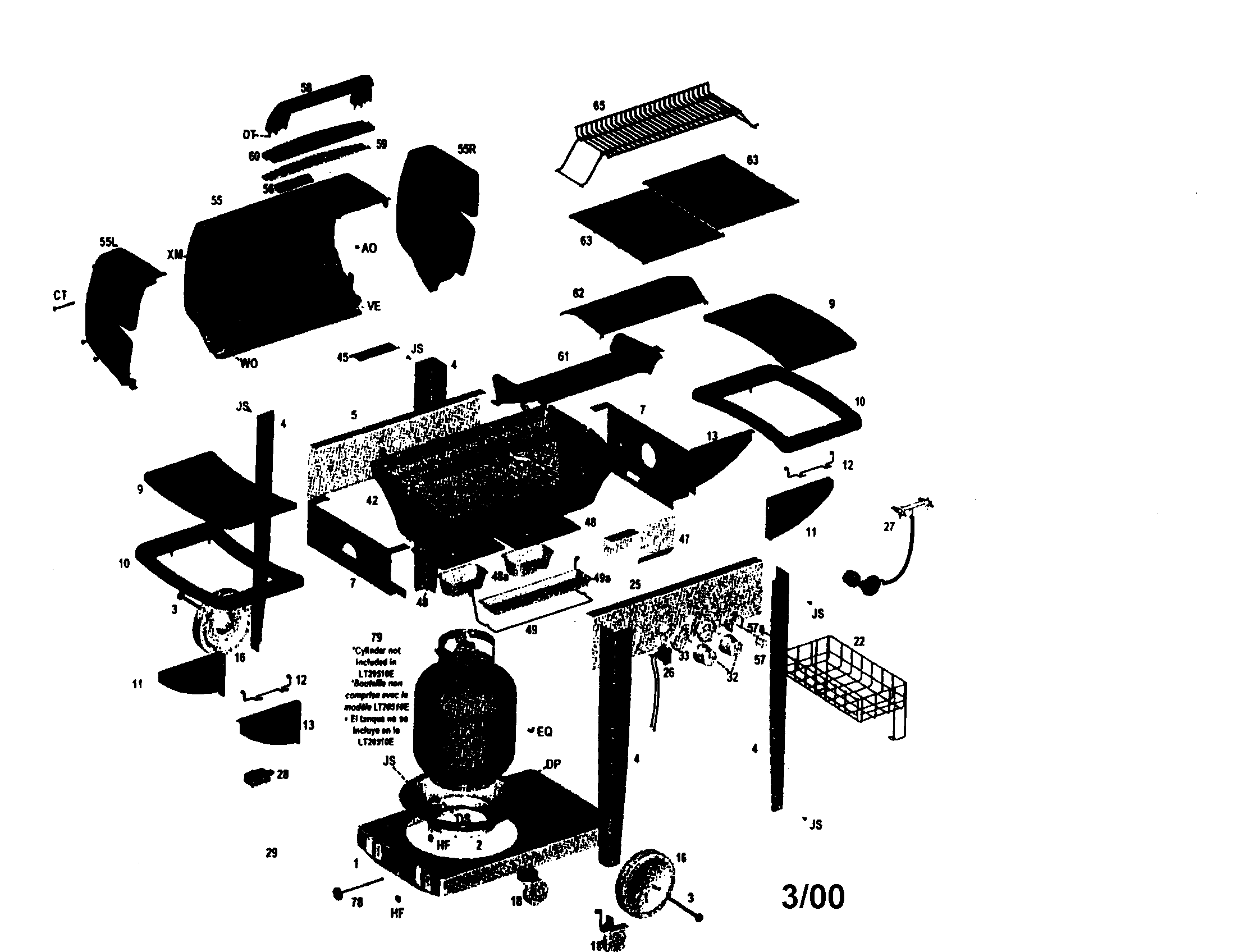

Gas grill diagram

Module

Part #36200146

The manufacturer no longer makes this part, and there's no substitute part

Switch 36200142
#26

Gas grill diagram

Switch

Part #36200142

The manufacturer no longer makes this part, and there's no substitute part

Fascia 30261013
#10

Gas grill diagram

Fascia

Part #30261013

The manufacturer no longer makes this part, and there's no substitute part

Heat Tent 11280133
#62

Gas grill diagram

Heat tent

Part #11280133

The manufacturer no longer makes this part, and there's no substitute part

Wire 36200143
#29

Gas grill diagram

Wire

Part #36200143

The manufacturer no longer makes this part, and there's no substitute part

Grid 38170121
#63

Gas grill diagram

Grid

Part #38170121

The manufacturer no longer makes this part, and there's no substitute part

Handle 30230200
#58

Gas grill diagram

Handle

Part #30230200

The manufacturer no longer makes this part, and there's no substitute part

Cylinder Caddy 012402601
#2

Gas grill diagram

Cylinder caddy

Part #012402601

The manufacturer no longer makes this part, and there's no substitute part

Leg 0121048201
#4

Gas grill diagram

Leg

Part #0121048201

The manufacturer no longer makes this part, and there's no substitute part

Tray 01260119
#49A

Gas grill diagram

Tray

Part #01260119

The manufacturer no longer makes this part, and there's no substitute part
