Model # 58MSA12012120 Official Carrier furnace

Here are the diagrams and repair parts for Official Carrier 58MSA12012120 furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 78 parts  |
Capactr Run P291-1003
#25A

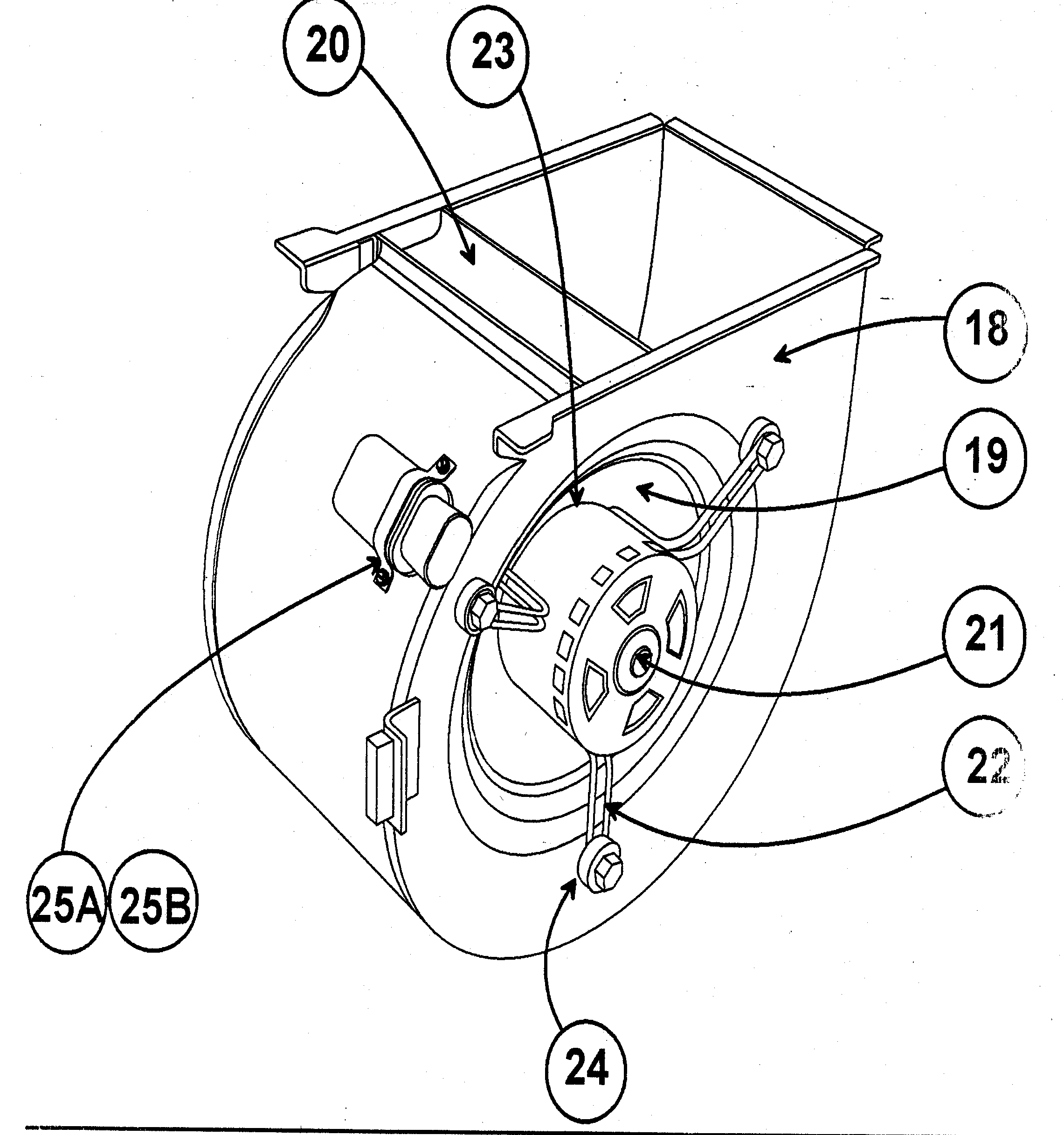

Blower assy diagram

Capactr run

Part #P291-1003

Replaced by #12908

?
Manufacturer substitution
This part replaces P291-1003. Substitute parts can look different from the original.
This item is not returnable
$5.26 |
16% OFF Phone Price : $6.26
In Stock
Furnace Burner Igniter (replaces 331930-751, 41-403) LH33ZS004
#54

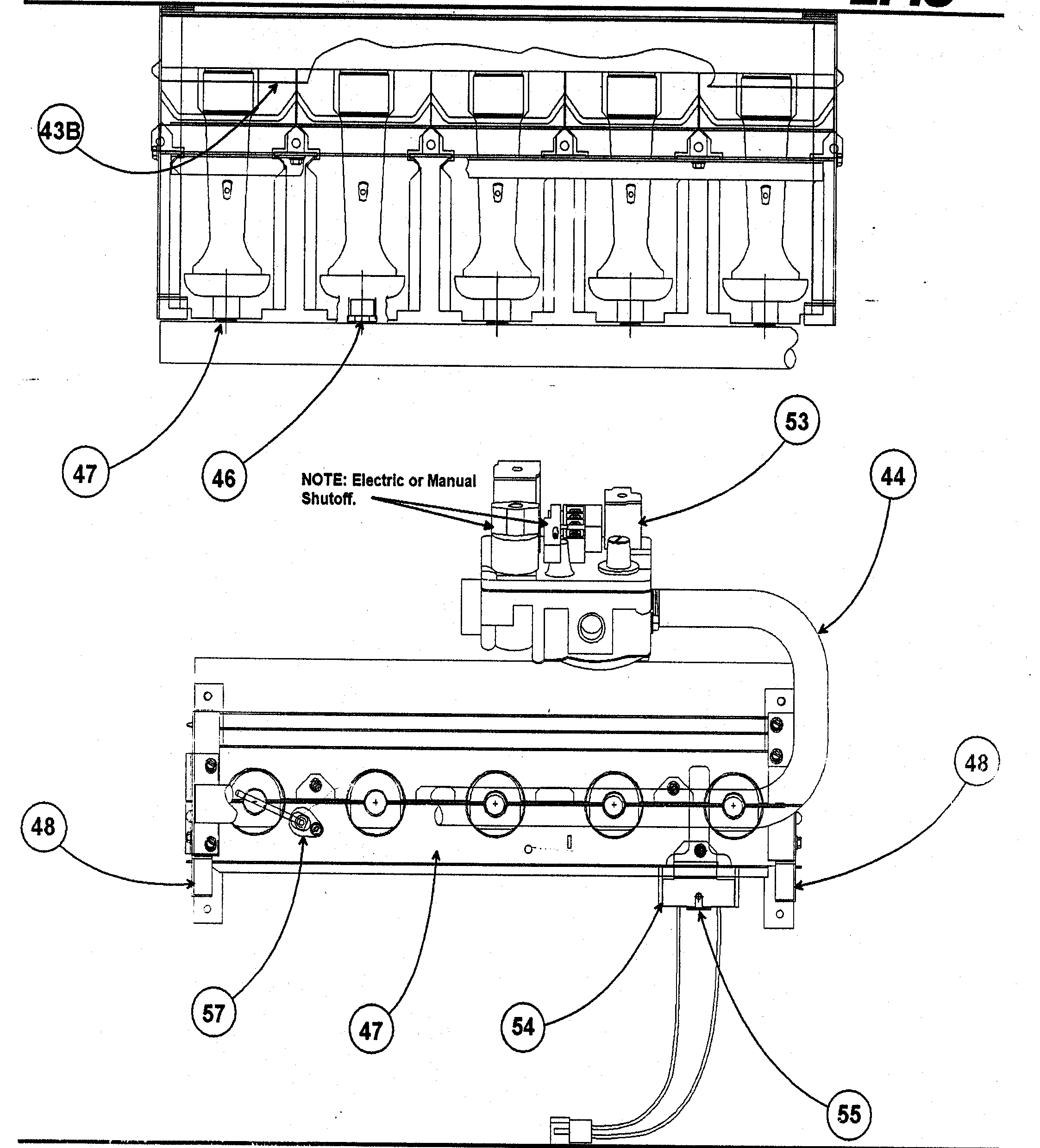

Burner assy diagram

Furnace burner igniter (replaces 331930-751, 41-403)

Part #LH33ZS004

$47.08 |
11% OFF Phone Price : $53.08
In Stock
Icp Furnace Heat Exchanger 320723-751
#31

Heater exchanger assy diagram

Icp furnace heat exchanger

Part #320723-751

$214.60 |
5% OFF Phone Price : $226.60
In Stock
Press Switch HK06NB120
#75

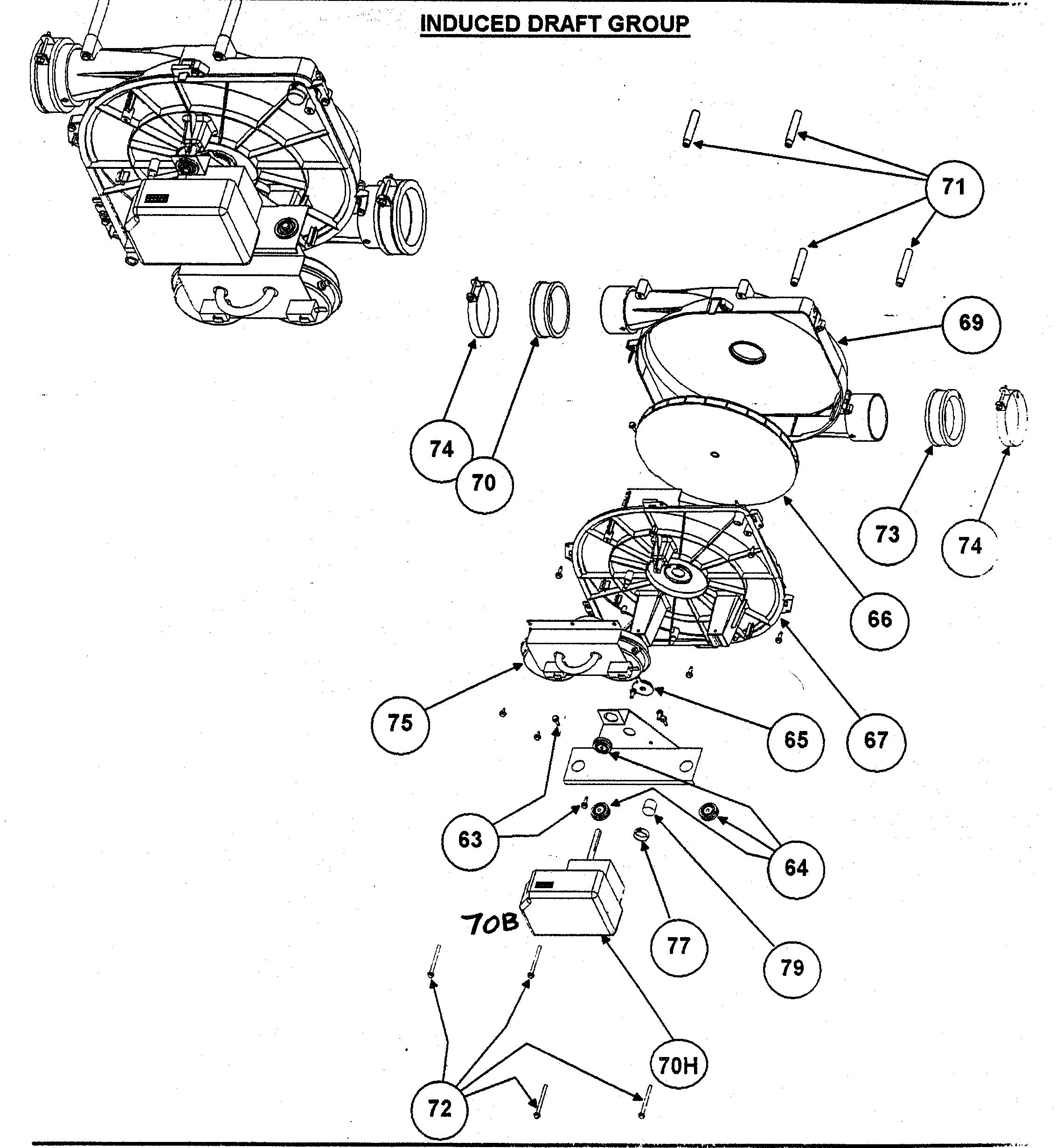

Induced draft assy diagram

Press switch

Part #HK06NB120

Replaced by #HK06NB124

?
Manufacturer substitution
This part replaces HK06NB120. Substitute parts can look different from the original.
$133.03 |
8% OFF Phone Price : $145.03
In Stock
Icp Furnace Blower Fan Motor HC45AE118
#21

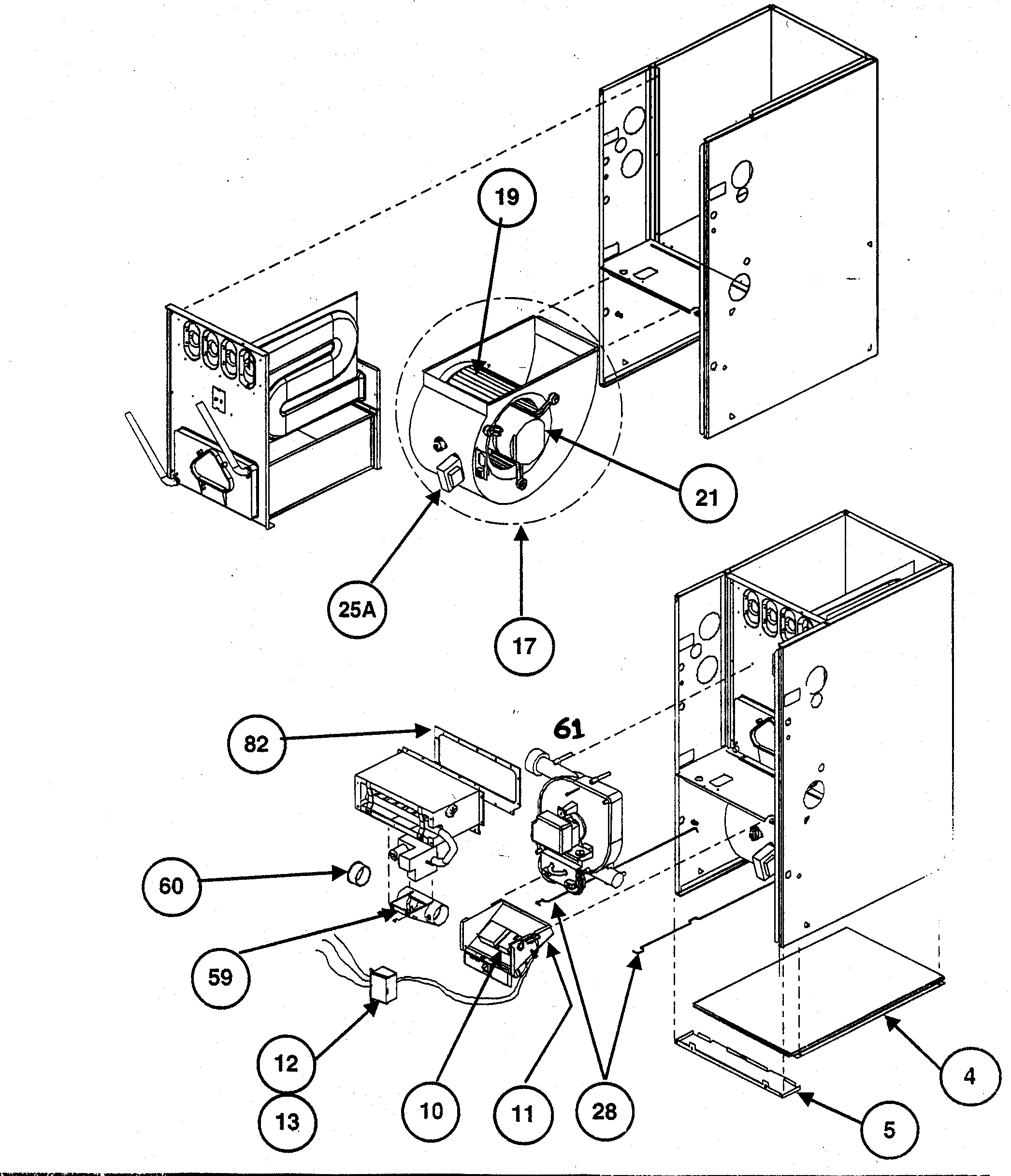

Cabinet parts 1 diagram

Icp furnace blower fan motor

Part #HC45AE118

$665.63 |
$12.00 OFF Phone Price : $677.63
In Stock
Icp Furnace Burner Roll-out Limit Switch (replaces Hh18ha252) HH18HA452
#58

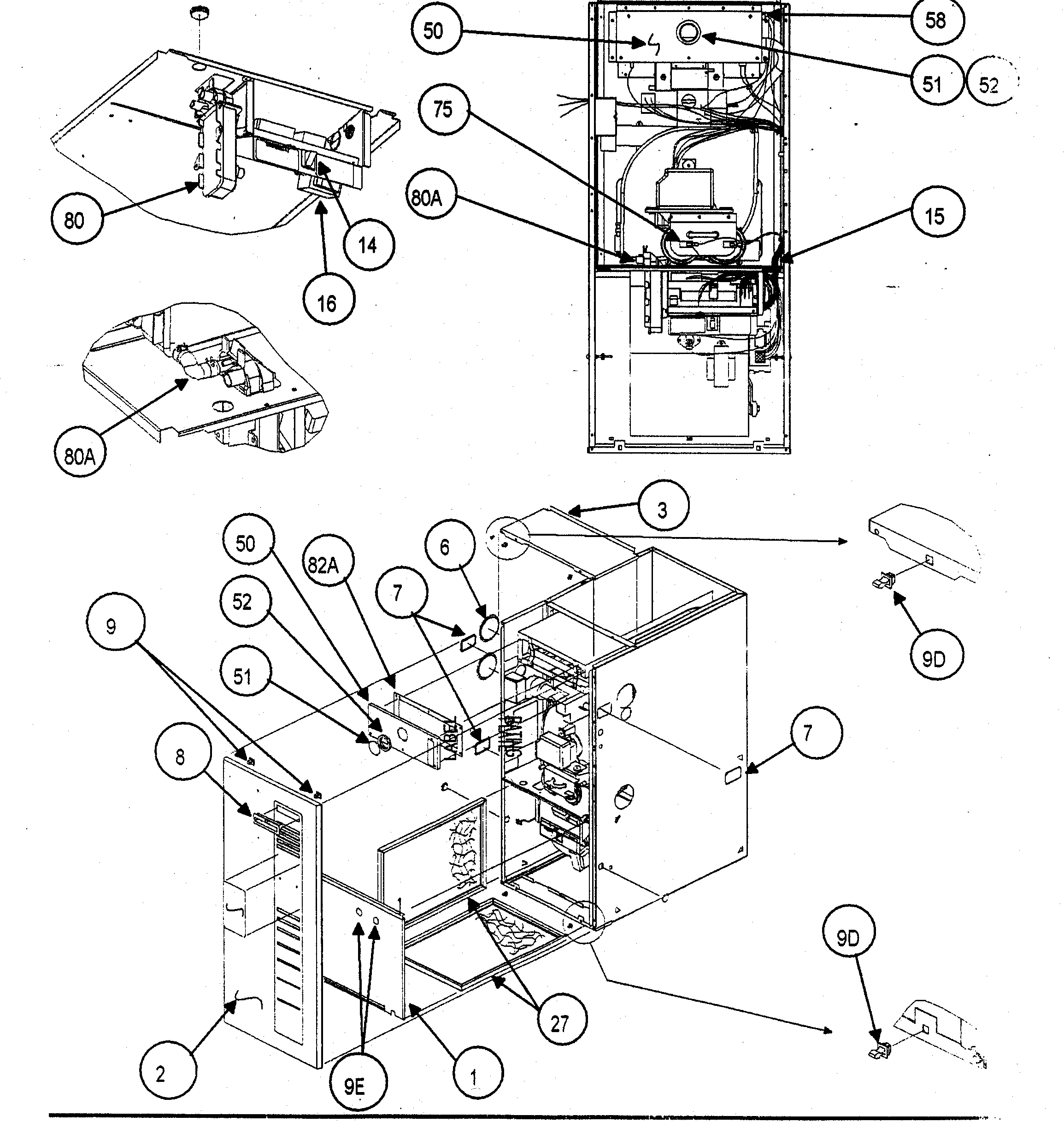

Cabinet parts 2 diagram

Icp furnace burner roll-out limit switch (replaces hh18ha252)

Part #HH18HA452

$25.43
In Stock
Icp Furnace Burner Flame Sight Glass 323017-201
#51

Cabinet parts 2 diagram

Icp furnace burner flame sight glass

Part #323017-201

$61.47
In Stock
Fan LA22ZA118
#19

Cabinet parts 1 diagram

Fan

Part #LA22ZA118

$235.16
In Stock
Icp Cover 319825-402
#67

Induced draft assy diagram

Icp cover

Part #319825-402

$119.50
In Stock
Icp Kit 320720-757
#32

Heater exchanger assy diagram

Icp kit

Part #320720-757

$360.53
In Stock
