Model # NBF075B12A1 Official ICP gas furnace

Here are the diagrams and repair parts for Official ICP NBF075B12A1 gas furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |
Module 1005651
#6A

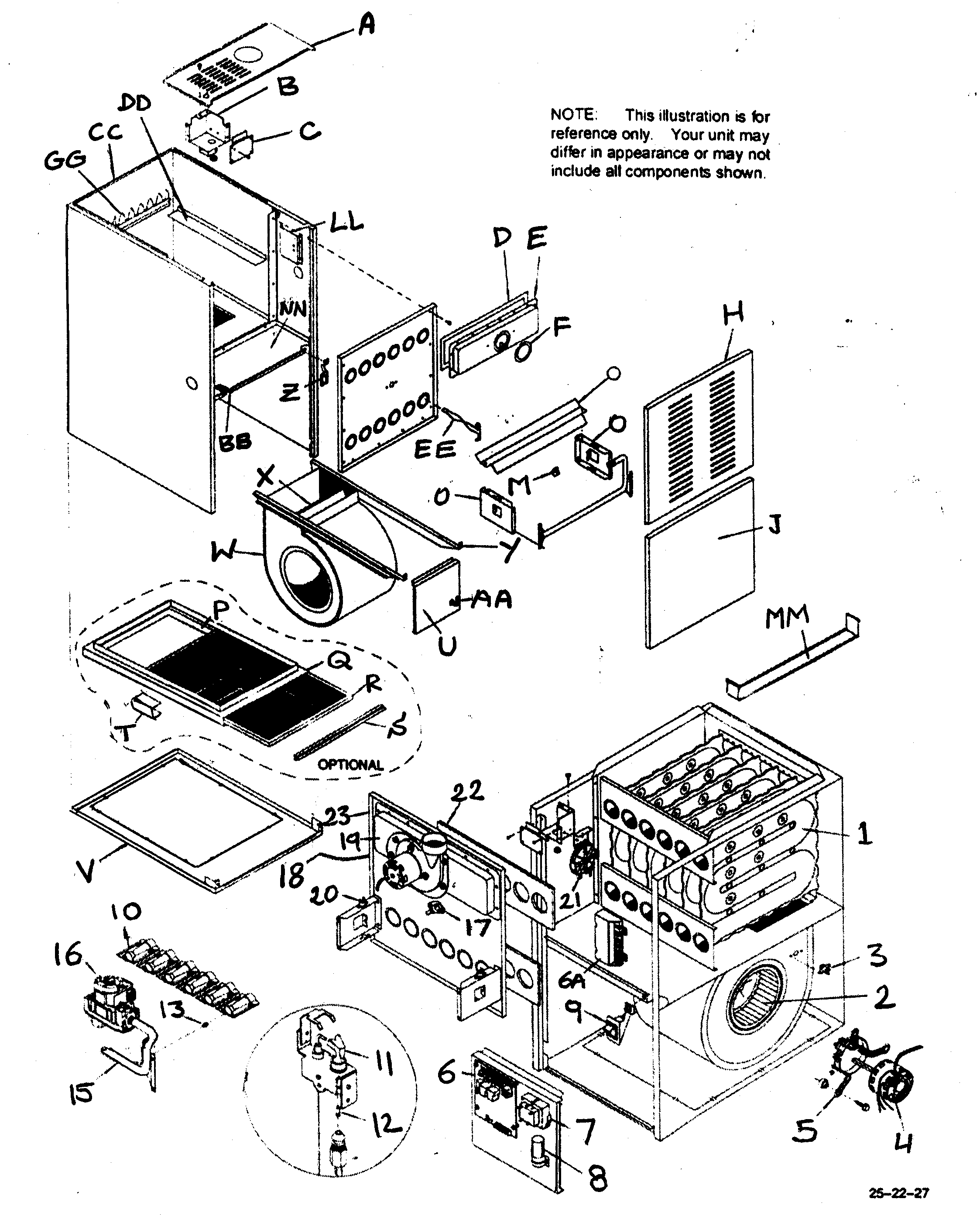

Furnace diagram

Module

Part #1005651

The manufacturer no longer makes this part, and there's no substitute part

Cap Rnrd 1094956
#8

Furnace diagram

Cap rnrd

Part #1094956

Replaced by #12908

?
Manufacturer substitution
This part replaces 1094956. Substitute parts can look different from the original.
This item is not returnable
$5.26 |
16% OFF Phone Price : $6.26
In Stock
Cont Fan Tmr 1009838
#6

Furnace diagram

Cont fan tmr

Part #1009838

Replaced by #1170063

?
Manufacturer substitution
This part replaces 1009838. Substitute parts can look different from the original.
$220.46 |
5% OFF Phone Price : $232.46
In Stock
Heat Exchange 231010104
#1

Furnace diagram

Heat exchange

Part #231010104

Replaced by #1014491

?
Manufacturer substitution
This part replaces 231010104. Substitute parts can look different from the original.
$799.23
In Stock
Limit Switch 1000735
#3

Furnace diagram

Limit switch

Part #1000735

Replaced by #1013105

?
Manufacturer substitution
This part replaces 1000735. Substitute parts can look different from the original.
This item is not returnable
$15.14
In Stock
Furnace Blower Fan Wheel (replaces 1009147) 1011420
#2

Furnace diagram

Furnace blower fan wheel (replaces 1009147)

Part #1011420

$160.43 |
7% OFF Phone Price : $172.43
In Stock
Rail Galv Bl 57059
#BB

Furnace diagram

Rail galv bl

Part #57059

$952.55
In Stock
Arcoaire Manifold 1010921
#15

Furnace diagram

Arcoaire manifold

Part #1010921

$189.22
In Stock
Valve 1162036
#16

Furnace diagram

Valve

Part #1162036

$310.26 |
$12.00 OFF Phone Price : $322.26
In Stock
Furnace Pilot Burner Bracket 1010901
#M

Furnace diagram

Furnace pilot burner bracket

Part #1010901

$86.73
In Stock
