Quasar
Room Air Conditioner

Model # HQ-2052UH Official Quasar room air conditioner

Here are the diagrams and repair parts for Official Quasar HQ-2052UH room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

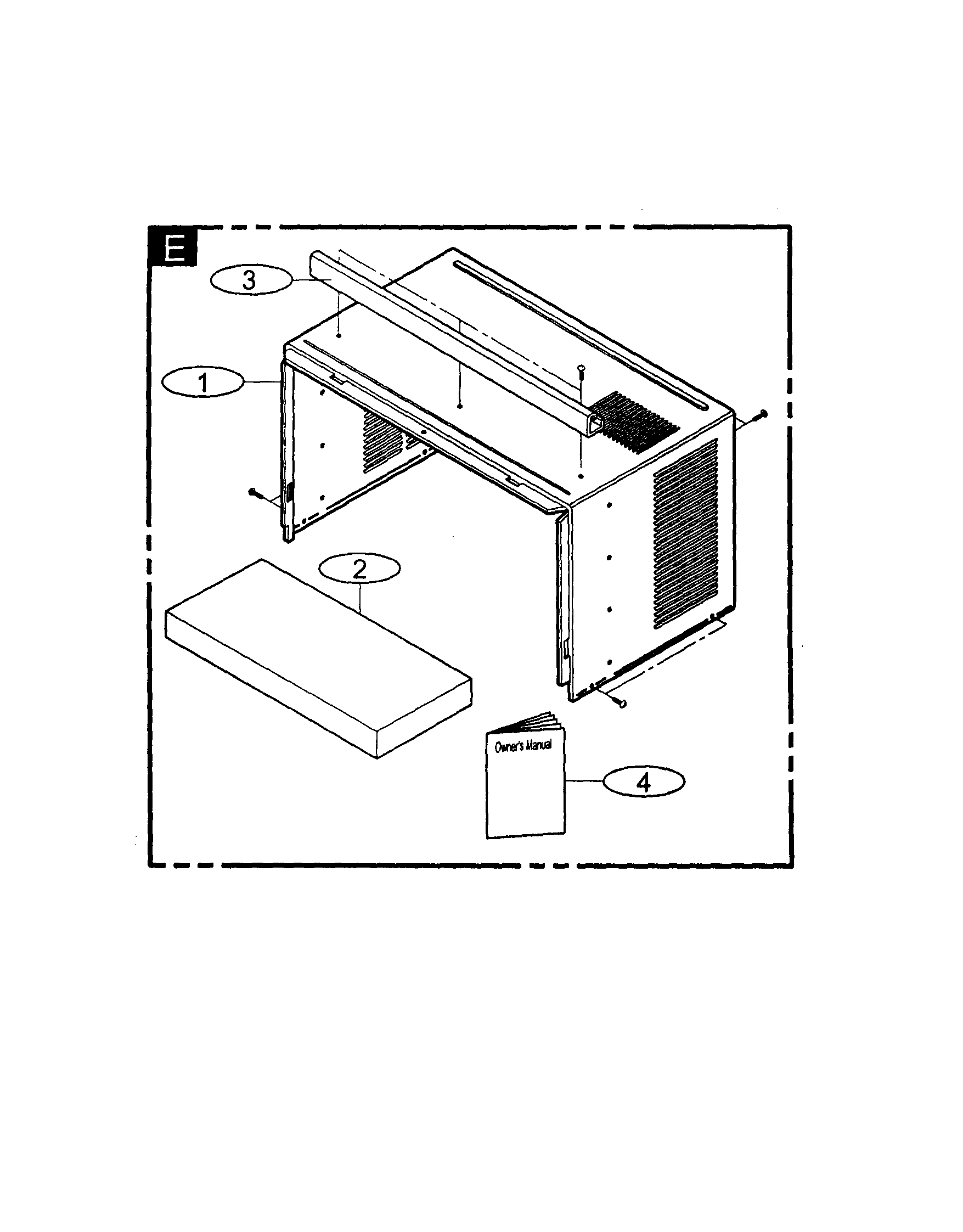

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |
Quasar Hex Nut CWL00020
#B-8

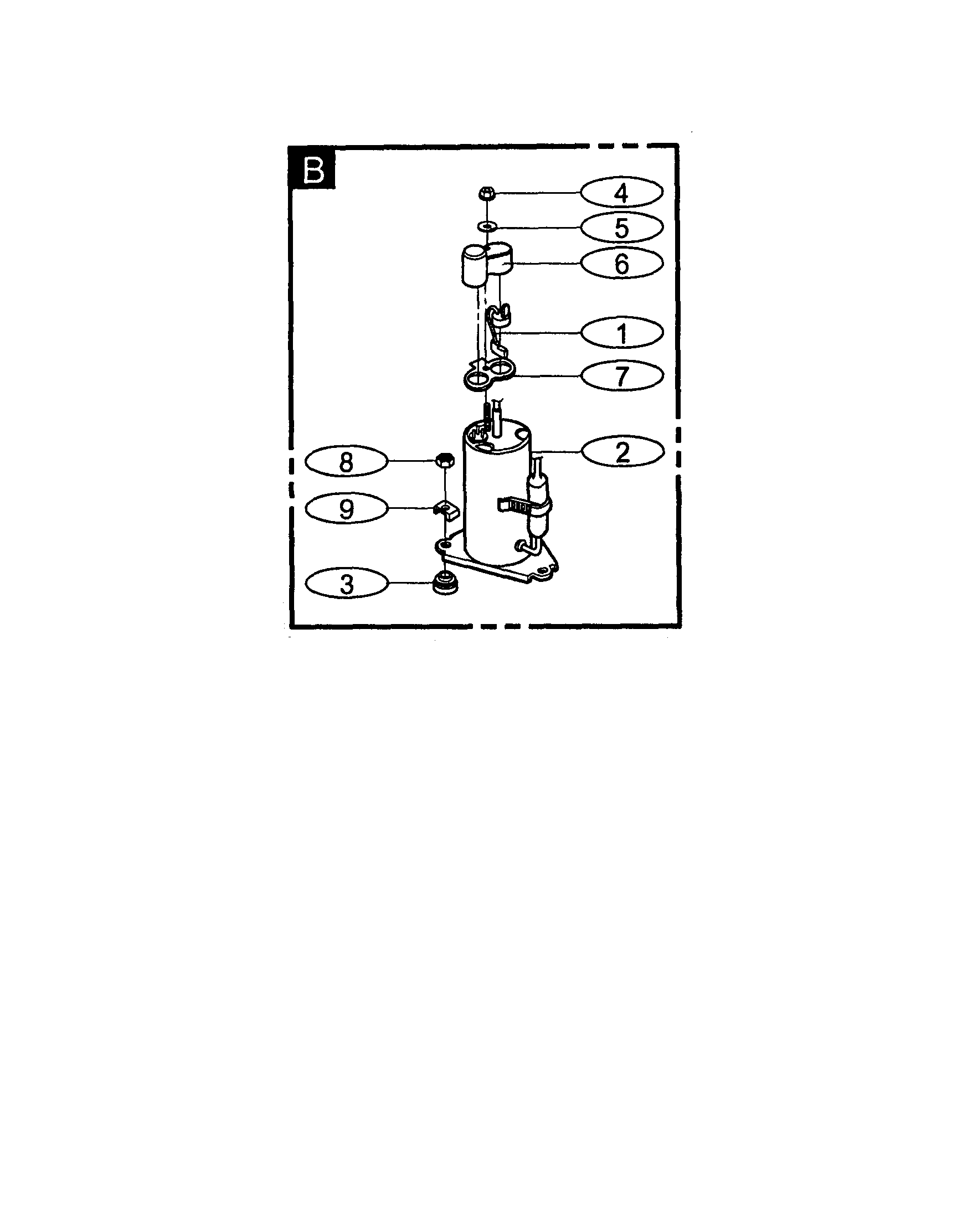

Compressor / overload protector diagram

Quasar hex nut

Part #CWL00020

This item is not returnable
$2.99
In Stock
Quasar Inlt Grill CW353010133A
#F-1

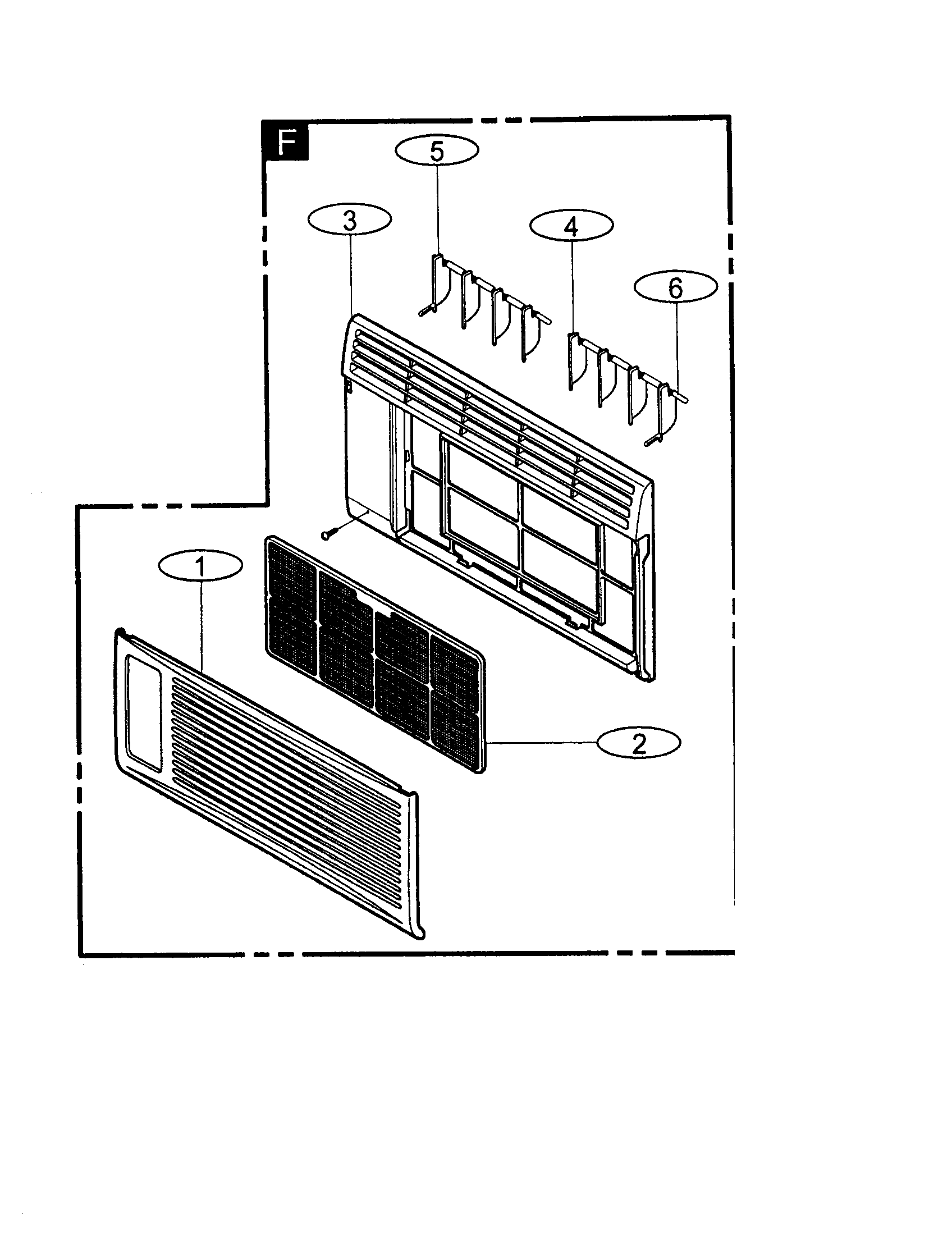

Front grille assembly diagram

Quasar inlt grill

Part #CW353010133A

$36.99
In Stock
Quasar Air Conditioner Grille Front CW353010132B
#F-3

Front grille assembly diagram

Quasar air conditioner grille front

Part #CW353010132B

$36.99
In Stock
Quasar Orifice CWL00036
#D-11

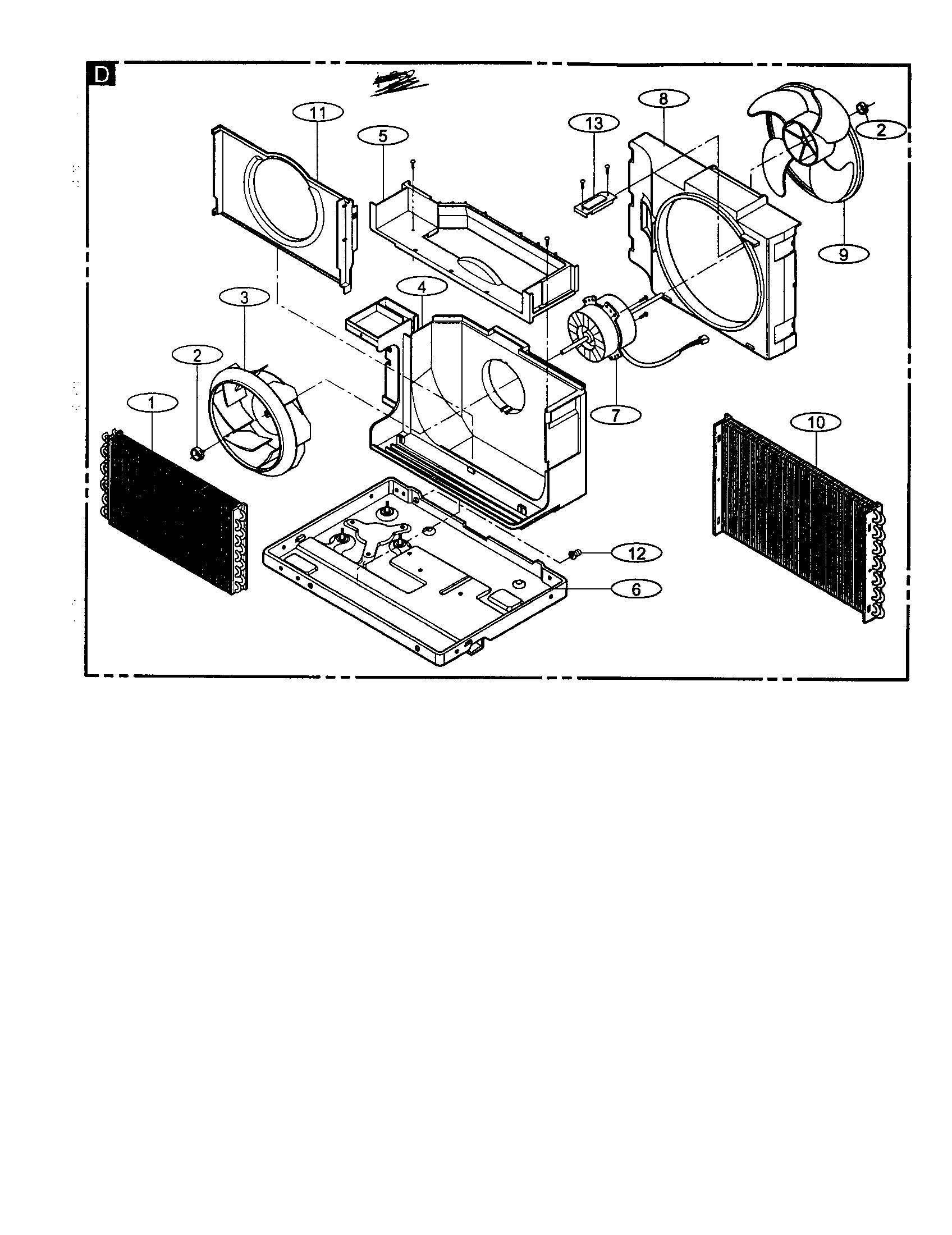

Motor and evaporator assembly diagram

Quasar orifice

Part #CWL00036

$36.99
In Stock
Quasar Panasonic Guide CWL00030
#D-5

Motor and evaporator assembly diagram

Quasar panasonic guide

Part #CWL00030

$54.49
In Stock
Quasar Control Box CW499420020A
#A-1

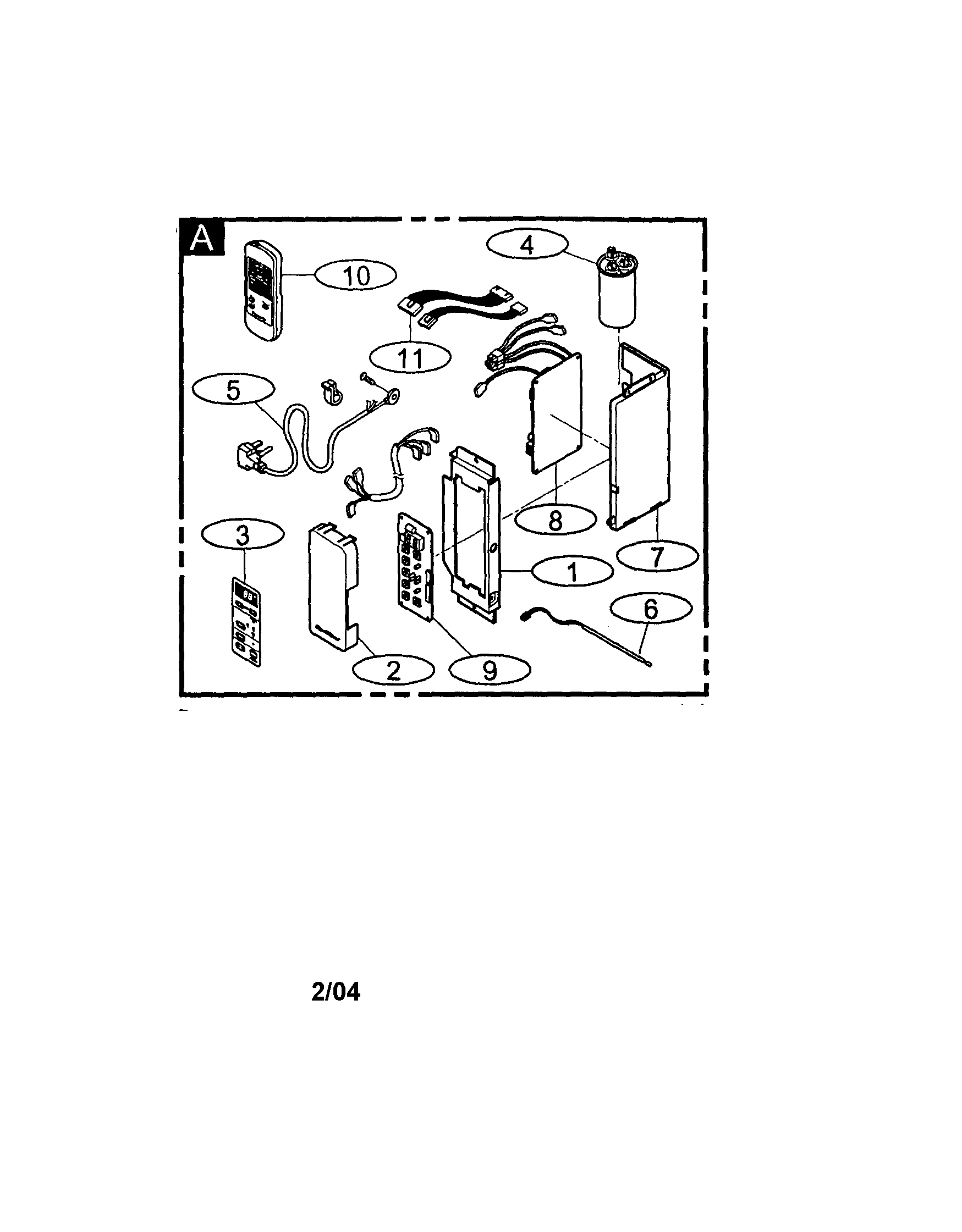

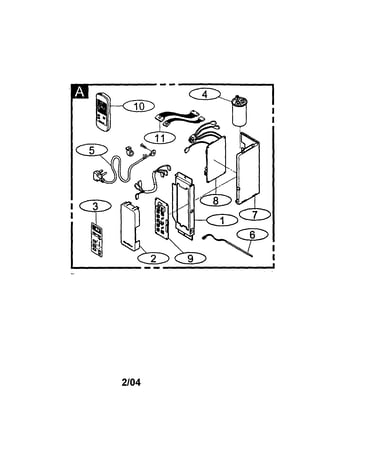

Control box assembly diagram

Quasar control box

Part #CW499420020A

$28.49
In Stock
Quasar Vane CWL00048
#F-5

Front grille assembly diagram

Quasar vane

Part #CWL00048

This item is not returnable
$4.49
In Stock
Quasar Nut CWL00016
#B-4

Compressor / overload protector diagram

Quasar nut

Part #CWL00016

This item is not returnable
$3.49
In Stock
Quasar Pcb CW687120193E
#A-9

Control box assembly diagram

Quasar pcb

Part #CW687120193E

$50.99
In Stock
Quasar Overload CWL00013
#B-1

Compressor / overload protector diagram

Quasar overload

Part #CWL00013

$40.49
In Stock
