Model # OUF105A12A Official ICP furnace

Here are the diagrams and repair parts for Official ICP OUF105A12A furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 30 parts  |
Mount Assembly B01888
#11

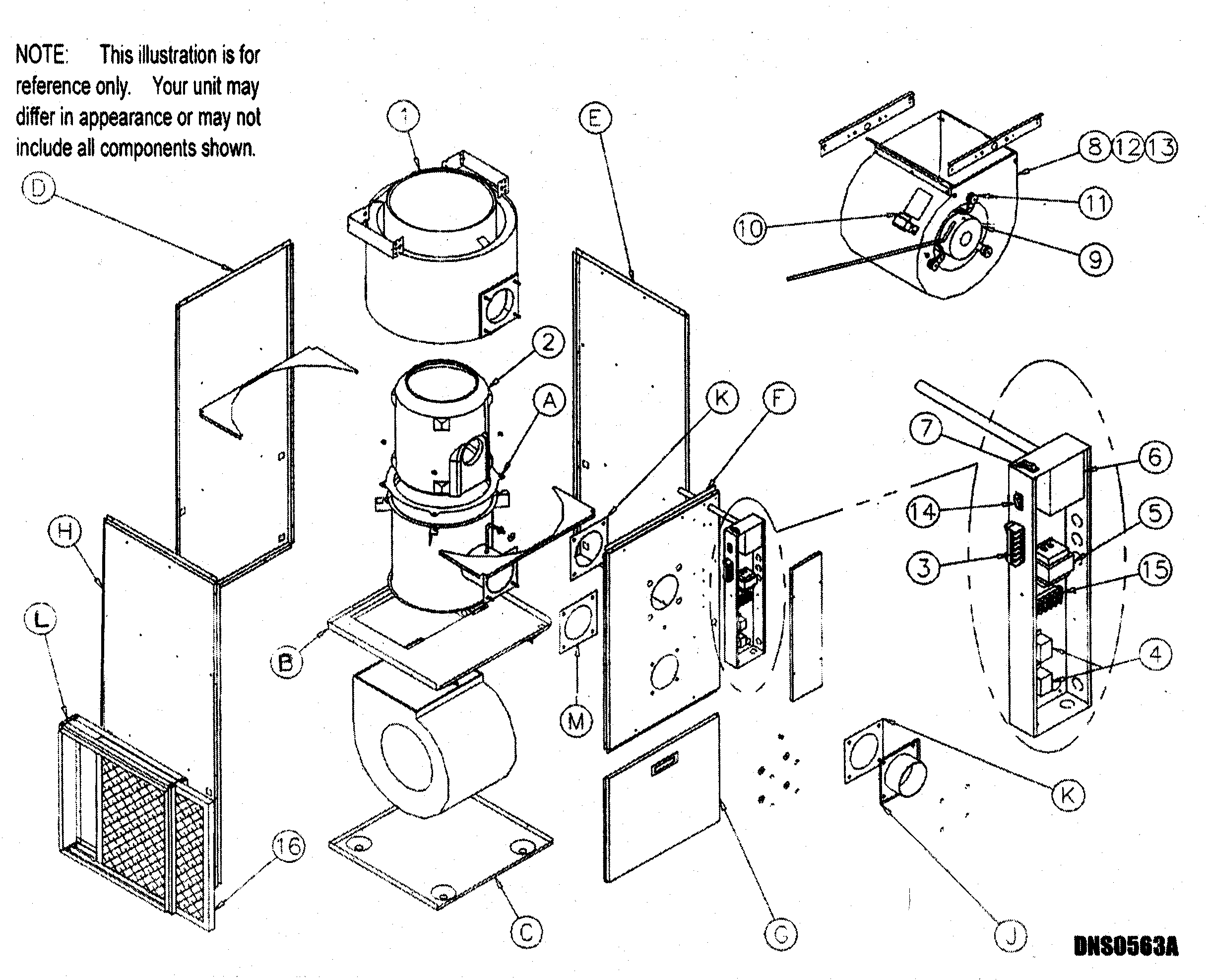

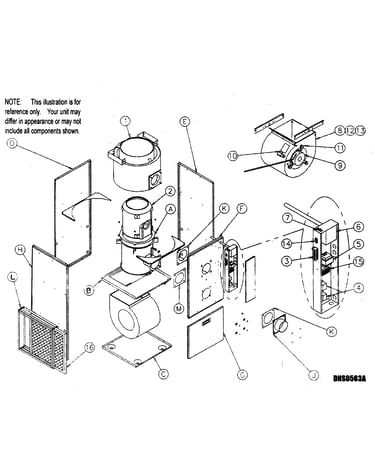

Furnace diagram

Mount assembly

Part #B01888

$111.50
In Stock
Rocker Switch L07F003
#7

Furnace diagram

Rocker switch

Part #L07F003

$12.66
In Stock
Capacitor L01I002
#10

Furnace diagram

Capacitor

Part #L01I002

$29.22
In Stock
Furnace Blower Fan Motor L06H004
#9

Furnace diagram

Furnace blower fan motor

Part #L06H004

$239.25 |
5% OFF Phone Price : $251.25
In Stock
Furnace Breech Plate B30459
#J

Furnace diagram

Furnace breech plate

Part #B30459

$409.10 |
$12.00 OFF Phone Price : $421.10
In Stock
Gasket B30517
#A

Furnace diagram

Gasket

Part #B30517

$50.84
In Stock
Relay L01H009
#4

Furnace diagram

Relay

Part #L01H009

$55.78
In Stock
Gasket B3041502
#K

Furnace diagram

Gasket

Part #B3041502

$9.11
In Stock
Transform L01F0032
#5

Furnace diagram

Transform

Part #L01F0032

Replaced by #K03040

?
Manufacturer substitution
This part replaces L01F0032. Substitute parts can look different from the original.
$182.35
In Stock
Furnace Blower Wheel Z01L002
#8

Furnace diagram

Furnace blower wheel

Part #Z01L002

Replaced by #B0372004

?
Manufacturer substitution
This part replaces Z01L002. Substitute parts can look different from the original.
$410.02
In Stock
