Model # 0396-1 TYPE A Official Milwaukee 3/8" cordless drill/driver

Here are the diagrams and repair parts for Official Milwaukee 0396-1-TYPE-A 3/8" cordless drill/driver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

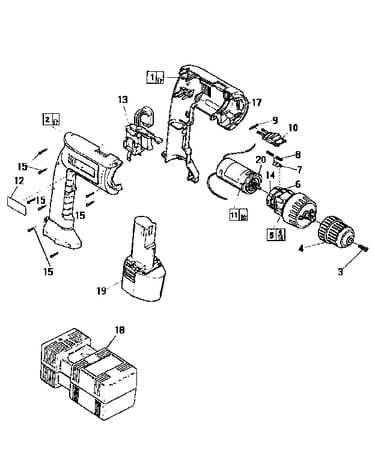

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 19 parts  |
Slide 45-24-0070
#10

Unit diagram

Slide

Part #45-24-0070

The manufacturer no longer makes this part, and there's no substitute part

Lever 44-10-0260
#6

Unit diagram

Lever

Part #44-10-0260

The manufacturer no longer makes this part, and there's no substitute part

Housing Assembly 14-38-0511
#1

Unit diagram

Housing assembly

Part #14-38-0511

The manufacturer no longer makes this part, and there's no substitute part

Battery Pack 48-11-0080
#19

Unit diagram

Battery pack

Part #48-11-0080

The manufacturer no longer makes this part, and there's no substitute part

Housing Assembly 14-38-0521
#2

Unit diagram

Housing assembly

Part #14-38-0521

The manufacturer no longer makes this part, and there's no substitute part

Spring 40-50-8300
#8

Unit diagram

Spring

Part #40-50-8300

The manufacturer no longer makes this part, and there's no substitute part

Chuck 48-66-0375
#4

Unit diagram

Chuck

Part #48-66-0375

The manufacturer no longer makes this part, and there's no substitute part

Charger 48-59-0166
#18

Unit diagram

Charger

Part #48-59-0166

The manufacturer no longer makes this part, and there's no substitute part

Gearbox 14-30-0720
#5

Unit diagram

Gearbox

Part #14-30-0720

The manufacturer no longer makes this part, and there's no substitute part

Motor 14-50-0610
#11

Unit diagram

Motor

Part #14-50-0610

The manufacturer no longer makes this part, and there's no substitute part
