Model # AF-R120CX Official Sharp air conditioner

Here are the diagrams and repair parts for Official Sharp AF-R120CX air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 133 parts  |
Tube PPIPCF655JB1Z
#3-2A

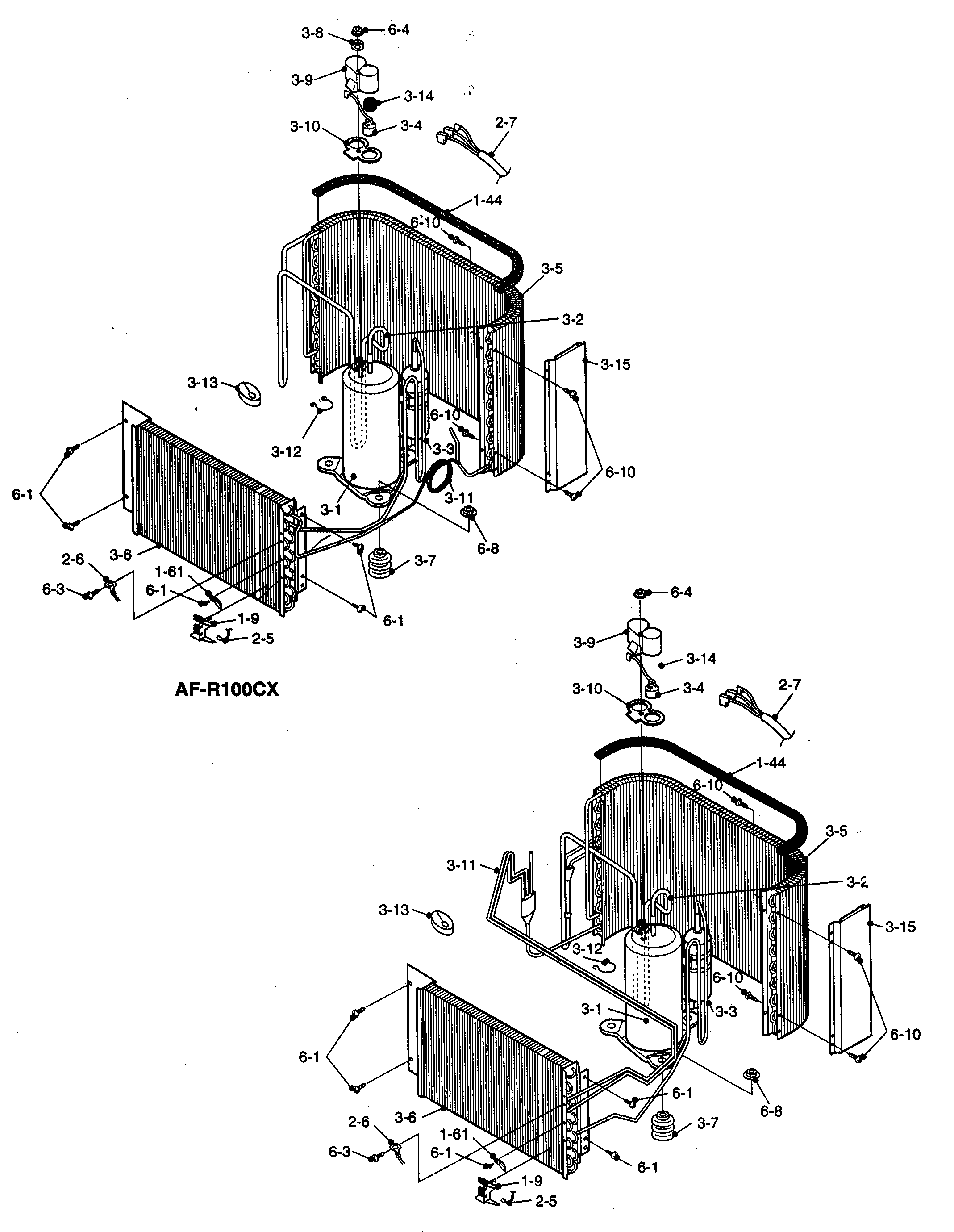

Cycle parts diagram

Tube

Part #PPIPCF655JB1Z

The manufacturer no longer makes this part, and there's no substitute part

Window Insulator PSEL-A349JBE0
#4-2

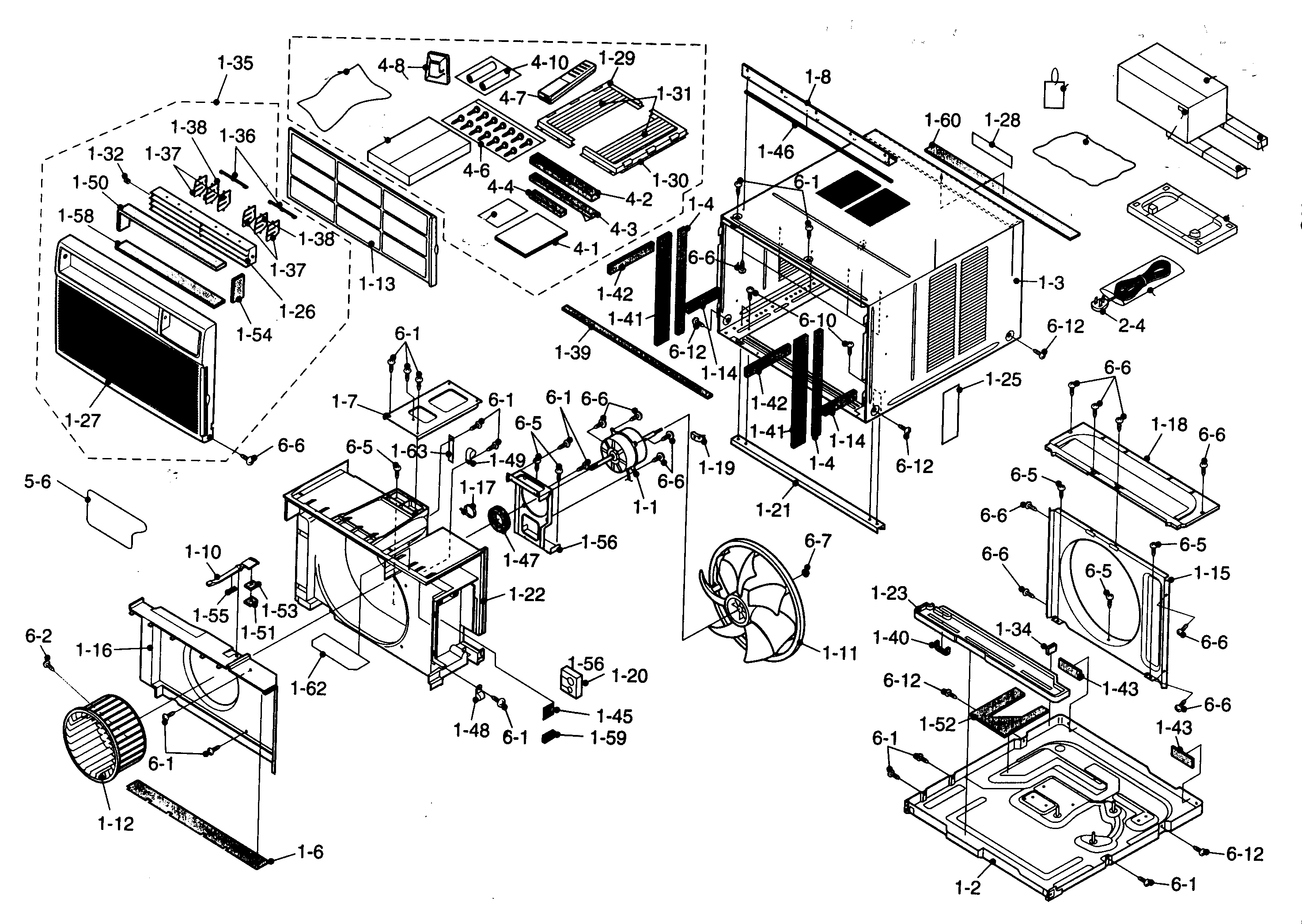

Cabinet parts diagram

Window insulator

Part #PSEL-A349JBE0

The manufacturer no longer makes this part, and there's no substitute part

Tube PPIPCF654JB1Z
#3-3A

Cycle parts diagram

Tube

Part #PPIPCF654JB1Z

The manufacturer no longer makes this part, and there's no substitute part

Special Nut LX-NZA074JBE0
#6-7

Cabinet parts diagram

Special nut

Part #LX-NZA074JBE0

The manufacturer no longer makes this part, and there's no substitute part

Damper Rubber PGUM-0034JBE0
#3-13

Cycle parts diagram

Damper rubber

Part #PGUM-0034JBE0

The manufacturer no longer makes this part, and there's no substitute part

Running Capacitor RC-HZA435JBZZ
#2-9

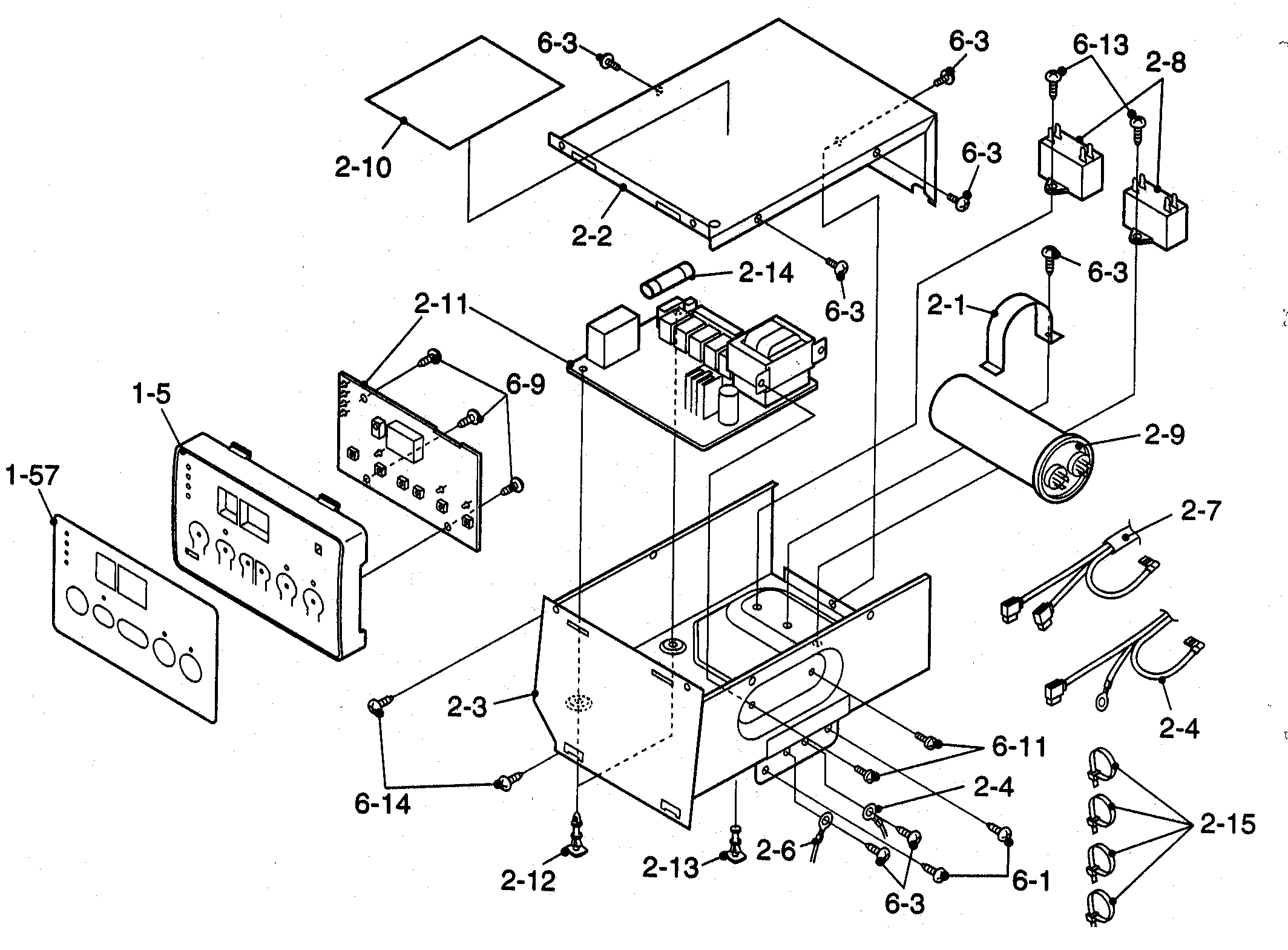

Control box parts diagram

Running capacitor

Part #RC-HZA435JBZZ

The manufacturer no longer makes this part, and there's no substitute part

Tube Assembly PPIPCF656JB1Z
#3-3

Cycle parts diagram

Tube assembly

Part #PPIPCF656JB1Z

The manufacturer no longer makes this part, and there's no substitute part

Screw DX-BZA027JBK0
#4-6

Cabinet parts diagram

Screw

Part #DX-BZA027JBK0

The manufacturer no longer makes this part, and there's no substitute part

Discharge Tube(afr100cx) PPIPCF657JB1Z
#3-2

Cycle parts diagram

Discharge tube(afr100cx)

Part #PPIPCF657JB1Z

The manufacturer no longer makes this part, and there's no substitute part

Fan Blade NFANSA030JBFZ
#1-12

Cabinet parts diagram

Fan blade

Part #NFANSA030JBFZ

The manufacturer no longer makes this part, and there's no substitute part
