Model # MC-V5238 Official Panasonic vacuum cleaner

Here are the diagrams and repair parts for Official Panasonic MC-V5238 vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

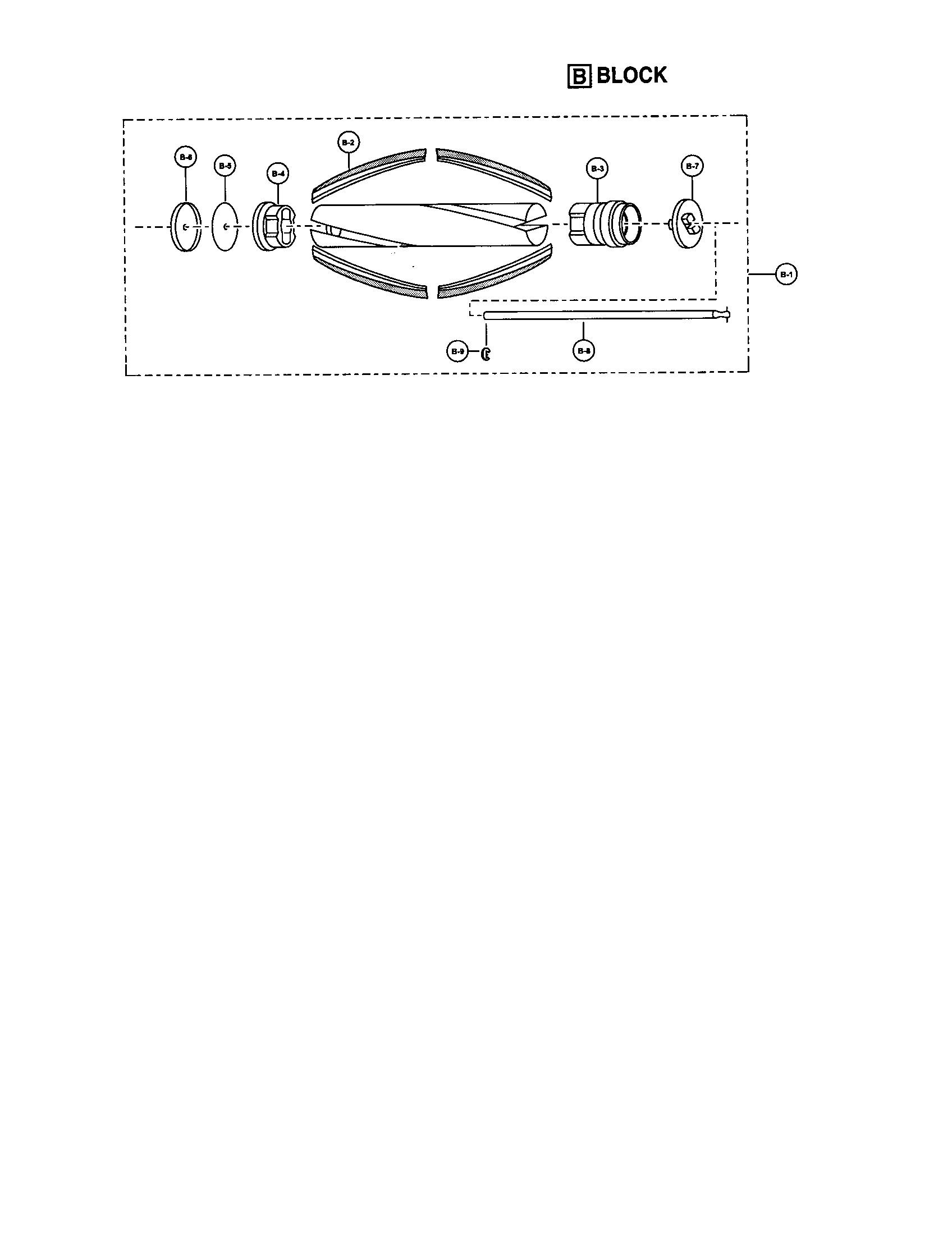

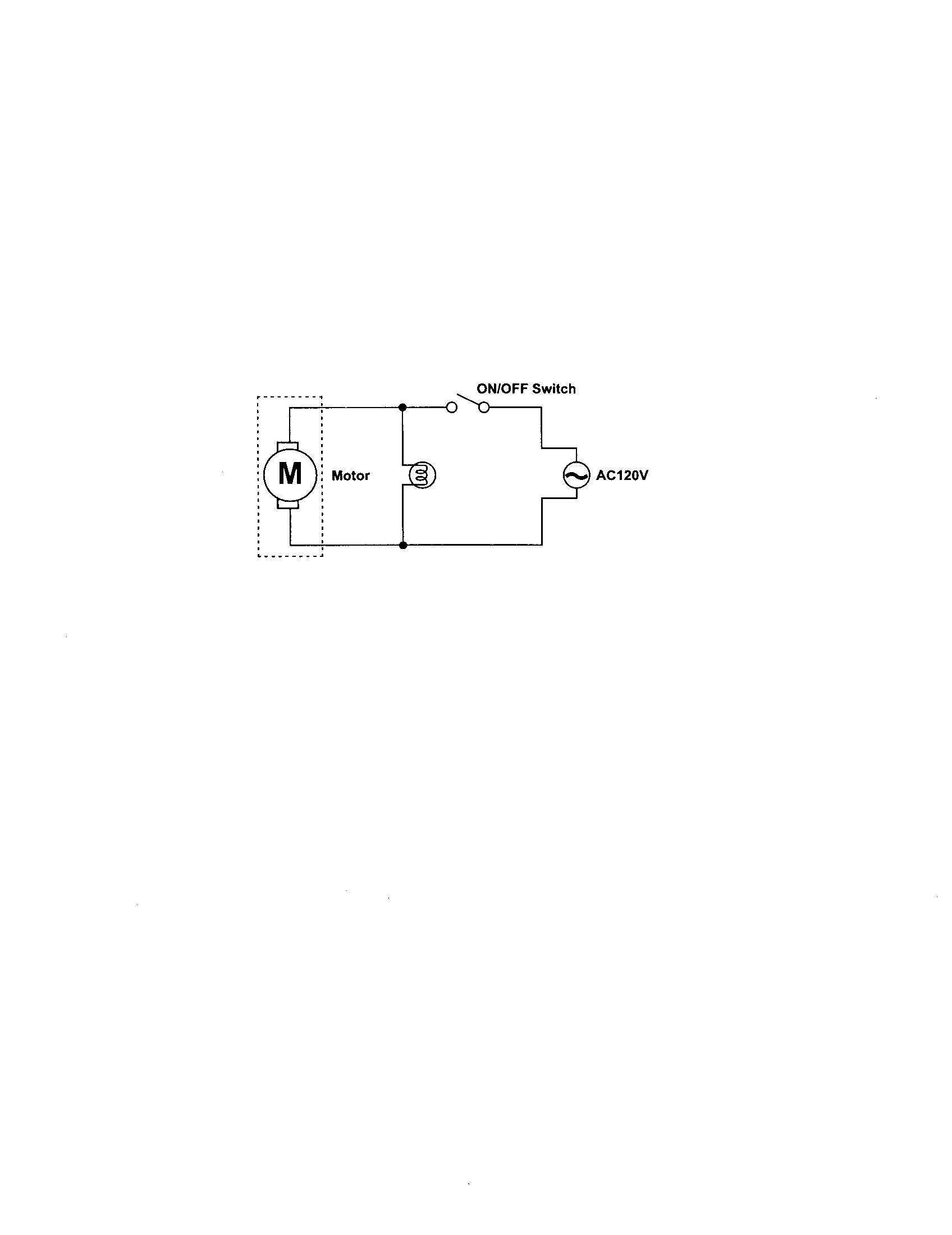

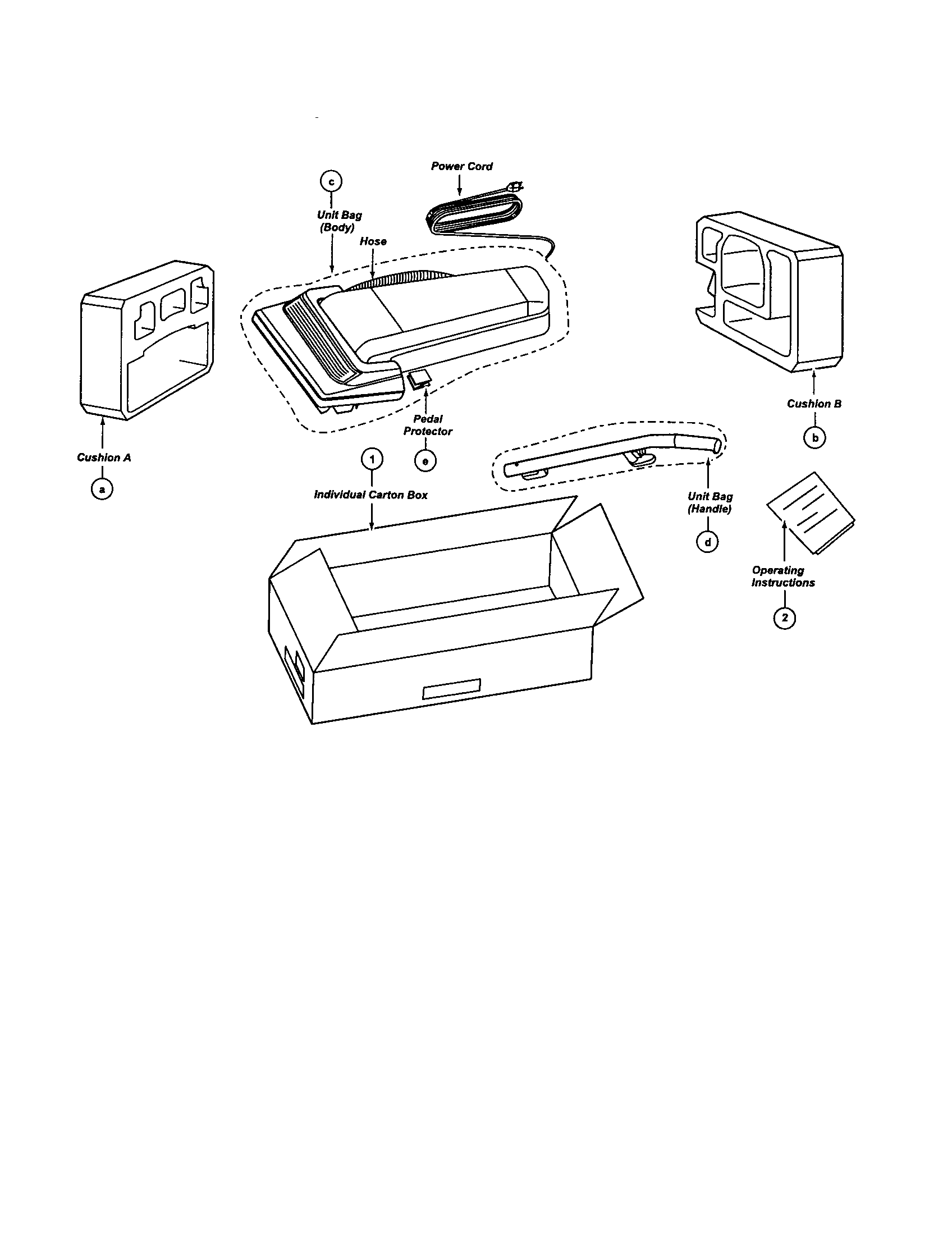

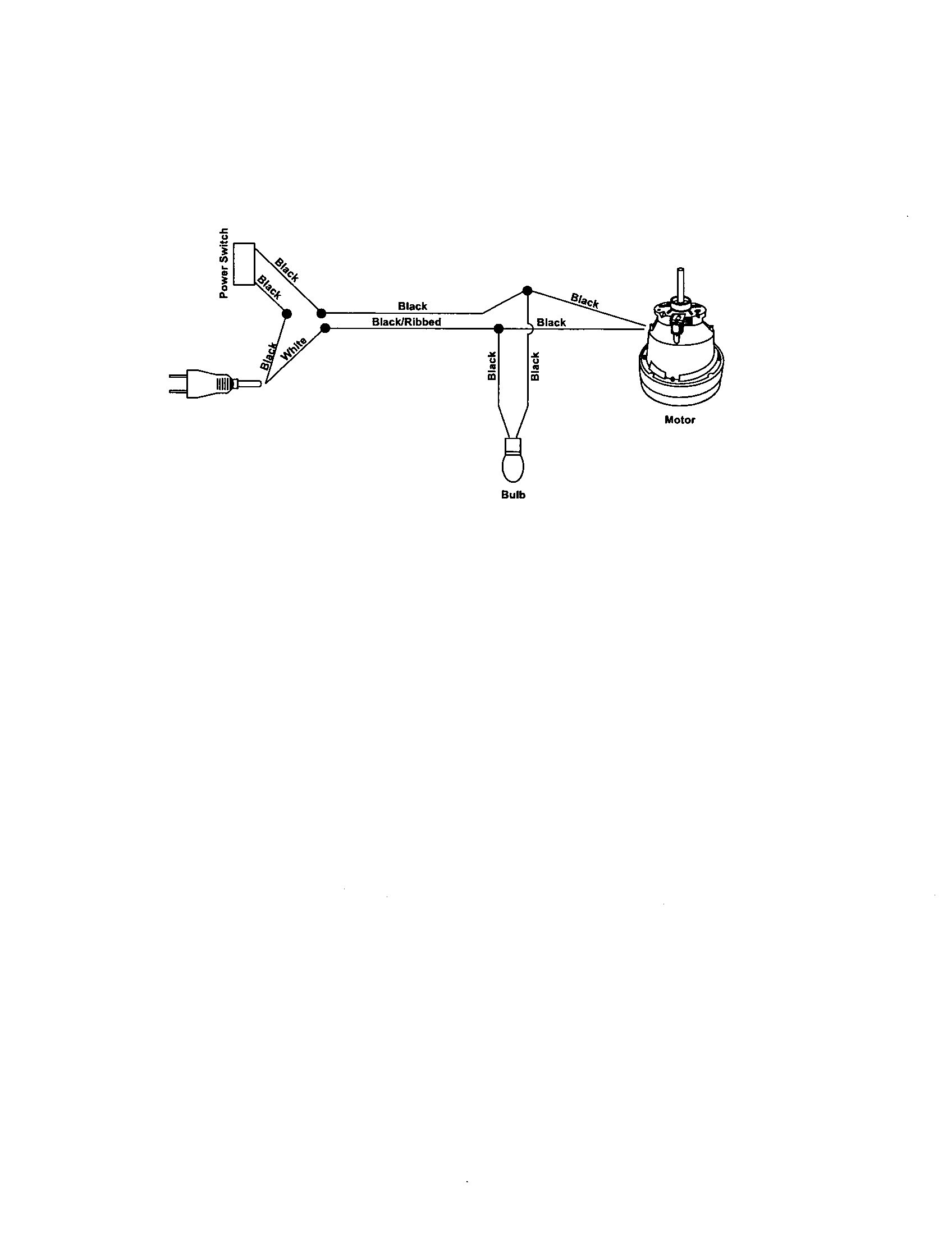

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 91 parts  |
Panasonic Tie-wire AMC596-702
#C-54

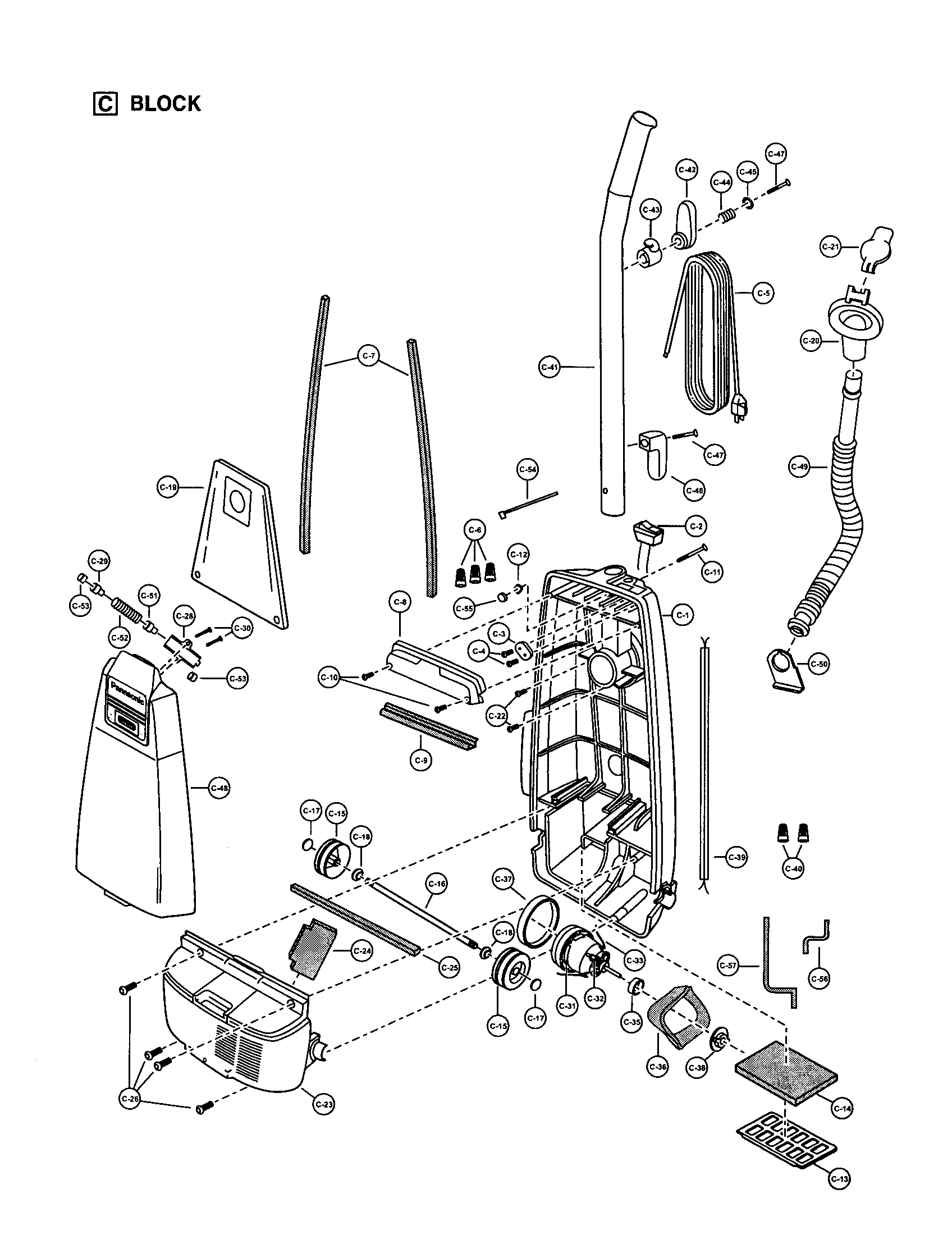

Motor housing/motor/handle/body diagram

Panasonic tie-wire

Part #AMC596-702

This item is not returnable
$3.99
In Stock
Panasonic Washer AXWG6E115FY
#C-18

Motor housing/motor/handle/body diagram

Panasonic washer

Part #AXWG6E115FY

$40.99
In Stock
Panasonic Latch AMC68N-V30K
#A-16

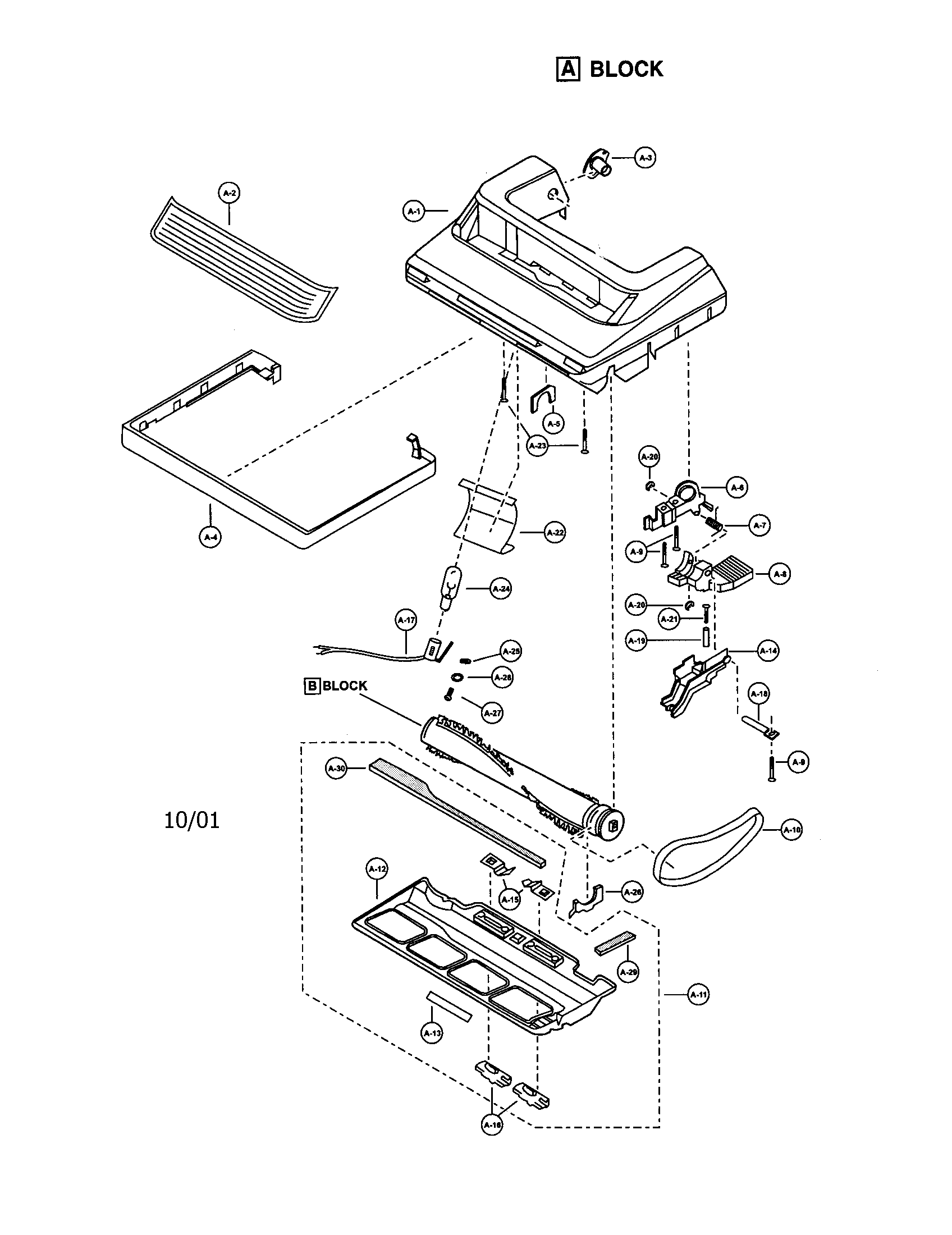

Nozzle housing diagram

Panasonic latch

Part #AMC68N-V30K

This item is not returnable
$5.49
In Stock
Panasonic Spring AMC-XWA5BFY
#A-25

Nozzle housing diagram

Panasonic spring

Part #AMC-XWA5BFY

This item is not returnable
$4.49
In Stock
Panasonic Spring AMC76N-F70
#C-44

Motor housing/motor/handle/body diagram

Panasonic spring

Part #AMC76N-F70

This item is not returnable
$5.99
In Stock
Panasonic Lowr Plate AC91AADGZ00
#A-11

Nozzle housing diagram

Panasonic lowr plate

Part #AC91AADGZ00

$70.99
In Stock
Panasonic Washer AMC58B-F70
Panasonic washer

Part #AMC58B-F70

$14.99
In Stock
Panasonic Hook AC53EV0ZV06
#C-42

Motor housing/motor/handle/body diagram

Panasonic hook

Part #AC53EV0ZV06

$9.99
In Stock
Panasonic Lamp AC28GADFZ00
#A-24

Nozzle housing diagram

Panasonic lamp

Part #AC28GADFZ00

This item is not returnable
$7.99
In Stock
Panasonic Stopper AC74SUSZ00
#C-17

Motor housing/motor/handle/body diagram

Panasonic stopper

Part #AC74SUSZ00

$28.78
In Stock
