Sharp
Countertop Microwave

Model # R-5A85 Official Sharp microwave

Here are the diagrams and repair parts for Official Sharp R-5A85 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

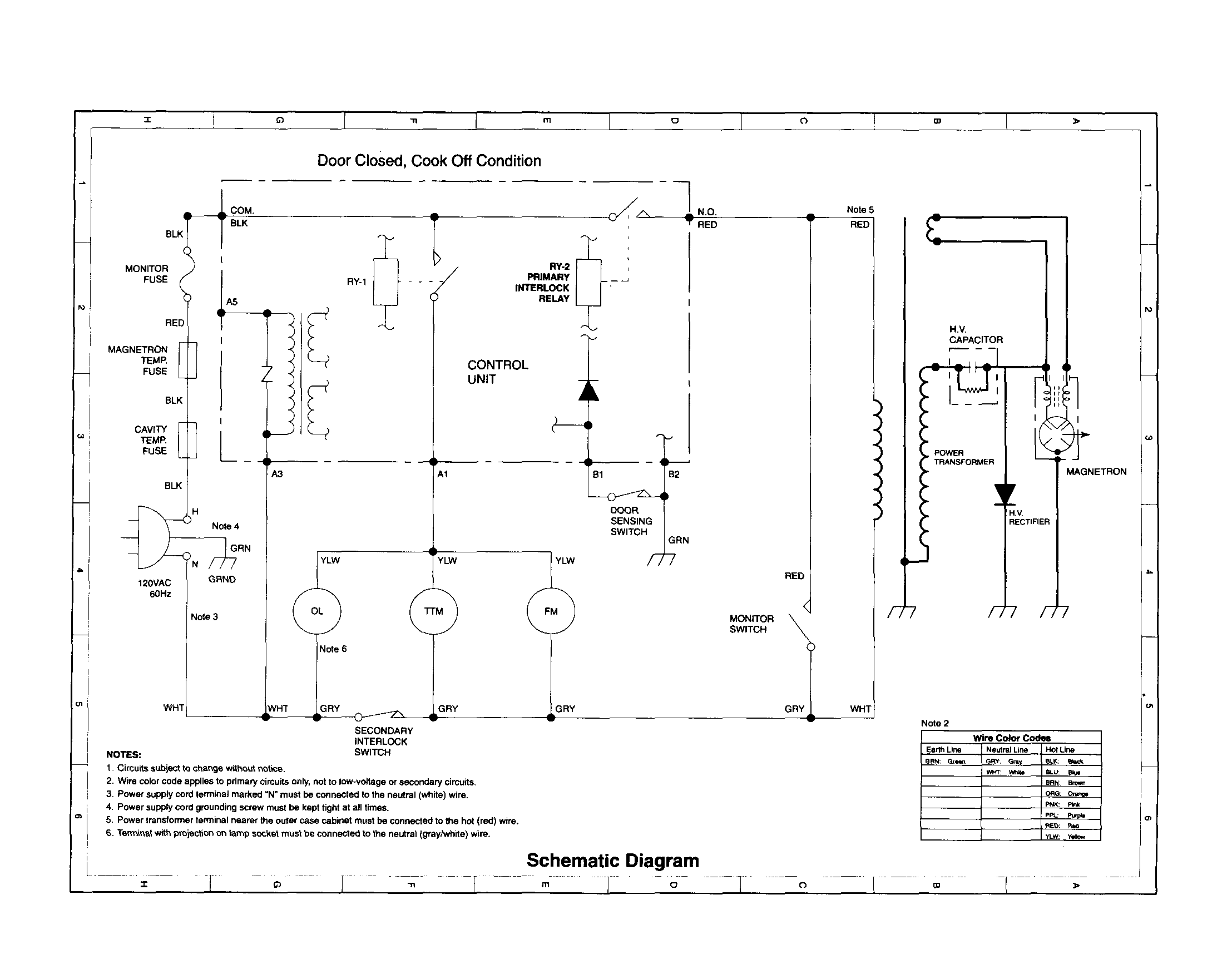

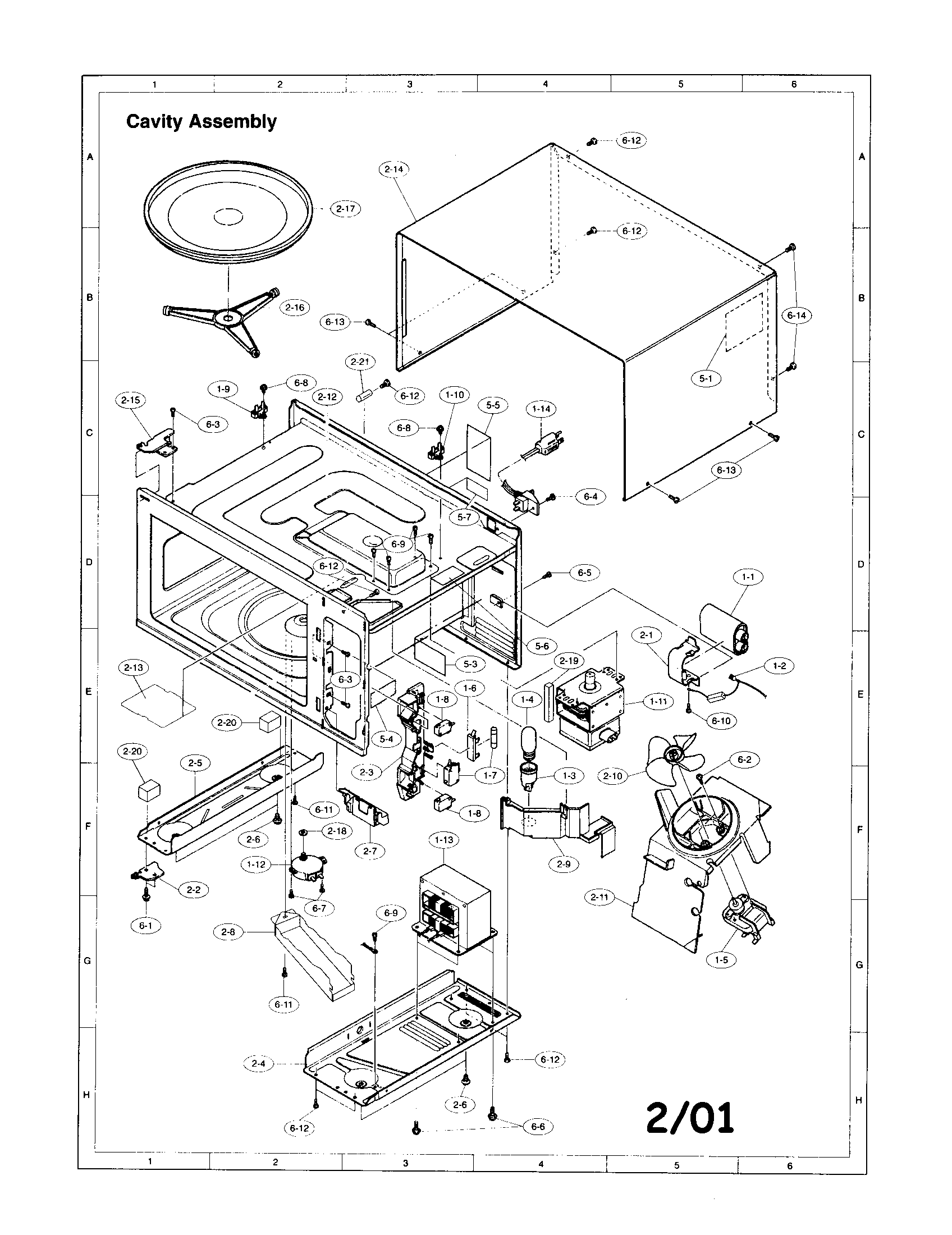

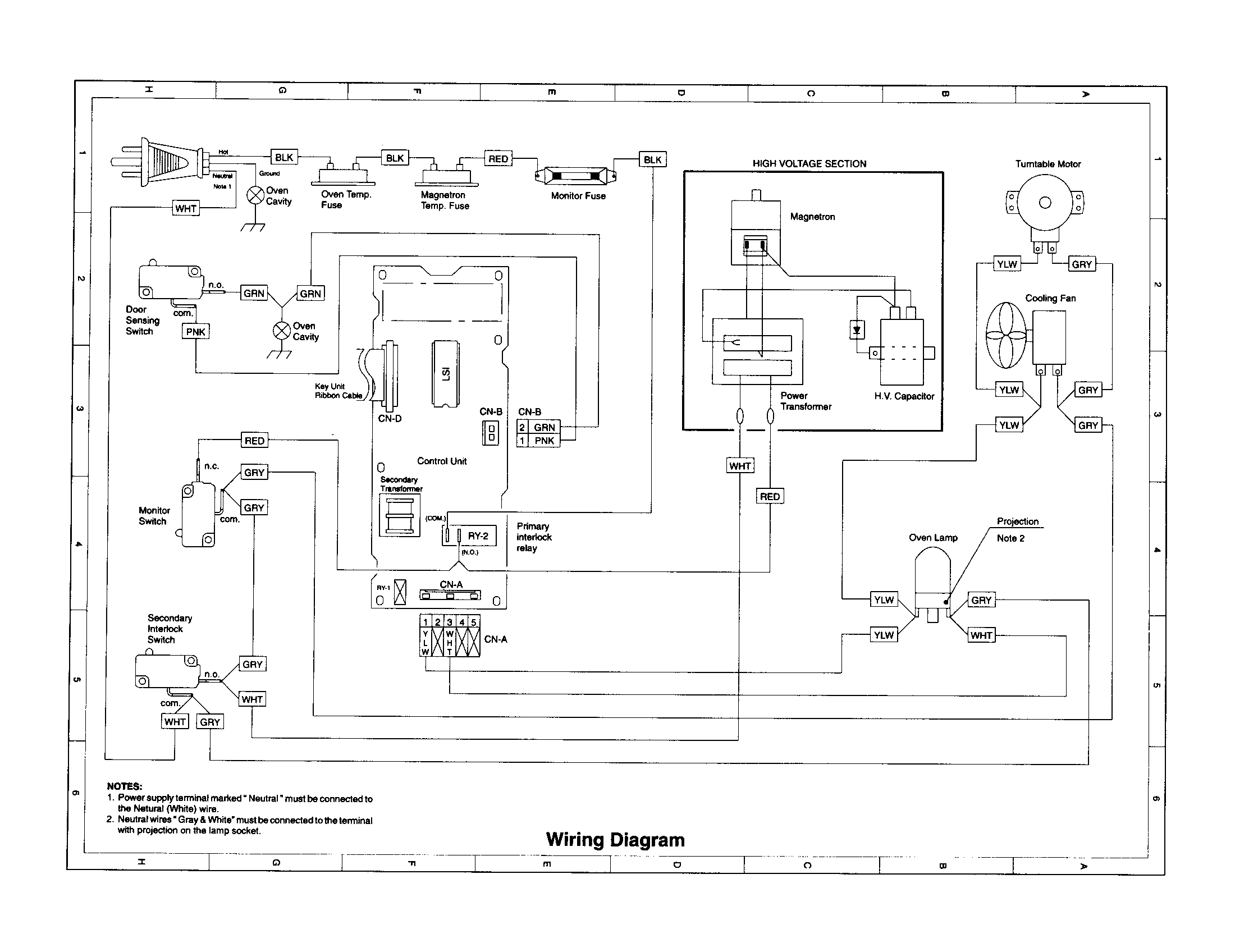

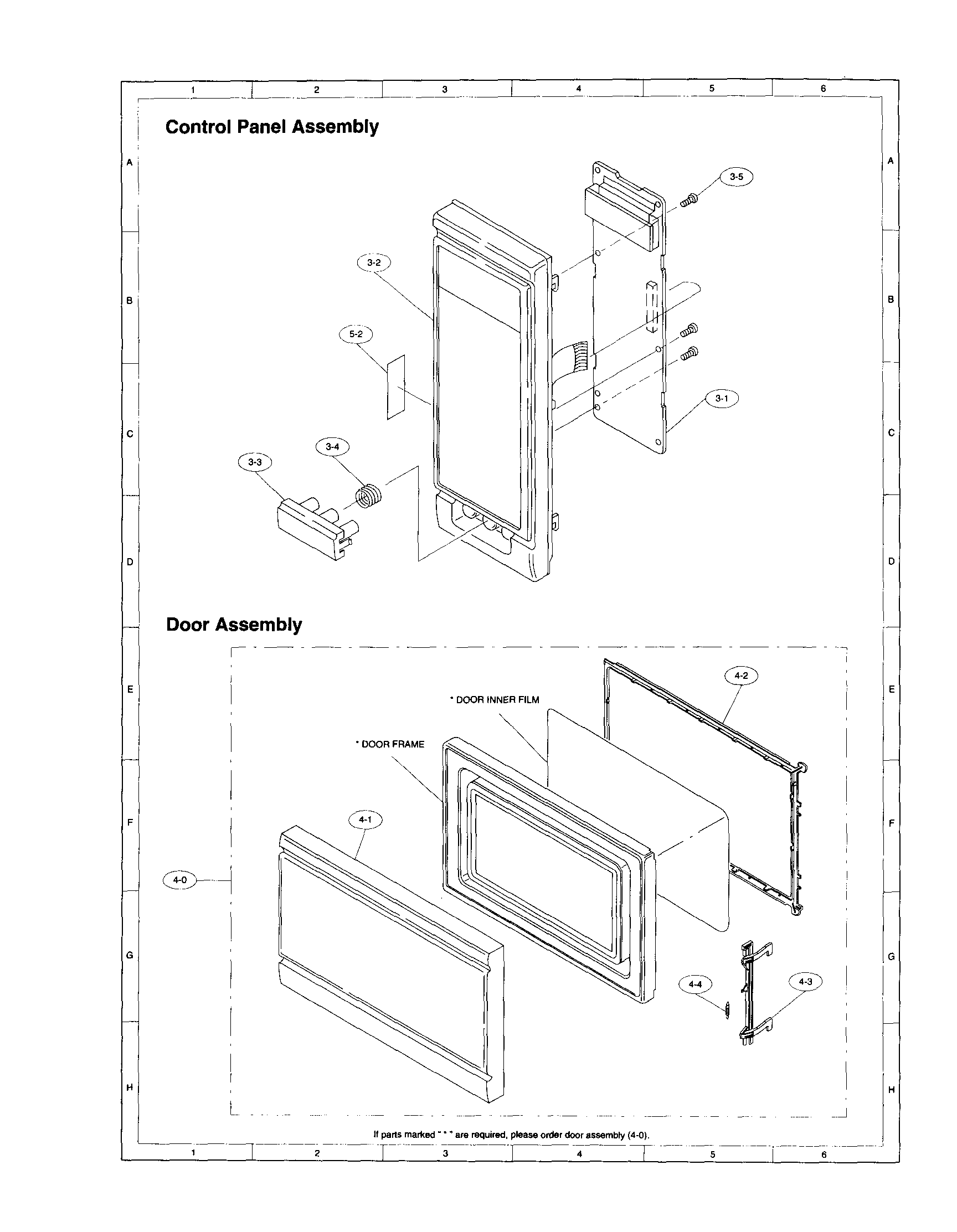

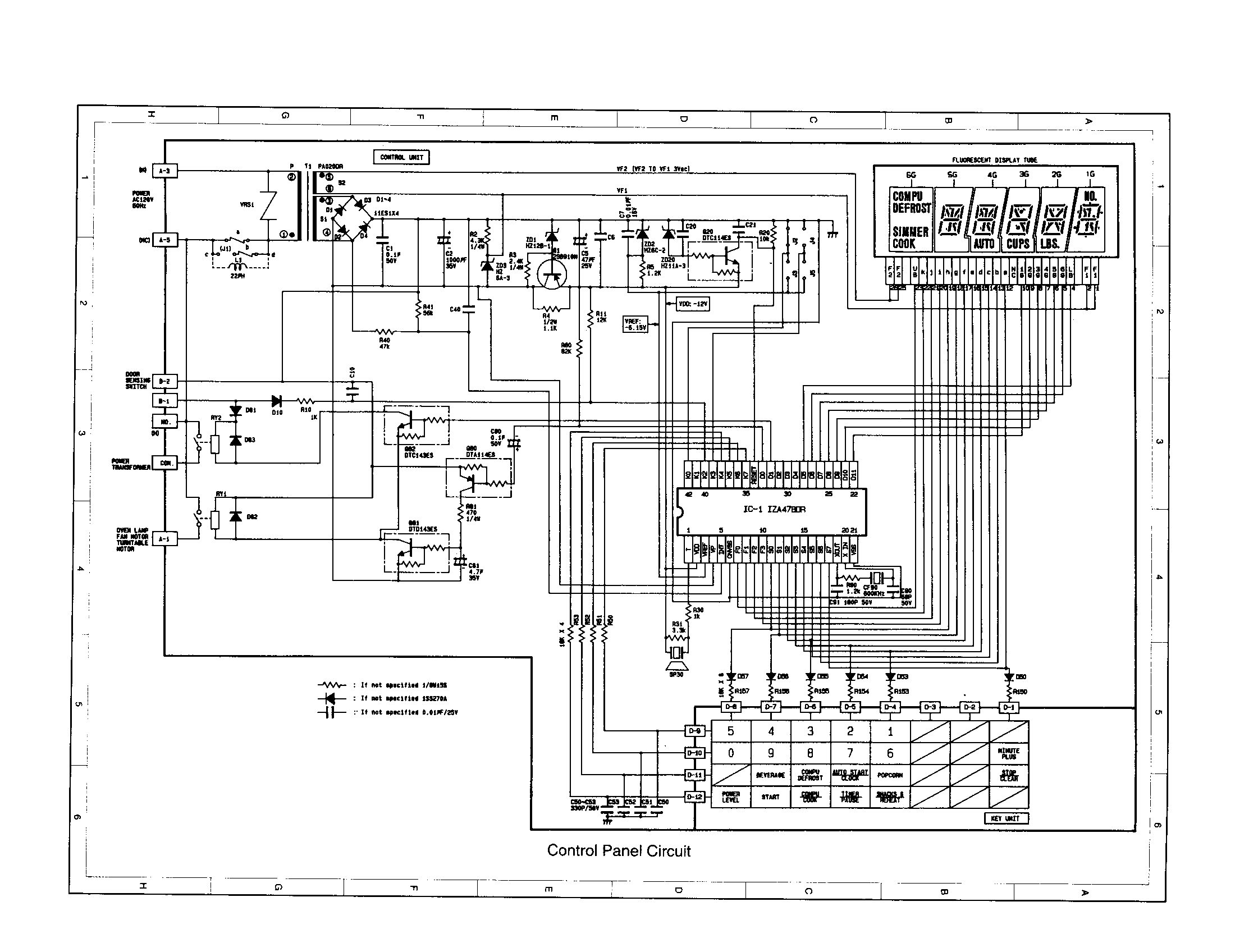

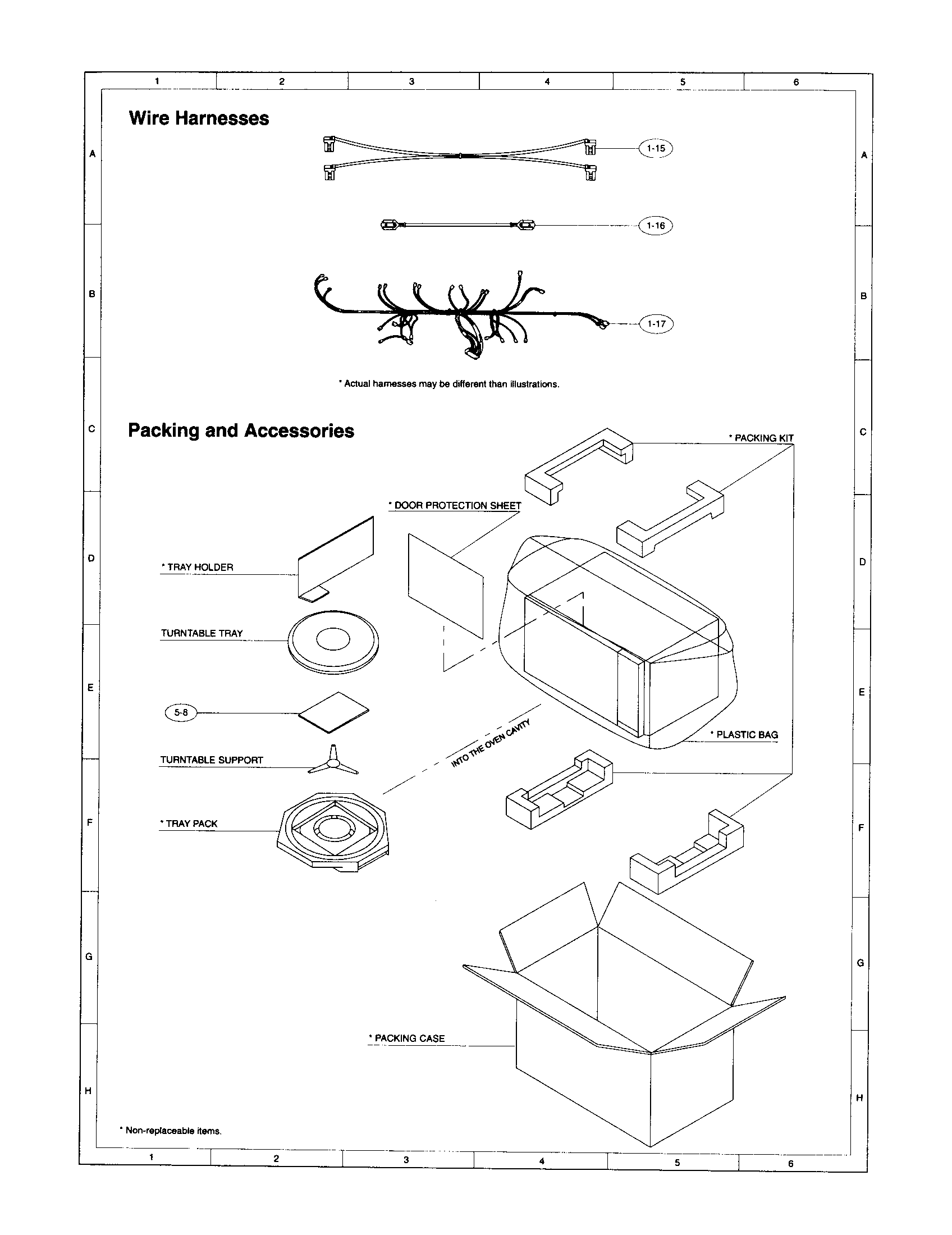

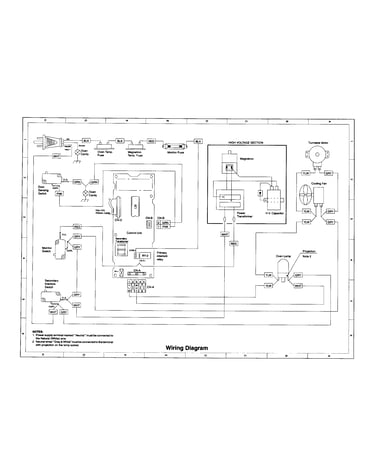

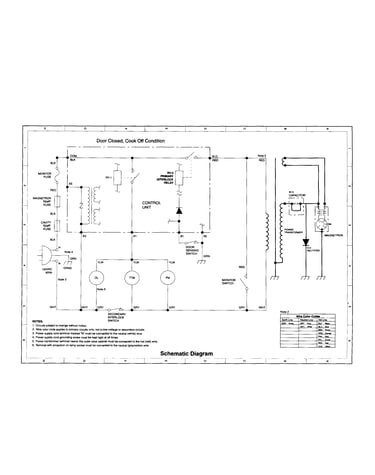

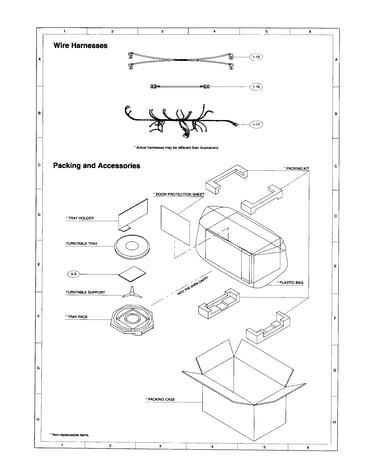

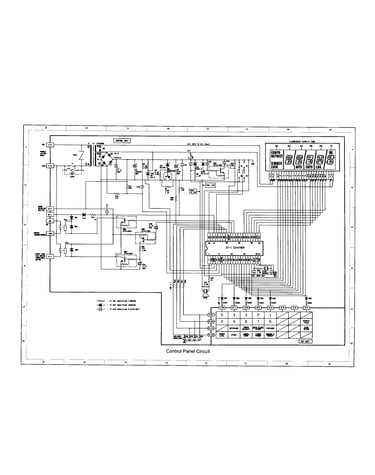

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 120 parts  |
Power Cord FACCDB001MRE0

#1-14

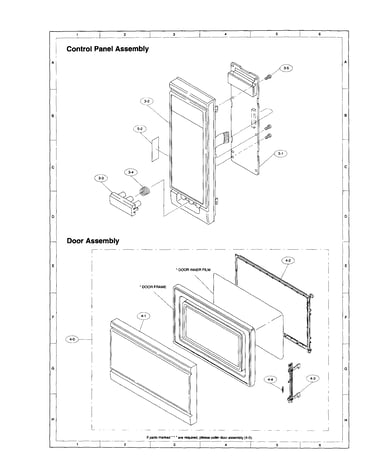

All parts diagram

Power cord

Part #FACCDB001MRE0

The manufacturer no longer makes this part, and there's no substitute part

Capacitor VCKYD11HB331K

#NI

All parts diagram

Capacitor

Part #VCKYD11HB331K

The manufacturer no longer makes this part, and there's no substitute part

Latch PHOK-A057WRF0

#2-03

All parts diagram

Latch

Part #PHOK-A057WRF0

The manufacturer no longer makes this part, and there's no substitute part

Screw LX-CZA038WRE0

#6-14

All parts diagram

Screw

Part #LX-CZA038WRE0

The manufacturer no longer makes this part, and there's no substitute part

Transformer RV-MZA173WRE0

#1-11

All parts diagram

Transformer

Part #RV-MZA173WRE0

The manufacturer no longer makes this part, and there's no substitute part

Diode VHD11ES1///-1

#NI

All parts diagram

Diode

Part #VHD11ES1///-1

The manufacturer no longer makes this part, and there's no substitute part

Motor RMOTEB003MRE0

#1-05

All parts diagram

Motor

Part #RMOTEB003MRE0

The manufacturer no longer makes this part, and there's no substitute part

Tray NTNT-B001MRE0

#2-17

All parts diagram

Tray

Part #NTNT-B001MRE0

The manufacturer no longer makes this part, and there's no substitute part

Capacitor VCEAB31EW476M

#NI

All parts diagram

Capacitor

Part #VCEAB31EW476M

The manufacturer no longer makes this part, and there's no substitute part

Capacitor VCKYB11EX103N

#NI

All parts diagram

Capacitor

Part #VCKYB11EX103N

The manufacturer no longer makes this part, and there's no substitute part
