Model # 22LN4500UAAUSNLJM Official LG television

Here are the diagrams and repair parts for Official LG 22LN4500UAAUSNLJM television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 17 parts  |

Speaker,full EAB35995505
#120

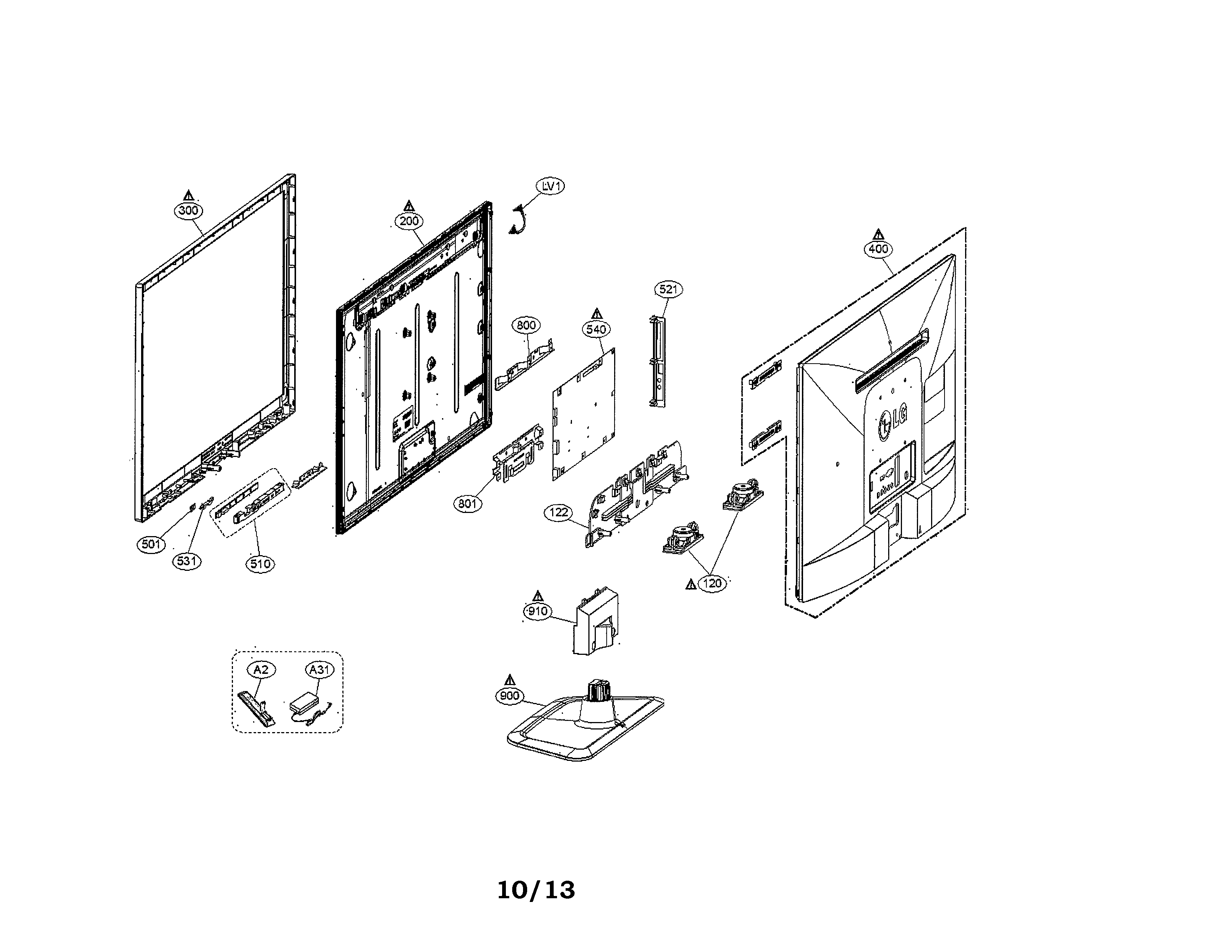

Lcd tv diagram

Speaker,full

Part #EAB35995505

In Stock
Lg Cover MCK67393502
#910

Lcd tv diagram

Lg cover

Part #MCK67393502

This item is not returnable
In Stock
Lg Base Assembly (replaces Aan74273003) AAN74273004
#900

Lcd tv diagram

Lg base assembly (replaces aan74273003)

Part #AAN74273004

In Stock
Metal Plate MGJ63366302
#800

Lcd tv diagram

Metal plate

Part #MGJ63366302

In Stock
Assembly Accessory AAA74821701
#A2

Lcd tv diagram

Assembly accessory

Part #AAA74821701

In Stock
Flexible Flat Cable EAD62108515
#LV1

Lcd tv diagram

Flexible flat cable

Part #EAD62108515

In Stock
Package Assembly AGF76500101
#510

Lcd tv diagram

Package assembly

Part #AGF76500101

In Stock
Metal Plate MGJ63366502
#801

Lcd tv diagram

Metal plate

Part #MGJ63366502

In Stock
Television Power Adapter EAY62850007
#A31

Lcd tv diagram

Television power adapter

Part #EAY62850007

In Stock
Lens MFB63013402
#531

Lcd tv diagram

Lens

Part #MFB63013402

The manufacturer no longer makes this part, and there's no substitute part
