Frigidaire
Room Air Conditioner

Model # AW12NE5E1 Official Frigidaire air conditioner - lf34087190

Here are the diagrams and repair parts for Official Frigidaire AW12NE5E1 air conditioner - lf34087190, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 86 parts  |
Screw 8007473
#10

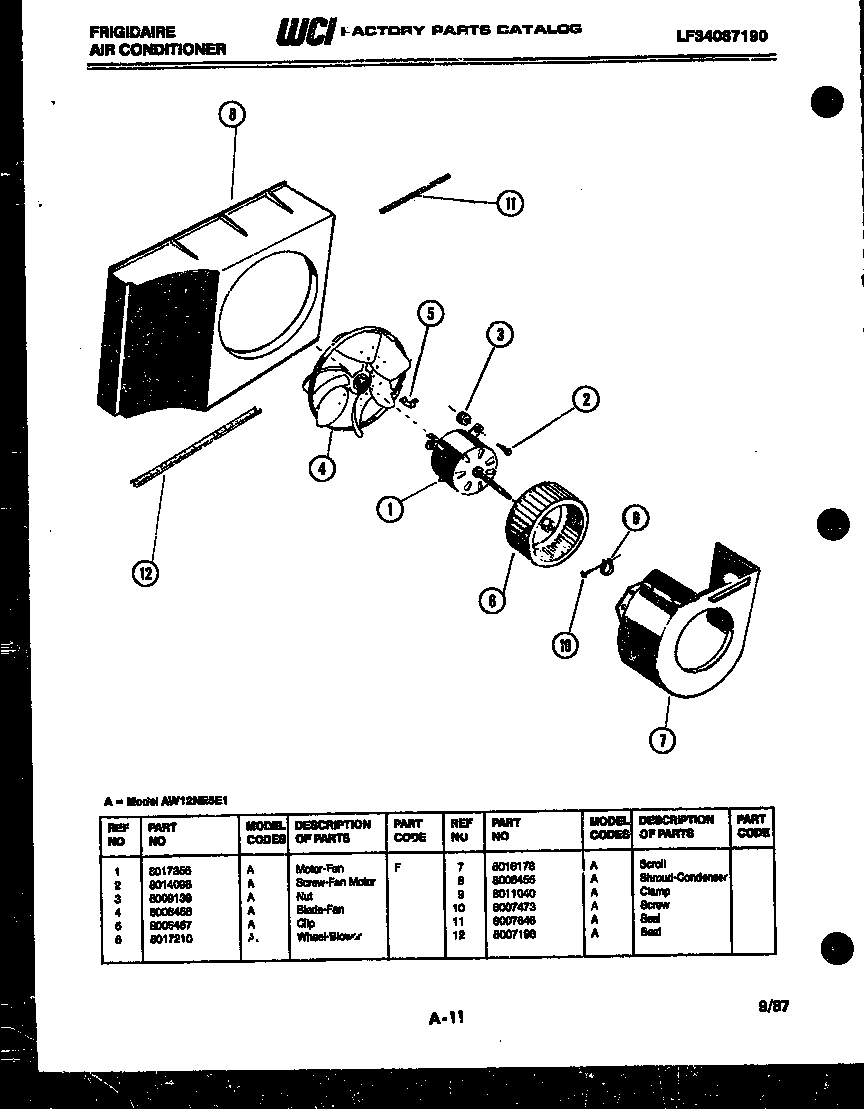

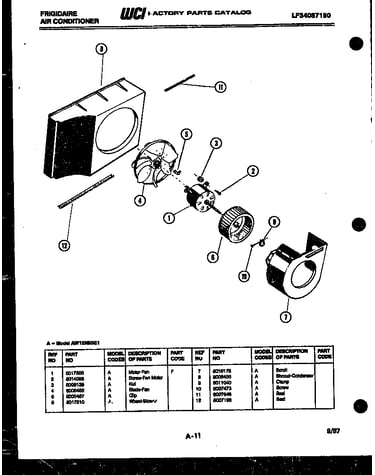

Air handling parts diagram

Screw

Part #8007473

The manufacturer no longer makes this part, and there's no substitute part

Evaporator 8016142
Evaporator

Part #8016142

The manufacturer no longer makes this part, and there's no substitute part

Clamp-drain Tube 8009027
#3

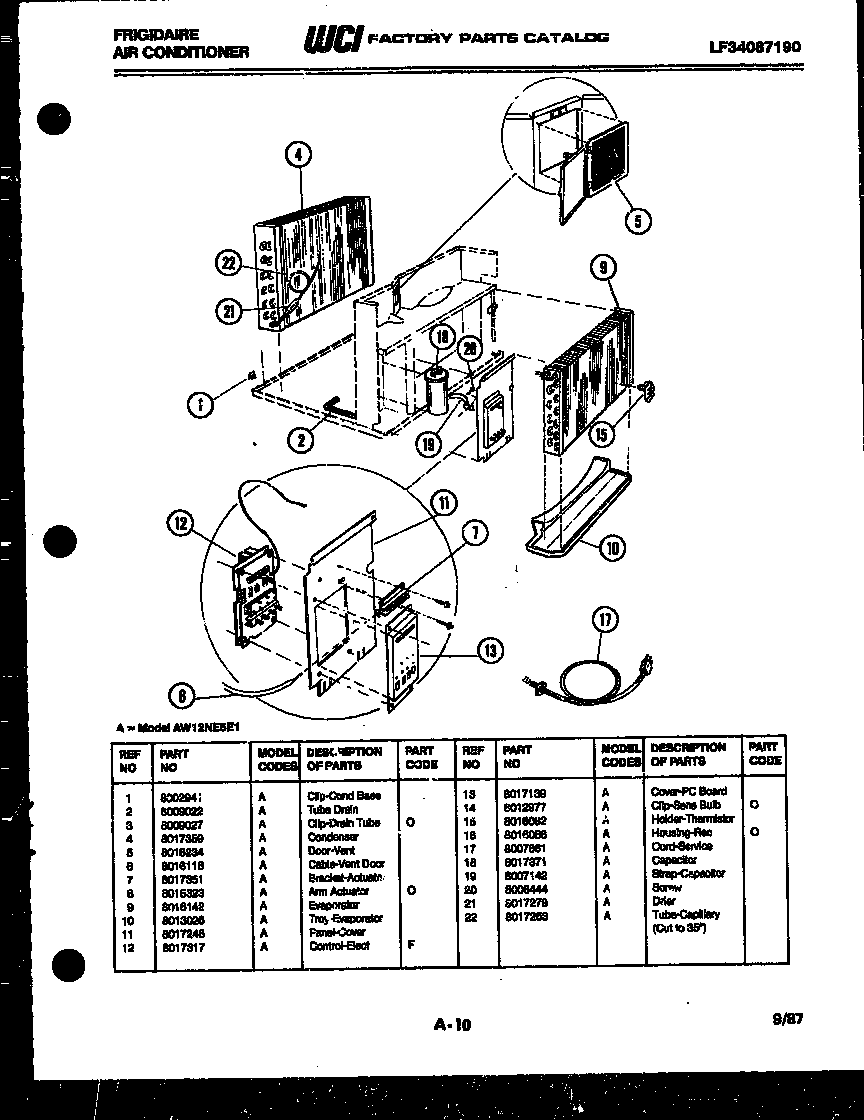

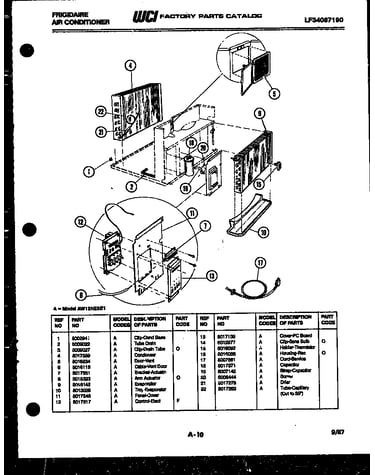

Unit parts diagram

Clamp-drain tube

Part #8009027

The manufacturer no longer makes this part, and there's no substitute part

Door 8016198
#13

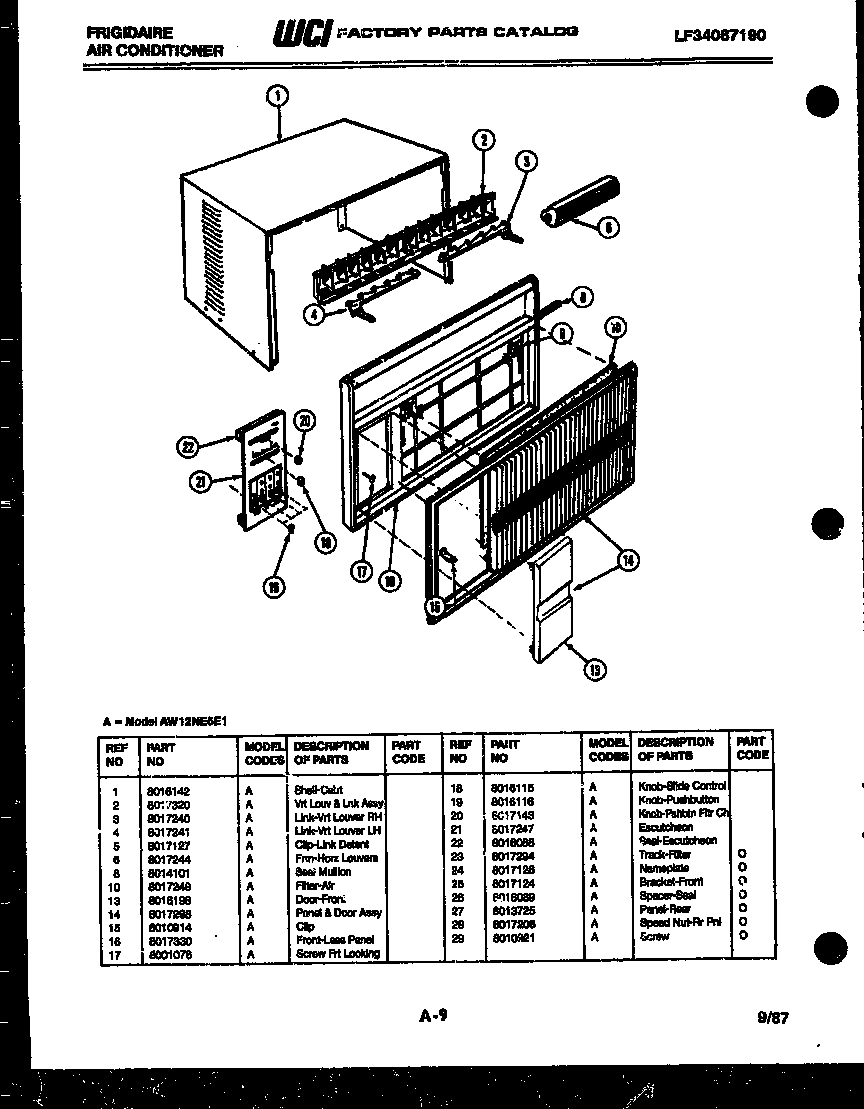

Cabinet parts diagram

Door

Part #8016198

The manufacturer no longer makes this part, and there's no substitute part

Nut 8006948
#4

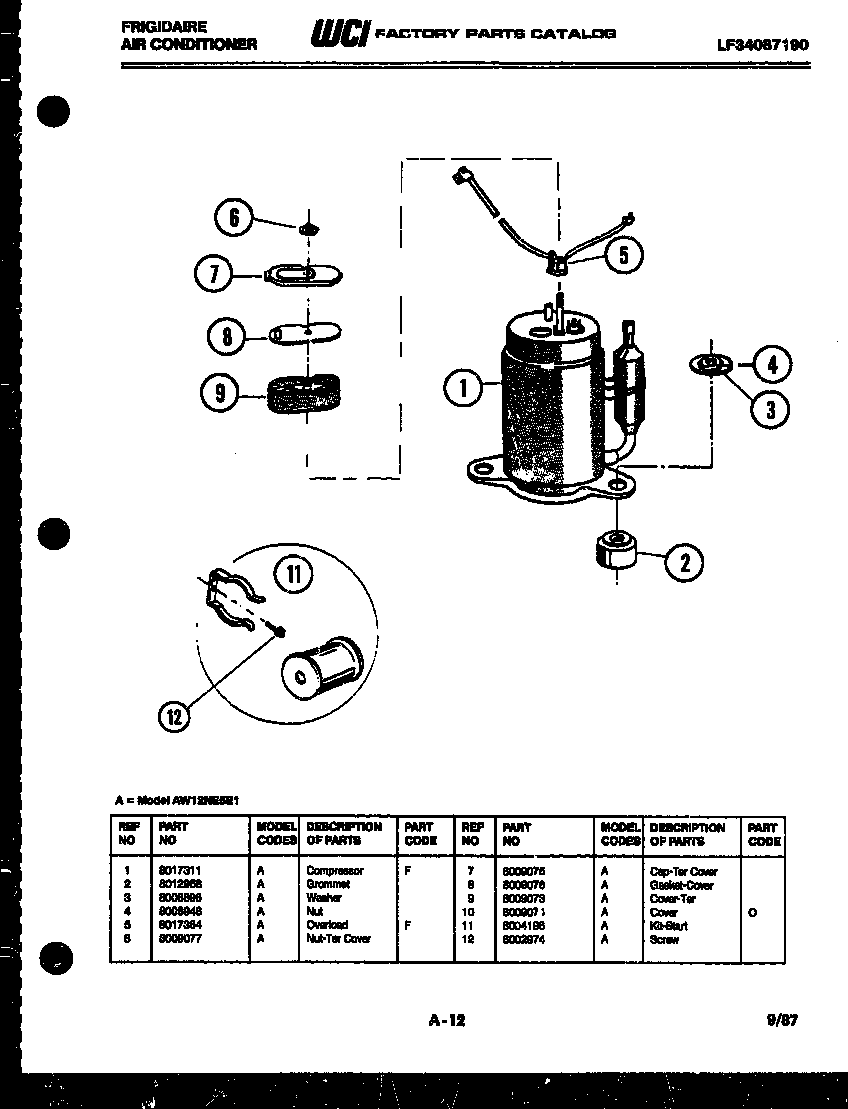

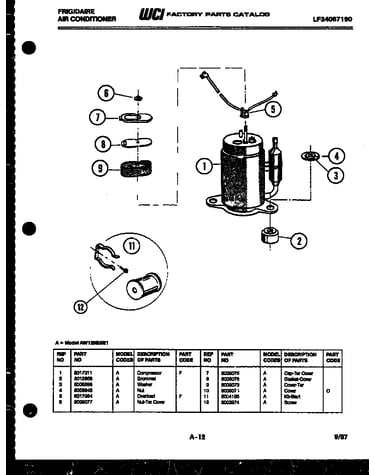

Compressor parts diagram

Nut

Part #8006948

The manufacturer no longer makes this part, and there's no substitute part

Clip 8012959
#2

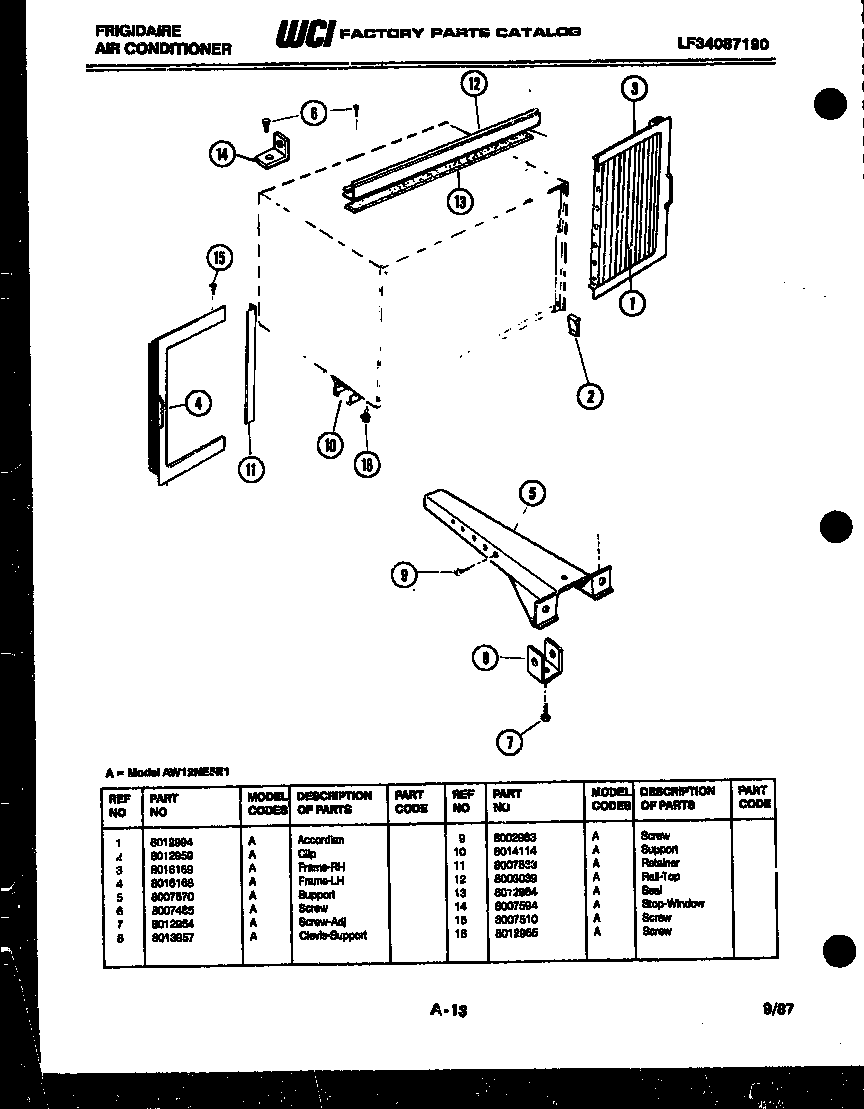

Window mounting parts diagram

Clip

Part #8012959

The manufacturer no longer makes this part, and there's no substitute part

Housing 8016086
#16

Unit parts diagram

Housing

Part #8016086

The manufacturer no longer makes this part, and there's no substitute part

Seal Mullion 8014101
#8

Cabinet parts diagram

Seal mullion

Part #8014101

The manufacturer no longer makes this part, and there's no substitute part

Seal 8012964
#13

Window mounting parts diagram

Seal

Part #8012964

The manufacturer no longer makes this part, and there's no substitute part

Screw 8014098
#2

Air handling parts diagram

Screw

Part #8014098

The manufacturer no longer makes this part, and there's no substitute part
