Model # ZGG27N20CSS Official GE gas grill

Here are the diagrams and repair parts for Official GE ZGG27N20CSS gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 39 parts  |
Gas Grill Burner WB28X10025
#153

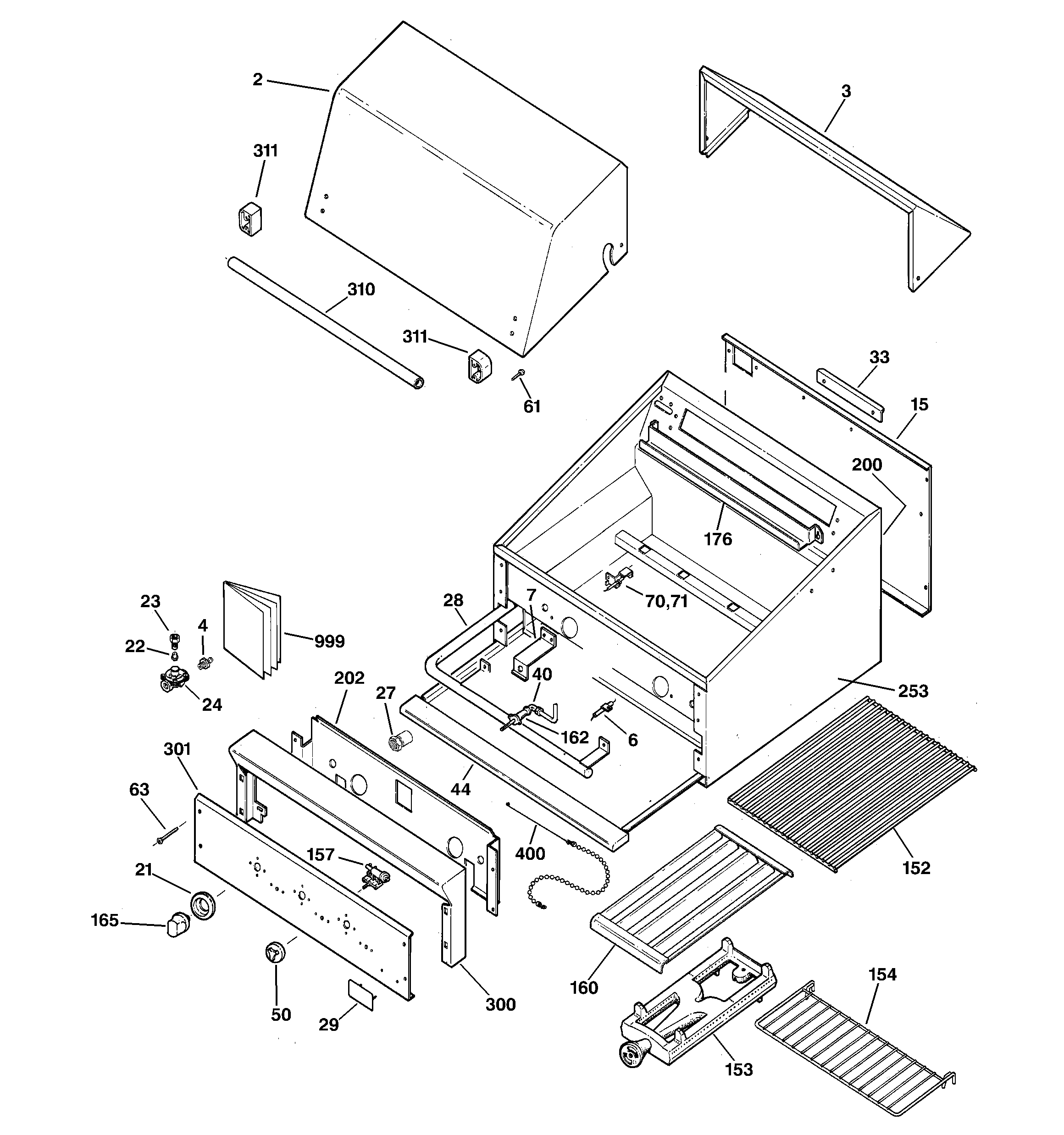

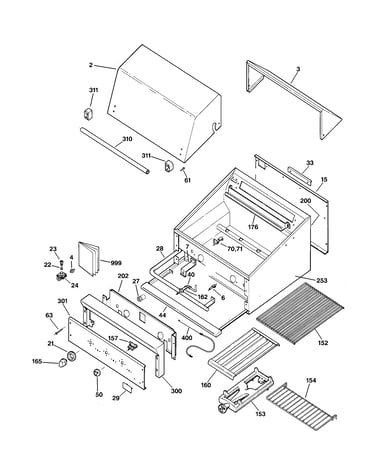

Gas grill parts diagram

Gas grill burner

Part #WB28X10025

$331.42
In Stock
Monogram Logo WB02X10349
#29

Gas grill parts diagram

Monogram logo

Part #WB02X10349

$21.49
In Stock
Zgg24+ Outdo 49-8965
#999

Gas grill parts diagram

Zgg24+ outdo

Part #49-8965

Replaced by #049-80376

?
Manufacturer substitution
This part replaces 49-8965. Substitute parts can look different from the original.
$17.99
In Stock
Coupling WB01X10034
#4

Gas grill parts diagram

Coupling

Part #WB01X10034

The manufacturer no longer makes this part, and there's no substitute part

Smoke Tray WB32X10003
#176

Gas grill parts diagram

Smoke tray

Part #WB32X10003

The manufacturer no longer makes this part, and there's no substitute part

Warming Rack WB44X10020
#154

Gas grill parts diagram

Warming rack

Part #WB44X10020

The manufacturer no longer makes this part, and there's no substitute part

Heat Shield WB07X10079
#202

Gas grill parts diagram

Heat shield

Part #WB07X10079

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Igniter, Left WB02X10660
#71

Gas grill parts diagram

Gas grill igniter, left

Part #WB02X10660

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Burner Knob WB03X10015
#165

Gas grill parts diagram

Gas grill burner knob

Part #WB03X10015

The manufacturer no longer makes this part, and there's no substitute part

Shoulder Bolt WB01X10018
#61

Gas grill parts diagram

Shoulder bolt

Part #WB01X10018

The manufacturer no longer makes this part, and there's no substitute part
