LXI
Compact Stereo System

Model # 38640003 Official LXI turntable

Here are the diagrams and repair parts for Official LXI 38640003 turntable, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 125 parts  |
Clip A100779
#19

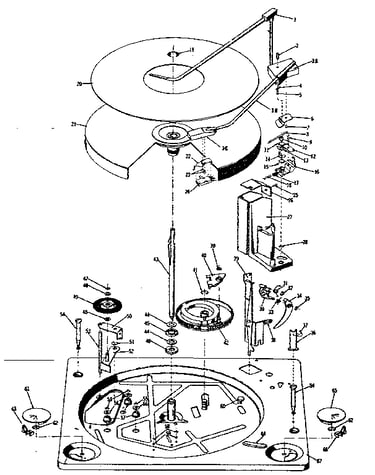

Top view diagram

Clip

Part #A100779

The manufacturer no longer makes this part, and there's no substitute part

Washer A102595
#93

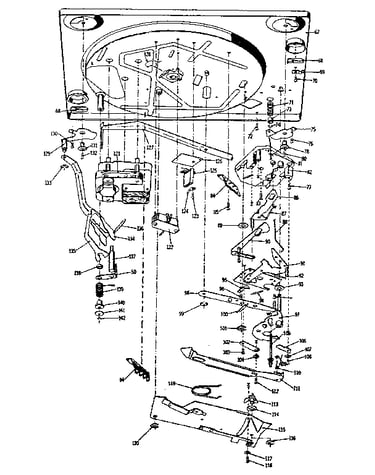

Bottom view diagram

Washer

Part #A102595

The manufacturer no longer makes this part, and there's no substitute part

Spacer A104861
#73

Bottom view diagram

Spacer

Part #A104861

The manufacturer no longer makes this part, and there's no substitute part

Washer A102237
Washer

Part #A102237

The manufacturer no longer makes this part, and there's no substitute part

Screw A105264
#70

Bottom view diagram

Screw

Part #A105264

The manufacturer no longer makes this part, and there's no substitute part

Spring A102623
Spring

Part #A102623

The manufacturer no longer makes this part, and there's no substitute part

Arm Assembly B105226-3
#1

Top view diagram

Arm assembly

Part #B105226-3

The manufacturer no longer makes this part, and there's no substitute part

Screw A105263
Screw

Part #A105263

The manufacturer no longer makes this part, and there's no substitute part

Washer A102058
#46

Top view diagram

Washer

Part #A102058

The manufacturer no longer makes this part, and there's no substitute part

Clamp A104619
#69

Bottom view diagram

Clamp

Part #A104619

The manufacturer no longer makes this part, and there's no substitute part
