Briggs & Stratton
Lawn & Garden Engine

Model # 170400 TO 170499 (0510 - 0570) Official Briggs & Stratton gas engine

Here are the diagrams and repair parts for Official Briggs & Stratton 170400-TO-170499-0510-0570 gas engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

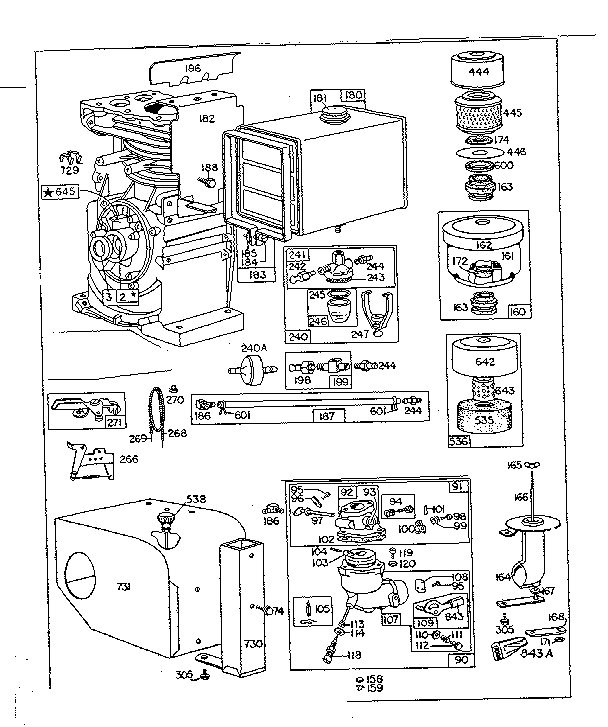

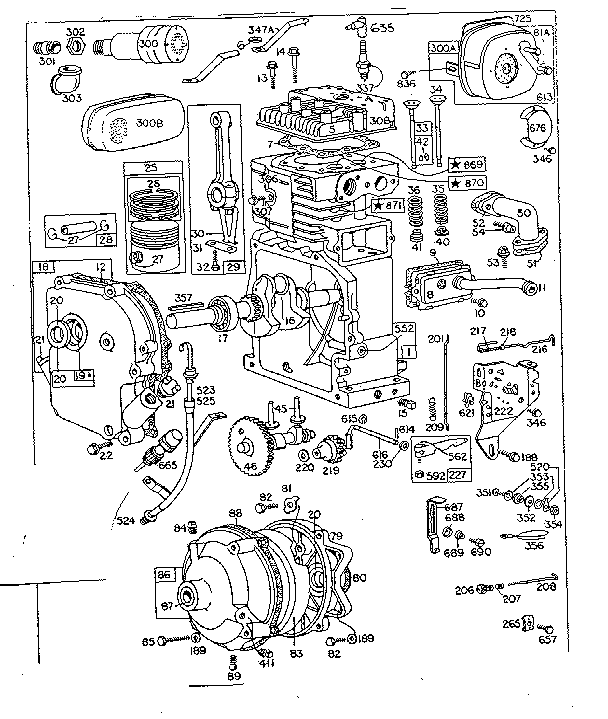

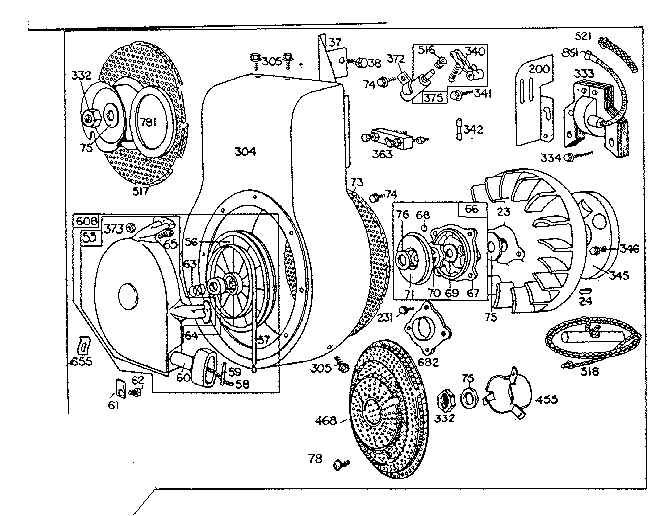

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 377 parts  |
Strtr Motor 392749

#309G

All parts diagram

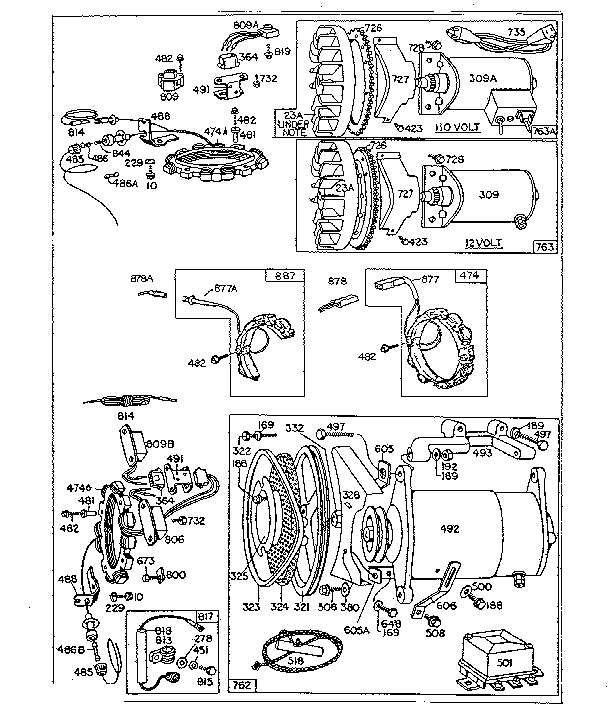

Strtr motor

Part #392749

Replaced by #795121

?
Manufacturer substitution
This part replaces 392749. Substitute parts can look different from the original.
BEST SELLER
$165.53 |
7% OFF Phone Price : $177.53
In Stock
Starter 390838

#309C

All parts diagram

Starter

Part #390838

Replaced by #795121

?
Manufacturer substitution
This part replaces 390838. Substitute parts can look different from the original.
BEST SELLER
$165.53 |
7% OFF Phone Price : $177.53
In Stock
Hous. Str 392744

#803H

All parts diagram

Hous. str

Part #392744

Replaced by #795121

?
Manufacturer substitution
This part replaces 392744. Substitute parts can look different from the original.
BEST SELLER
$165.53 |
7% OFF Phone Price : $177.53
In Stock
Stator-alt 391520

#474A

All parts diagram

Stator-alt

Part #391520

Replaced by #592831

?
Manufacturer substitution
This part replaces 391520. Substitute parts can look different from the original.
BEST SELLER
$101.70 |
11% OFF Phone Price : $113.70
In Stock
Stator 393474

#474

All parts diagram

Stator

Part #393474

Replaced by #592831

?
Manufacturer substitution
This part replaces 393474. Substitute parts can look different from the original.
BEST SELLER
$101.70 |
11% OFF Phone Price : $113.70
In Stock
Term Cable 221798

#851

All parts diagram

Term cable

Part #221798

Replaced by #493880S

?
Manufacturer substitution
This part replaces 221798. Substitute parts can look different from the original.
This item is not returnable
$4.75 |
17% OFF Phone Price : $5.75
In Stock
Plug Oil Fil 66768

#21

All parts diagram

Plug oil fil

Part #66768

Replaced by #281658S

?
Manufacturer substitution
This part replaces 66768. Substitute parts can look different from the original.
This item is not returnable
$5.79 |
15% OFF Phone Price : $6.79
In Stock
Oil Seal 68838

#524

All parts diagram

Oil seal

Part #68838

Replaced by #281370S

?
Manufacturer substitution
This part replaces 68838. Substitute parts can look different from the original.
This item is not returnable
$11.80 |
14% OFF Phone Price : $13.80
In Stock
Sprng Gvrnr 260695

#209

All parts diagram

Sprng gvrnr

Part #260695

Replaced by #796260

?
Manufacturer substitution
This part replaces 260695. Substitute parts can look different from the original.
This item is not returnable
$8.09 |
11% OFF Phone Price : $9.09
In Stock
Pul Rewd Str 295871

#56

All parts diagram

Pul rewd str

Part #295871

Replaced by #295871

?
Manufacturer substitution
This part replaces 295871. Substitute parts can look different from the original.
This item is not returnable
$26.99 |
18% OFF Phone Price : $32.99
In Stock
