Model # R1402 Official Goldstar room air conditioner

Here are the diagrams and repair parts for Official Goldstar R1402 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

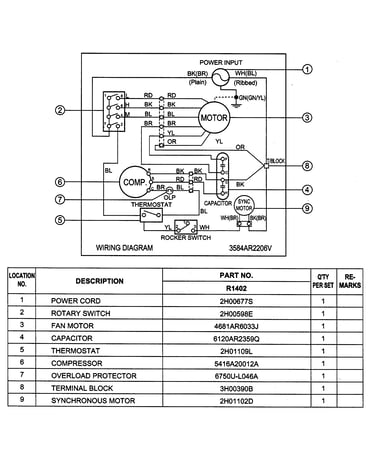

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 67 parts  |
Room Air Conditioner Blower Wheel 5834AR1599A
#31

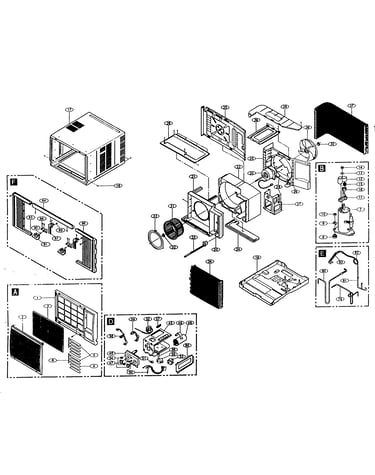

Cabinet parts diagram

Room air conditioner blower wheel

Part #5834AR1599A

Replaced by #5834AR1599B

?
Manufacturer substitution
This part replaces 5834AR1599A. Substitute parts can look different from the original.
$38.30 |
14% OFF Phone Price : $44.30
Back Order
Sill Bracket 3H01395C
#88

Cabinet parts diagram

Sill bracket

Part #3H01395C

Replaced by #AET73691406

?
Manufacturer substitution
This part replaces 3H01395C. Substitute parts can look different from the original.
$71.96
In Stock
Bracket Support 3H01479D
#87

Cabinet parts diagram

Bracket support

Part #3H01479D

Replaced by #AET73691406

?
Manufacturer substitution
This part replaces 3H01479D. Substitute parts can look different from the original.
$71.96
In Stock
Lg Room Air Conditioner Louver Link 4520AR4386A
#57

Cabinet parts diagram

Lg room air conditioner louver link

Part #4520AR4386A

This item is not returnable
$4.51
In Stock
Bracket 4H01811C
#9

Cabinet parts diagram

Bracket

Part #4H01811C

This item is not returnable
$4.51
In Stock
Room Air Conditioner Louver Motor Cam 4520AR4339A
#56

Cabinet parts diagram

Room air conditioner louver motor cam

Part #4520AR4339A

This item is not returnable
$4.51
In Stock
Rotary Switch 2H00598E
#53

Cabinet parts diagram

Rotary switch

Part #2H00598E

$27.47
In Stock
Damper 4900AR7265A
#23

Cabinet parts diagram

Damper

Part #4900AR7265A

$71.93
In Stock
Brace 4800AR7272A
#39

Cabinet parts diagram

Brace

Part #4800AR7272A

$14.51
In Stock
Lg Base Assembly 3040AR6160A
#24

Cabinet parts diagram

Lg base assembly

Part #3040AR6160A

This item is not returnable
$7.00
In Stock
