Kenmore
Canister Vacuum

Model # 1162035080 Official Kenmore vacuum cleaner

Here are the diagrams and repair parts for Official Kenmore 1162035080 vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |

Upholstery Brush 4151029
#17

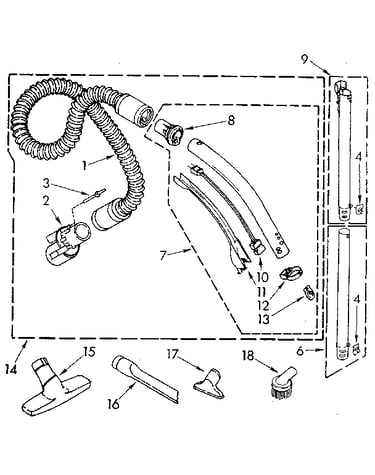

Hose and attachment diagram

Upholstery brush

Part #4151029

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Caster 4147123
#28

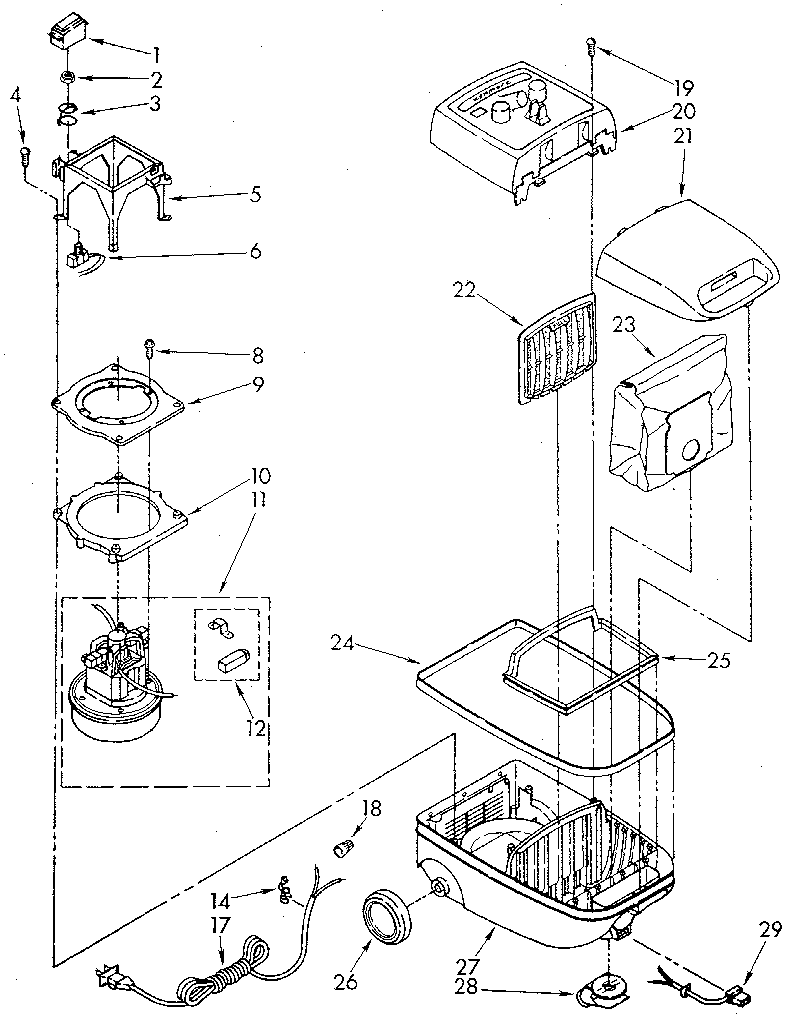

Base assembly diagram

Vacuum caster

Part #4147123

The manufacturer no longer makes this part, and there's no substitute part

Floor Brush 4147110
#15

Hose and attachment diagram

Floor brush

Part #4147110

The manufacturer no longer makes this part, and there's no substitute part

Switch 744486
#6

Base assembly diagram

Switch

Part #744486

The manufacturer no longer makes this part, and there's no substitute part

Canister Hood 4153162
#21

Base assembly diagram

Canister hood

Part #4153162

The manufacturer no longer makes this part, and there's no substitute part

Wheel 4147119
#26

Base assembly diagram

Wheel

Part #4147119

The manufacturer no longer makes this part, and there's no substitute part

Hose 4150575
#1

Hose and attachment diagram

Hose

Part #4150575

The manufacturer no longer makes this part, and there's no substitute part

Rear Cover 4153160
#20

Base assembly diagram

Rear cover

Part #4153160

The manufacturer no longer makes this part, and there's no substitute part

Crevice Tool 4147889
#16

Hose and attachment diagram

Crevice tool

Part #4147889

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Adapter 4152608
#8

Hose and attachment diagram

Vacuum adapter

Part #4152608

The manufacturer no longer makes this part, and there's no substitute part
