Model # 4376AT-2 Official Eureka upright vacuum

Here are the diagrams and repair parts for Official Eureka 4376AT-2 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

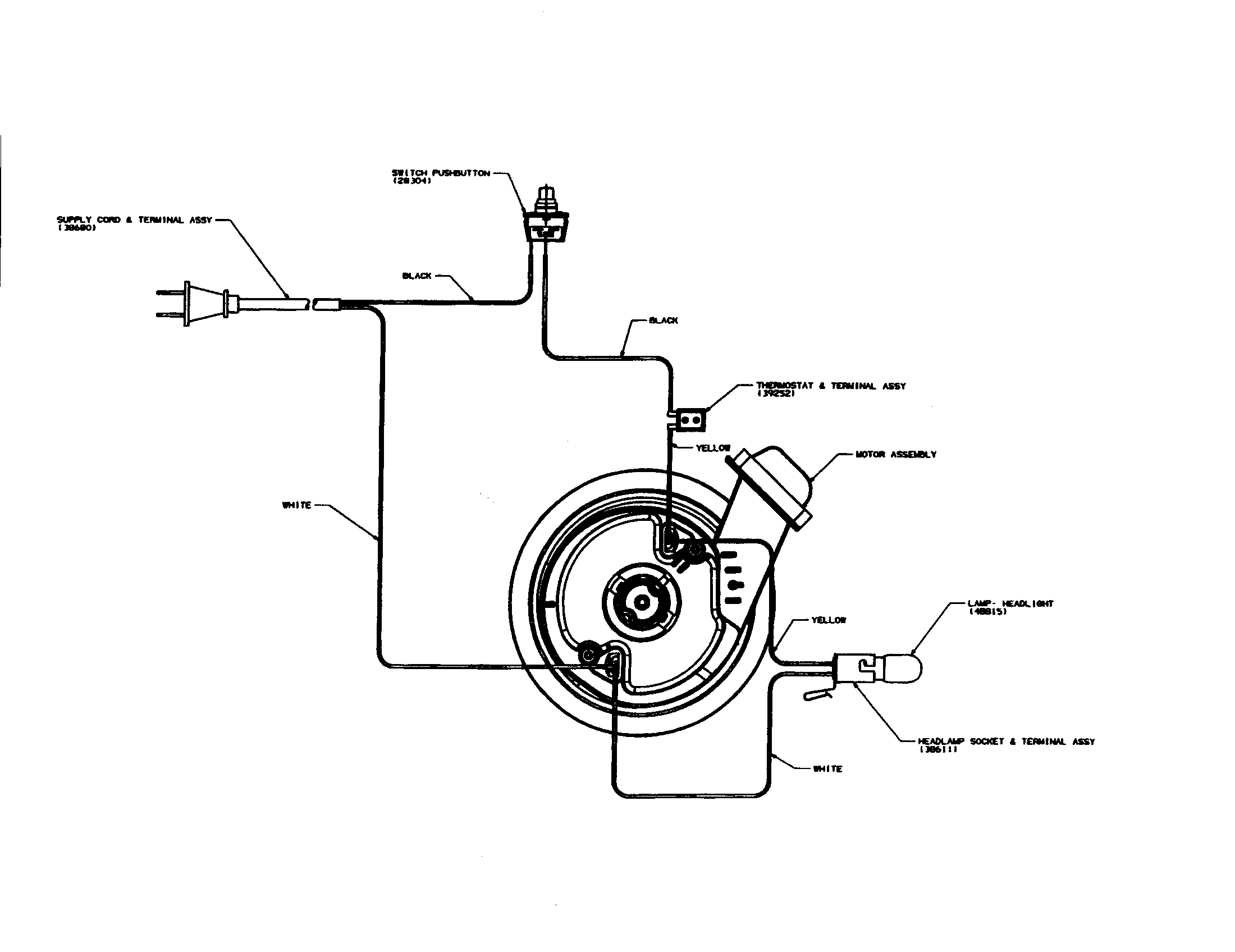

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 64 parts  |

Electrolux Vacuum Spring 54943
#7

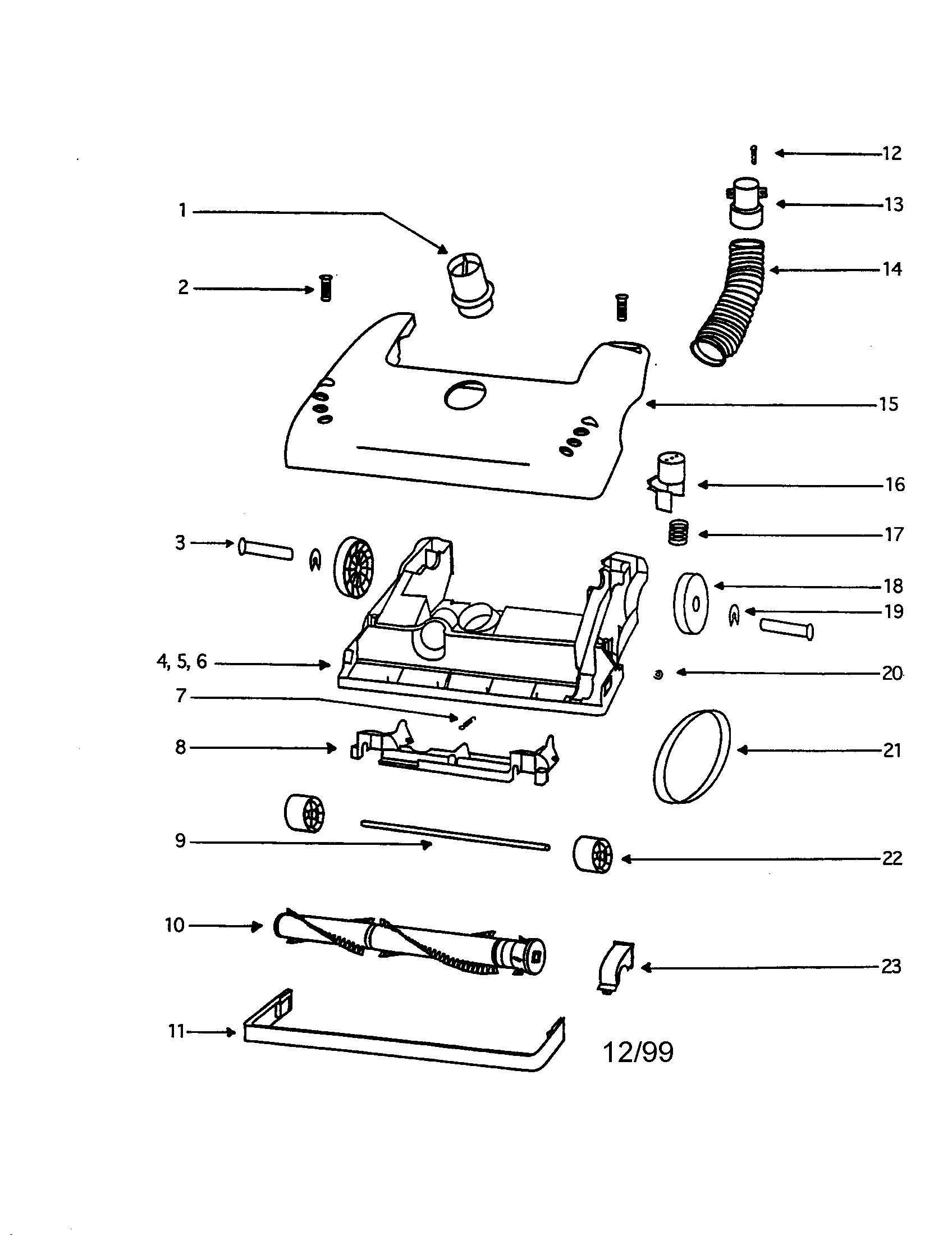

Hood assembly diagram

Electrolux vacuum spring

Part #54943

The manufacturer no longer makes this part, and there's no substitute part

Air Duct 15408B-119N
#13

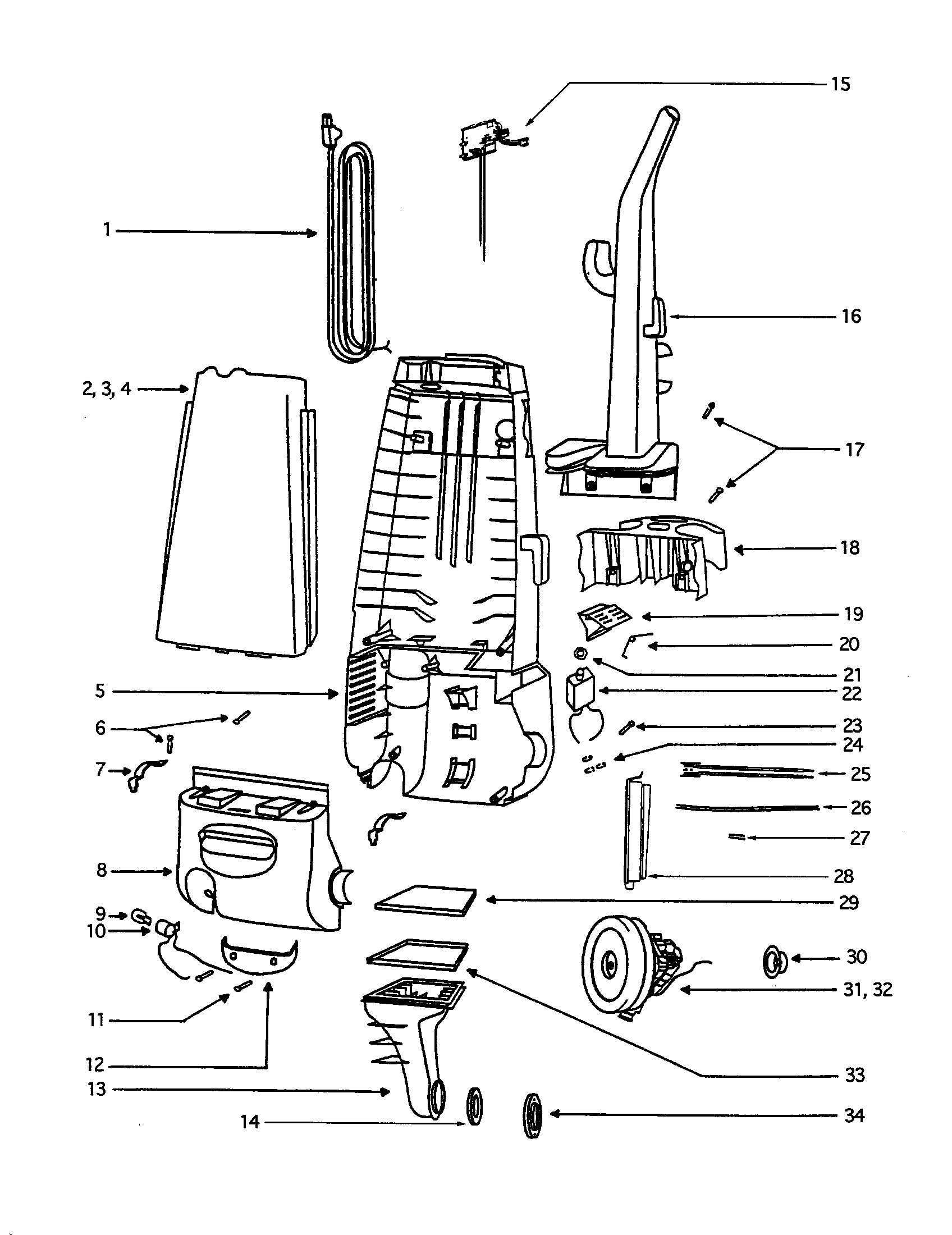

Body diagram

Air duct

Part #15408B-119N

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Light Bulb 48815
#9

Body diagram

Vacuum light bulb

Part #48815

The manufacturer no longer makes this part, and there's no substitute part

Wand 58728B
#3

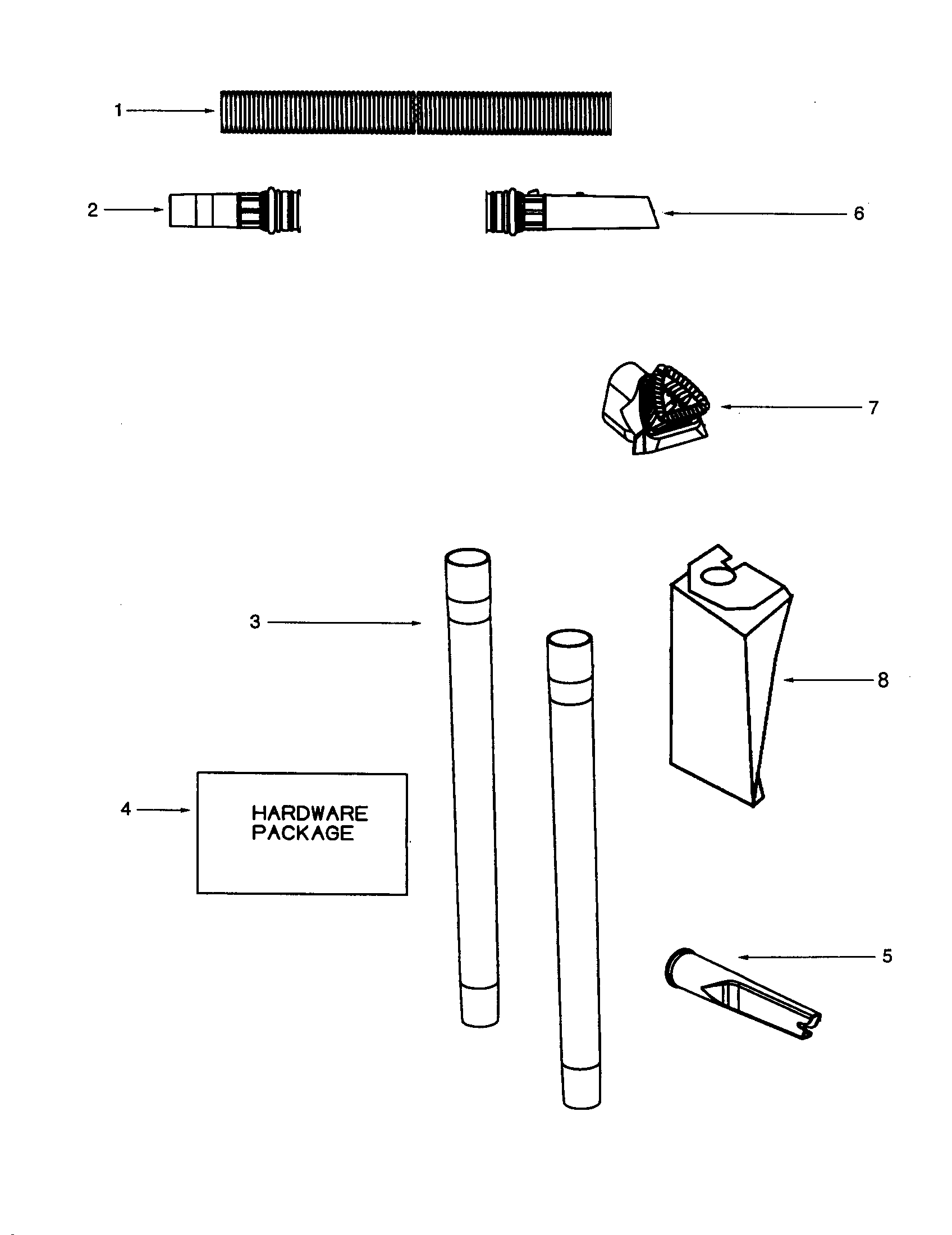

Accessories diagram

Wand

Part #58728B

The manufacturer no longer makes this part, and there's no substitute part

Gasket 27171A
#14

Body diagram

Gasket

Part #27171A

The manufacturer no longer makes this part, and there's no substitute part

Brush-flr 61037
#7

Accessories diagram

Brush-flr

Part #61037

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Hose Assembly 61028-1
#1

Accessories diagram

Vacuum hose assembly

Part #61028-1

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 39252-2
#25

Body diagram

Thermostat

Part #39252-2

The manufacturer no longer makes this part, and there's no substitute part

Adapter 59361A
#27

Body diagram

Adapter

Part #59361A

The manufacturer no longer makes this part, and there's no substitute part

Gasket 38613
#4

Body diagram

Gasket

Part #38613

The manufacturer no longer makes this part, and there's no substitute part
