Model # FAB077Y7B3 Official Frigidaire room air conditioner - p5995305082

Here are the diagrams and repair parts for Official Frigidaire FAB077Y7B3 room air conditioner - p5995305082, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

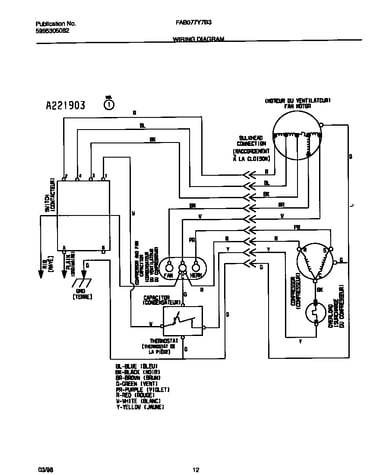

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |
Westinghouse Screw-wrapper 5303293767
#39

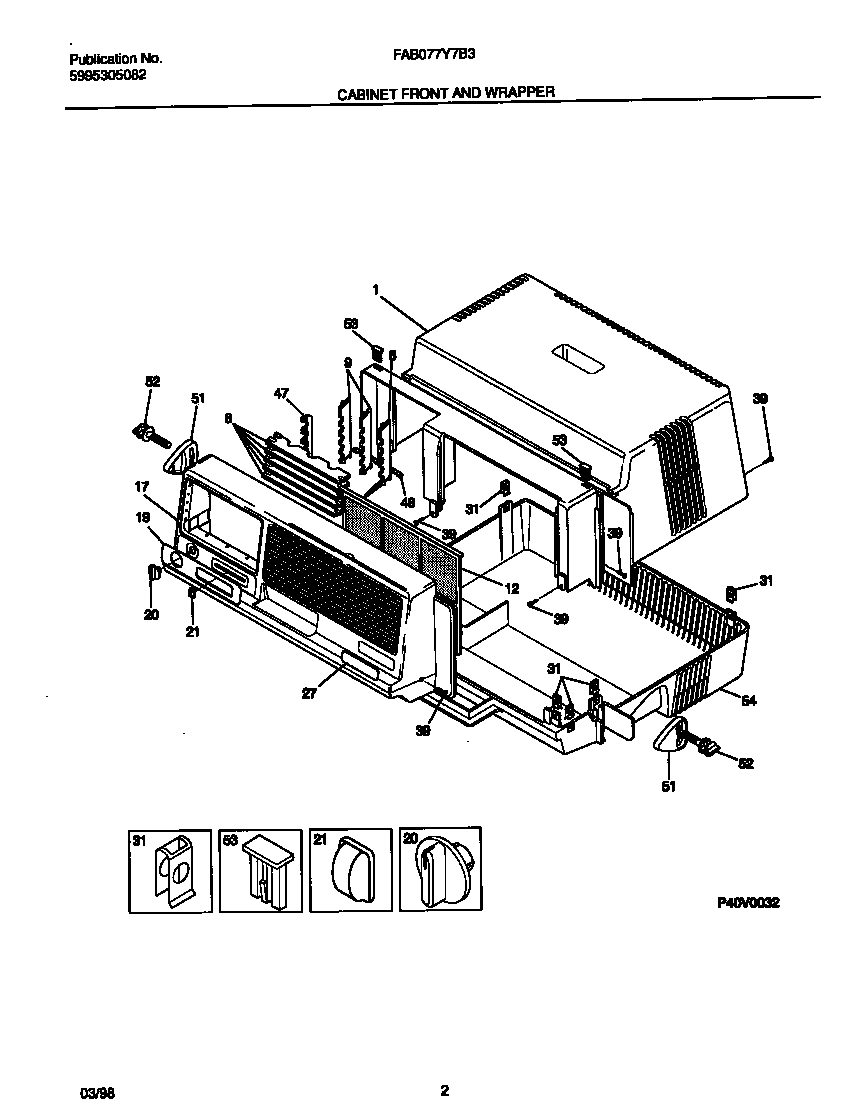

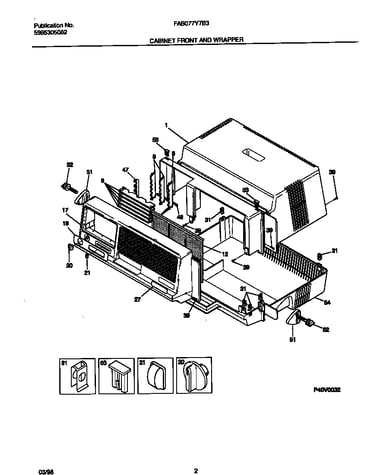

Cabinet front and wrapper diagram

Westinghouse screw-wrapper

Part #5303293767

This item is not returnable
$5.80
In Stock
Overload 5303270037
#8

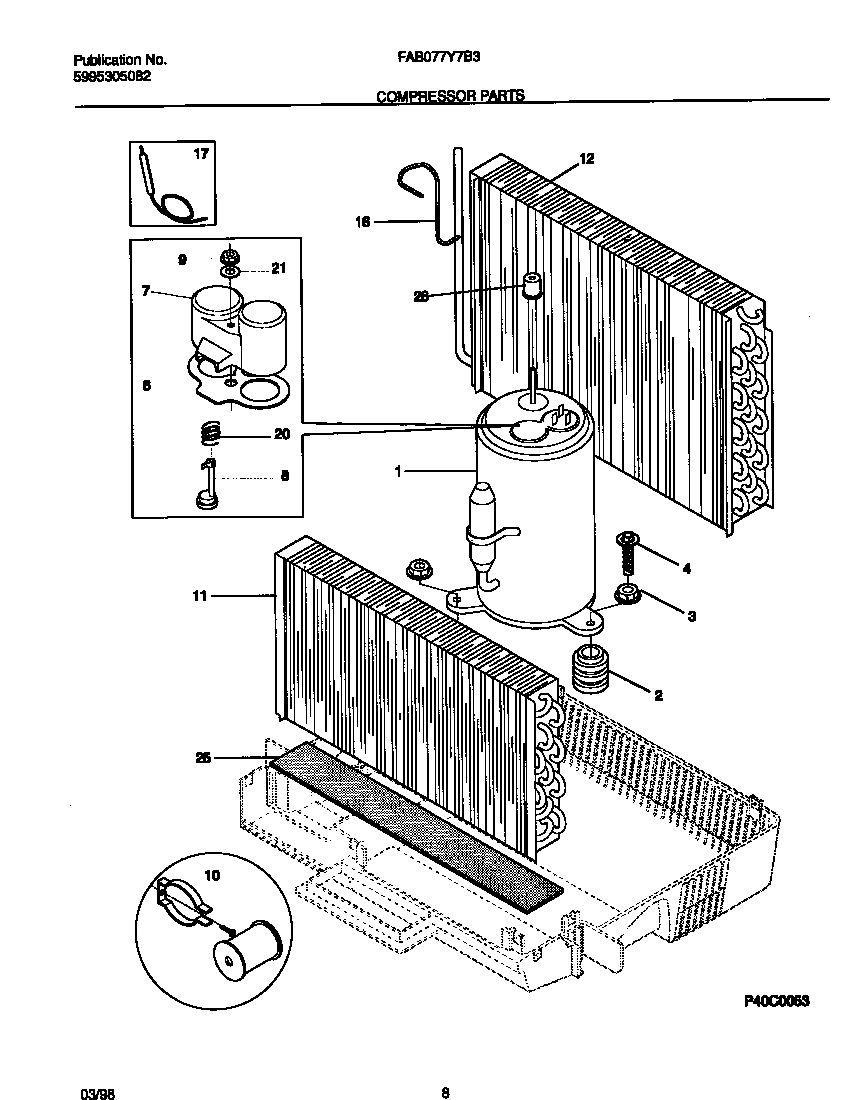

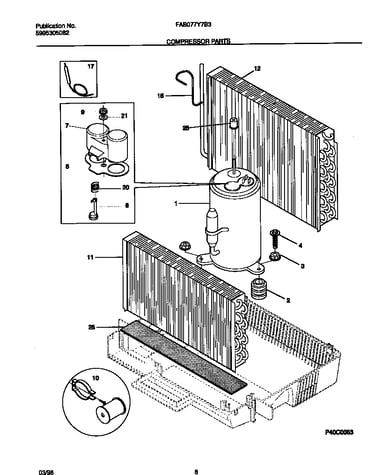

Compressor parts diagram

Overload

Part #5303270037

$12.19
In Stock
Capacitor 5303295749
#13

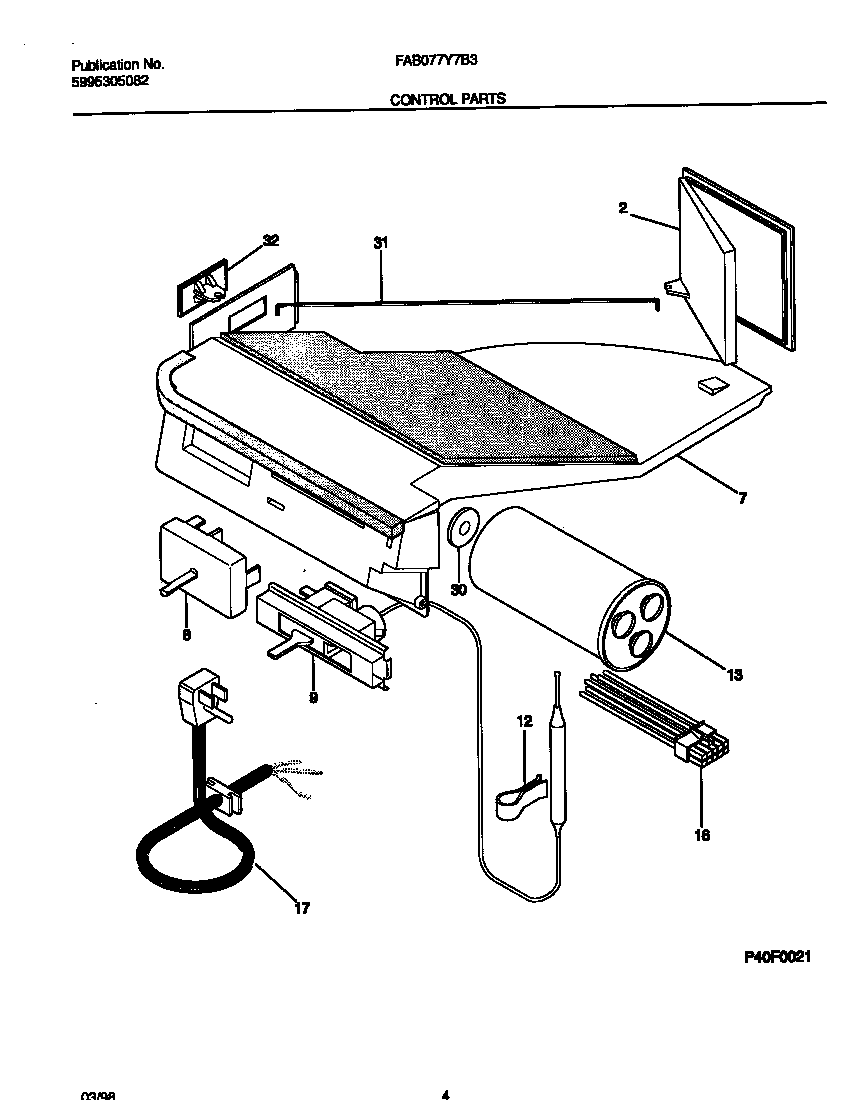

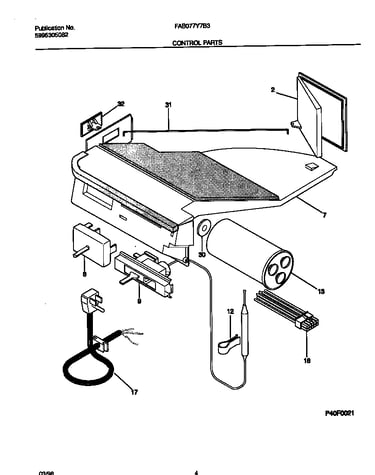

Control parts diagram

Capacitor

Part #5303295749

$122.96
In Stock
Westinghouse Room Air Conditioner Filter Dryer 5300265301
#17

Compressor parts diagram

Westinghouse room air conditioner filter dryer

Part #5300265301

$212.62
In Stock
Gasket 3002603
#1

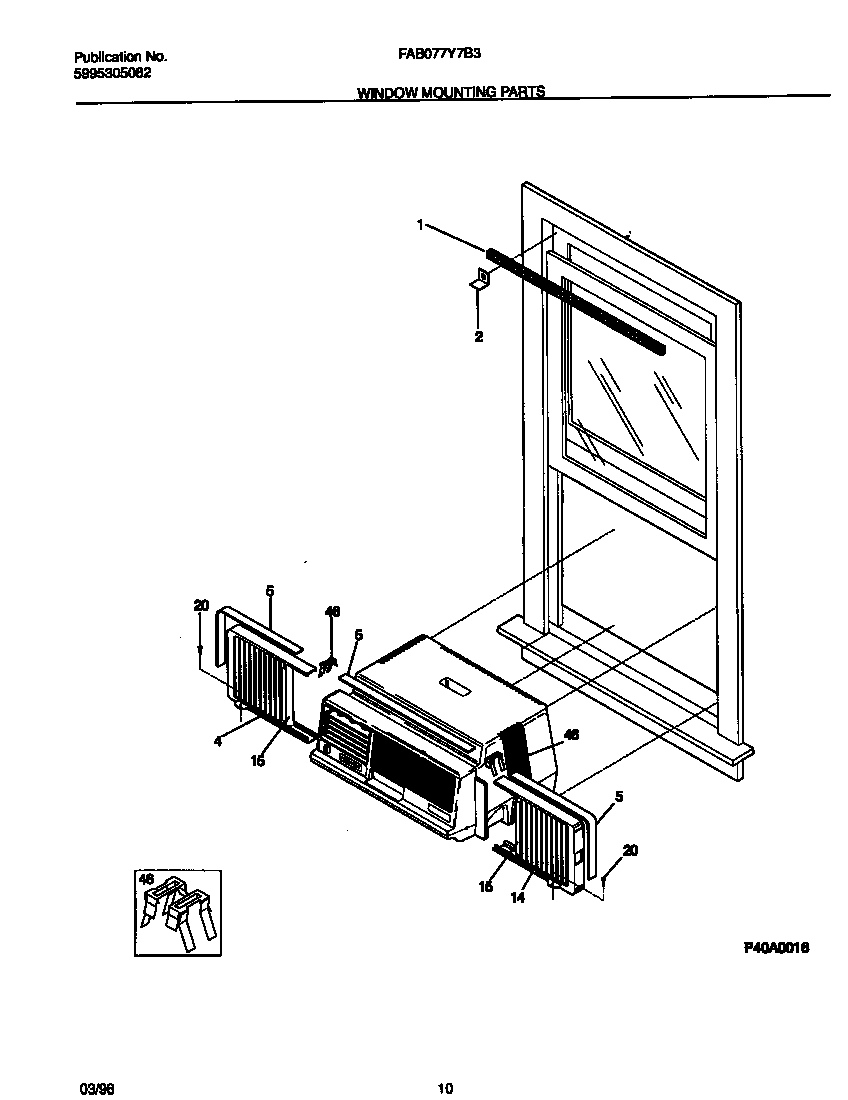

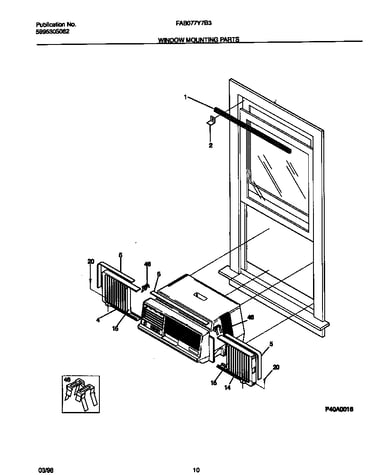

Window mounting parts diagram

Gasket

Part #3002603

Replaced by #5304407729

?
Manufacturer substitution
This part replaces 3002603. Substitute parts can look different from the original.
$25.17
In Stock
Screw 3202975
#2

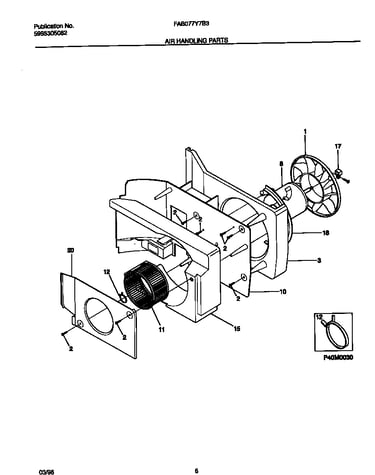

Air handling parts diagram

Screw

Part #3202975

Replaced by #5304410881

?
Manufacturer substitution
This part replaces 3202975. Substitute parts can look different from the original.
This item is not returnable
$4.77
In Stock
Link 5303285477
#47

Cabinet front and wrapper diagram

Link

Part #5303285477

The manufacturer no longer makes this part, and there's no substitute part

Frame 5303321504
#4

Window mounting parts diagram

Frame

Part #5303321504

The manufacturer no longer makes this part, and there's no substitute part

Plate 5303286383
#20

Air handling parts diagram

Plate

Part #5303286383

The manufacturer no longer makes this part, and there's no substitute part

Louver 5303289531
#8

Cabinet front and wrapper diagram

Louver

Part #5303289531

The manufacturer no longer makes this part, and there's no substitute part
