GE
Wall Oven/Microwave Combo

Model # JKP67G*J2 Official GE wall oven/microwave combo

Here are the diagrams and repair parts for Official GE JKP67GJ2 wall oven/microwave combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

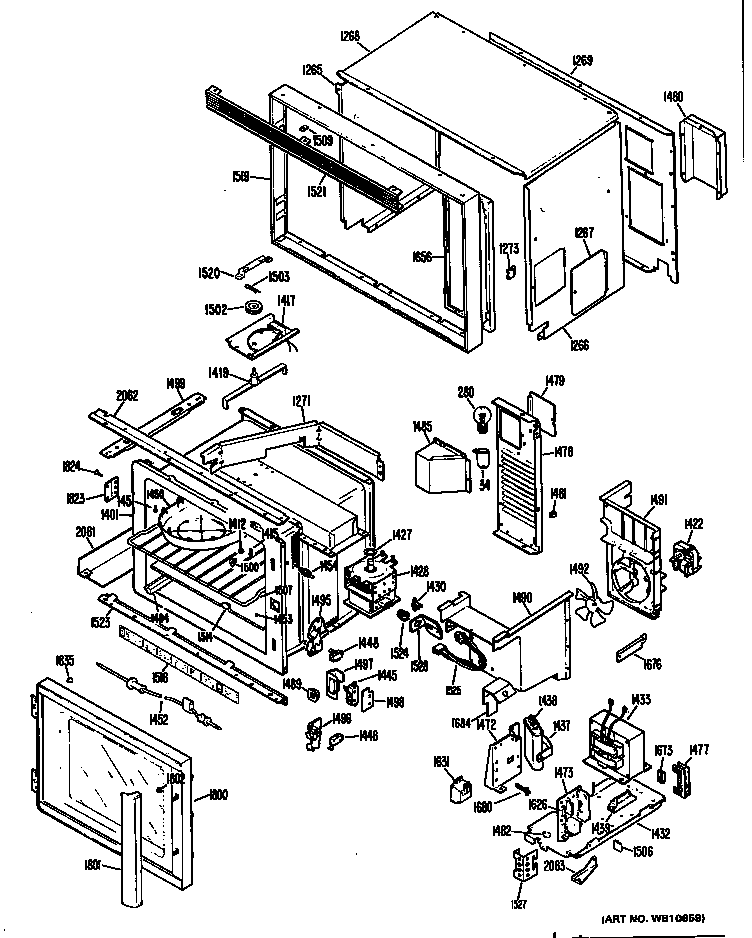

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 256 parts  |
Range Oven Light Bulb WX12X1510
Range oven light bulb

Part #WX12X1510

Replaced by #40A15

?
Manufacturer substitution
This part replaces WX12X1510. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Screw WB1X593

#NI

All parts diagram

Screw

Part #WB1X593

Replaced by #WB1X536

?
Manufacturer substitution
This part replaces WB1X593. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Broil Pan Rack WB48X5002
#530

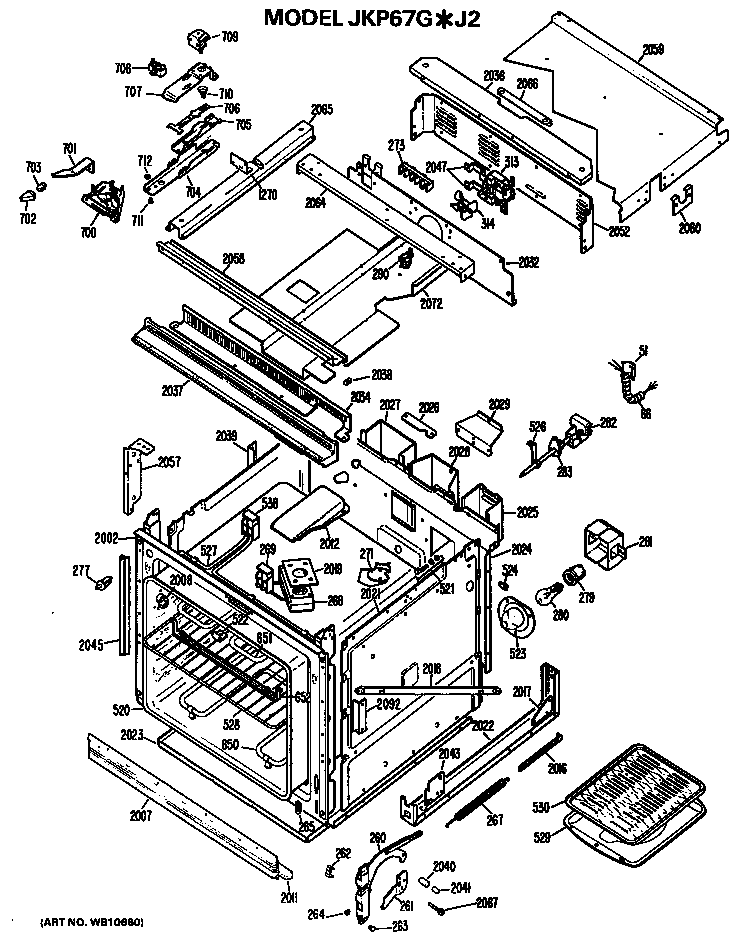

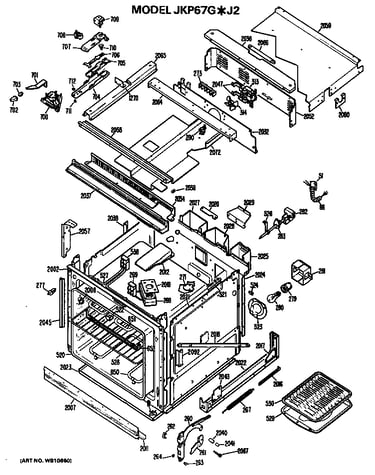

Lower oven diagram

Broil pan rack

Part #WB48X5002

Replaced by #WB48X10056

?
Manufacturer substitution
This part replaces WB48X5002. Substitute parts can look different from the original.
$31.29 |
16% OFF Phone Price : $37.29
In Stock
Broiler Pan WB49X5380
#529

Lower oven diagram

Broiler pan

Part #WB49X5380

Replaced by #WB48X10056

?
Manufacturer substitution
This part replaces WB49X5380. Substitute parts can look different from the original.
$31.29 |
16% OFF Phone Price : $37.29
In Stock
Range Oven Door Gasket WB2X3138
#352

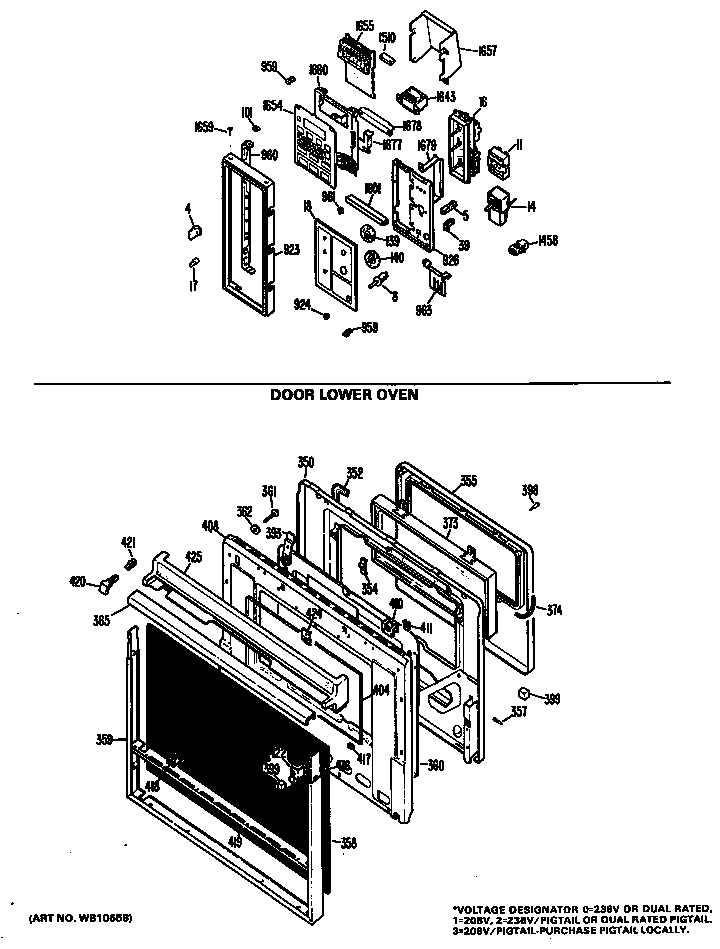

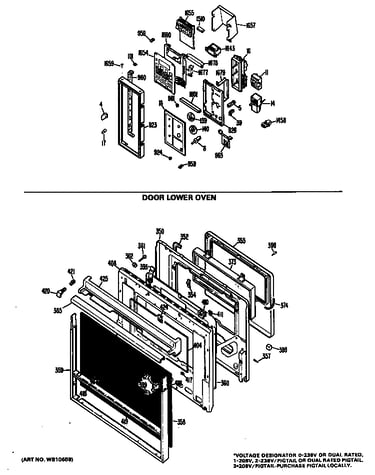

Door lower oven diagram

Range oven door gasket

Part #WB2X3138

$120.27 |
9% OFF Phone Price : $132.27
In Stock
Range Oven Light Lens (replaces Wb2x6211, Wb36x0192, Wb36x279, Wb36x299, Wb36x389, Wb8k5) WB36X192
#523

Lower oven diagram

Range oven light lens (replaces wb2x6211, wb36x0192, wb36x279, wb36x299, wb36x389, wb8k5)

Part #WB36X192

This item is not returnable
$9.54 |
9% OFF Phone Price : $10.54
In Stock
Range Bake Element (replaces Wb44x0200, Wb44x160) WB44X200
#650

Lower oven diagram

Range bake element (replaces wb44x0200, wb44x160)

Part #WB44X200

$51.96 |
10% OFF Phone Price : $57.96
In Stock
Range Broil Element Support WB2X1452
#652

Lower oven diagram

Range broil element support

Part #WB2X1452

$26.02 |
19% OFF Phone Price : $32.02
In Stock
Broil Unit WB44X185
#651

Lower oven diagram

Broil unit

Part #WB44X185

Replaced by #WB44X173

?
Manufacturer substitution
This part replaces WB44X185. Substitute parts can look different from the original.
$27.42 |
18% OFF Phone Price : $33.42
In Stock
Washer WB1X119
#362

Door lower oven diagram

Washer

Part #WB1X119

Replaced by #WB1X119D

?
Manufacturer substitution
This part replaces WB1X119. Substitute parts can look different from the original.
This item is not returnable
$22.85 |
21% OFF Phone Price : $28.85
In Stock
